- Analogue PIR sensor with digital signal processing
- LODIFF® optical technology and POLY IR® materials create the perfect combination of top quality and performance
- Compatible with any wired control panel
- Protection against white light and high resistance to radio interference
- Pet immunity up to 15 kg
- Housing tamper protection
- CE, EN Grade 2

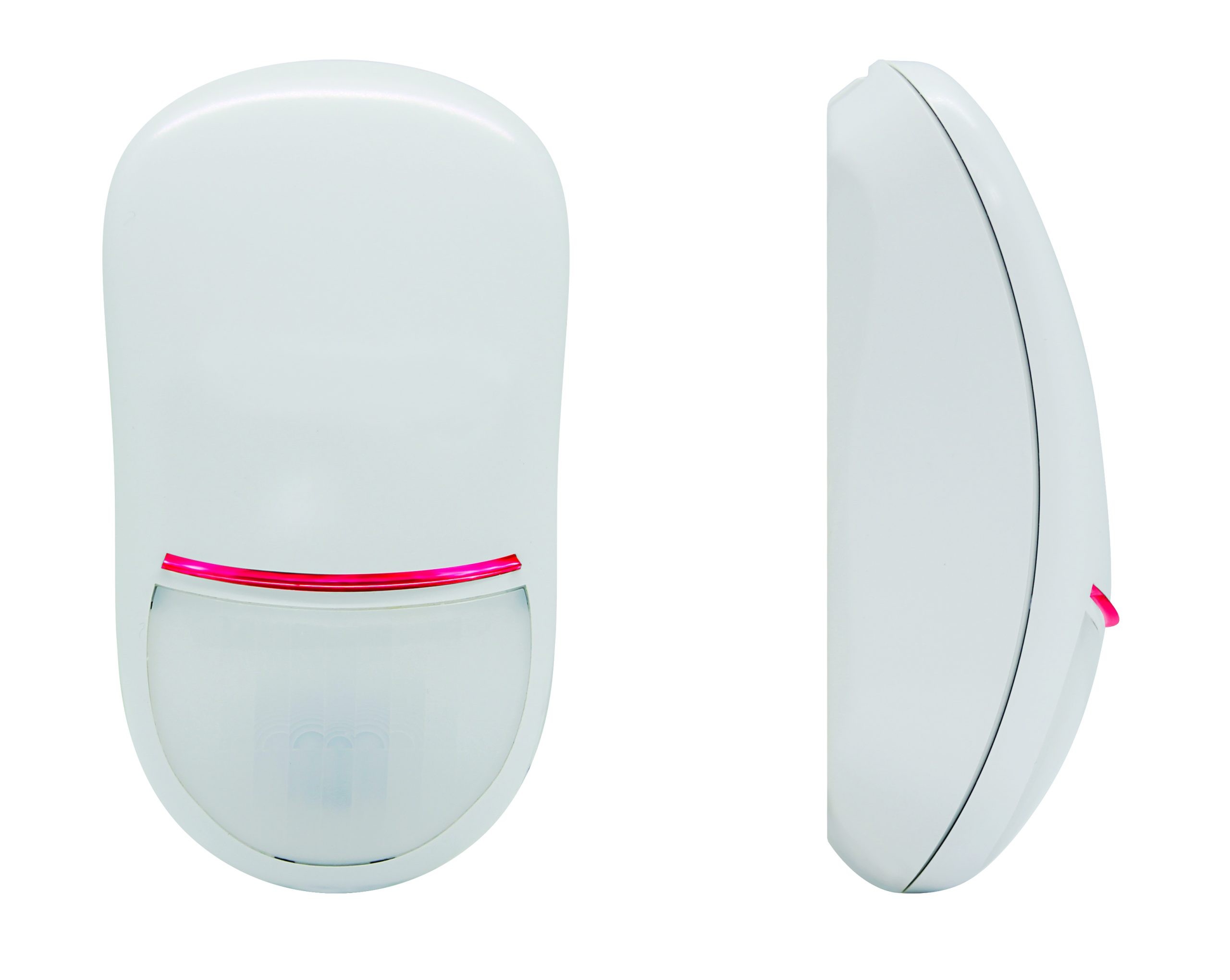

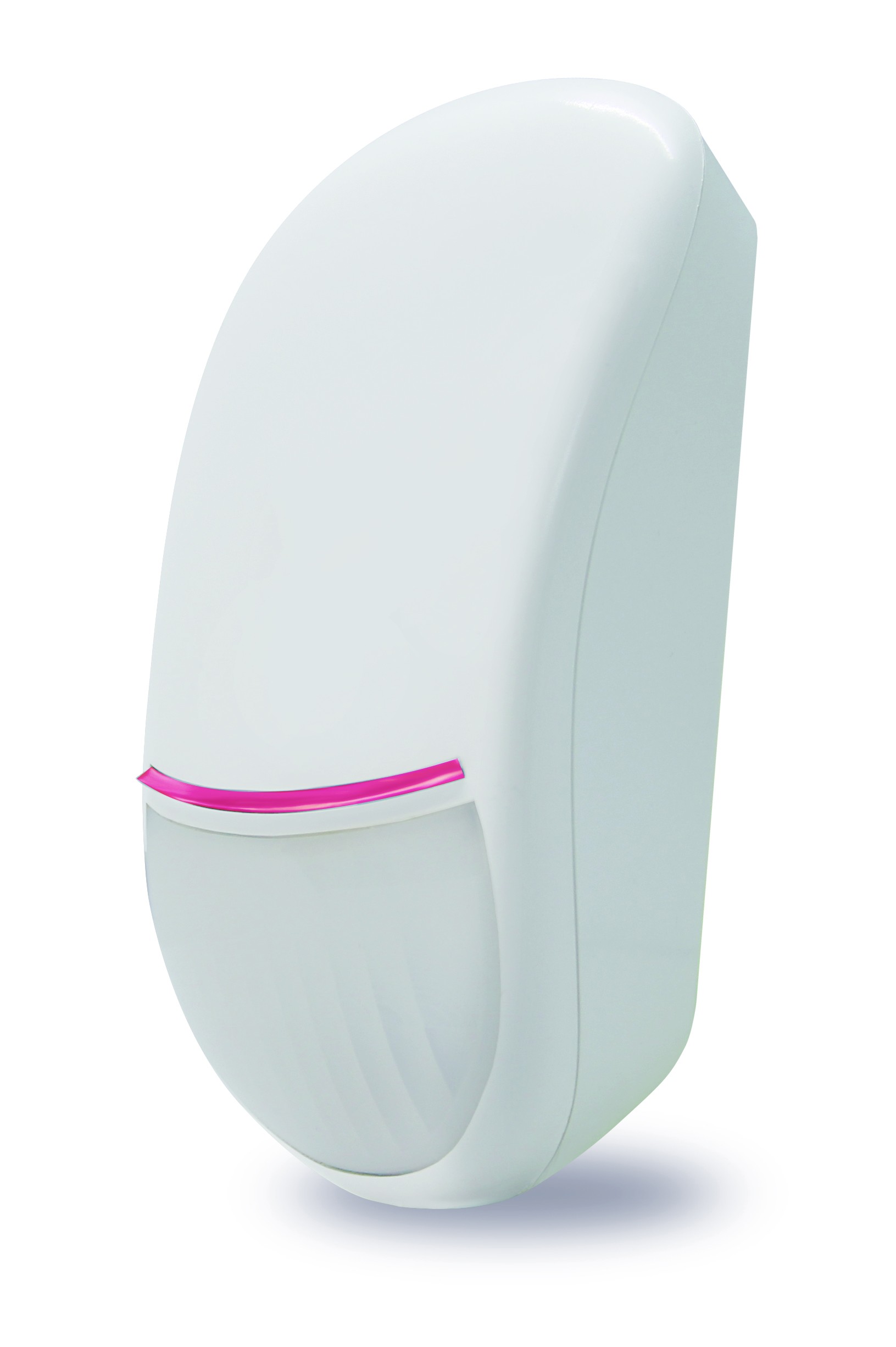

The LC-200S is an analogue PIR sensor with digital processing.
The LC-200S achieves its superior housing quality and detection performance thanks to lenses designed using LODIFF® technology and manufactured from POLY IR® materials.
To reduce installation time and simplify the process, the LC-200S is fitted with built-in EOL resistors with the values required by PowerSeries Neo and PRO control panels.
Installers may choose to use their own resistors to ensure compatibility with any other wired control panel.
12-metre range
100-degree field of view
Lens: Fresnel lens with LODIFF® technology and POLY IR®4 materials
LED colour: Red
Pass test: Yes
Built-in EOL resistors: Yes, 5.6 kOhm
Enclosure tamper detection Yes
Creep zone Yes
Pulse counter Yes
RFI protection 30 V/m
Temperature compensation Yes
Installation Directly on the wall or using a bracket (LC-L2ST)
Power supply 13.8 Vdc
Current consumption 11 mA
Animal resistance: Yes, up to 15 kg
Dimensions 114 x 63 x 40 mm
