- Technology: GSM/GPRS/LTE
- Power supply: +12V/+24V
- Minimum current consumption: 15mA
- Max. current consumption: 300mA
- Average current consumption: 50mA
- Operating temperature range: -30°C to +85°C
- GSM antenna: Built-in

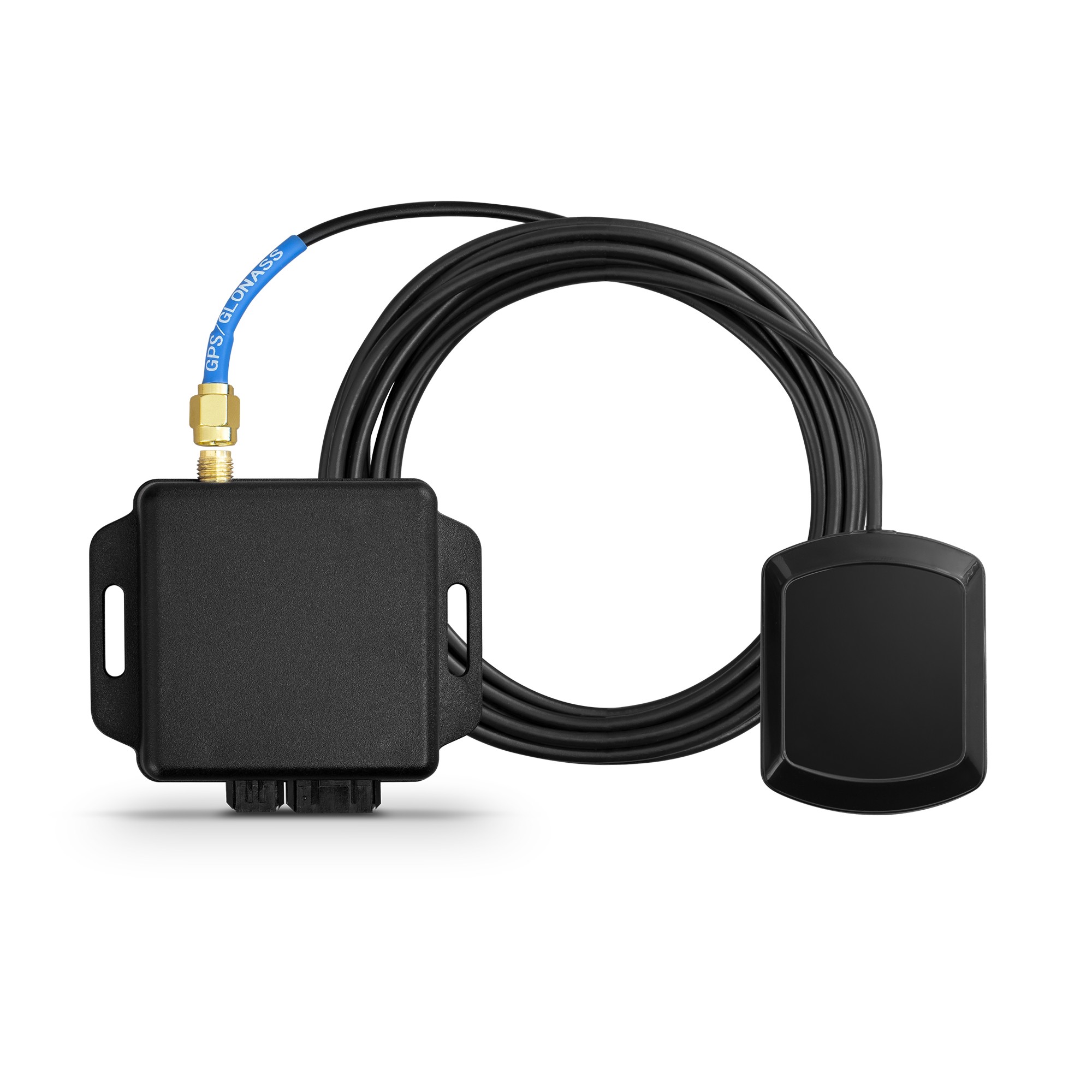

- GNSS antenna: External
- Dimensions (W × L × H): 91 × 64 × 32 mm
- Enclosure protection rating: IP30
- SIM card type: Nano (4FF)
- Built-in event and location data memory: 30,000 positions
- Built-in accelerometer: Detection of motion, tilt changes and g-forces
- Programming interface: Micro USB (manufacturer’s adapter required)
- Battery: Built-in 3.7V, 320mAh rechargeable battery
- ACC input: Ignition – changes the device’s operating mode
- Inputs:
- 1 universal ‘ground-controlled’ input (WE1)
- Analogue input (range 0–30 VDC)
- Interface: 1-Wire interface for RFID readers, i-Buttons and DALLAS digital thermometers
- Control output: Universal open-collector (OC) control output (Imax=100mA)
- (WARNING!!! Do not use this output to cut off the vehicle’s ignition circuit)
- Bus interface: CAN-BUS digital bus interface (two channels)
- Low-current outputs: 2 controlled OD outputs (Imax=700mA)

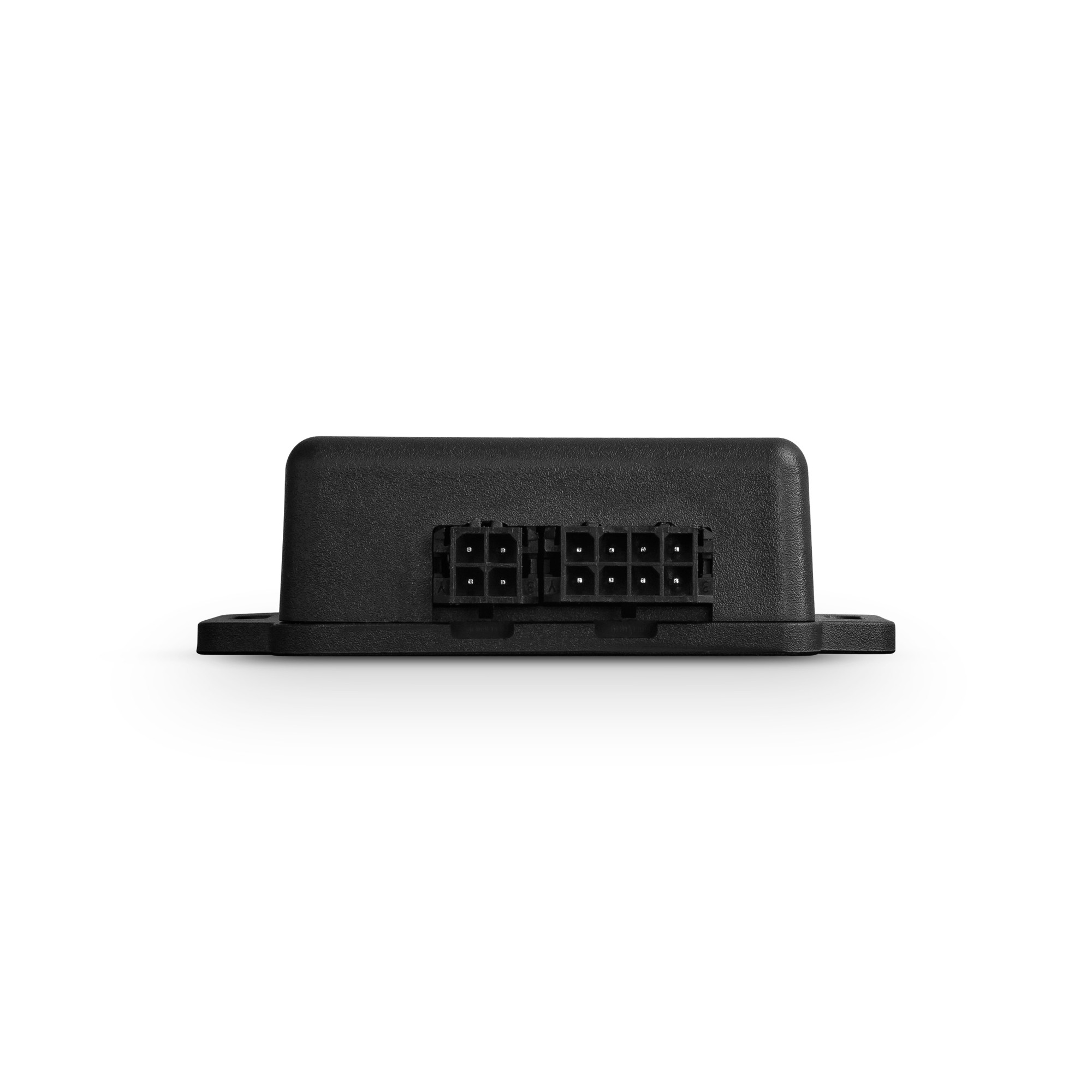

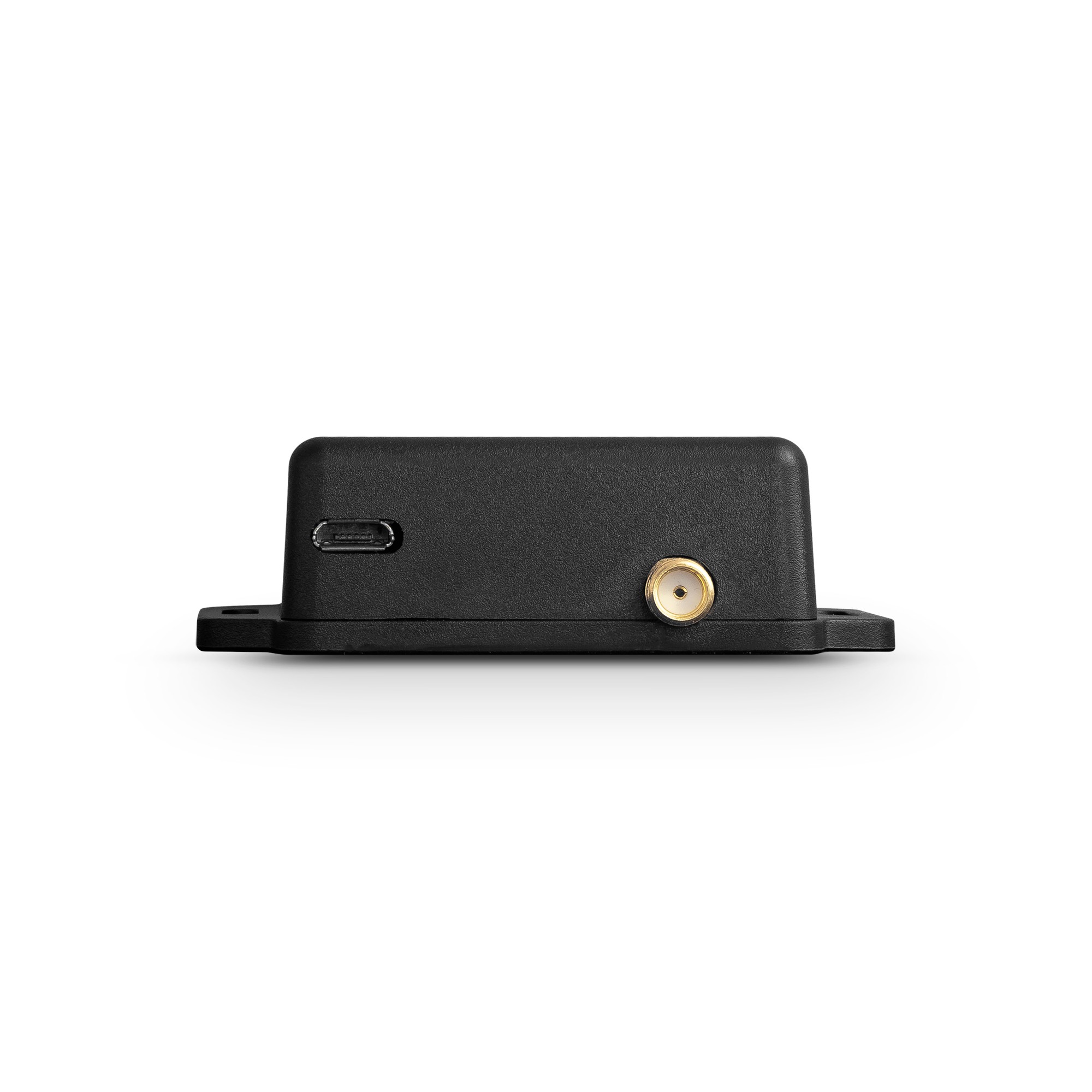

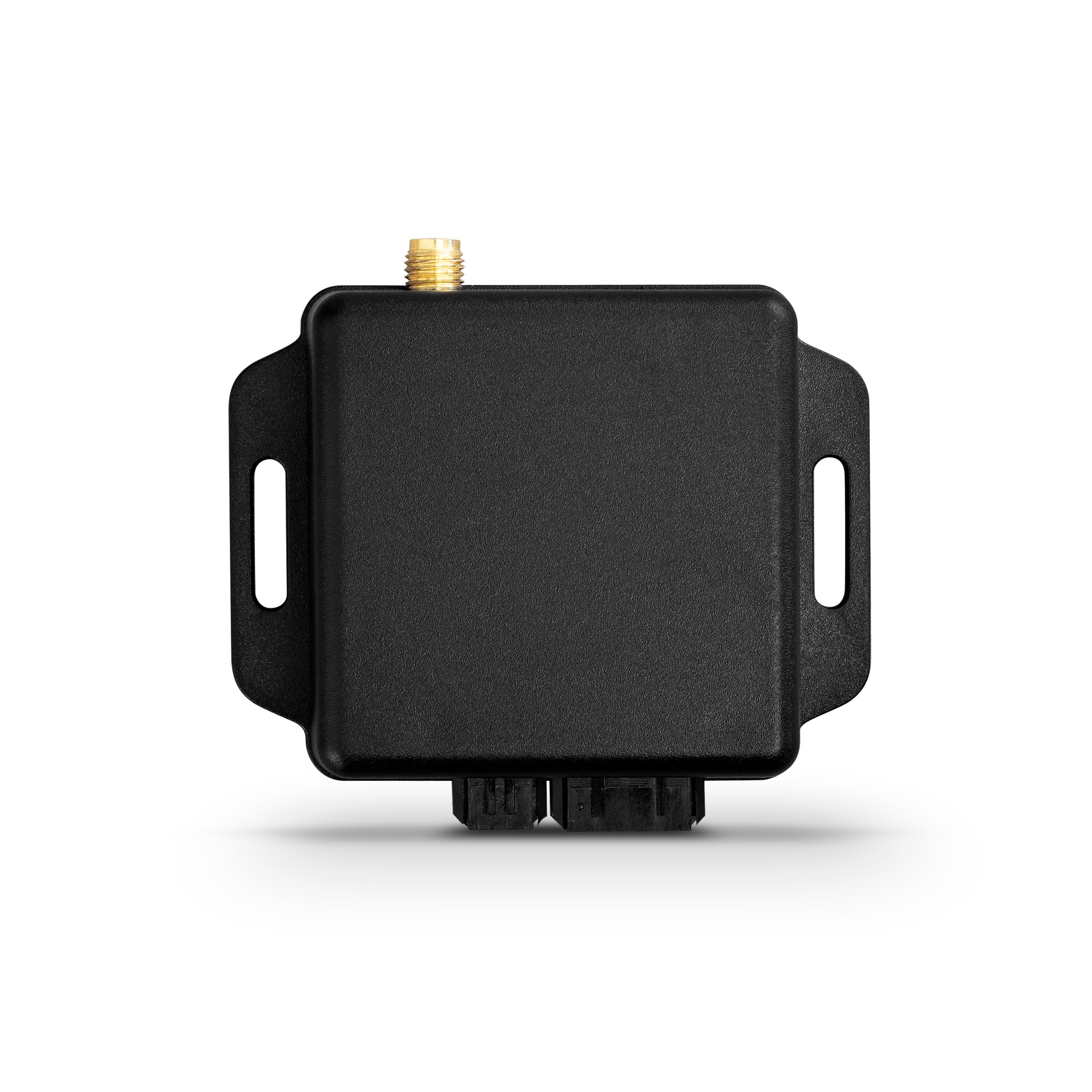

Moduł LE-880
119,31 € gross
1 In Stock- Specifications of the LE-880 transmitter – a transmitter designed specifically for car-sharing, enabling advanced telemetry and central locking control for selected vehicles*, fitted with an external GPS antenna.
- E-toll and SENT-GEO type approval
- Power supply: +12V/+24V
- Inputs:
- 2 CAN (second for control)
- 1 universal ‘ground-controlled’ input / analogue input (range 0–30 VDC)
- 1 1-Wire/RFID interface input (driver identification/sensors)
- Power supply with voltage measurement
- Ignition – changes the device’s operating mode
1 in stock
- DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
- Official BCS e-commerce Business Partner
- Technical support
| Product | Moduł LE-880 |
|---|
