PERFECTA series alarm control panels
are designed to secure small and medium-sized premises, such as flats, detached houses, terraced houses, offices, small businesses, etc. They provide protection in accordance with the requirements of Grade 2 EN 50131. The control panels are characterised by simple configuration and easy, intuitive operation via keypads. The alarm system’s functions can also be controlled remotely using the PERFECTA CONTROL mobile app and remote controls operating in the 433 MHz frequency band (when the INT-RX-S module is connected).

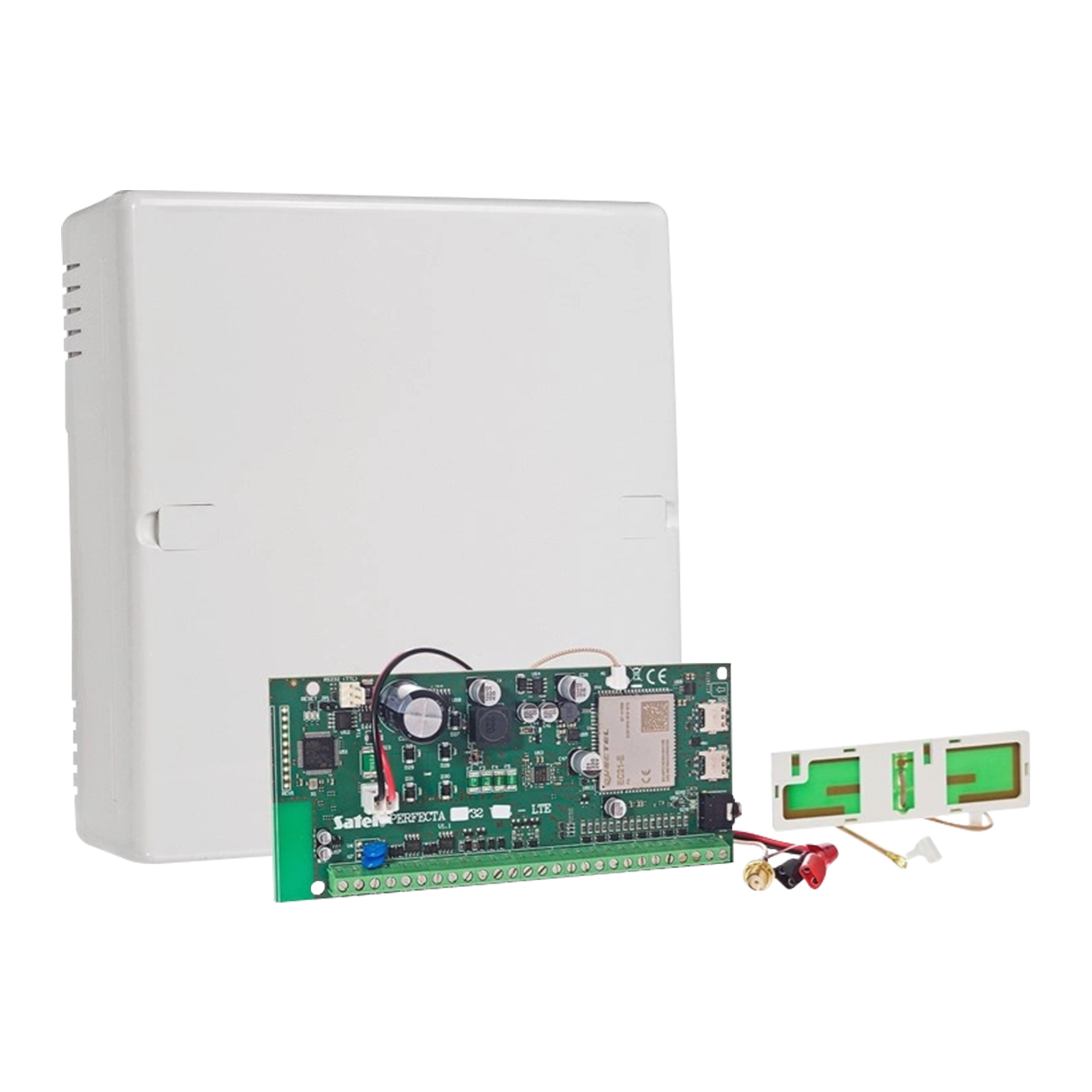

The PERFECTA 32 LTE model
, data transmission utilises LTE technology. This enables integration with a mobile app supporting push notifications, remote system configuration via the PERFECTA Soft software, event monitoring (e.g. to a security agency’s monitoring station), voice notifications, control via SMS and audio verification (listening in on sounds from the protected premises). It supports two nano-SIM cards, ensuring uninterrupted communication: if there is no connection to the first operator’s network, the second card is automatically selected.

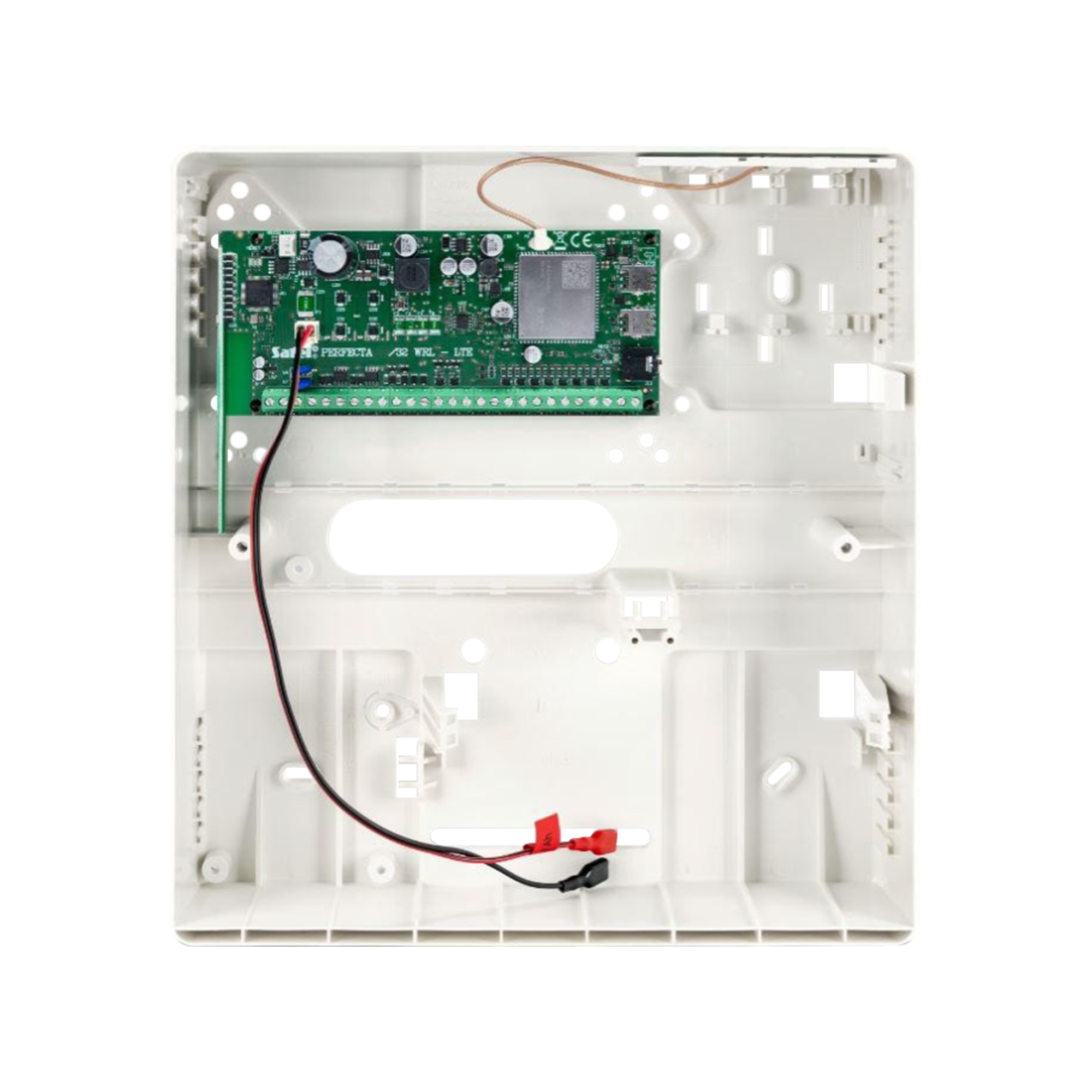

The control panel’s electronics board is equipped with 8 wired inputs and 4 wired outputs. Their number can be increased by connecting expansion modules: INT-E input expanders and INT-O or INT-ORS output expanders. This allows the system to be expanded by adding more detectors, sirens and even actuators (for controlling garage doors, roller shutters and garden sprinklers).
The control panel allows the system to be divided into two zones, with a choice of three arming modes (day, night, full). Each input can be assigned to one or both monitored areas.
The system can be configured in two ways: from a computer with the PERFECTA Soft programme installed (locally – via an RS-232 (TTL), remotely – via mobile network data transmission*) and via the keypad, using key sequences in the service menu.
Compliance with EN 50131 Grade 2
8 to 32 programmable wired inputs:
configuration options: NO, NC, EOL, 2EOL/NO, 2EOL/NC
support for roller shutter and vibration detectors
4 to 12 programmable wired outputs
2 power supply outputs on the main board
built-in modules:
2 nano-SIM slots (SMS, monitoring to the control centre, mobile app, push notifications)
voice module (playback of voice messages for telephone notifications)
acoustic alarm verification (sound monitoring)
system divided into 2 zones:
3 monitoring modes in each zone
option to assign an input to two zones
control by the user or via timers
communication bus for connecting keypads (PRF-LCD), expansion modules (INT-E, INT-O, INT-ORS) and a 433 MHz remote control expander (INT-RX-S)
system control via:
PRF-LCD keypads (up to 4)
the PERFECTA CONTROL mobile app
433 MHz remote control transmitters (up to 15) – requires the INT-RX-S module
software (firmware) updates available
passwords:
15 user passwords
1 service password
name editing (for users, zones, inputs, outputs and modules) to facilitate system control and monitoring
8 timers with the option to set exceptions
memory for 3,584 events
automatic diagnostics of key system components
built-in switching power supply:
overload protection
protection against complete battery discharge
battery charging current regulation
programming of control panel settings:
locally – via the keypad or a computer with the PERFECTA Soft programme installed, connected to the control panel’s RS‑232 (TTL) port
remotely – a computer with the PERFECTA Soft software installed, connecting to the control panel via mobile network data transmission*
