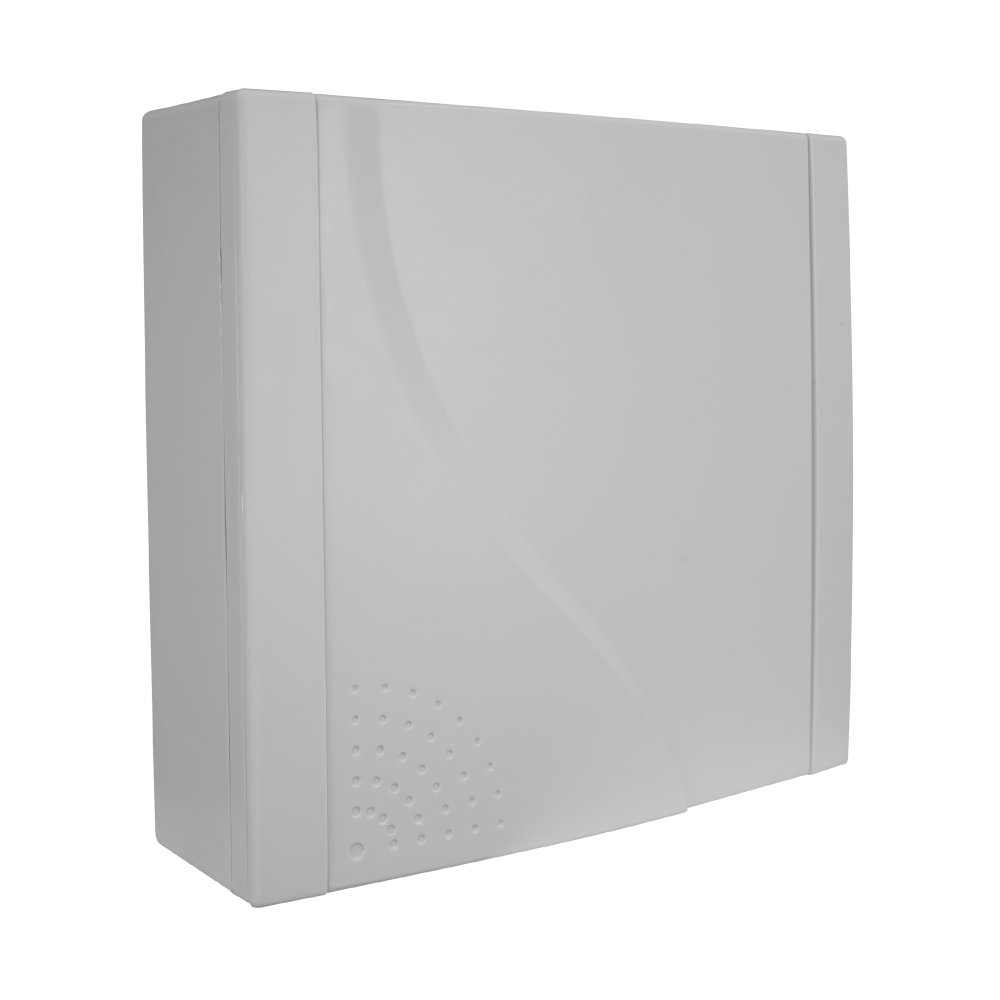

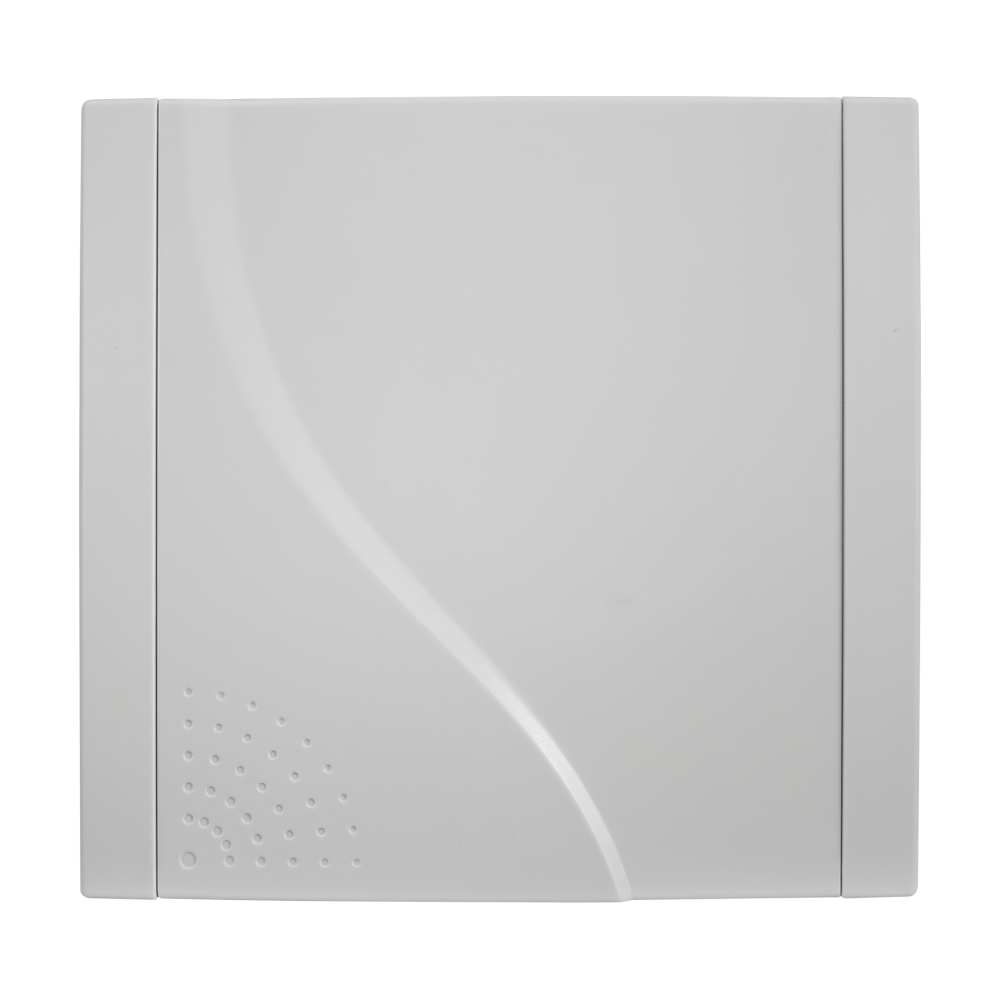

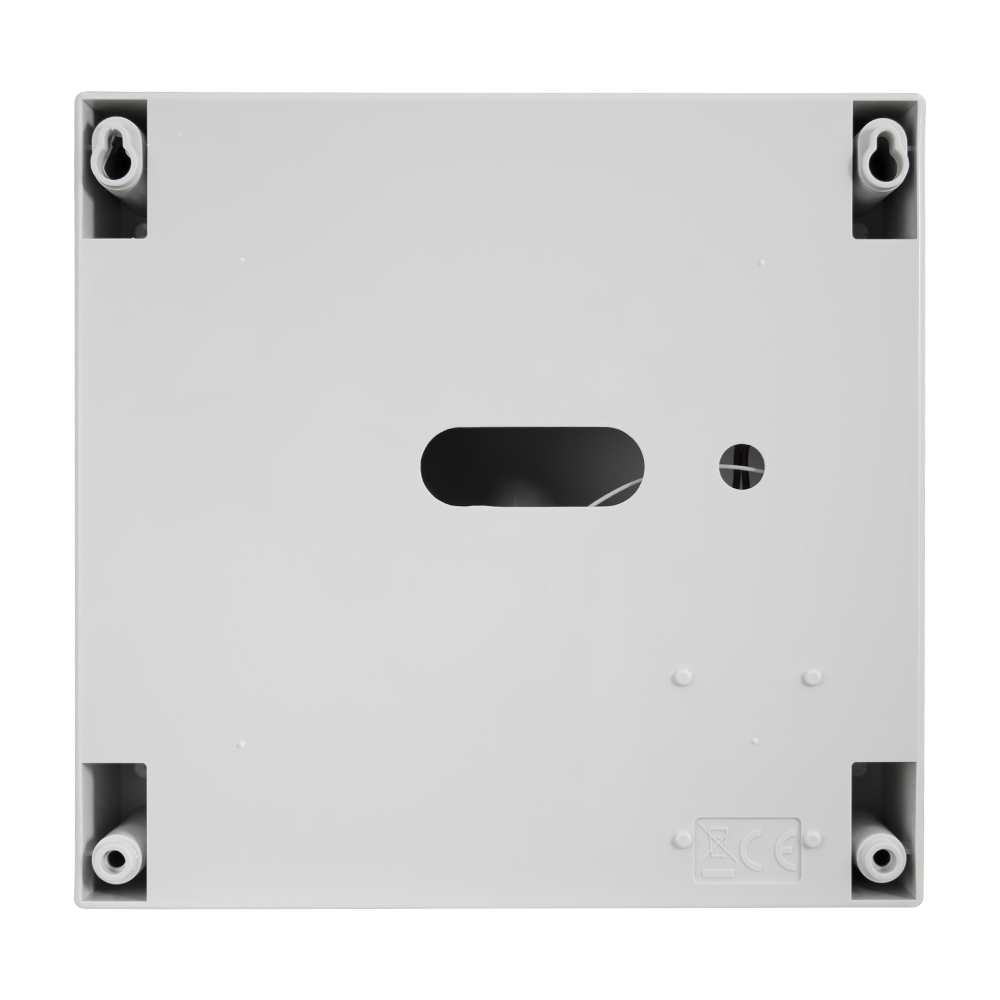

The PA-BOX 7 is a plastic surface-mounted enclosure with a built-in transformer, fitted with an NC tamper switch.
It has been designed for the installation of Pulson Alarm control panels. It features a dedicated slot for a wireless expander.
The enclosure has space for a battery with a maximum capacity of 7 Ah and dimensions of 99 x 151 x 65 mm, as well as a built-in PA-TR20VA/230/16 transformer.

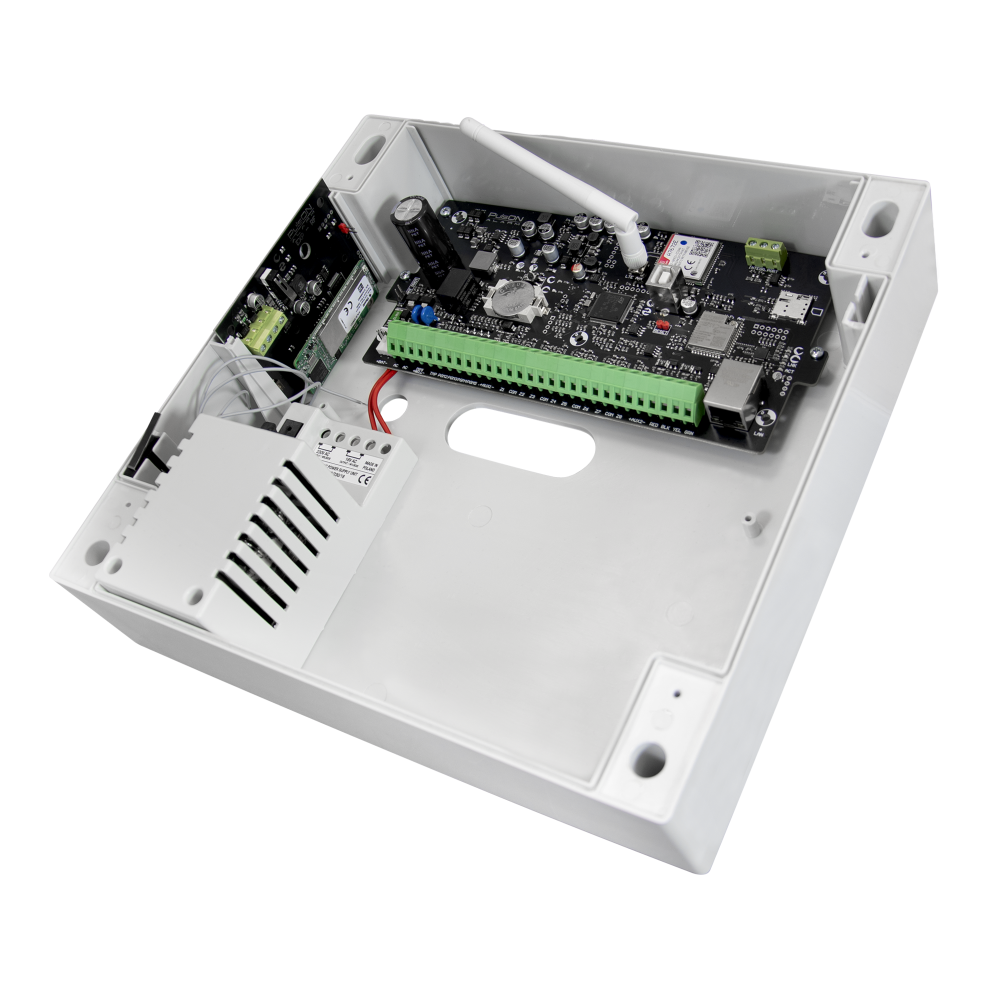

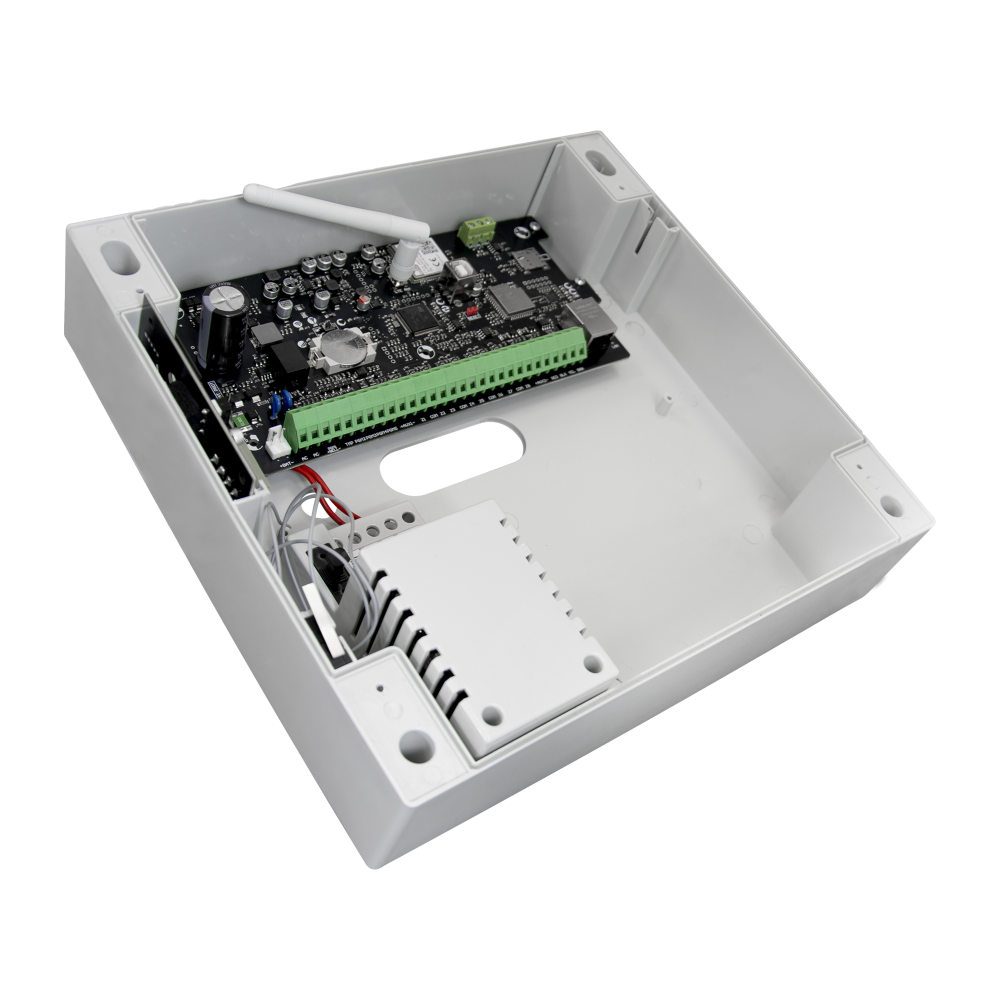

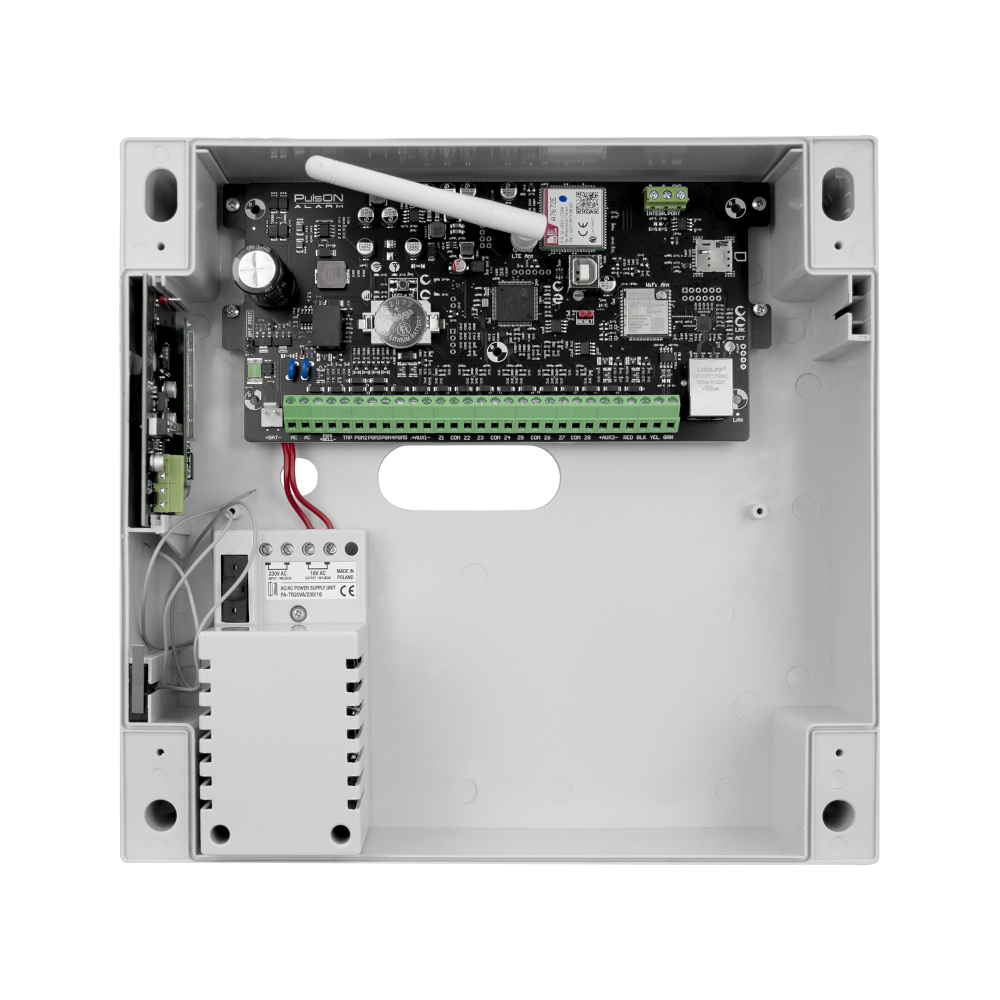

The kit includes a PulsonAlarm v2 4G control panel and a PulsON EXP-RF (PowerG) expansion module.
List of wireless devices compatible with the PowerG expander:
- PG8945 BW-MCN MC-302E PG2 Reed switch with additional wired input
- PG8303 BW-303 MC-303 PG2 Miniature reed switch
- PG8904 BW-IRD Next PG2 PIR detector
- PG8904P BW-IRP Next K9-85 PG2 PIR detector with pet immunity
- PG8924 BW-IRT Clip PG2 PIR detector with curtain detection
- PG8974P TOWER-30AM K9-90 PG2 PIR detector with mirror optics, pet-immune
- PG8974 TOWER-30 AM PG2 PIR Detector with mirror optics
- PG8984 BW-DTM/P TOWER-32AM PG2 PIR + MW detector with anti-masking function
- PG8984P TOWER-32AM K9-90 PG2 PIR + MW detector with anti-masking function, pet-immune
- PG8994 BW-OTD TOWER-20 PG2 Outdoor PIR detector
- PG8926 SMD-426 PG2 Smoke detector
- PG8916 BW-SMD SMD-427 PG2 Smoke and temperature detector
- PG8922 BW-GBD GB-502 PG2 Glass Break Detector
- PG8905 BW-TMP TMD-560 G2 Temperature detector
- PG8985 BW-FLD FLD-550 PG2 Flood detector
- PG8939 KF-234 PG2 4-button remote control
- PG8929 BW-RCH/P KF-235 PG2 4-button remote control
- PG8935 BW-SHK SD-304A PG2 Vibration detector with reed switch and additional wired input
- PG8975 BW-MVC – Miniature reed switch
- PG8914 BW-802 MP-802 PG2 Pet-immune PIR detector
- PG8862 BW-862 MP-862 PG2 Ceiling-mounted PIR detector
- PG8902 BW-902 MP-902 PG2 Outdoor PIR detector with curtain coverage
- WK-141 BW-KPD KP-141 PG2 Wireless control panel
- WK-241 BW-241 KP-241 PG2 Wireless control panel
Housing dimensions:
H 253 mm
width 204 mm
depth 80 mm

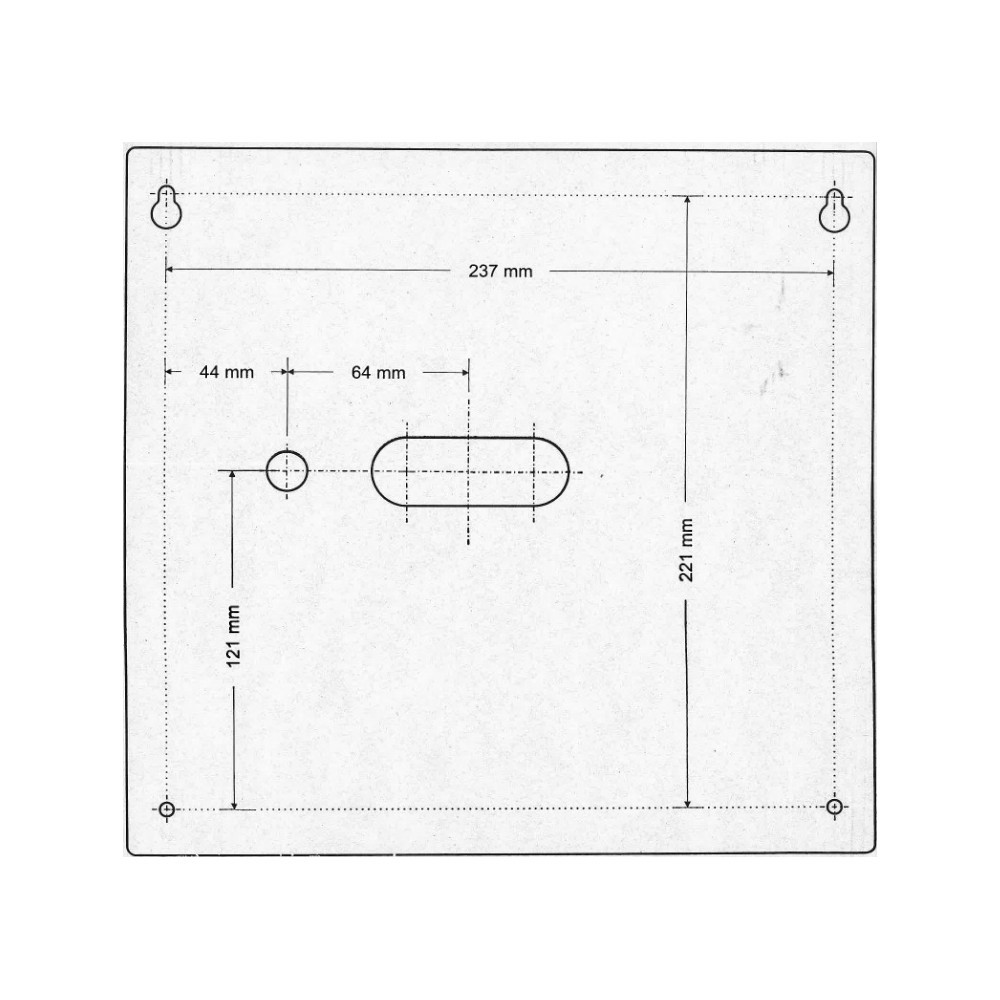

Cut-out dimensions:
width 237 x height 221 mm
