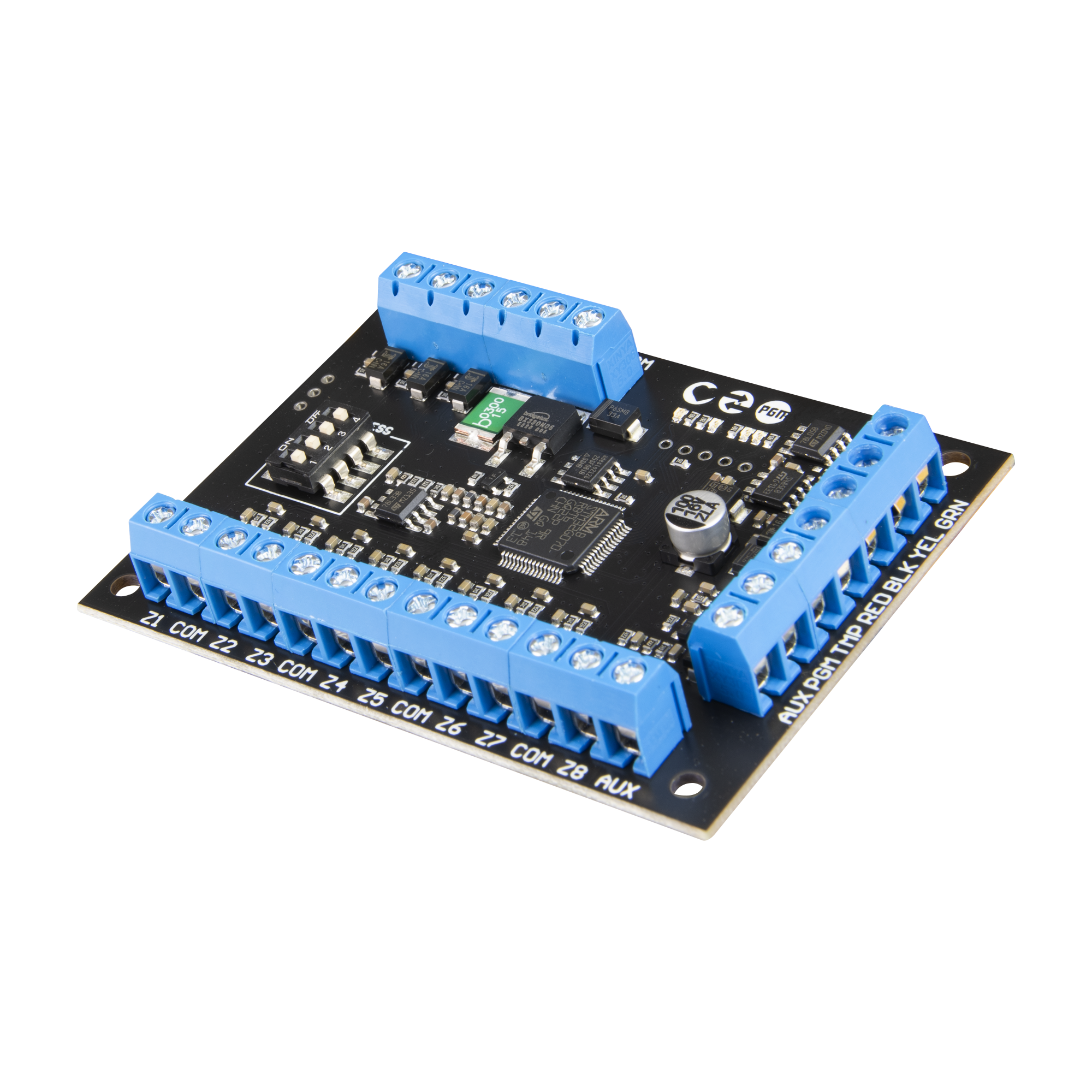

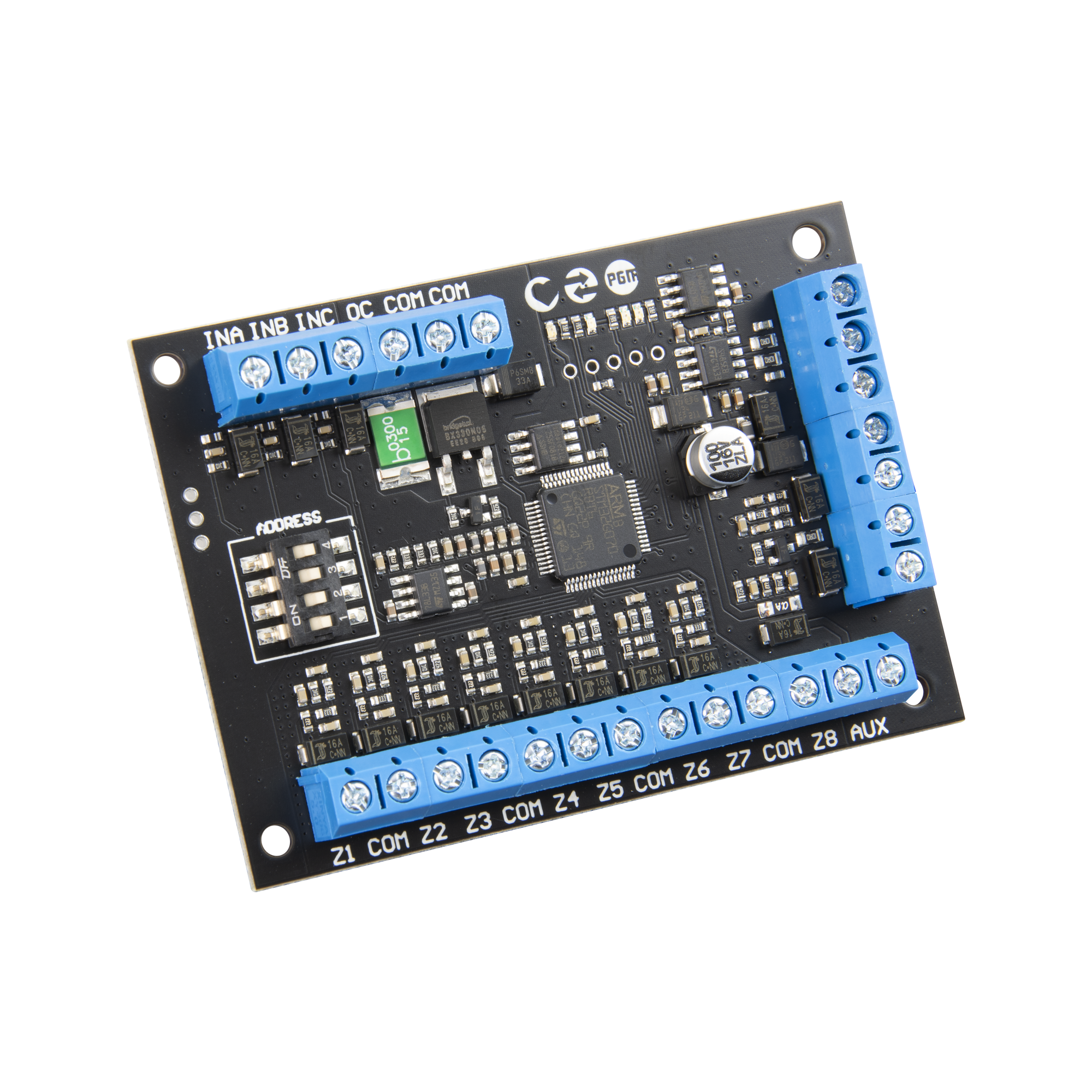

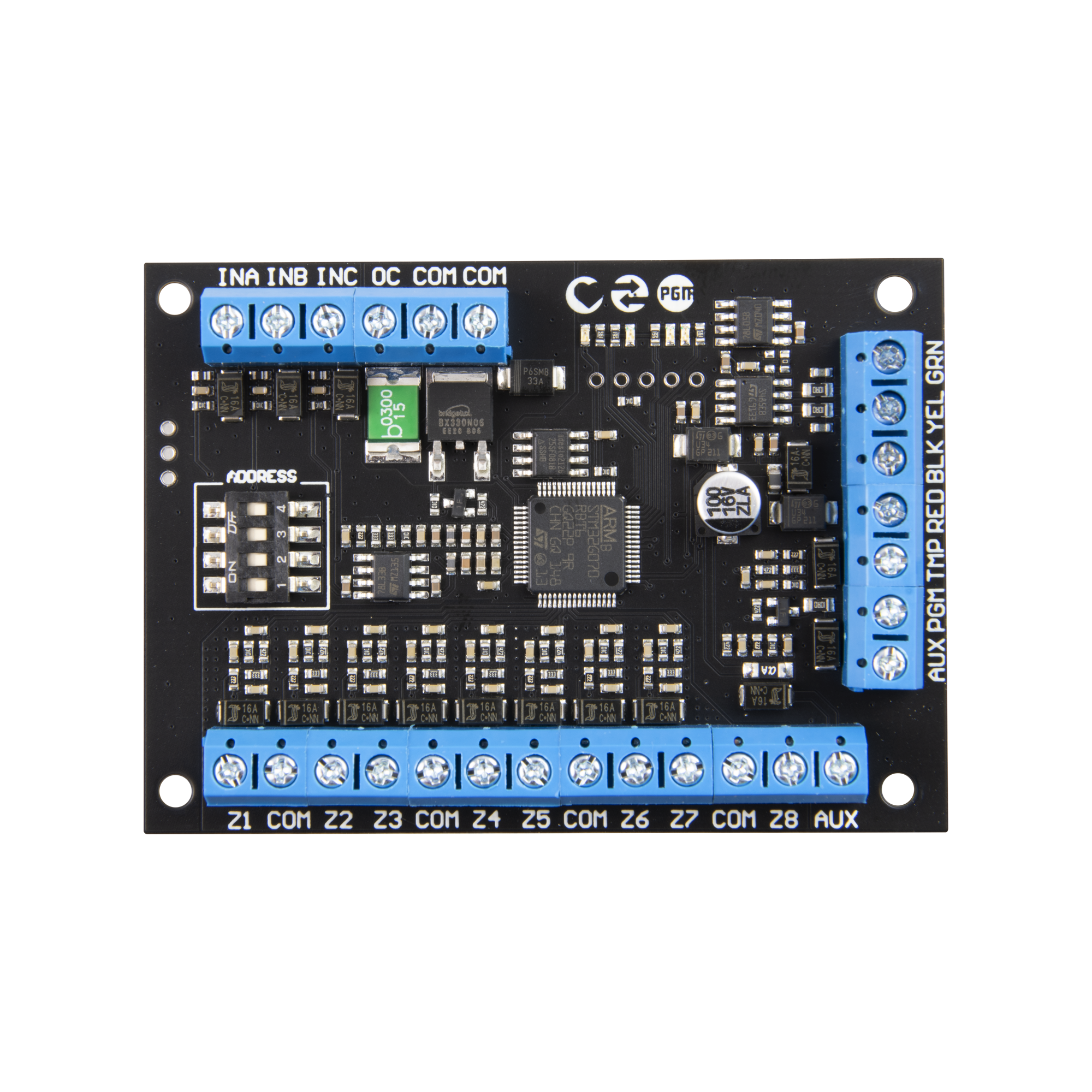

The module allows the number of inputs available for connecting various detectors to be increased. It features 8 monitoring line inputs, 3 technical inputs for monitoring an additional power supply, 2 programmable OC outputs (50 mA and 1 A), 2 AUX power supply outputs and a tamper input for detecting if the housing has been opened. The expander has been designed in accordance with the requirements of the EN-50131 standard for Grade 2.
PulsON EXP8/2
24,60 € gross
28 In StockThe PulsON EXP8/2 is an expansion module compatible with the PulsON Alarm 4G hybrid system.
28 in stock
- DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
- Official BCS e-commerce Business Partner
- Technical support
| Product | PulsON EXP8/2 |
|---|---|
| Producer | NSS |
| On-board zones | 8 |
| Standard compliance | Yes, Grade2 |
| Communication type | Wired |
| Control panels compatibility | Control panel PulsON Alarm |
| Power supply (+/- 15%) | 12 V DC |
| Working temperature range | from -10°C to 55°C |
| Accessories | Mounting pins |
