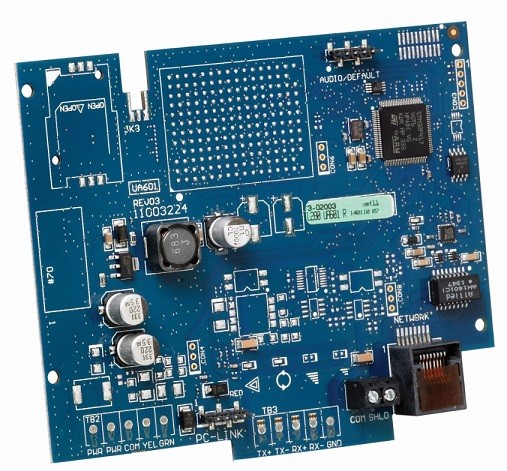

The alarm transmitter module designed to send information about events that occur in the system. Operating frequency: 850MHz, 900MHz, 1800MHz, 1900MHz, 2100MHz, possibility of encoding transmission with 128-bit AES key and remote programming of alarm control panels using TCP / IP networks, cooperation with mobile applications. Signaling of signal strength and failure by LED diodes. It can work as a basic or auxiliary, full event reporting, PC-Link connector, support for SIA and Contact ID formats, the possibility of programming system names and remote programming of control panels via the TCP / IP network. Supply voltage: DC 12V. Dimensions: 100 x 150 mm.
TL280E
97,17 € gross
5 In StockAn alarm transmitter module designed to transmit information about events occurring in the DSC Neo system.
5 in stock
- DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
- Official BCS e-commerce Business Partner
- Technical support
| Product | TL280E |
|---|---|
| Dimensions | 100 x 150 mm |
| Weight | 290g |
| Producer | Tyco (DSC) |
| Communication type | IP |
| pa_control-panels-compatibil | NEO series DSC control panels |
| RS-232 interface | No |
| Power supply (+/- 15%) | 12V DC |
| pa_power-consumption-in-stan | 100 mA |
| pa_power-consumption-in-alar | 400 mA |
| Working temperature range | from -10°C to 55°C |
