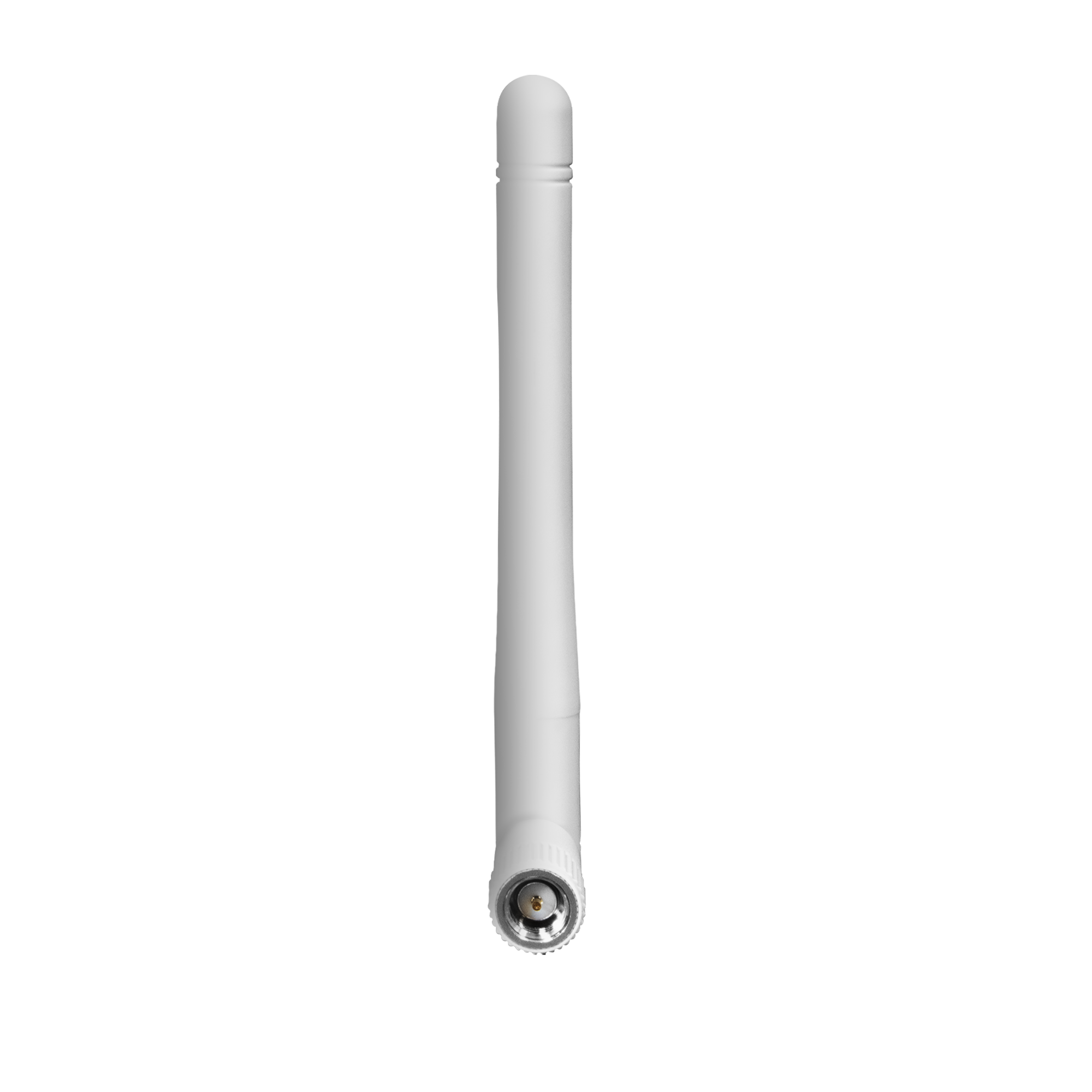

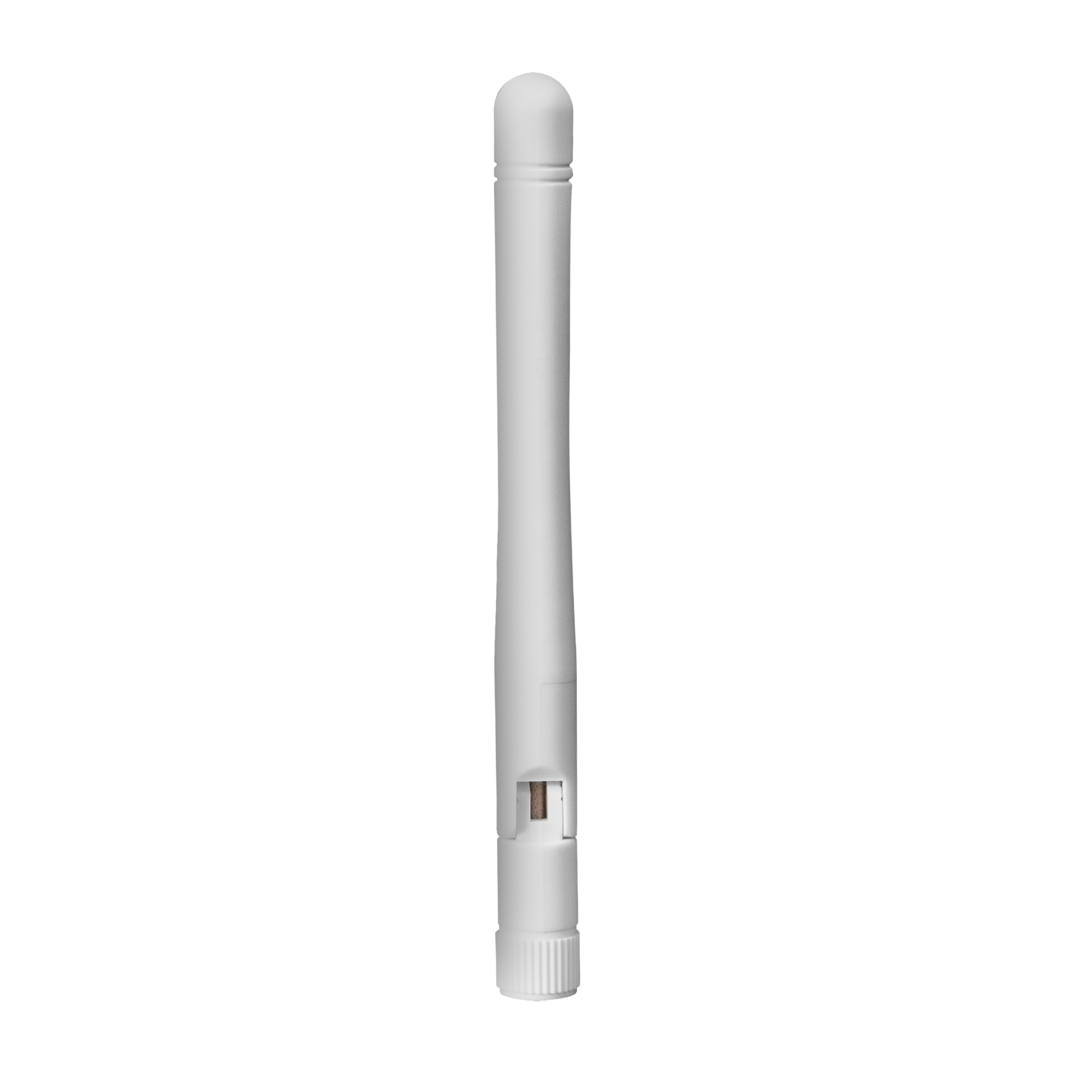

Technical specifications:
Connector type: SMA-M

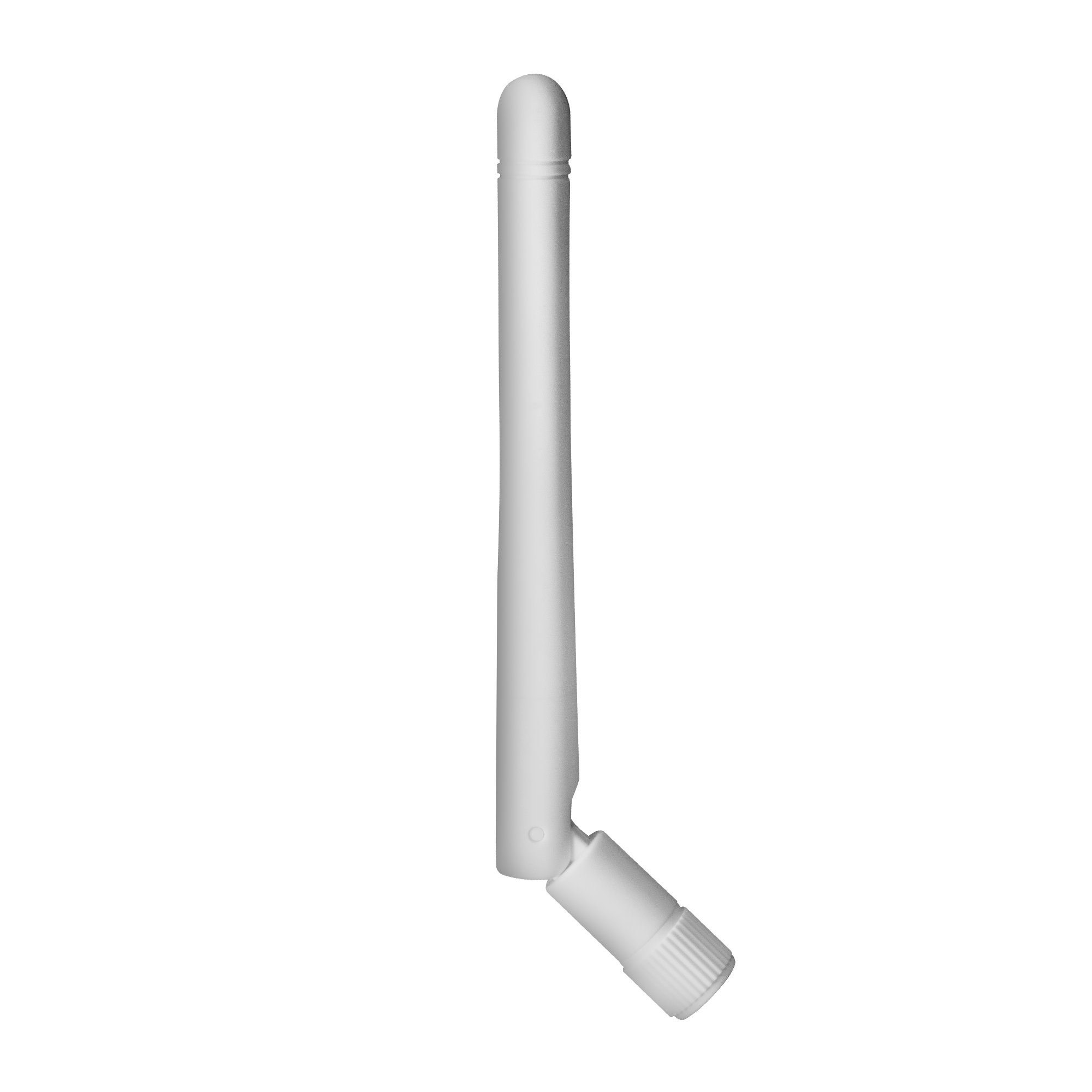

Design: Angled (90 degrees).
Operating frequency: 824–960 MHz / 1710–2170 MHz.
Gain: 2.03 dBi for the high band and -0.88 dBi for the low band.
Impedance: 50 ohms.
Polarisation: Vertical linear.
Radiation pattern: Omnidirectional.
Overall length: 108 mm (±5 mm).
