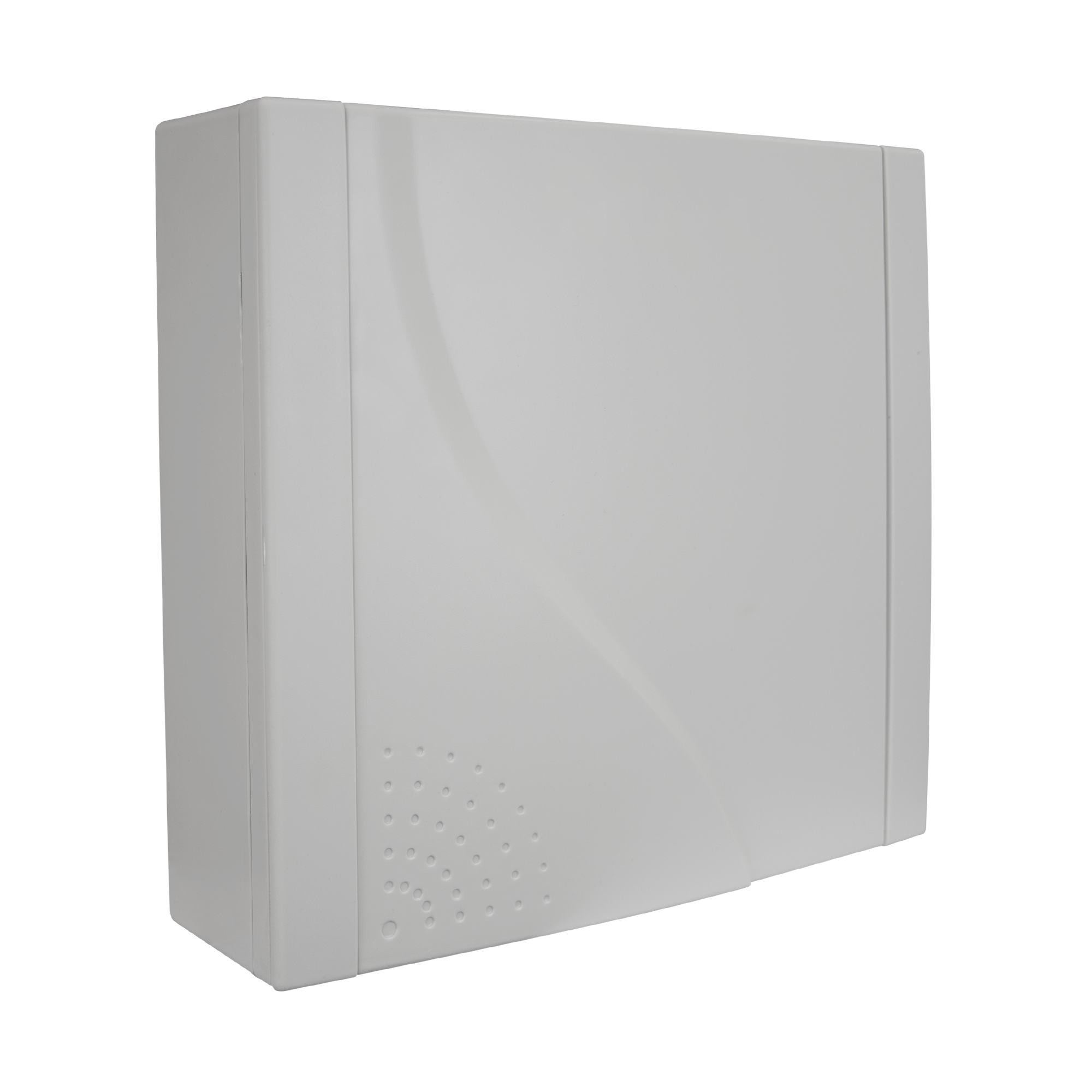

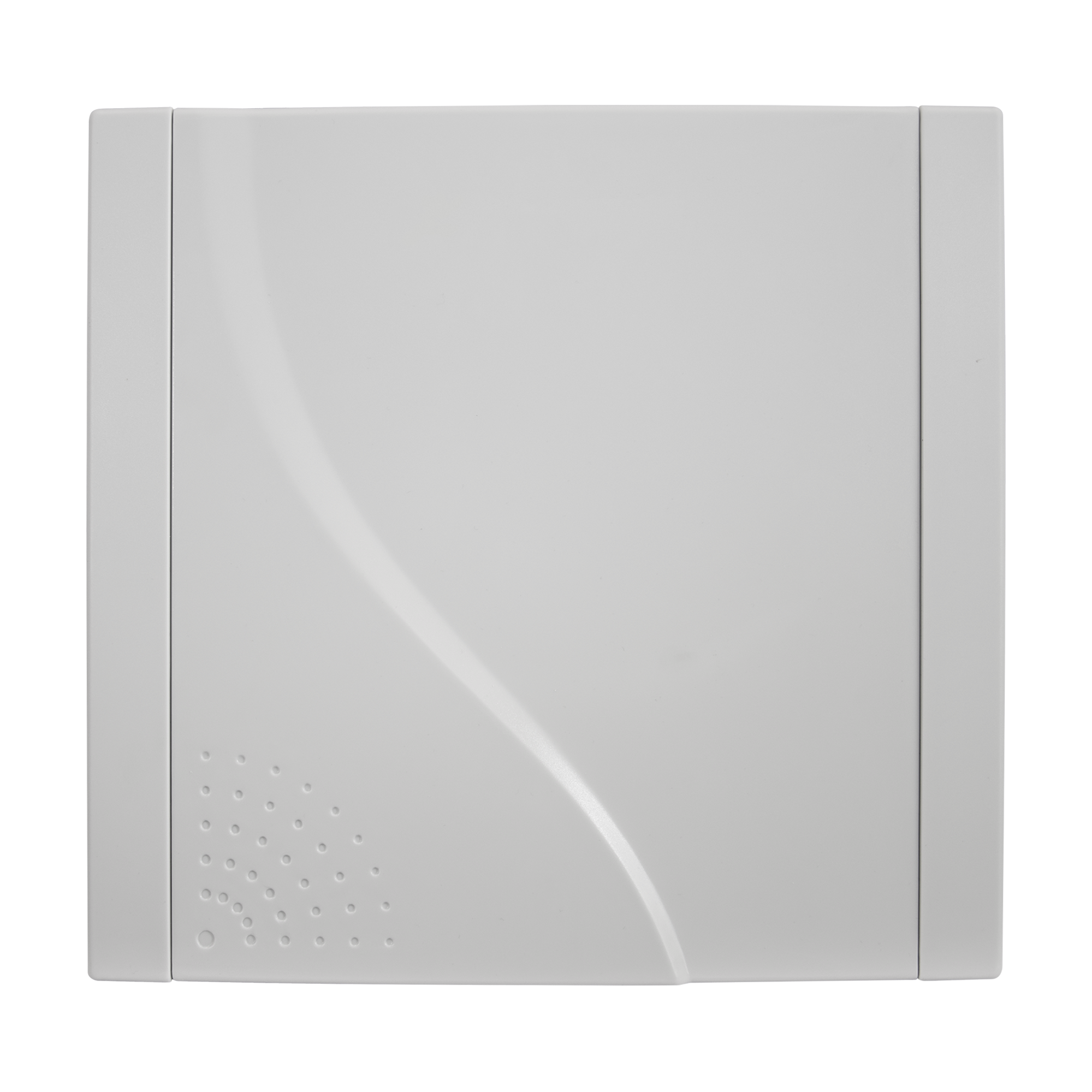

The PA-BOX 7 is a plastic surface-mounted enclosure with a built-in transformer, fitted with an NC tamper switch.
It has been designed for the installation of Pulson Alarm control panels.
It features a dedicated slot for a wireless expander.

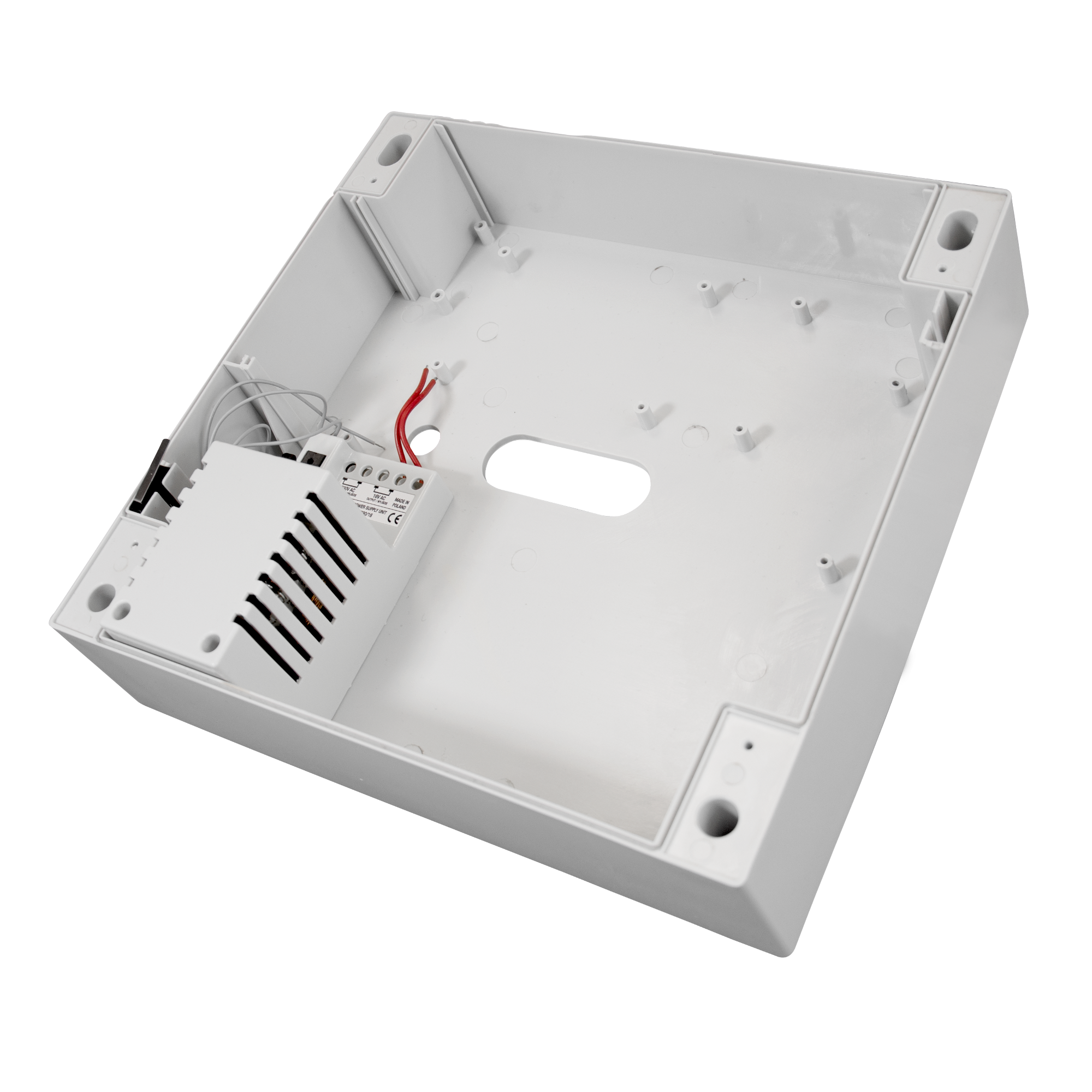

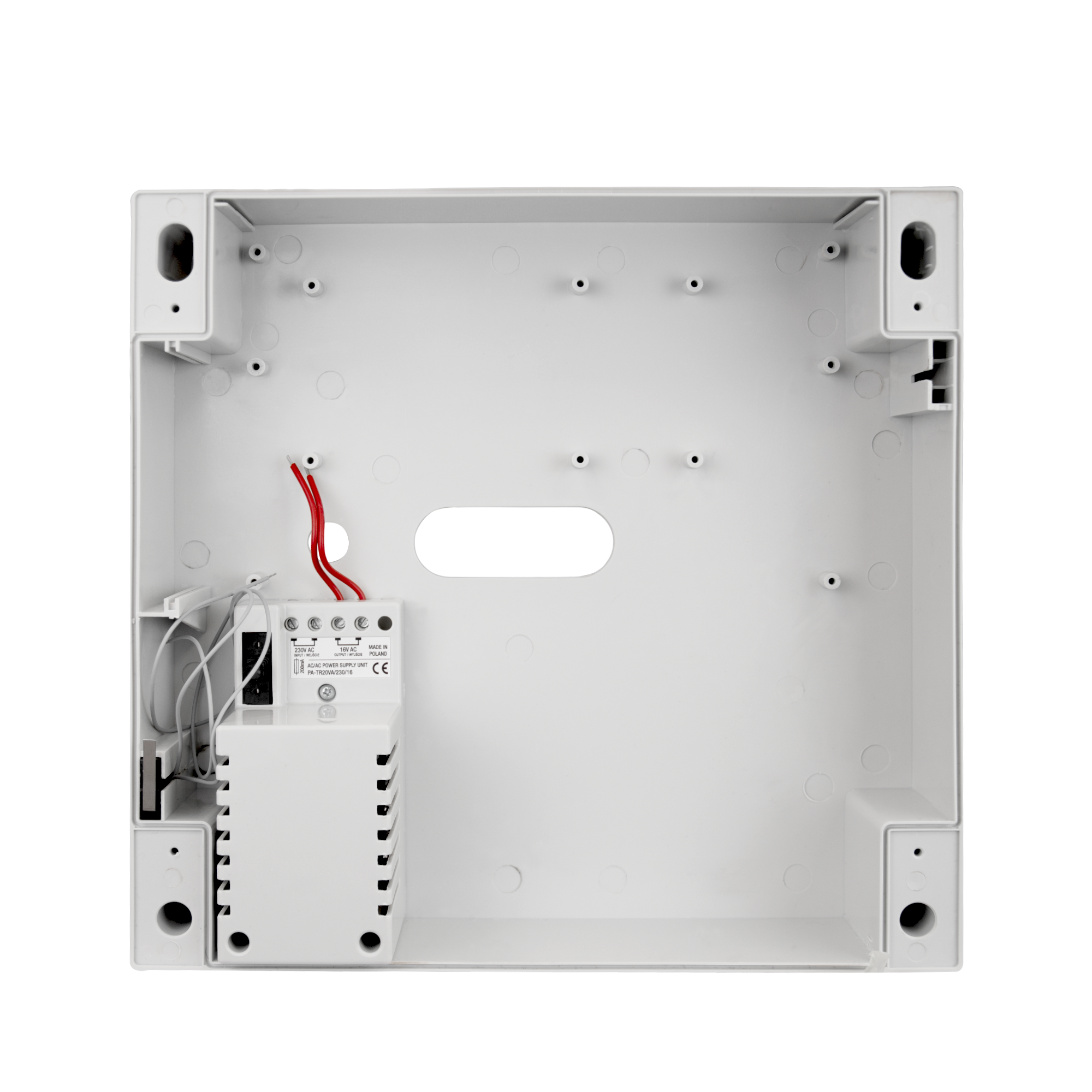

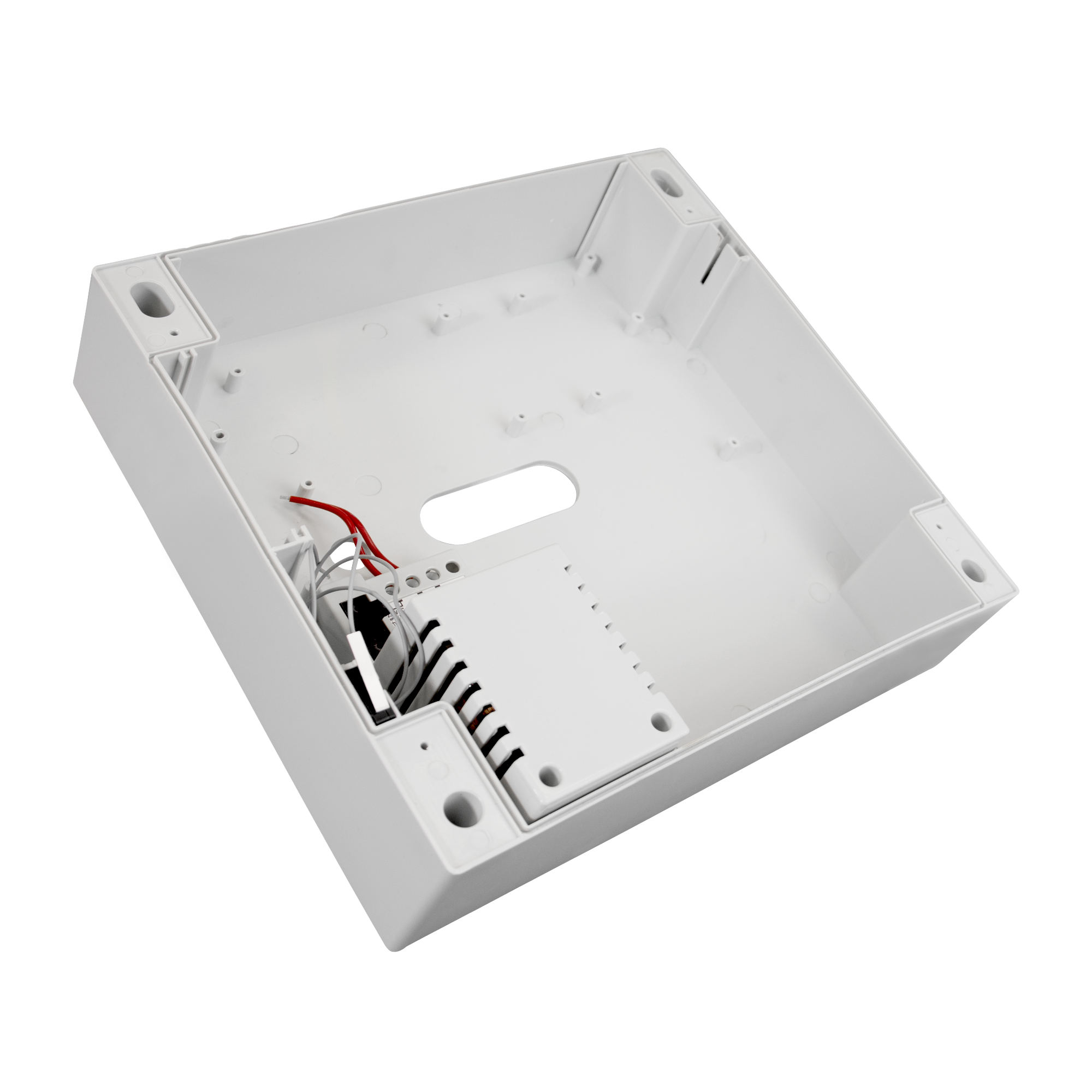

The enclosure has space for a battery with a maximum capacity of 7 Ah, measuring 99 x 151 x 65 mm
, and a built-in PA-TR20VA/230/16 transformer.
Dedicated power cables connect the transformer to the control panel.
Enclosure dimensions:
height 253 mm
, width 204 mm
, depth 80 mm

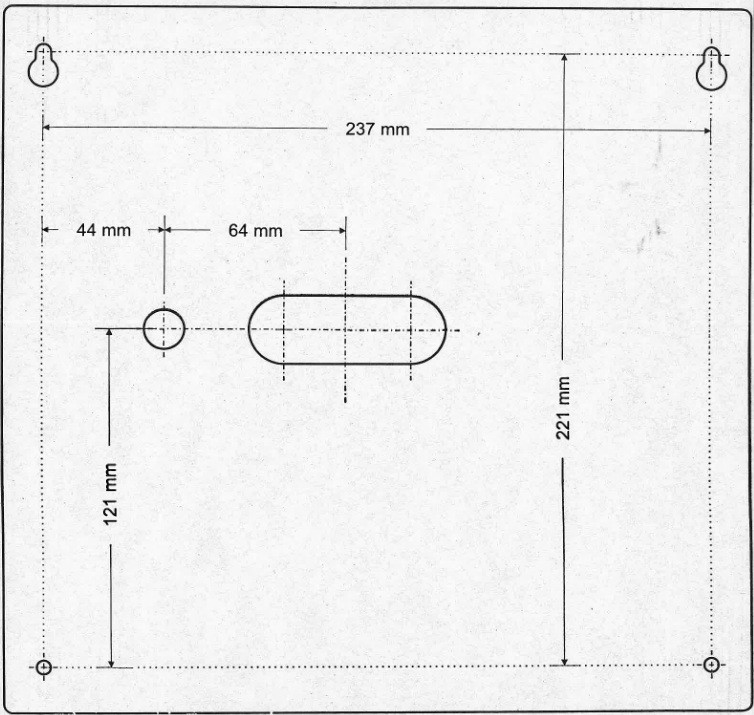

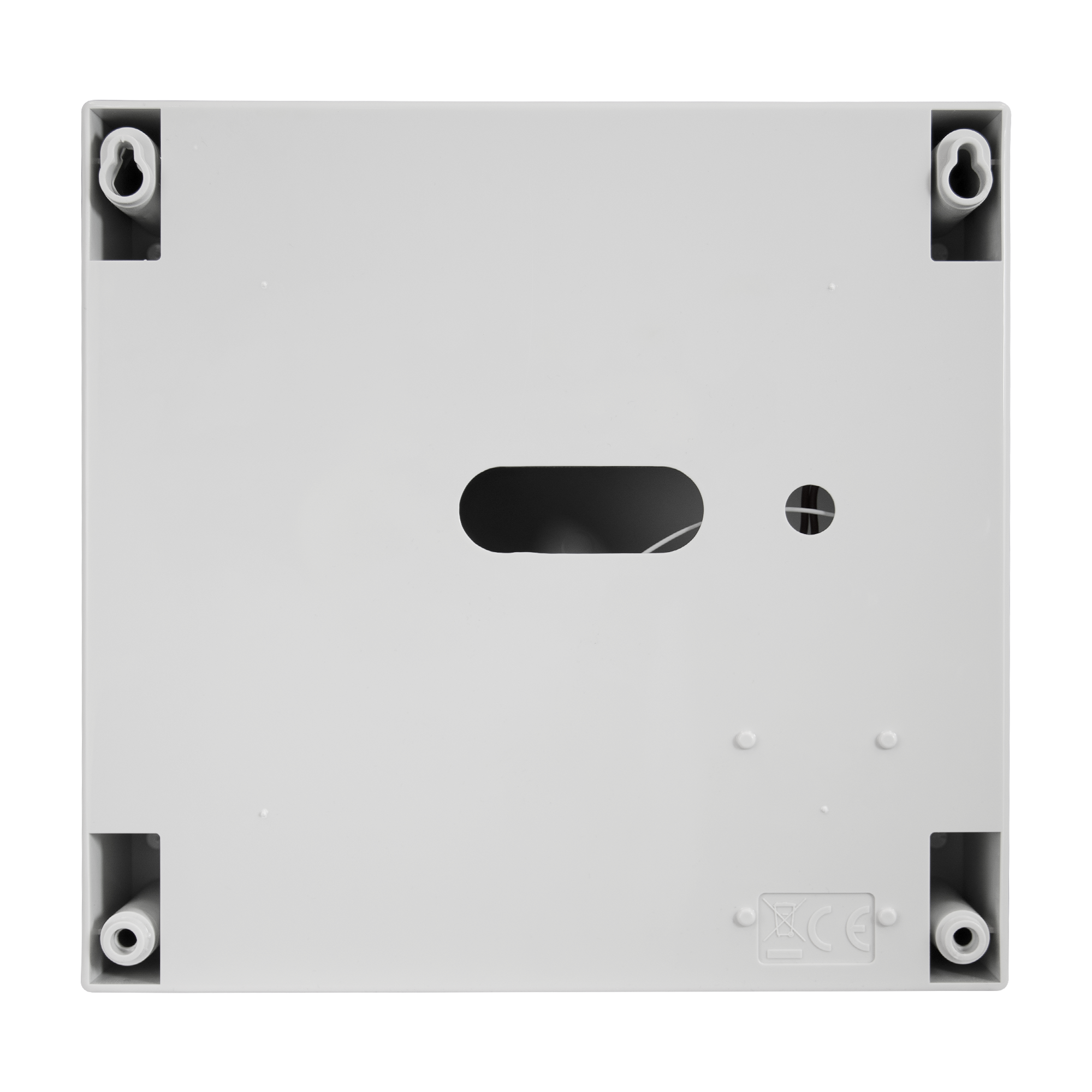

. Cut-out dimensions:
width 237 x height 221 mm
