4-in-1 camera: HDCVI / AHD / TVI / ANALOG, sensor 1/2.7″ 5 Mpx Starlight, 25/30 fps at 5 Mpx (2880×1620), support for ICR day / night, progressive scan. Infrared radiator up to 30m, built-in microphone , D-WDR extended dynamic function, noise reduction, privacy mask, OSD menu support White housing, IP67 protection class Power supply: DC 12V. Dimensions: Ø93 x 85.8 mm.
BCS UNIVERSAL
BCS-EA15FSR3(2)
57,81 € gross

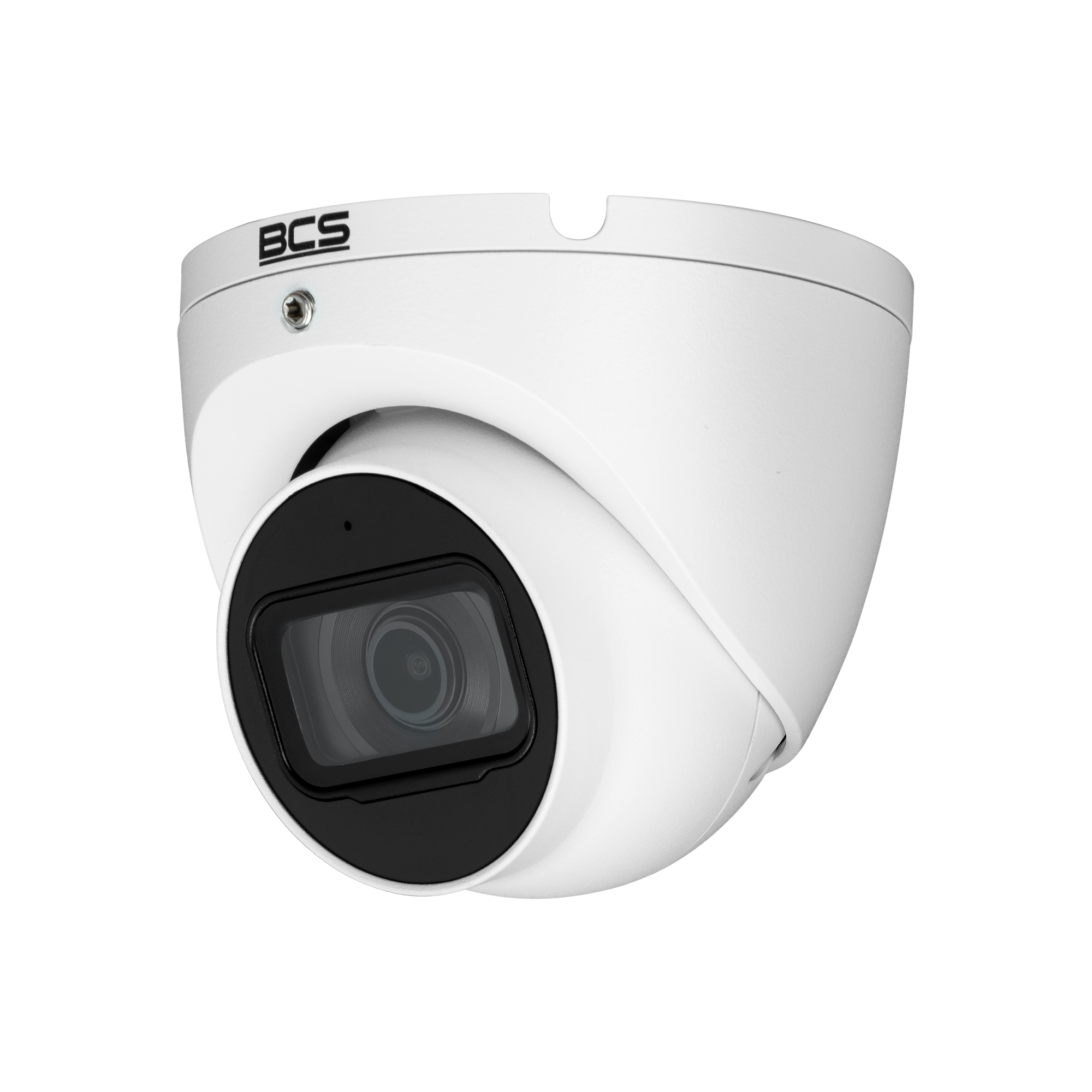

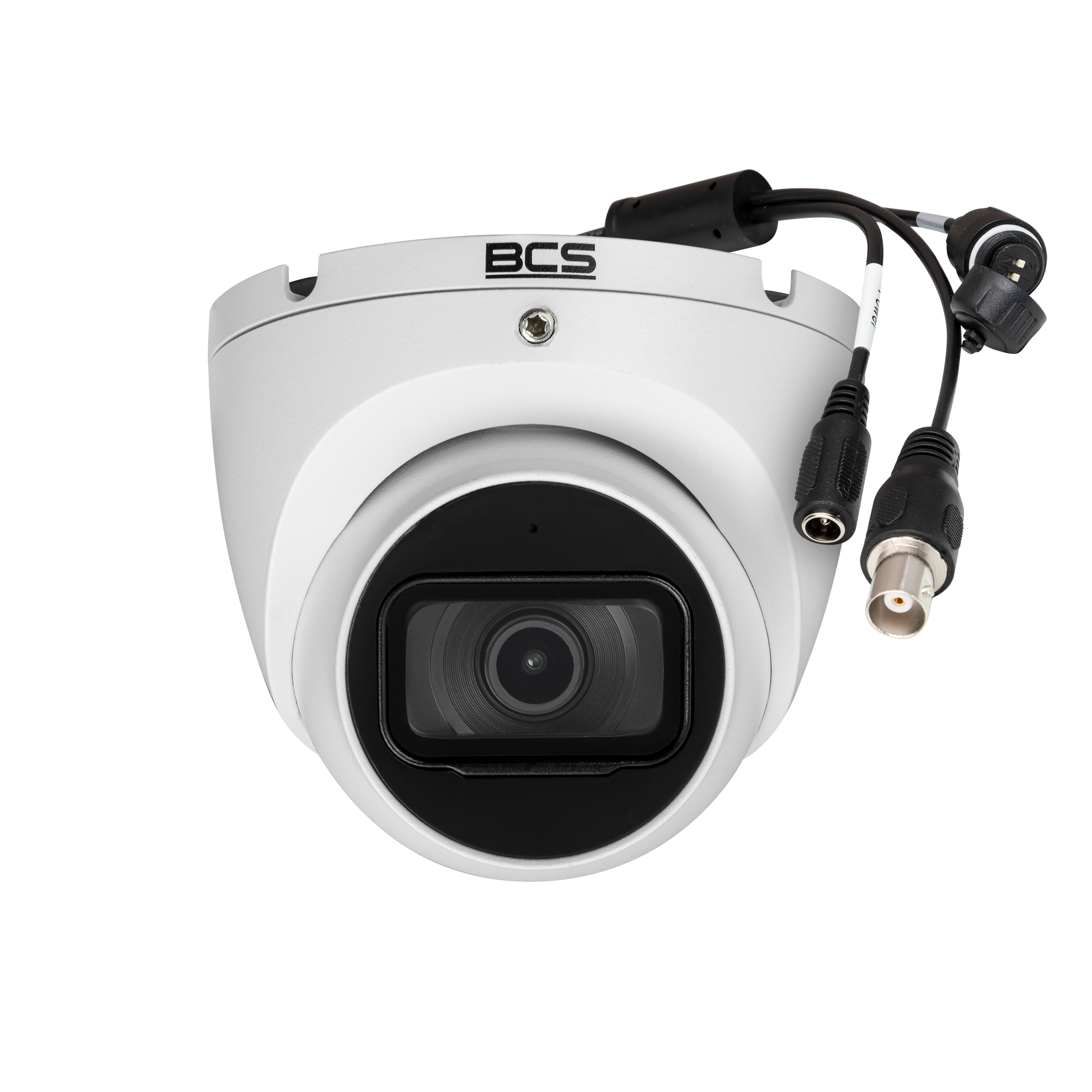

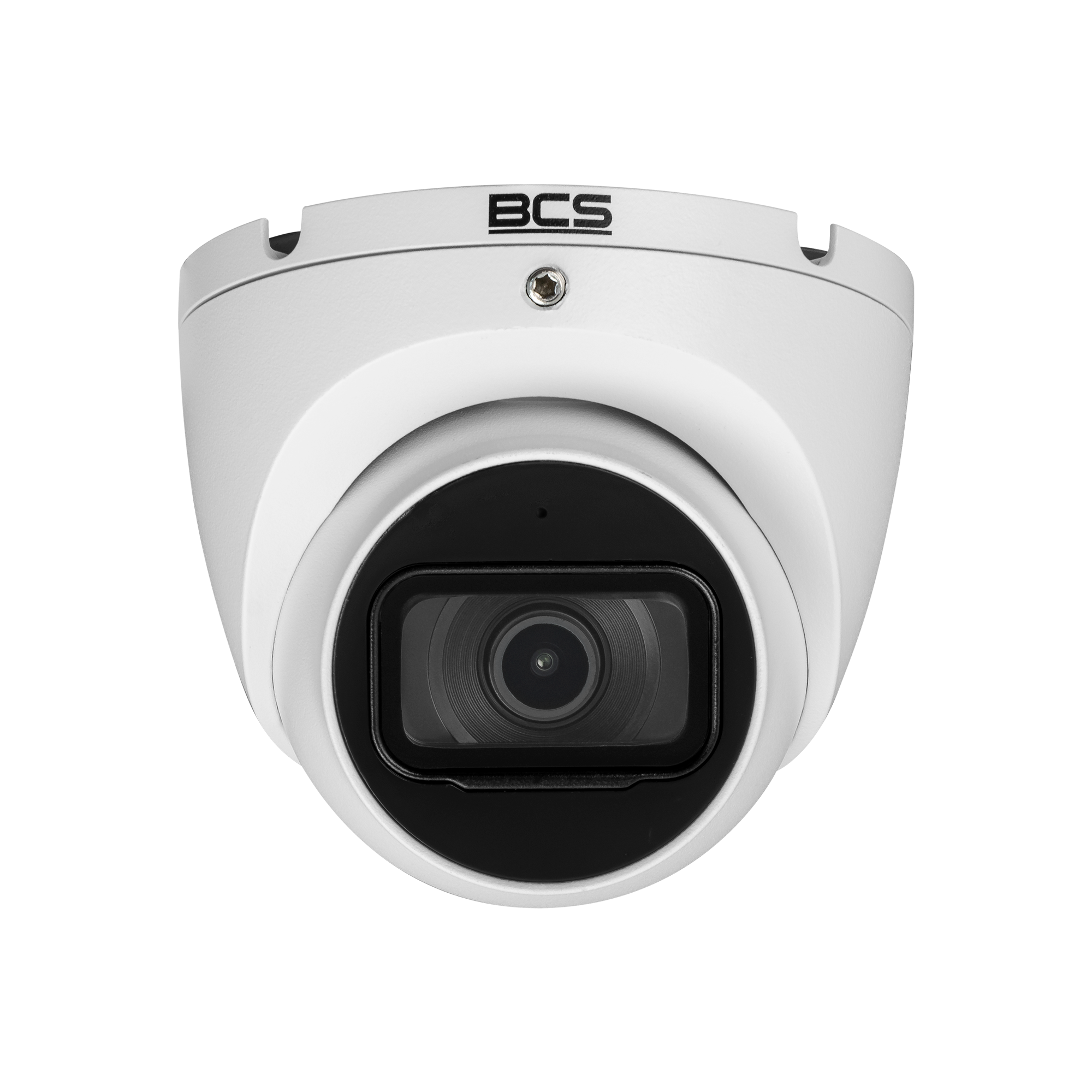

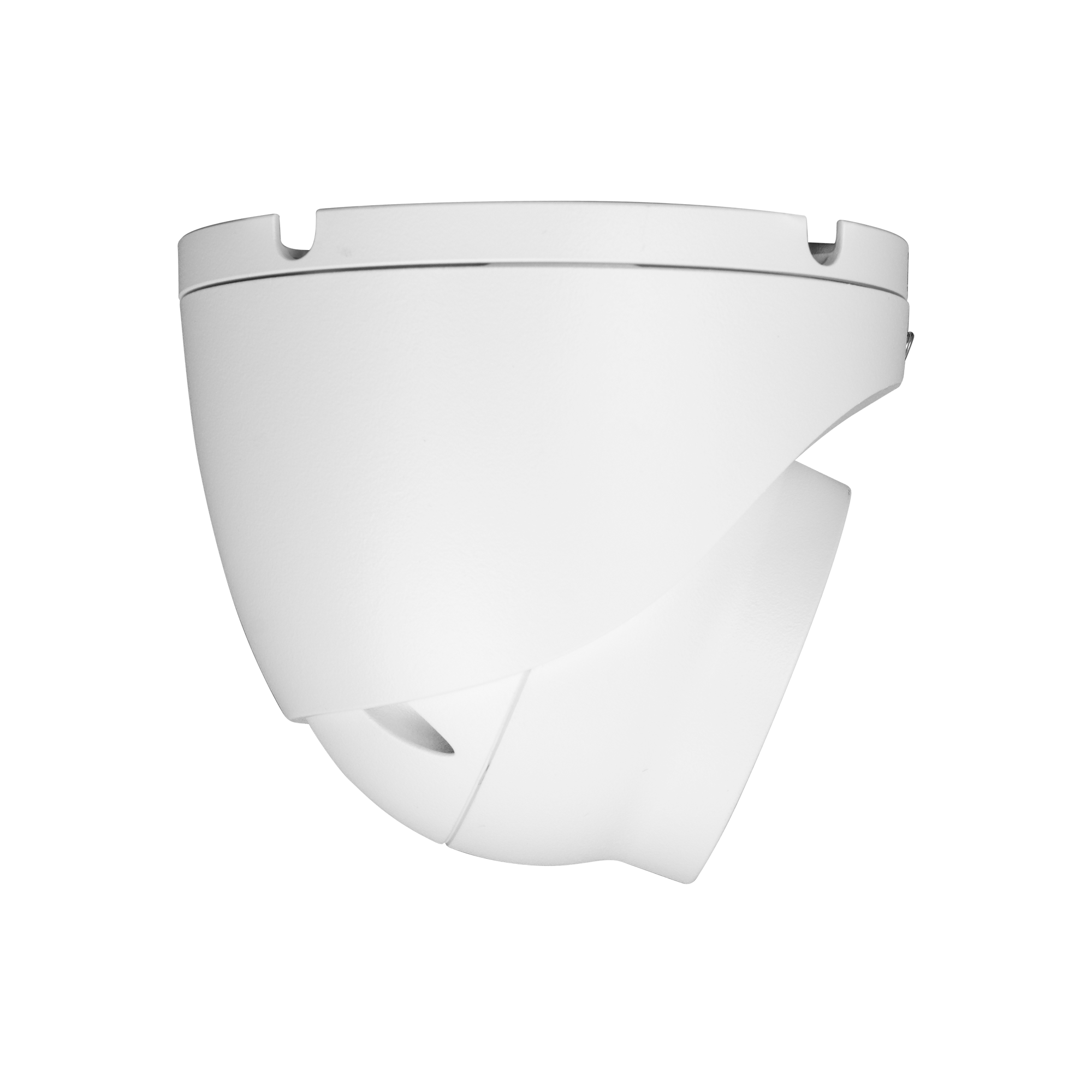

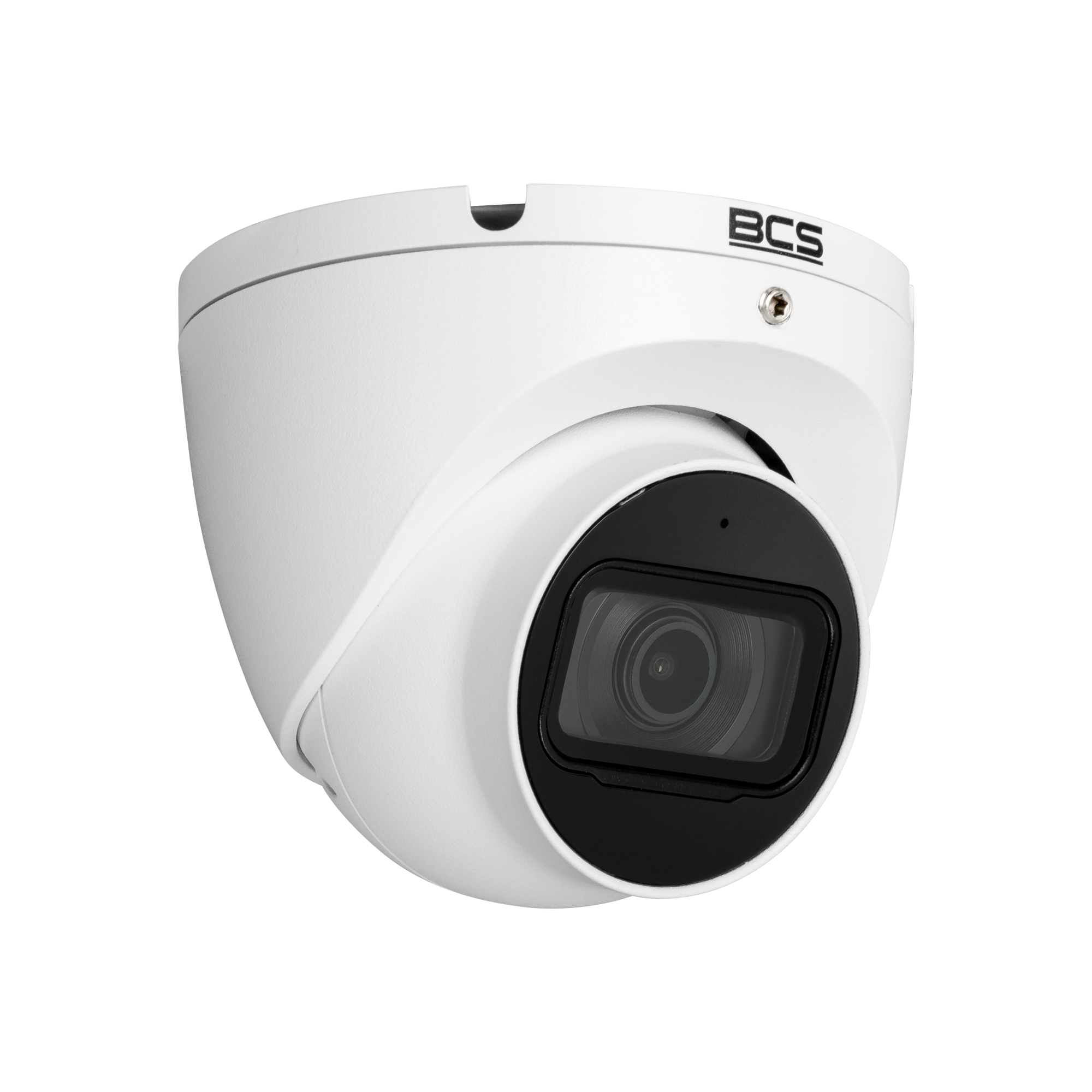

Out of Stock- 5Mpx analogue HD dome camera
- HDCVI/AHD/TVI/CVBS
- 1/2.7" PS CMOS sensor
- SkyLight technology
- 2.8mm fixed lens
- IR 30m
- Microphone
- IP67-rated housing
Out of stock
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.
| Product | BCS-EA15FSR3(2) |
|---|---|
| Camera type | Dome |
| Transmission standard | HD-CVI / AHD / HD-TVI / ANALOG CVBS |
| Resolution | 5 Mpx |
| Sensor | 1/2.7'' CMOS |
| Scanning system | Progressive Scan |
| Pixels | 2880(H)×1620(V) |
| Lens | fixed |
| Focal length | 2.8 mm |
| Aperture | F1.6 |
| Focus | fixed |
| Iris | fixed |
| Angle of view | H: 111° V: 58° D: 132° |
| DORI | Detect 64m / Observe 25m / Recognize 13m / Identify 6m |
| Min illumination | 0.005Lux(F1.6,30IRE) 0Lux(IR) |
| S/N ratio | 65dB |
| White balance | (AWB) Auto / manual |
| WDR | DWDR |
| Backlight compensation | BLC / HLC / DWDR |
| Shutter | Auto / manual 1/25(30)s~1/100000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 2D DNR |
| Image rotate | Mirror |
| Resolutions | CVI: 5M(2880×1620)@25fps 4M(2560×1440)@25/30fps 1080P(1920×1080)@25/30fps AHD: 4M(2560×1440)@25/30fps TVI: 4M(2560×1440)@25/30fps CVBS: 960H(960× 576/960×480) |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED |
| IR range | 30m |
| Microphone | Yes |
| Support | Support for settings in the camera OSD menu by the BCS-XVR recorder |
| Privacy masking | 8 |
| Power supply | 12V DC |
| Power supply type | 12V DC |
| Power consumption | max 3.2W |
| Housing color | White |
| IP class | IP67 |
| Working environment | – 40°~+60° max 95% RH |
| Dimensions | Ø93×85.8mm |
| Weight | 0.5 kg |
