| Product | BCS-EA18FWR3L3 |
|---|---|
| pa_product-line | BCS UNIVERSAL |
| Camera type | Dome |
| Transmission standard | HD-CVI / AHD / HD-TVI / ANALOG CVBS |
| Resolution | 8 Mpx |
| Scanning system | Progressive Scan |
| Pixels | 3840(H)×2160(V) |
| Lens | fixed |
| Focal length | 2.8 mm |
| Aperture | F2.0 |
| Focus | fixed |
| Iris | fixed |
| Angle of view | H: 105.5° V: 56.5° D: 125.3° |
| DORI | Detect 88m / Observe 35.2m / Recognize 17.6m / Identify 8.8m |
| Min illumination | 0.01Lux(F2.0) 0.001Lux(B/W,F2.0,30IRE) 0Lux(B/W,IR) |
| S/N ratio | 65dB |
| White balance | (AWB) Auto / manual |
| WDR | DWDR |
| Backlight compensation | BLC / HLC / DWDR |
| Shutter | Auto / manual 1/30s~1/100000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 3D DNR |
| Image rotate | Mirror horizontal / mirror vertical |
| Resolutions | CVI,AHD,TVI: 4K(3840×2160)@15fps CVBS: 960H(960×576/960×480) |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED + WhiteLight |
| IR range | 30m |
| WhiteLight range | 30m |
| NightColor | Yes |
| Microphone | Yes |
| Support | Support for settings in the camera OSD menu by the BCS-XVR recorder |
| Power supply | 12V DC |
| Power supply type | 12V DC |
| Power consumption | max 4.1W |
| Housing color | White |
| IP class | IP67 |
| Working environment | – 40°~+60° max 95% RH |
| Dimensions | Ø94×85.7mm |
| Weight | 0.32 kg |
| Casing | Metal |

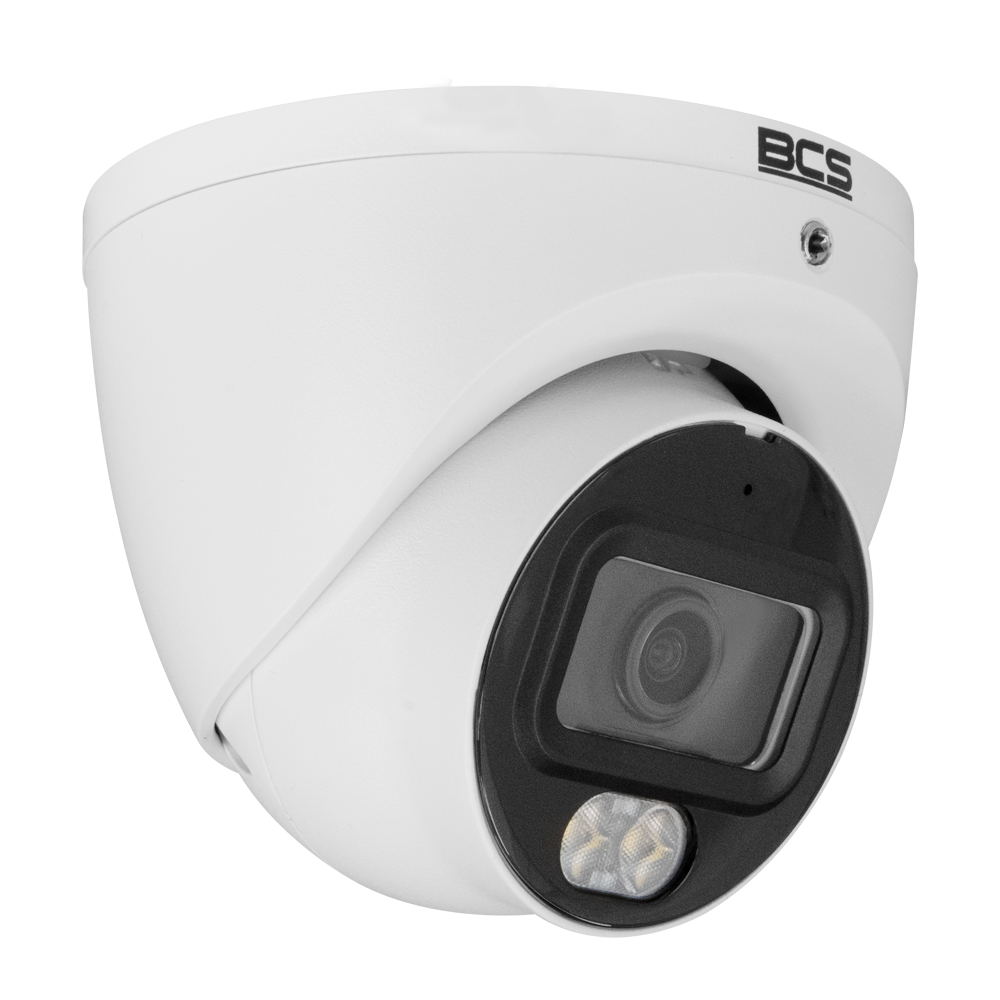

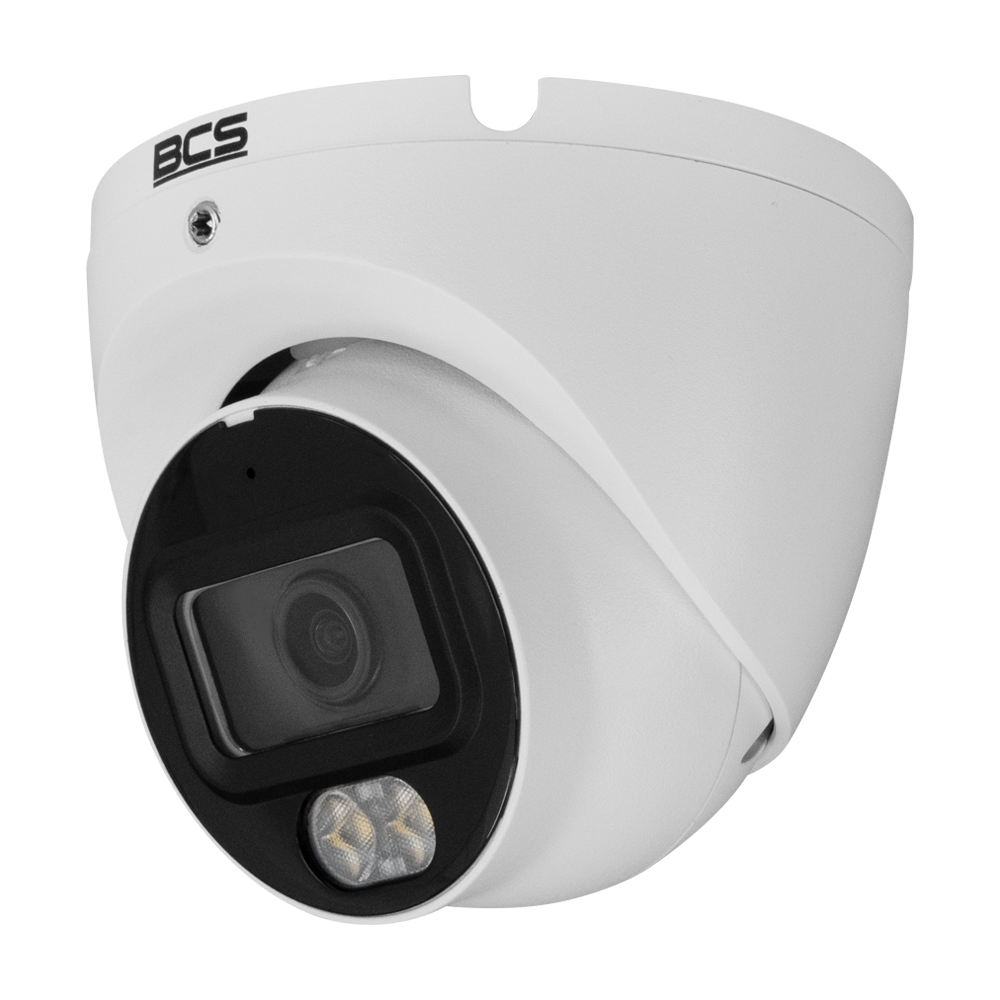

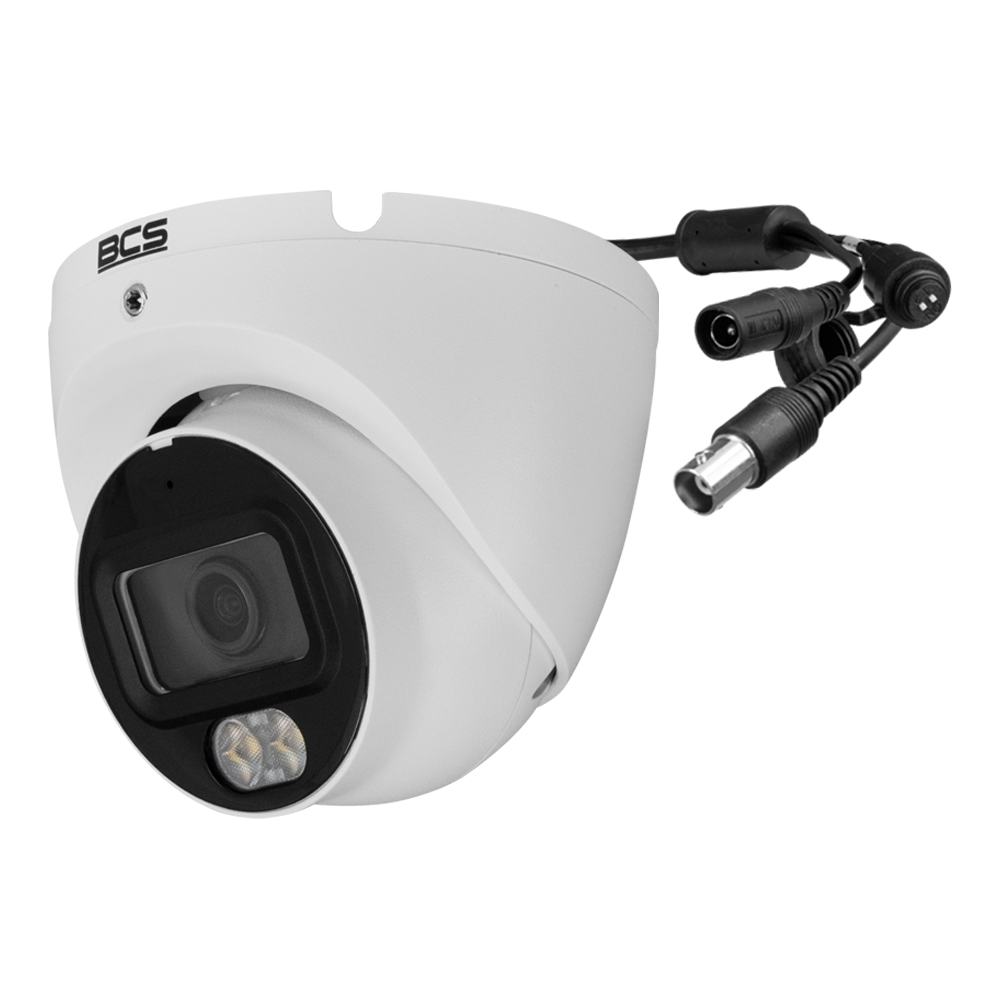

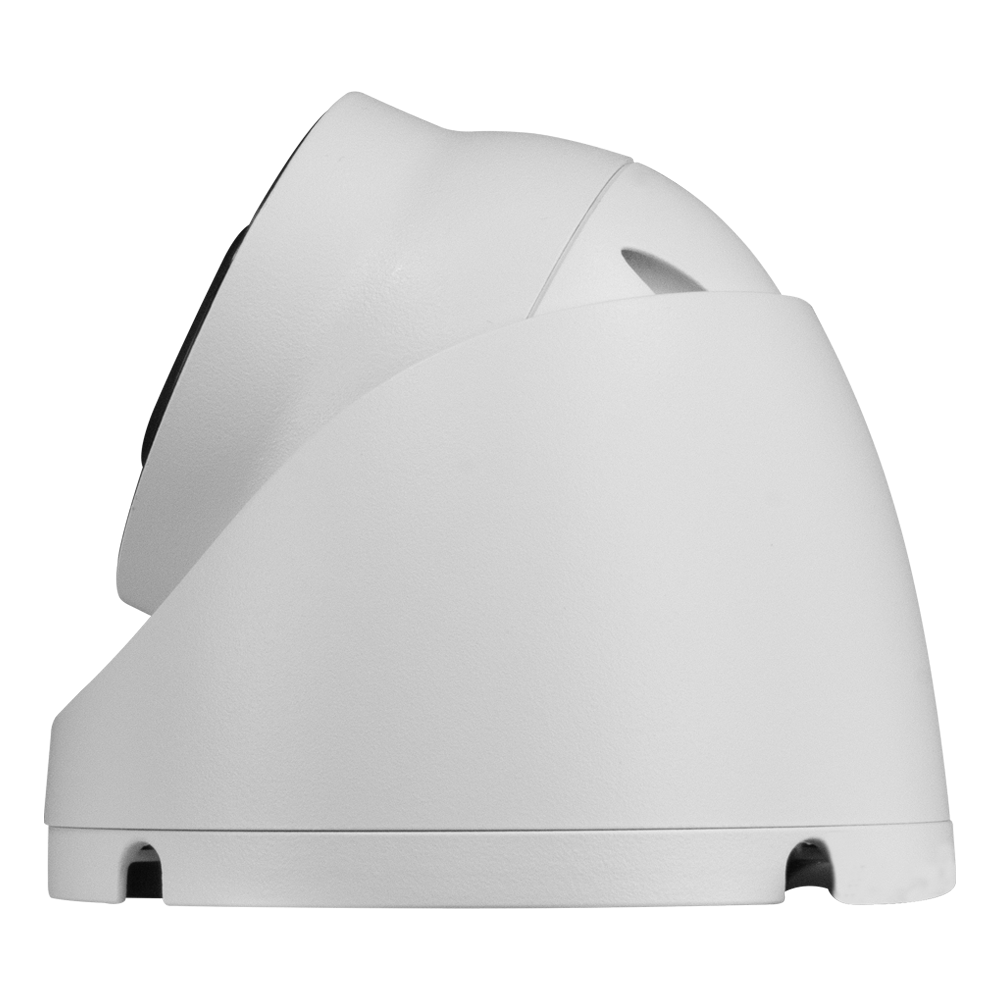

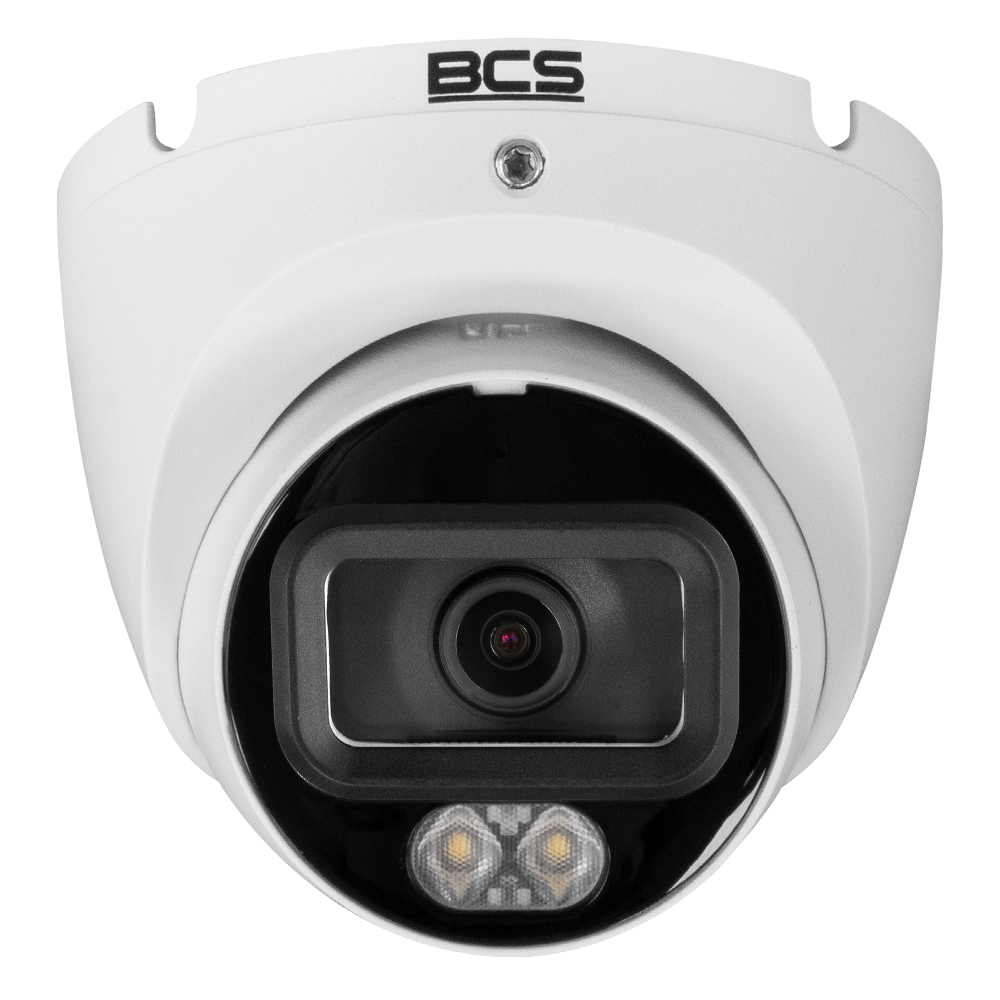

BCS-EA18FWR3L3
93,48 € gross
100 In Stock- 8Mpx analogue HD dome camera
- HDCVI/AHD/TVI/CVBS
- PS CMOS sensor
- 2.8mm fixed lens
- IR 30m
- WhiteLight 30m
- Microphone
- IP67-rated housing
100 in stock
- DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
- Official BCS e-commerce Business Partner
- Technical support
