| Product | BCS-EA48VSR8L6-G |
|---|---|
| ^Product line | BCS UNIVERSAL |
| Camera type | Dome |
| Transmission standard | HD-CVI / AHD / HD-TVI / ANALOG CVBS |
| Resolution | 8 Mpx |
| Scanning system | Progressive Scan |
| Pixels | 3840(H)×2160(V) |
| Lens | motozoom |
| Focal length | 2.7~13.5 mm |
| Aperture | F1.6 |
| Focus | Manual |
| Iris | fixed |
| Optical zoom | 5× |
| Angle of view | H: 32.7°~111.8° V: 18.4°~58.3°D: 37.5°~135.2° |
| DORI | Detect 87.2~269.3m / Observe 34.9~107.7m / Recognize 17.4~53.9m / Identify 8.7~26.9m |
| Min illumination | 0.01Lux(F1.6) 0.001Lux(B/W,F1.6,30IRE) 0Lux(B/W,IR) |
| S/N ratio | 65dB |
| White balance | (AWB) Auto / manual |
| WDR | DWDR |
| Backlight compensation | BLC / HLC / DWDR |
| Shutter | Auto / manual 1/30s~1/10000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 3D DNR |
| Image rotate | Mirror |
| Resolutions | 4K(3840×2160) 960H(960×576/960×480) |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED + WhiteLight |
| IR range | 80m |
| WhiteLight range | 60m |
| NightColor | Yes |
| Microphone | Yes |
| Support | Support for settings in the camera OSD menu by the BCS-XVR recorder |
| Privacy masking | 8 |
| &Power supply | 12V DC |
| Power supply type | 12V DC |
| Power consumption | max 7.4W |
| Housing color | Graphite |
| IP class | IP67 |
| Working environment | – 30°~+60° max 95% RH |
| Dimensions | Ø122×108.2mm |
| Weight | 0.54 kg |
| Casing | Metal |
| ^Box dimensions in mm (W×D×H) | 148×139×137 |

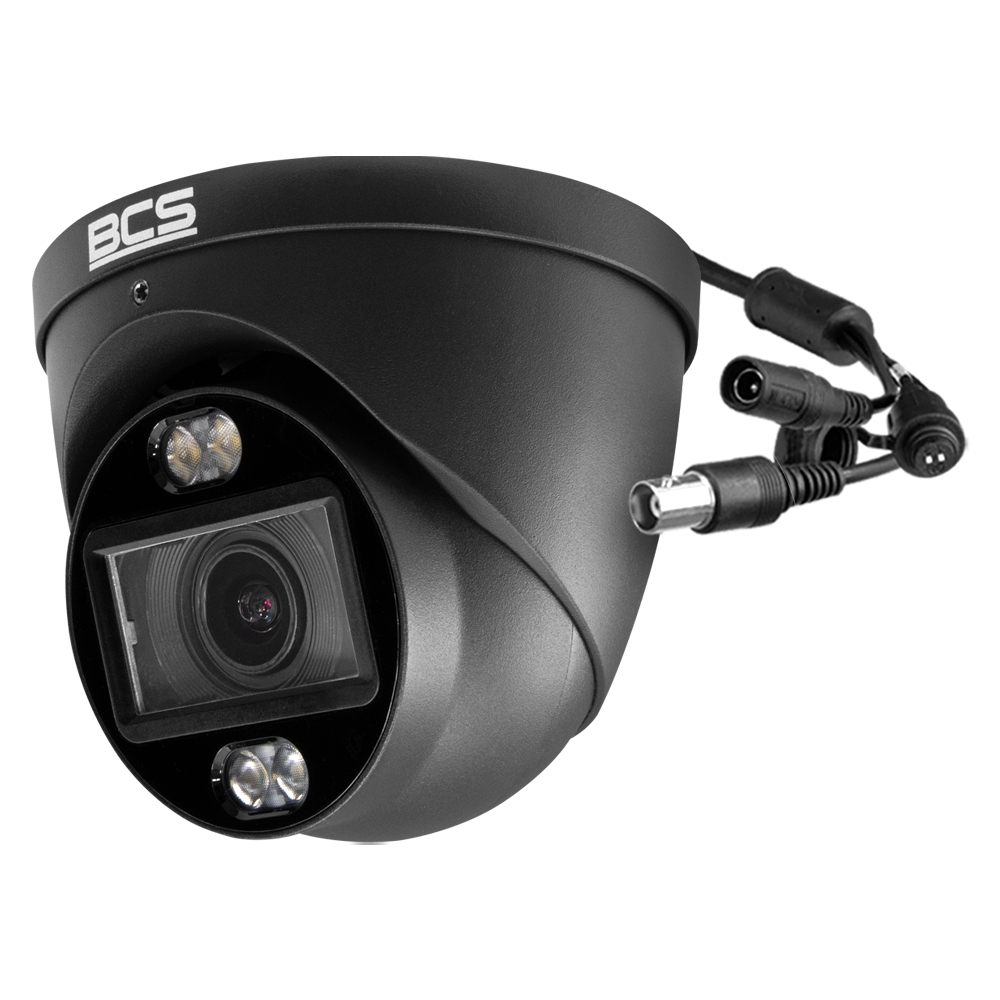

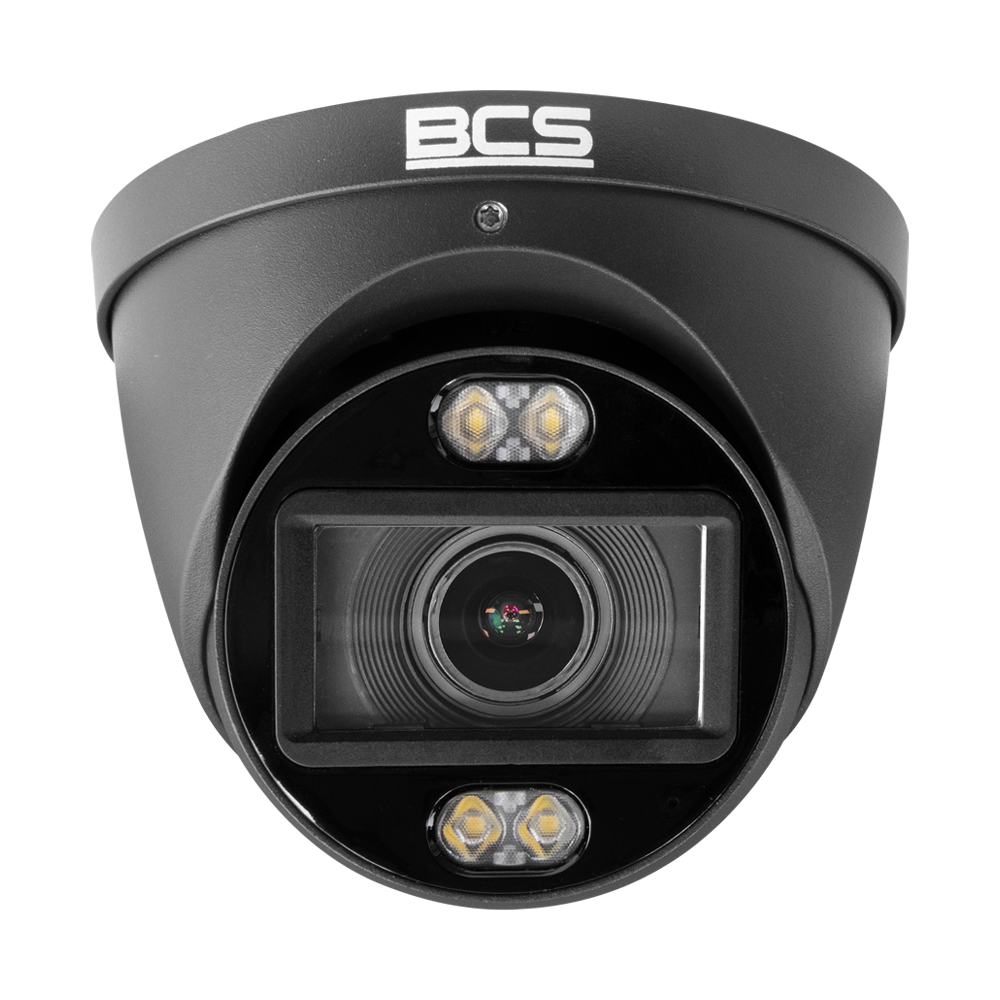

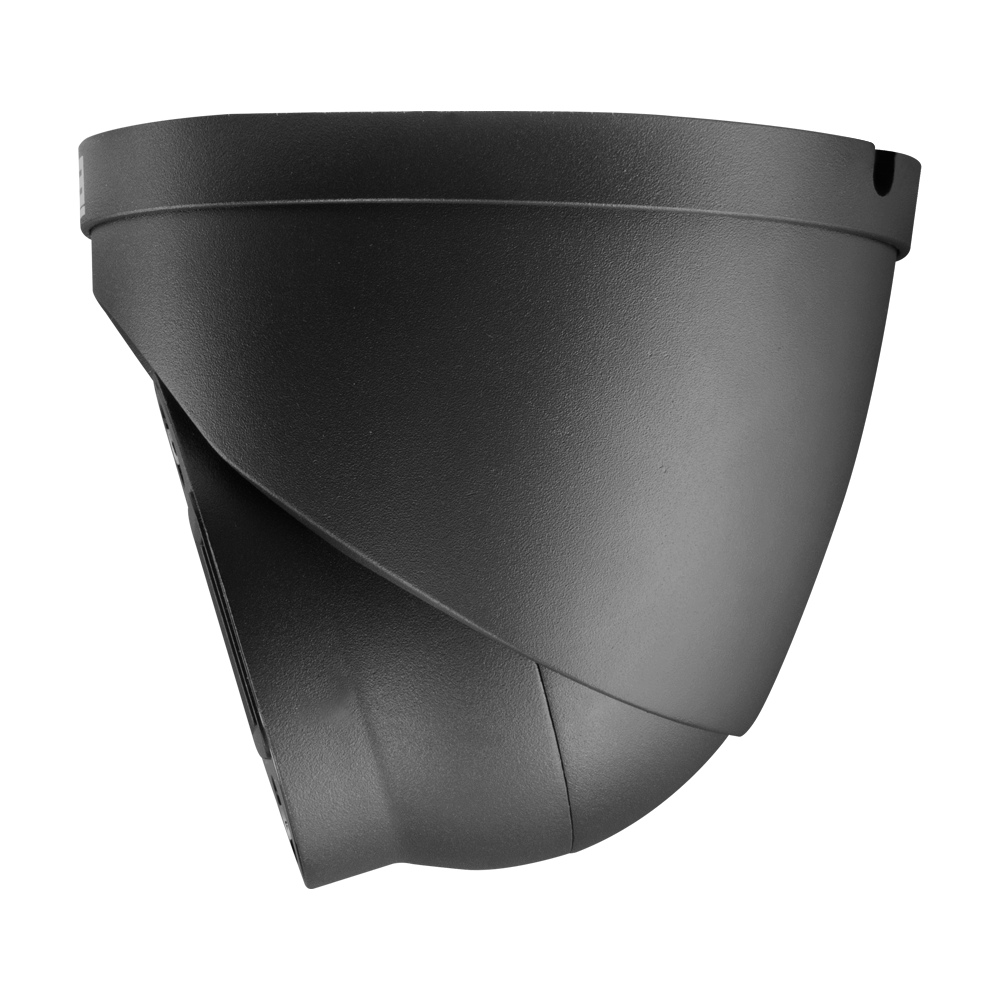

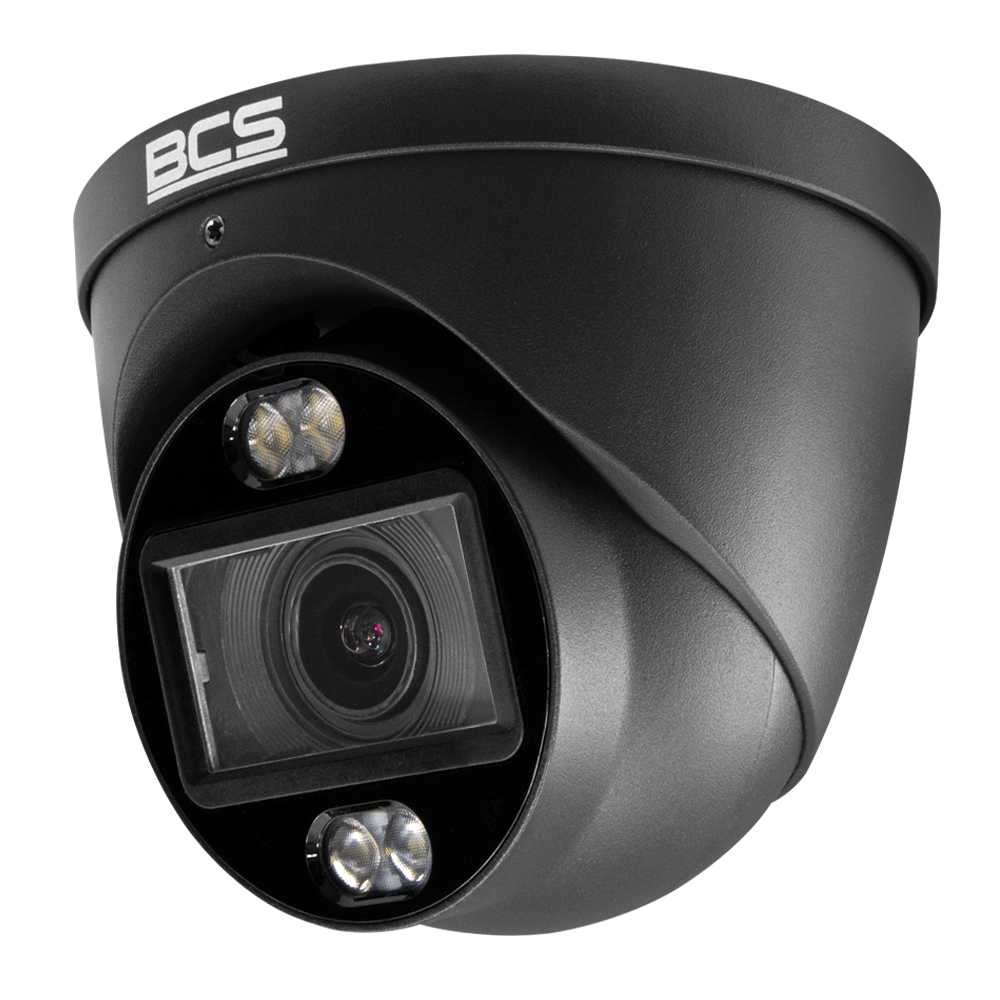

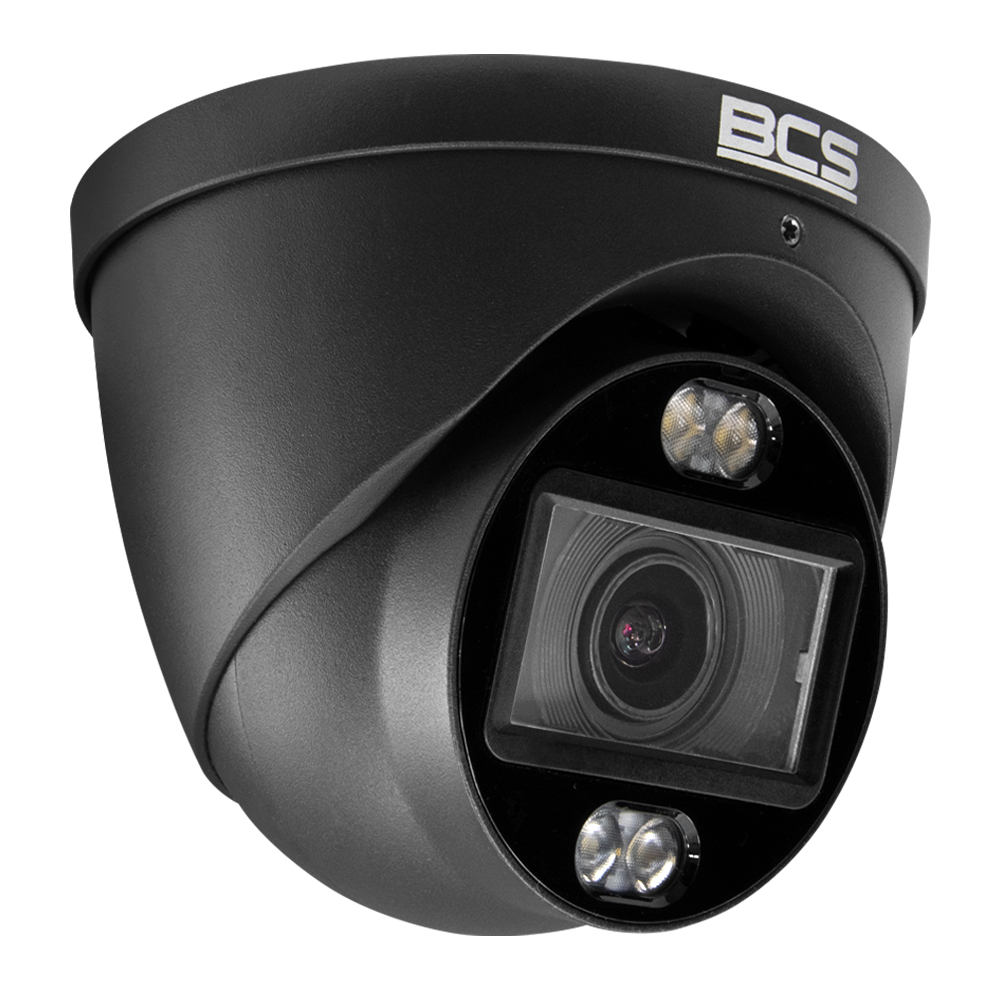

BCS-EA48VSR8L6-G
151,29 € gross
70 In Stock- Analog HD 8Mpx dome camera
- HDCVI/AHD/TVI/CVBS
- Motozoom lens 2.7~13.5mm
- IR 80m WhiteLight 60m
- Microphone
- IP67 housing
70 in stock
