| Flag | TO ORDER |
|---|---|
| Product | BCS-F-FIP512FR2 |
| NDAA | National Defense Authorization Act |
| Camera type | Fisheye |
| Resolution | 12 Mpx |
| Sensor | 1/1.7'' CMOS |
| Scanning system | Progressive Scan |
| Pixels | 3008(H)×3000(V) |
| Lens | fixed |
| Focal length | 2.1 mm |
| Aperture | F2.2 |
| Focus | fixed |
| Iris | fixed |
| Angle of view | H: 185° V: 185° D: 185° |
| Min illumination | 0.3Lux(F2.2) 0Lux(IR) |
| S/N ratio | 50dB |
| White balance | (AWB) Auto / manual |
| WDR | DWDR |
| Backlight compensation | DWDR |
| Shutter | Auto / manual 1/15~1/32000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 3D DNR |
| Image rotate | Mirror, Flip |
| Stream support | 3 |
| Resolutions | H.264/H.265: 3008×3000 / 2800×2800 / 1600×1600 / 640×640 / 320×320 MJPEG: 1440×1440 / 1280×1280 / 640×640 / 320×320 |
| Bitrate | 100Kbps~25Mbps |
| Video compression | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED |
| IR range | 20m |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711ulaw |
| Alarm in | 1 |
| Alarm out | 1 |
| Memory card slot | microSD |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | 4 |
| Privacy masking | 16 |
| Network | RJ-45 10/100/1000 Mbps |
| Compatibility | ONVIF |
| Protocols | TCP/IP, UDP, AutoIP, RTP(UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3(MIB-2) |
| Network security | HTTPS, SSL, IP filtering, IEEE802.1X, Digest Authentication |
| Power supply | PoE |
| Power supply type | 12V DC / PoE(802.3af) |
| Power consumption | max 10W |
| Housing color | White |
| IP class | IP66 |
| Working environment | -20°C~+50°C max 90% RH |
| Dimensions | 125×48mm |
| Weight | 0.5kg |
Warning: This product belongs to the BCS FLEX product line.
Use only components and devices from the same line to ensure compatibility.
BCS FLEX

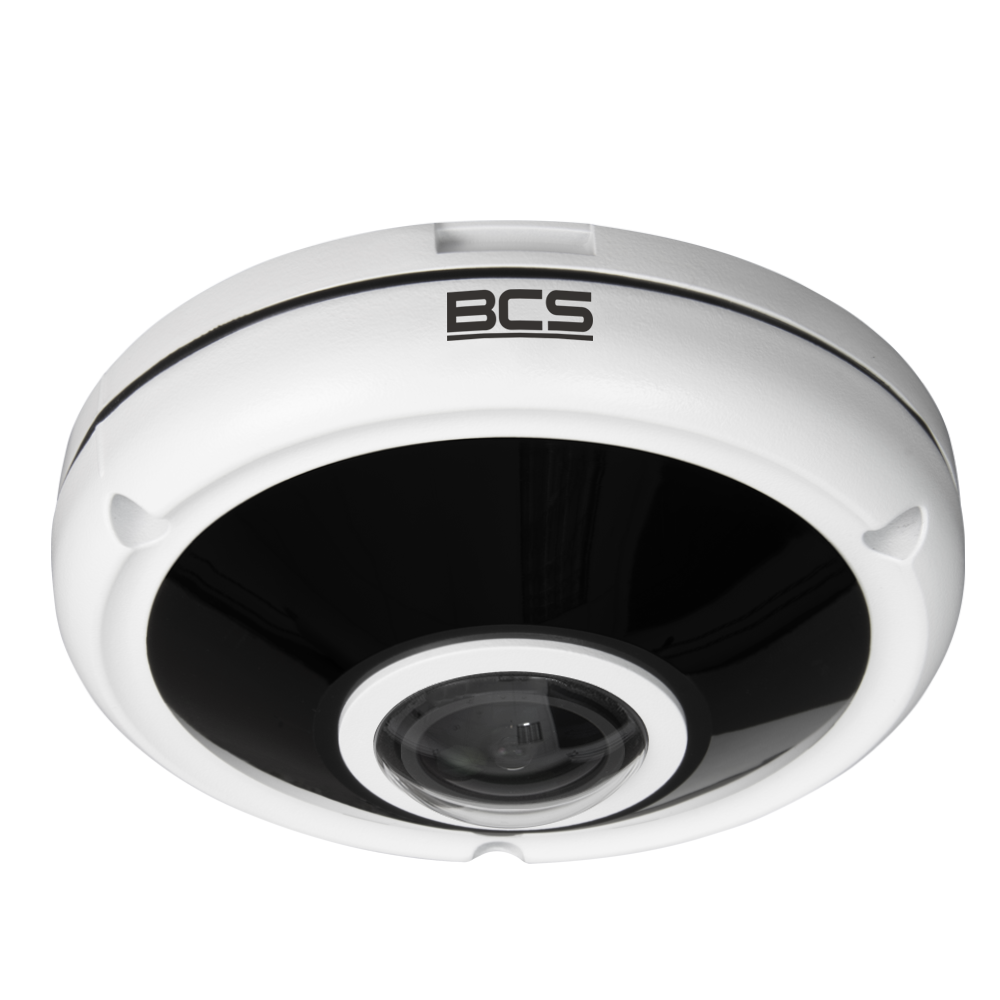

BCS-F-FIP512FR2
696,18 € gross
Out of Stock- 12Mpx IP camera
- 1/1.7" PS CMOS sensor
- NDAA compliant
- 2.1mm fisheye lens
- IR 20m
- Alarm 1/1, audio 1/1
- IP66 housing
Out of stock
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.
