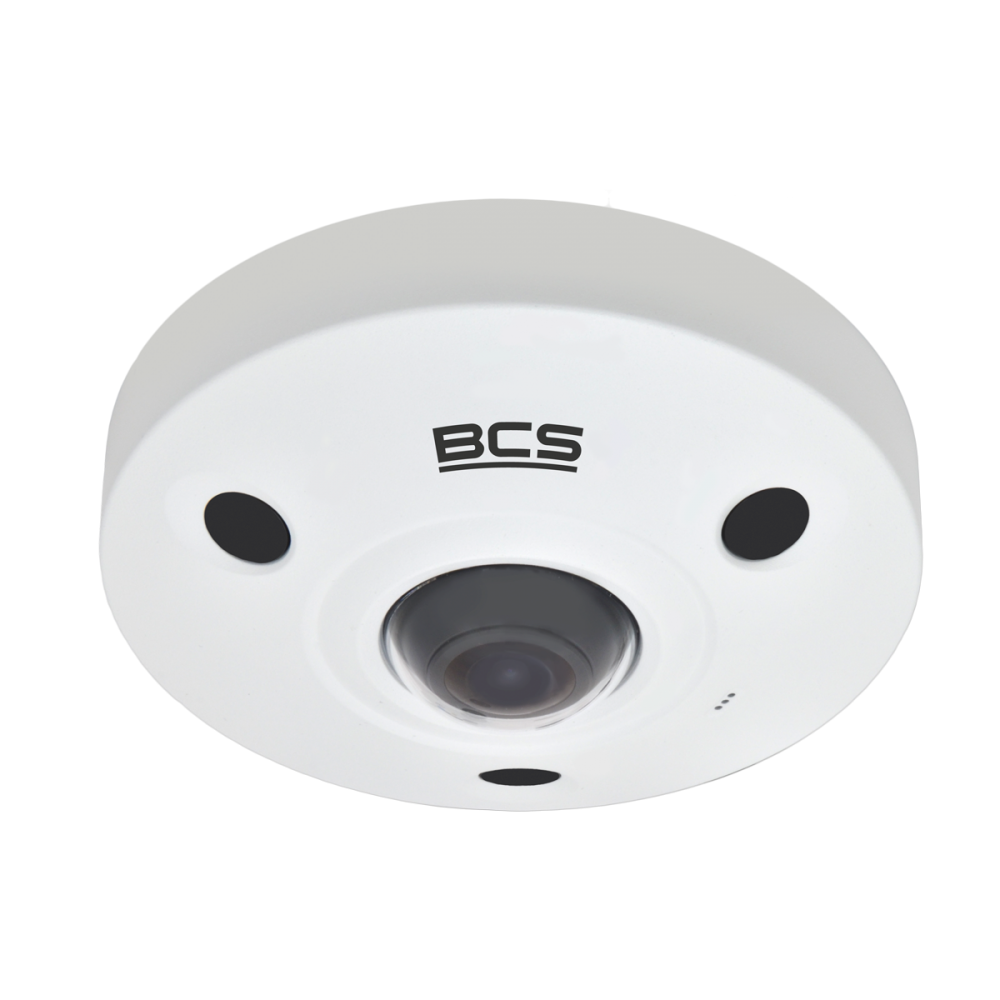

12 Mpx fisheye IP camera. Compression: H.265 / H.265 + / H.264 / H264 + / MJPEG. Resolution: 12Mpx, IR illuminator up to 10m, progressive scan, 256GB microSD memory card slot, 1 audio input and output, 2 alarm inputs and 2 alarm outputs, built-in microphone and loudspeaker. Perimeter protection, object recognition, face detection, heat map, web service. White IK10 casing, protection class IP67. Power supply: 12V DC / PoE (802.3at).
Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
BCS LINE
BCS-L-FIP512FR1-Ai2
2730,60 € gross
19 In Stock- 12Mpx IP camera
- 1/1.7" PS CMOS sensor
- 1.85mm fisheye lens
- IR 10m
- Alarm 2/2, audio 1/1, microphone, speaker
- IP67, IK10 housing
- Built-in smart features
19 in stock
- DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
- Official BCS e-commerce Business Partner
- Technical support
| Ai - Heat map | Recording the movement of objects over a period of time, statistics of the time density of movement presented graphically in red/blue color tones |
|---|---|
| Resolution | 12 Mpx |
| Scanning system | Progressive Scan |
| ROM | 2GB |
| Focus | fixed |
| DORI | Detect 40m / Observe 16m / Recognize 8m / Identify 4m |
| WDR | DWDR |
| Ai - Built-in intelligent functions | Built-in intelligent algorithm of image analisis |
| RoI | Region of Interest |
| Product | BCS-L-FIP512FR1-Ai2 |
| Camera type | Fisheye |
| Sensor | 1/1.7'' CMOS |
| Pixels | 4000(H)×3000(V) |
| RAM | 4GB |
| Lens | Fisheye |
| Focal length | 1.85 mm |
| Aperture | F2.0 |
| Iris | fixed |
| Digital zoom | 16× |
| Angle of view | H: 185° V: 180° |
| Min illumination | 0.01Lux(Color,F2.0,30IRE) 0.001Lux(F2.0,B/W,30IRE) 0Lux(IR) |
| S/N ratio | 56dB |
| White balance | (AWB) Auto / manual |
| Backlight compensation | BLC / HLC / DWDR |
| Shutter | Auto / manual 1/3~1/100000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 3D DNR |
| Defog | Electronic |
| Stream support | 3 |
| Resolutions | |
| Main stream | 4000×3000(1~25fps) |
| Second stream | 704×576(1~25/30fps) 704×480(1~30fps) |
| Third stream | 1280×960(1~17fps) |
| Bitrate | H.264: 8 kbps~16384 kbps H.265: 3 kbps~16384 kbps |
| Video compression | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED |
| IR range | 10m |
| Microphone | Yes |
| Loudspeaker | Yes |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711A / G.711Mu / G.723 / G.726 / PCM |
| Alarm in | 2 |
| Alarm out | 2 |
| Storage | FTP, SFTP, NAS |
| Memory card slot | microSD 256GB |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | 4 |
| Privacy masking | 4 |
| Network | RJ-45 10/100/1000 Mbps |
| Compatibility | ONVIF(S/G/T) |
| Protocols | IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP |
| Power supply | PoE |
| Power supply type | 12V DC / PoE(802.3at) |
| Power consumption | max 13.9W |
| Housing color | White |
| IP class | IP67 |
| IK10 | Yes |
| Working environment | -30°C~+70°C max 95% RH |
| Dimensions | Ø149.8×59.8mm |
| Weight | 0.79 kg |
| Ai - Perimeter protection | Crossline, intrusion |
| Ai - People counting | People counting for intrusion and crossline, counting people in/out/stay in, queue management, generate and export reports in periods of time |
