| Flag | TO ORDER |
|---|---|
| Product | BCS-F-TIP653FSR3-THT(0404) |
| NDAA | National Defense Authorization Act |
| Camera type | Thermal |
| Resolution | 5 Mpx |
| Scanning system | Progressive Scan |
| Pixels | 2704(H)×2104(V) |
| Lens | fixed |
| Focal length | 4 mm |
| Aperture | F2.0 |
| Focus | fixed |
| Iris | fixed |
| Angle of view | H: 82.3° V: 58.8° |
| Min illumination | 0.16Lux(F2.0) 0Lux(IR) |
| S/N ratio | 50dB |
| White balance | (AWB) Auto / manual |
| WDR | 120dB |
| Backlight compensation | WDR(120dB) |
| Shutter | Auto / manual 1/15~1/32000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 3D DNR |
| RoI | Region of Interest |
| Image rotate | Mirror, Flip |
| Stream support | 3 |
| Resolutions | 2592×1944 / 2560×1440 / 1920×1080 / 1280×720 / 800×600 / 704×576 / 704×480 / 640×480 / 640×360 / 352×288 / 352×240 |
| Video compression | H.265 / H.264H / MJPEG |
| Day/night | ICR |
| Illuminator type | IR LED |
| IR range | 30m |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711ulaw |
| Alarm in | 1 |
| Alarm out | 1 |
| Memory card slot | microSD |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | Yes |
| Privacy masking | Tak |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF |
| Protocols | TCP/IP UDP AutoIP RTP(UDP/TCP) RTSP NTP HTTP HTTPS SSL DNS DDNS DHCP FTP SMTP ICMP SNMPv1/v2/v3(MIB-2 |
| Power supply | PoE |
| Power supply type | 12V DC / PoE(802.3af) |
| Power consumption | max 23.3W |
| Housing color | White |
| IP class | IP67 |
| Built-in heater | Yes |
| Working environment | -40°C~+50°C max 90% RH |
| Dimensions | 242.3×96.7mm |
| Weight | 0.98 kg |
| Casing | Metal |
| Thermal camera sensor | Microbolometric sensor with active absorbing material Vox |
| Thermal camera resolution | 320(H)×240(V) |
| Thermal camera main stream | 640×480/320×240 |
| Thermal camera lens | 4 mm |
| Thermal camera aperture | F1.0 |
| Thermal camera angle of view | H: 56° V: 42° |
| Thermal camera DORI | Detect 333m / Recognize 83m / Identify 48m |
| Temperature measurement | Yes |
| pa_temperature-measuremen-c70c8 | -40°C~330°C |
| Pixel size | 12um |
Warning: This product belongs to the BCS FLEX product line.
Use only components and devices from the same line to ensure compatibility.
BCS FLEX

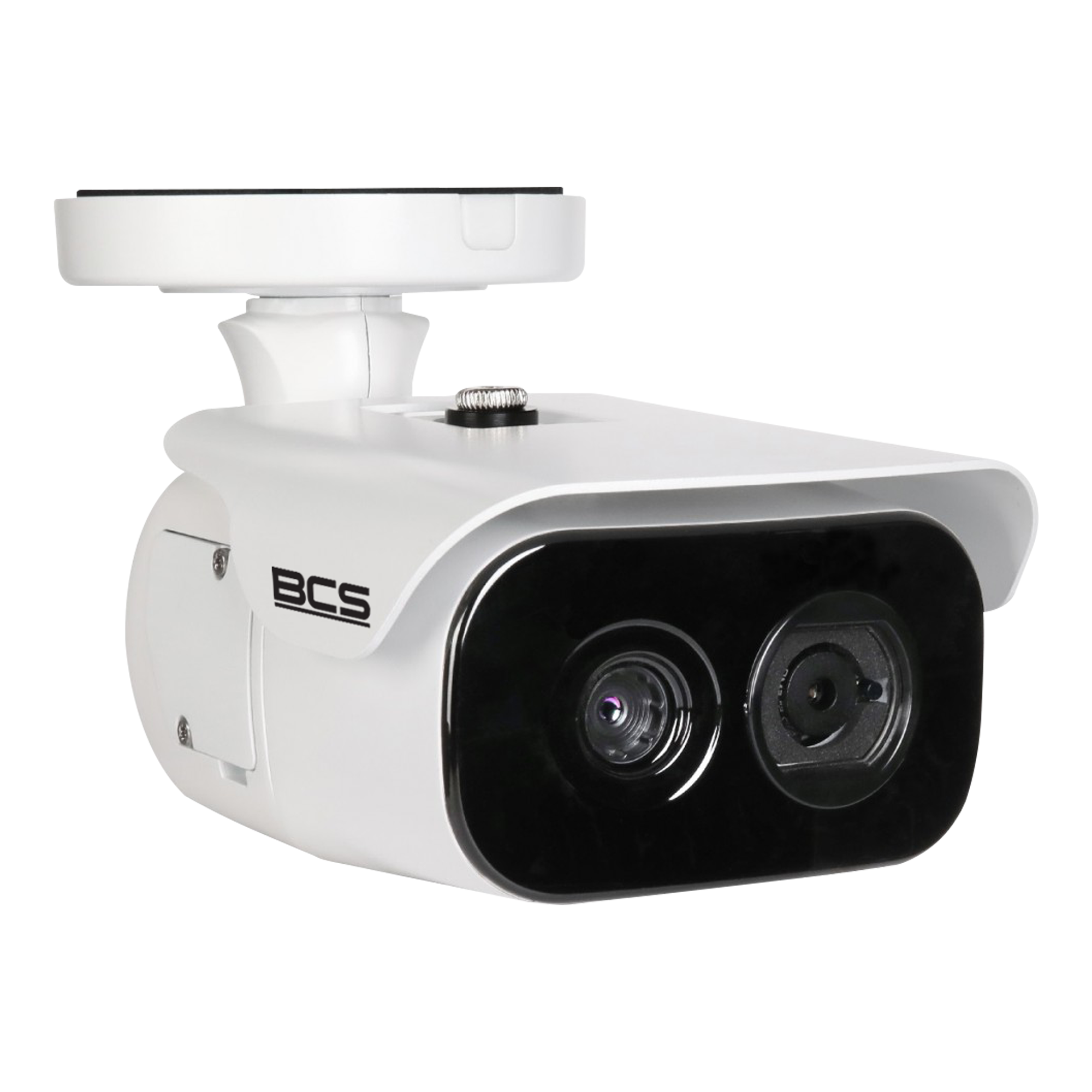

BCS-F-TIP653FSR3-THT(0404)
0,00 € gross
Out of Stock- Thermal imaging tube IP camera
- 320×240 thermal sensor with a 4mm lens
- 5 Mpx video camera with a 4mm lens
- IR 30m
- Alarm 1/1, audio 1/1
- IP67, IK09 housing
- Fusion function
- Temperature measurement
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.
