BCS POWER

BCS-IP4/E-S

194,34 € gross

Out of Stock

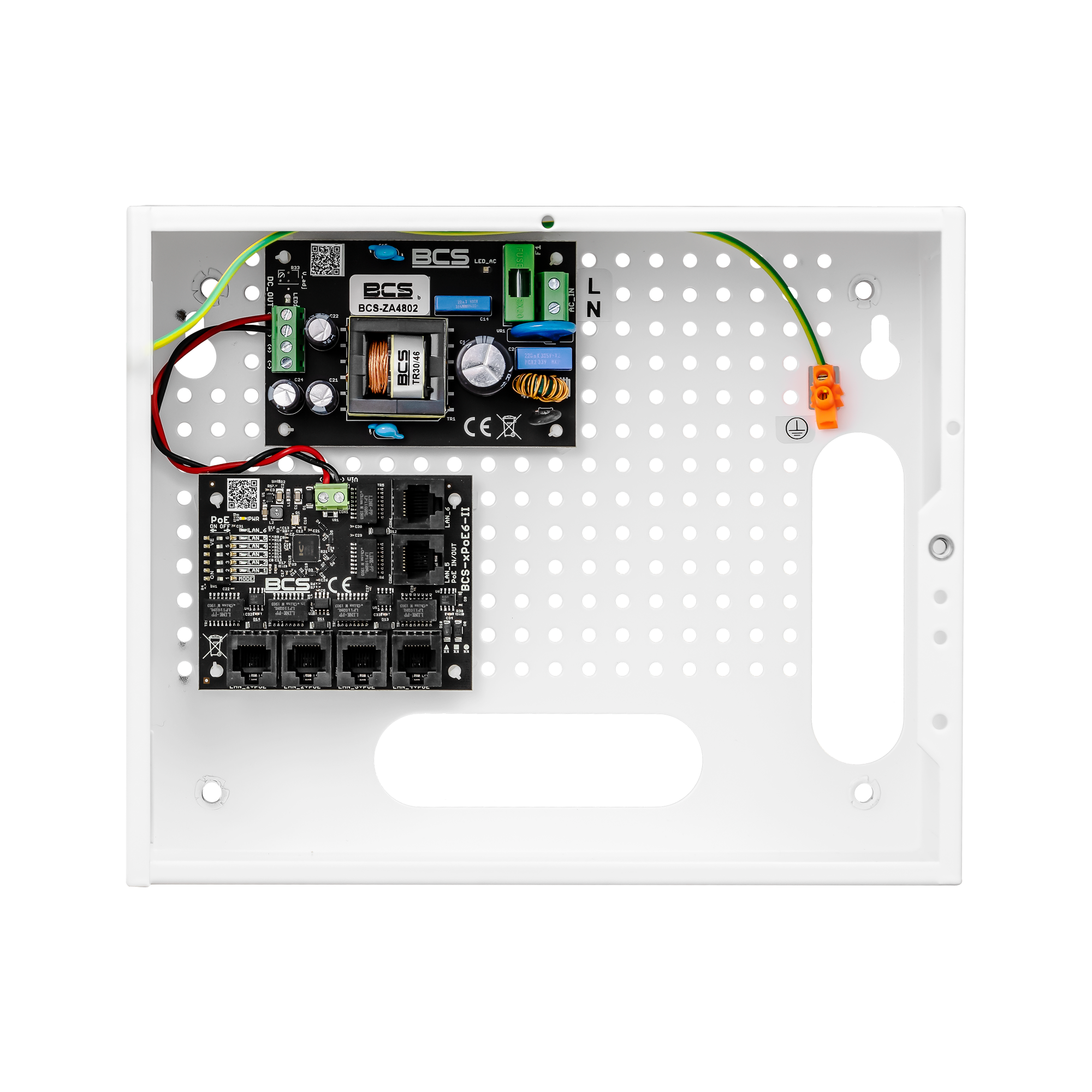

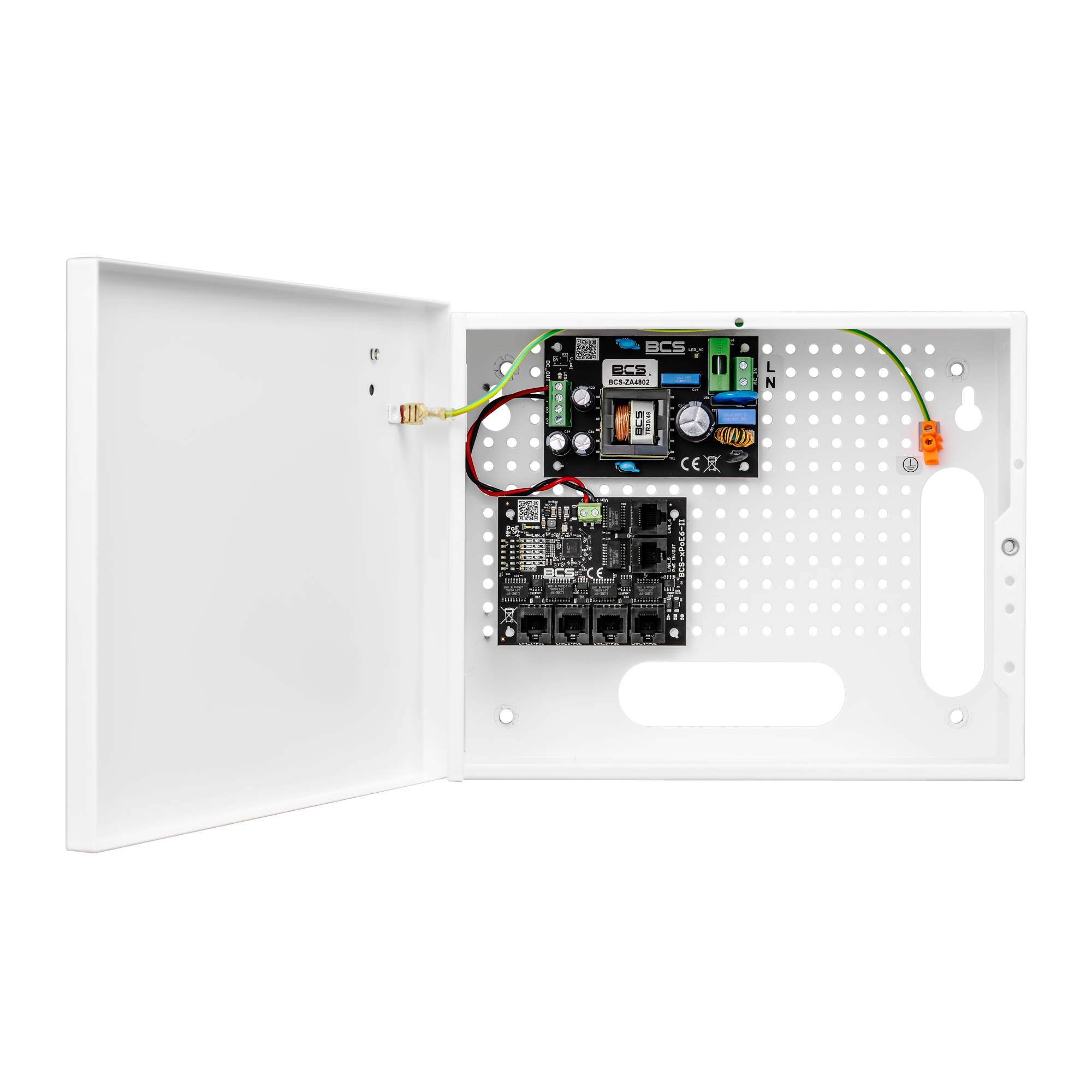

IP camera power supply kit, in an indoor housing, for up to 5 PoE devices.

Out of stock

This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.

SKU: 5551 Categories: ,

Set for powering IP CCTV cameras. The device is a convenient solution to the problem of central powering for monitoring cameras. The device is designed to work with IP cameras and other network devices powered in PoE 802.3at / af and PoE PASSIVE standards.

The LONG RANGE mode allows you to increase the transmission range up to 280m with the use of a standard UTP twisted pair.

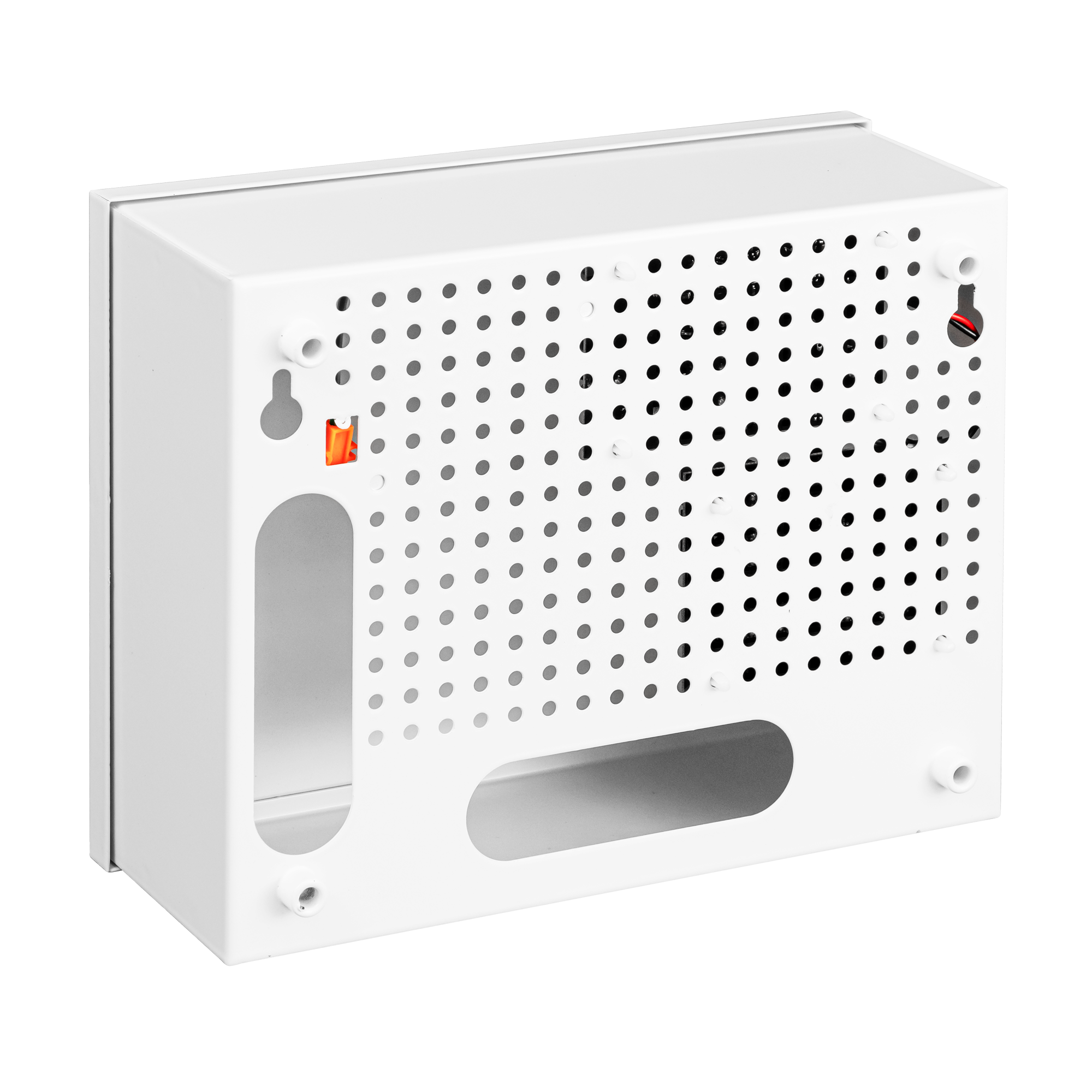

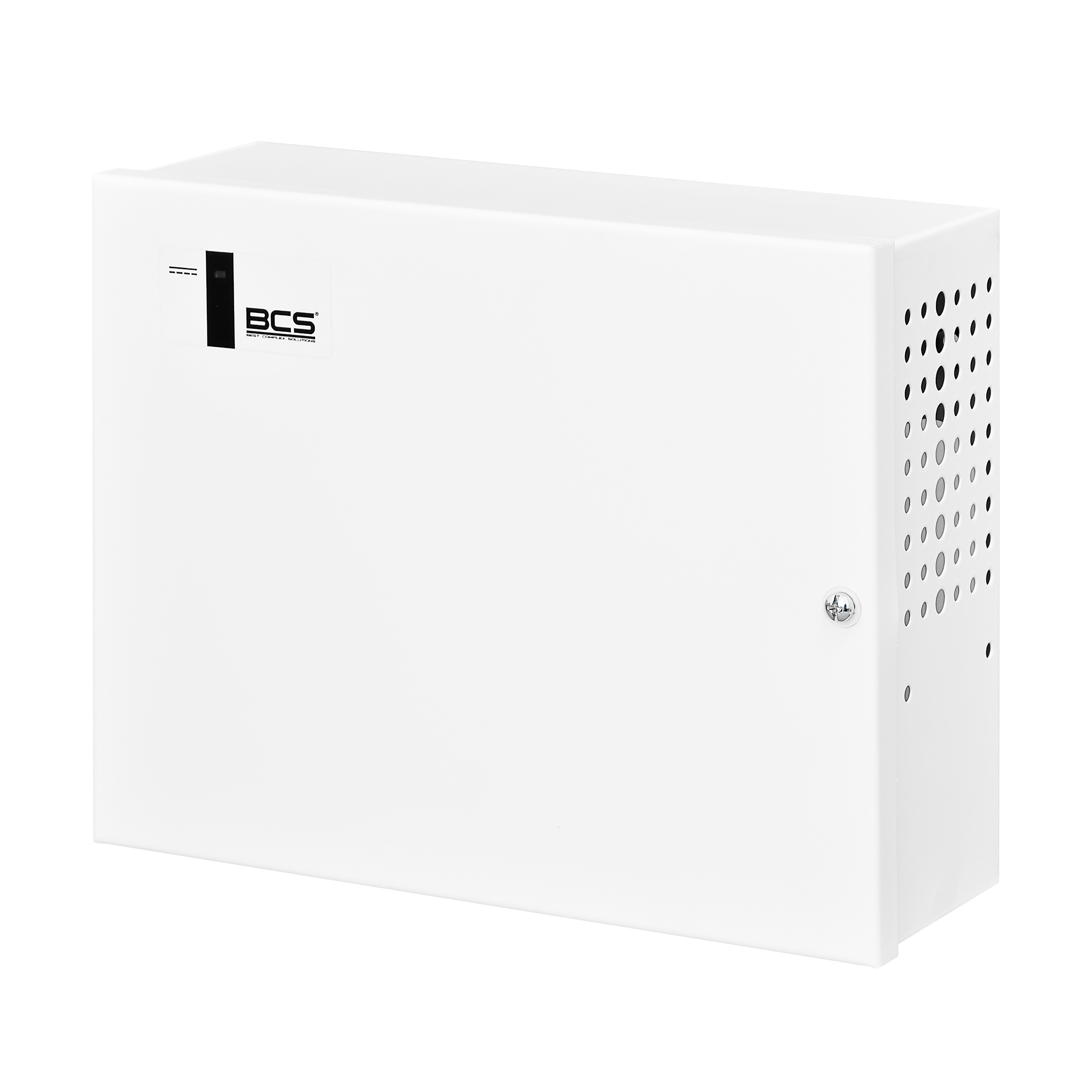

The device is closed in the BCS-E internal casing, which is a convenient solution to the problem of aesthetic installation of monitoring devices and termination of wiring inside buildings. The housing is made of sheet steel, powder coated in a semi-matt white color.

Product

BCS-IP4/E-S

PoE ports

5×RJ45 100Mbps

Standard IEEE

802.3af / 802.3at / PoE PASSIVE

STANDARD mode

100m

EXTEND mode

LAN_1-LAN_4 280m 10Mbps

Adapter power

96W

Power supply

V in: 190-260 VAC, 50 Hz V out: 48 VDC +/- 2%

Working environment

-10°C~+40°C max 90% RH

Weight

1.47 kg

Protection level

IP20

Casing

BCS-E housing, Housing material – 0.8 mm steel sheet, White powder-coated housing, Opening tamper installed, Wall distance

Dimensions (W×D×H)

250×200×85mm
