BCS-UPS/IP4/E-S

271,83 € gross

19 In Stock

Buffer power supply kit for 5 PoE devices, in an indoor housing.

19 in stock

  • DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
  • Official BCS e-commerce Business Partner
  • Technical support
SKU: 5252 Categories: ,

A set for buffer power supply of IP CCTV cameras. The device is a convenient solution to the problem of a buffer power supply for surveillance cameras that require uninterrupted operation. The device is designed to work with IP cameras and other network devices powered in PoE 802.3at / af and PoE PASSIVE standards.

The LONG RANGE mode allows you to increase the transmission range up to 280m with the use of a standard UTP twisted pair.

The system is adapted to work with lead-acid or dry SLA batteries.

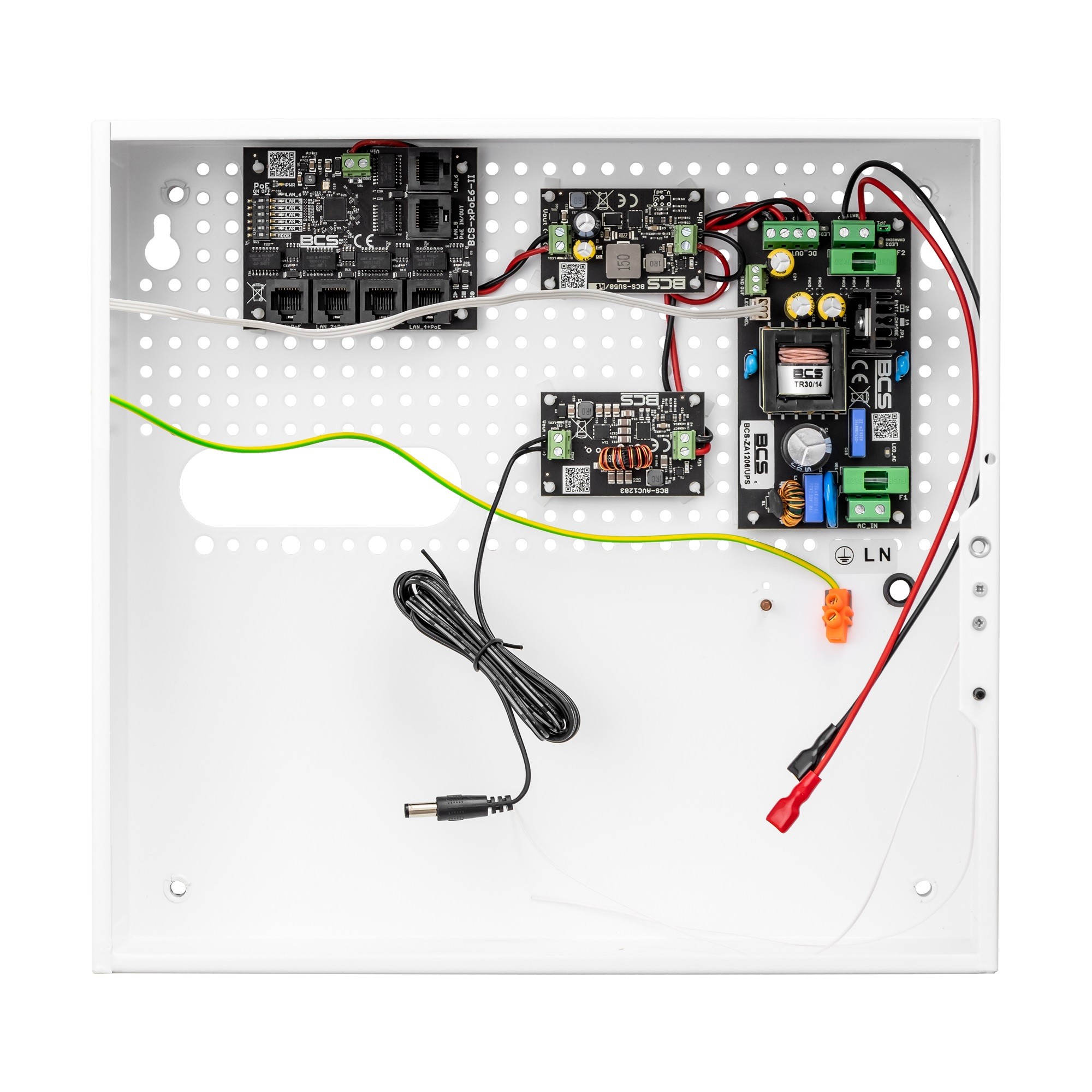

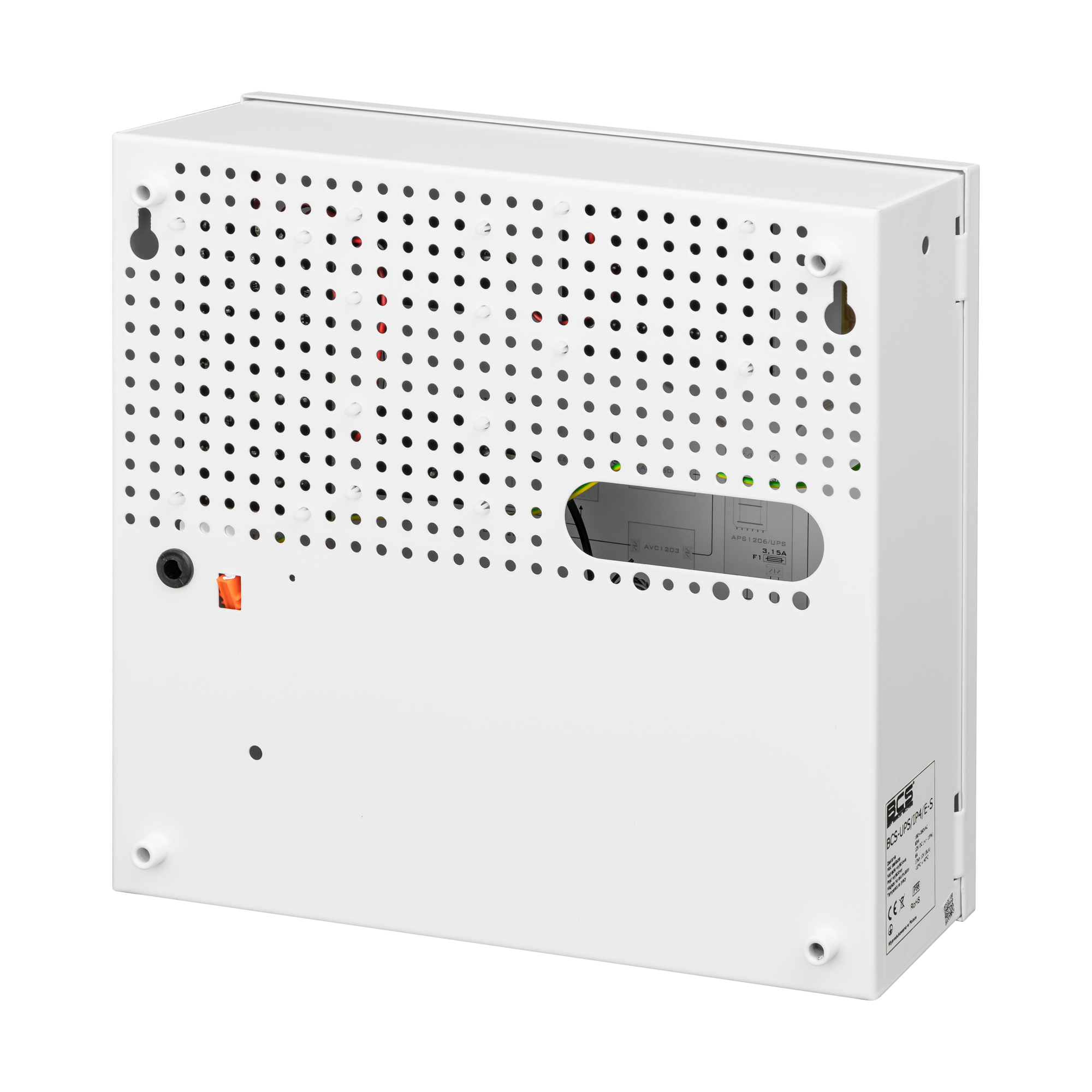

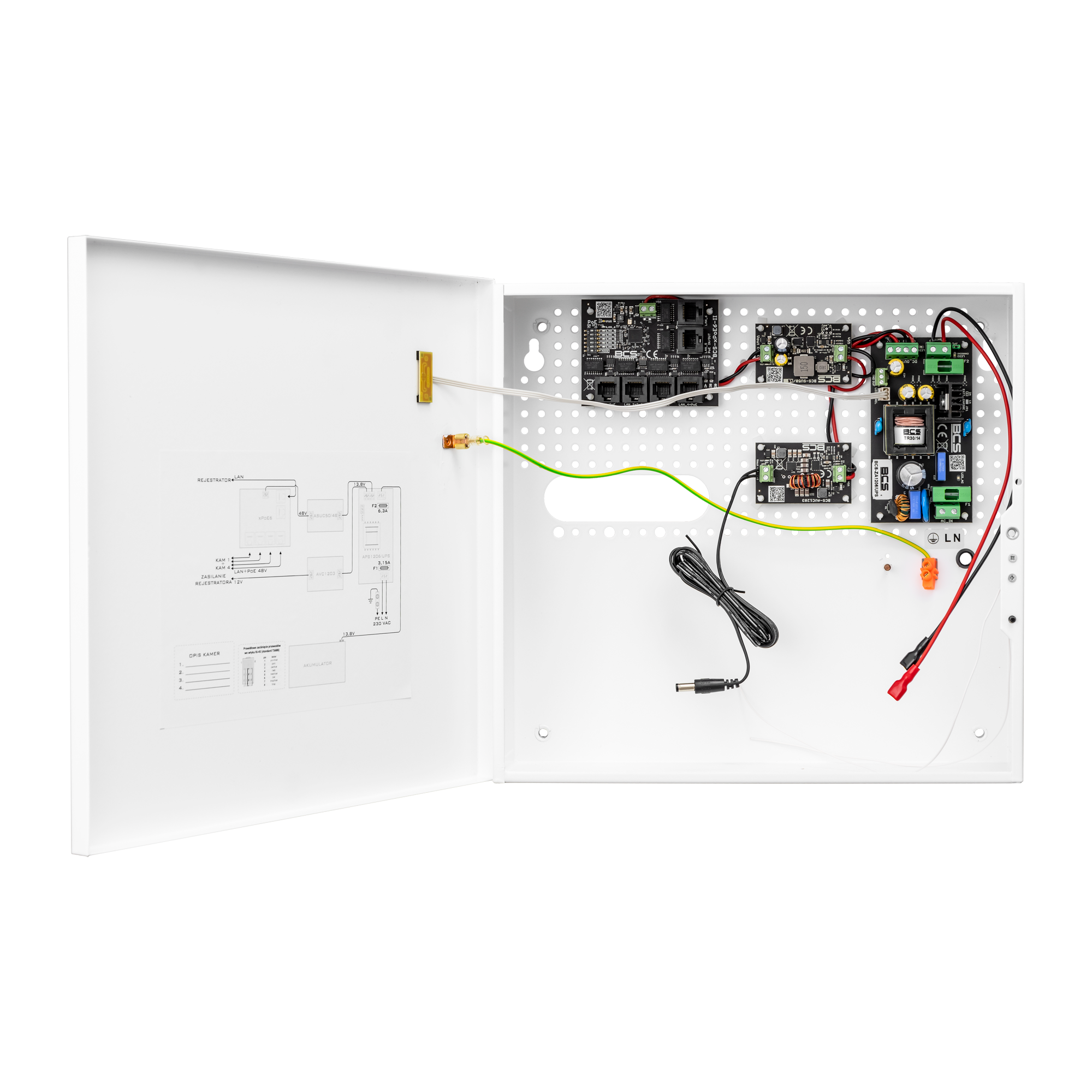

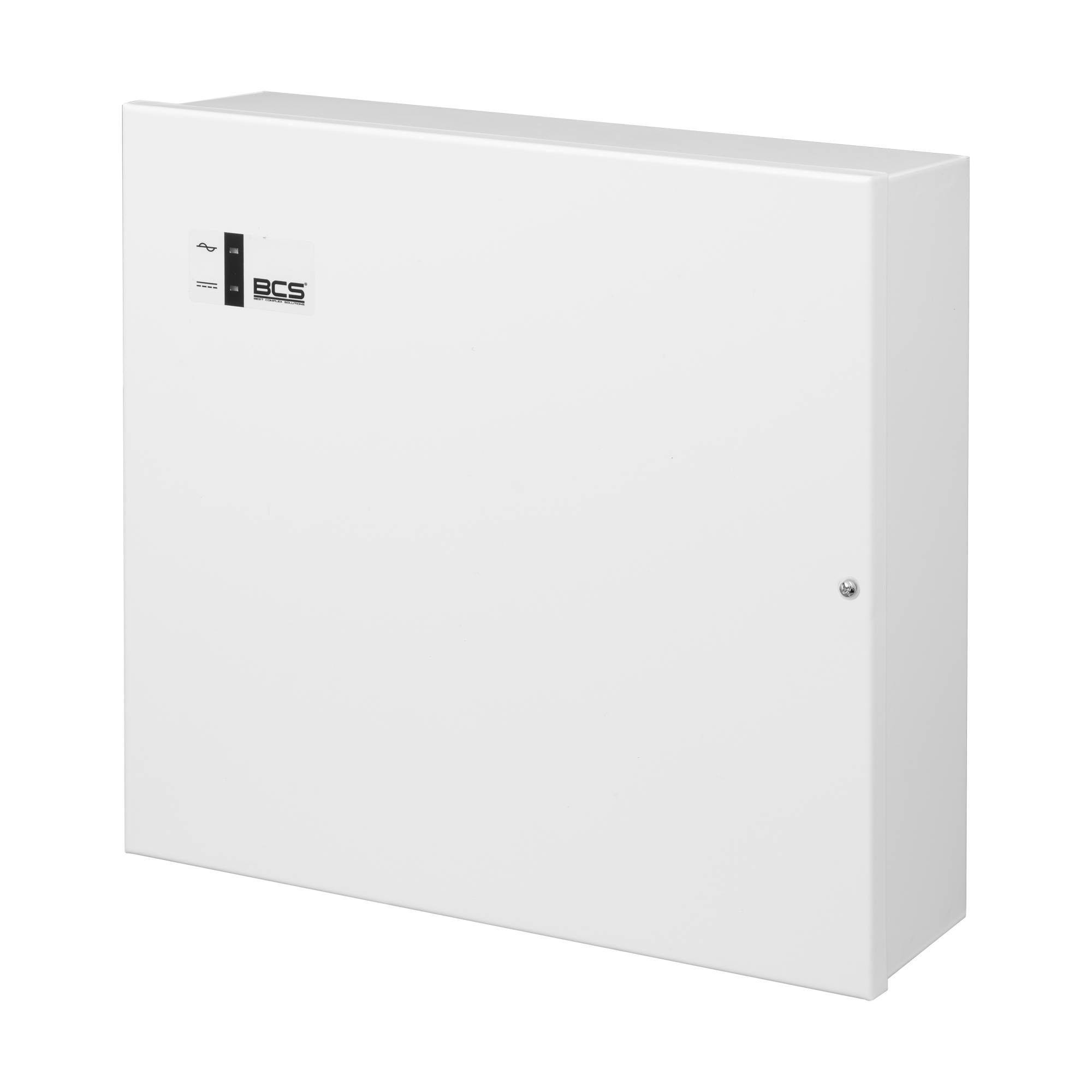

The device is closed in the BCS-F internal housing, which is a convenient solution to the problem of aesthetic installation of monitoring devices and termination of wiring inside buildings. The housing is made of sheet steel, powder coated in a semi-matt white color.

Product

BCS-UPS/IP4/E-S

PoE ports

5×RJ45 100Mbps

Standard IEEE

802.3af / 802.3at / PoE PASSIVE

STANDARD mode

100m

EXTEND mode

LAN_1-LAN_4 280m 10Mbps

Adapter power

72W

Power supply

V in: 190-260 VAC, 50 Hz V out: 48 VDC +/- 2%

UPS backup

max 1 × 12V 18Ah

Working environment

-10°C~+40°C max 90% RH

Weight

2.38 kg

Protection level

IP20

Casing

BCS-F housing, Housing material – 0.8 mm steel sheet, White powder-coated housing, Opening tamper installed, System drilling 4.8 mm in 10.8 mm pitch, Wall distance, Mounting holes 6mm

Dimensions (W×D×H)

300×320×90mm
