BCS-IP8/E-S

275,52 € gross

7 In Stock

IP camera power supply kit, in an indoor housing, for up to 9 PoE devices.

7 in stock

  • DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
  • Official BCS e-commerce Business Partner
  • Technical support
SKU: 5552 Categories: ,

Set for powering IP CCTV cameras. The device is a convenient solution to the problem of central powering for monitoring cameras. The device is designed to work with IP cameras and other network devices powered in PoE 802.3at / af and PoE PASSIVE standards.

The LONG RANGE mode allows you to increase the transmission range up to 280m with the use of a standard UTP twisted pair.

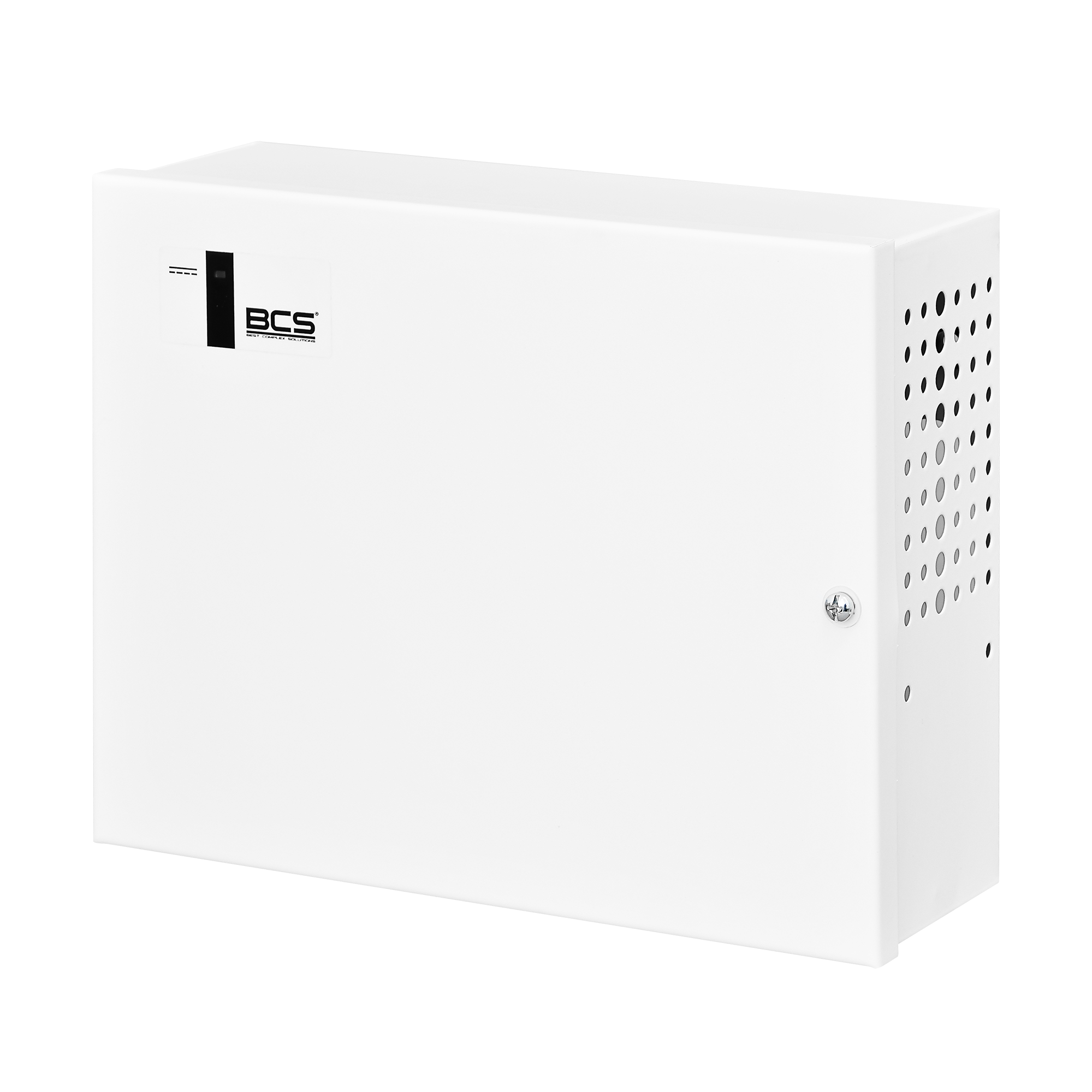

The device is closed in the BCS-E internal casing, which is a convenient solution to the problem of aesthetic installation of monitoring devices and termination of wiring inside buildings. The housing is made of sheet steel, powder coated in a semi-matt white color.

Product

BCS-IP8/E-S

PoE ports

9×RJ45 100Mbps

Standard IEEE

802.3af / 802.3at / PoE PASSIVE

STANDARD mode

100m

EXTEND mode

LAN_1-LAN_4 280m 10Mbps

Adapter power

96W

Power supply

V in: 190-260 VAC, 50 Hz V out: 48 VDC +/- 2%

Working environment

-10°C~+40°C max 90% RH

Weight

1.52 kg

Protection level

IP20

Casing

BCS-E housing, Housing material – 0.8 mm steel sheet, White powder-coated housing, Opening tamper installed, Wall distance

Dimensions (W×D×H)

250×200×85mm
