BCS-IP8/Z/E-S

277,98 € gross

4 In Stock

IP camera power supply kit, in an outdoor housing, for up to 9 PoE devices.

4 in stock

  • DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
  • Official BCS e-commerce Business Partner
  • Technical support
SKU: 5559 Categories: ,

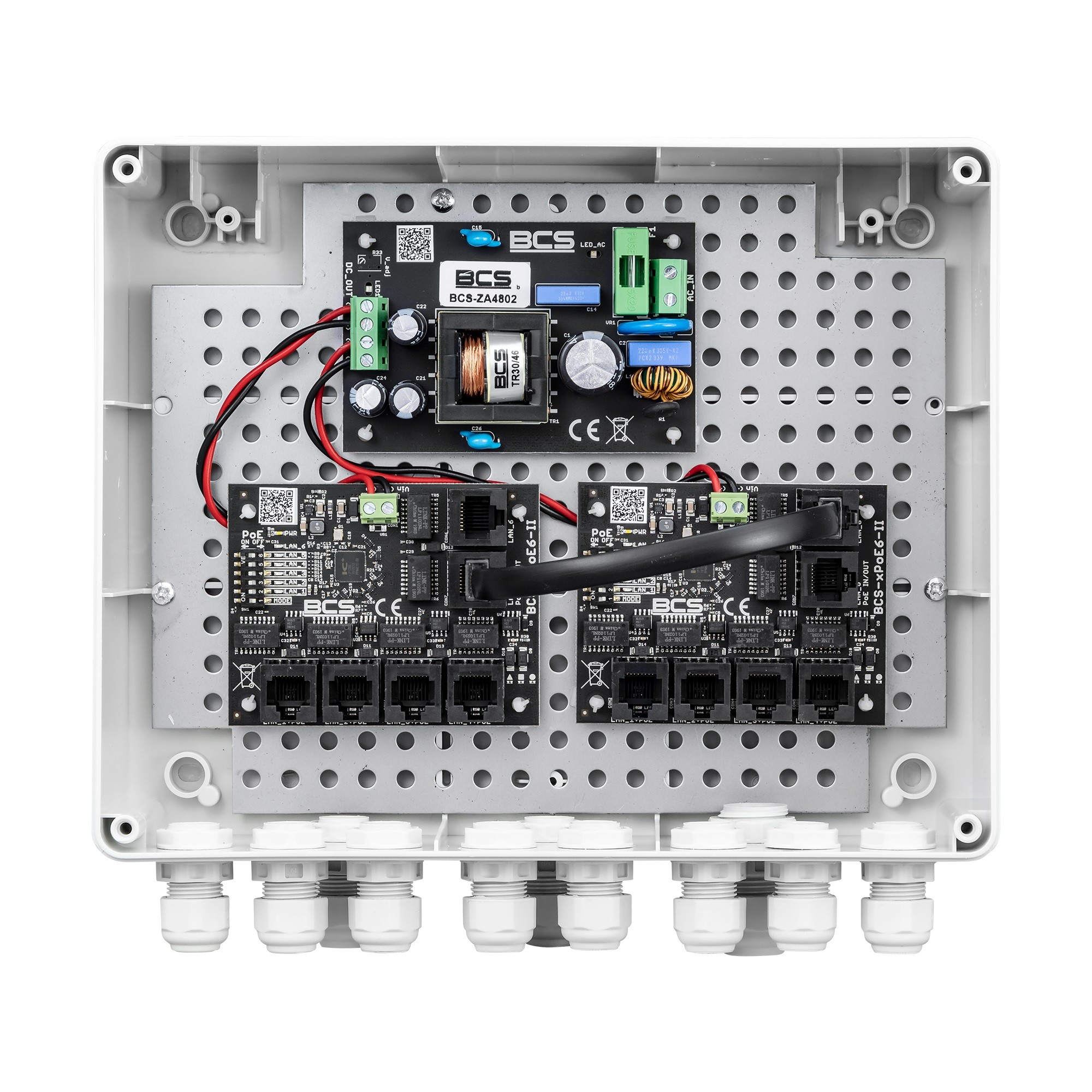

Set for powering IP CCTV cameras. The device is a convenient solution to the problem of central powering for monitoring cameras. The device is designed to work with IP cameras and other network devices powered in PoE 802.3at / af and PoE PASSIVE standards.

The LONG RANGE mode allows you to increase the transmission range up to 280m with the use of a standard UTP twisted pair.

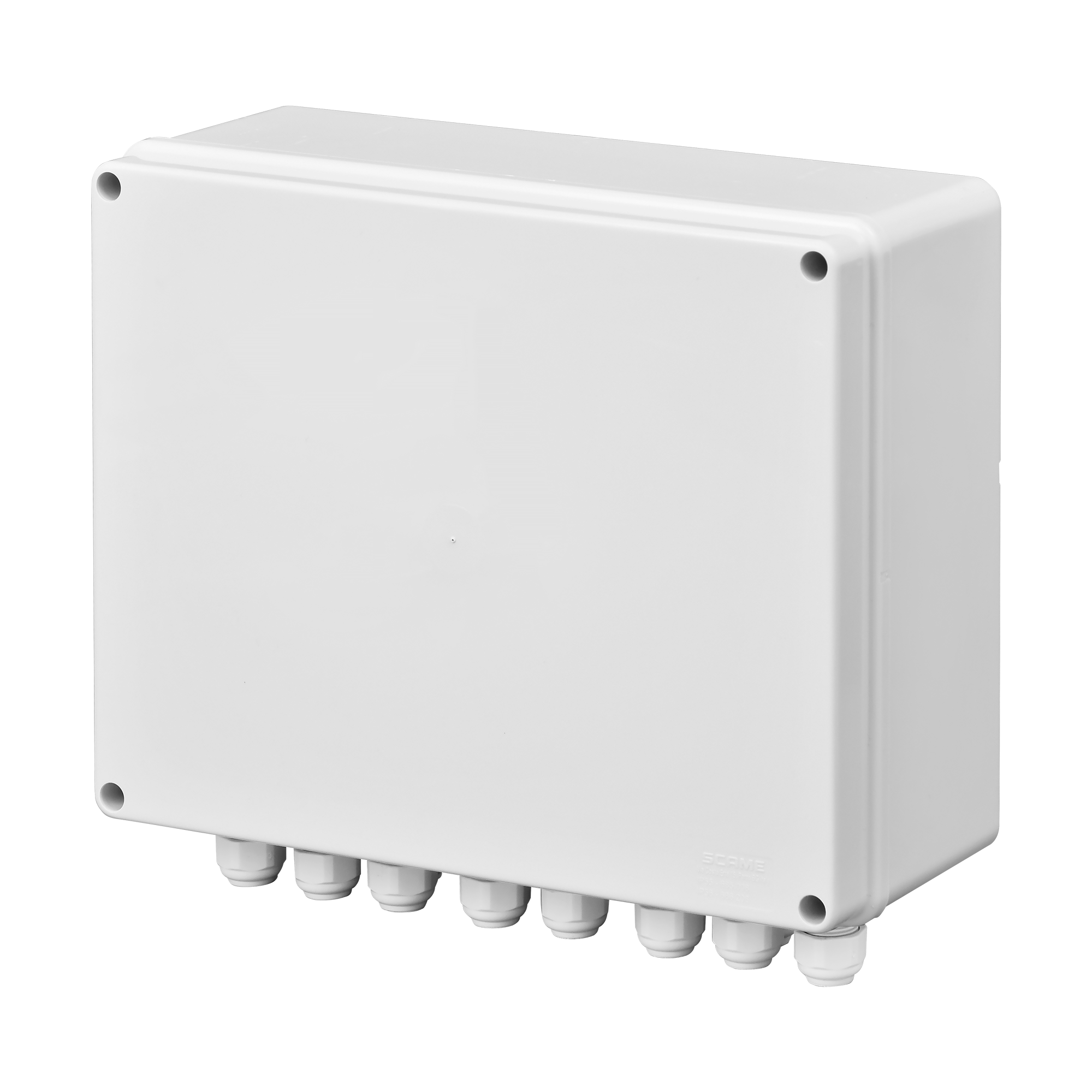

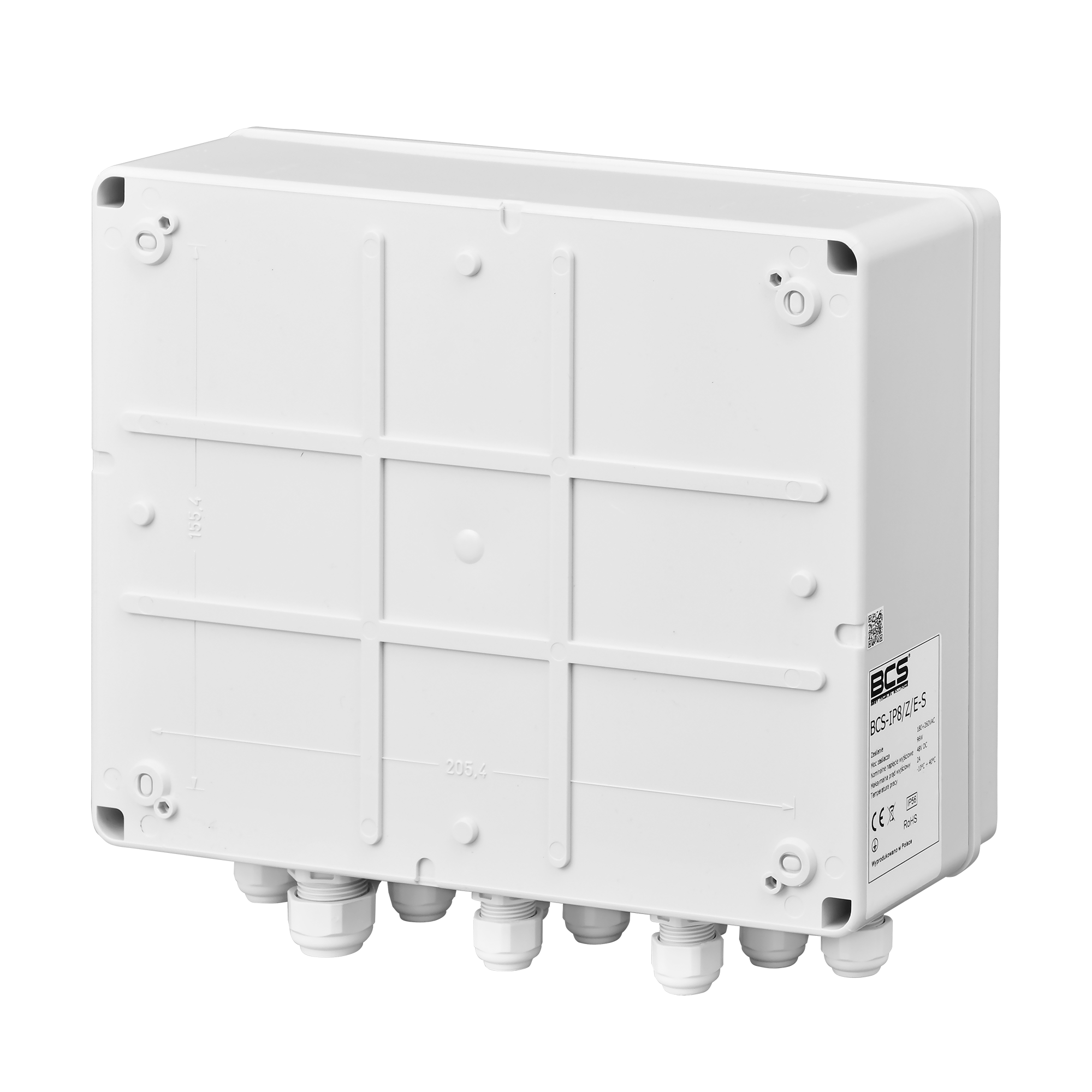

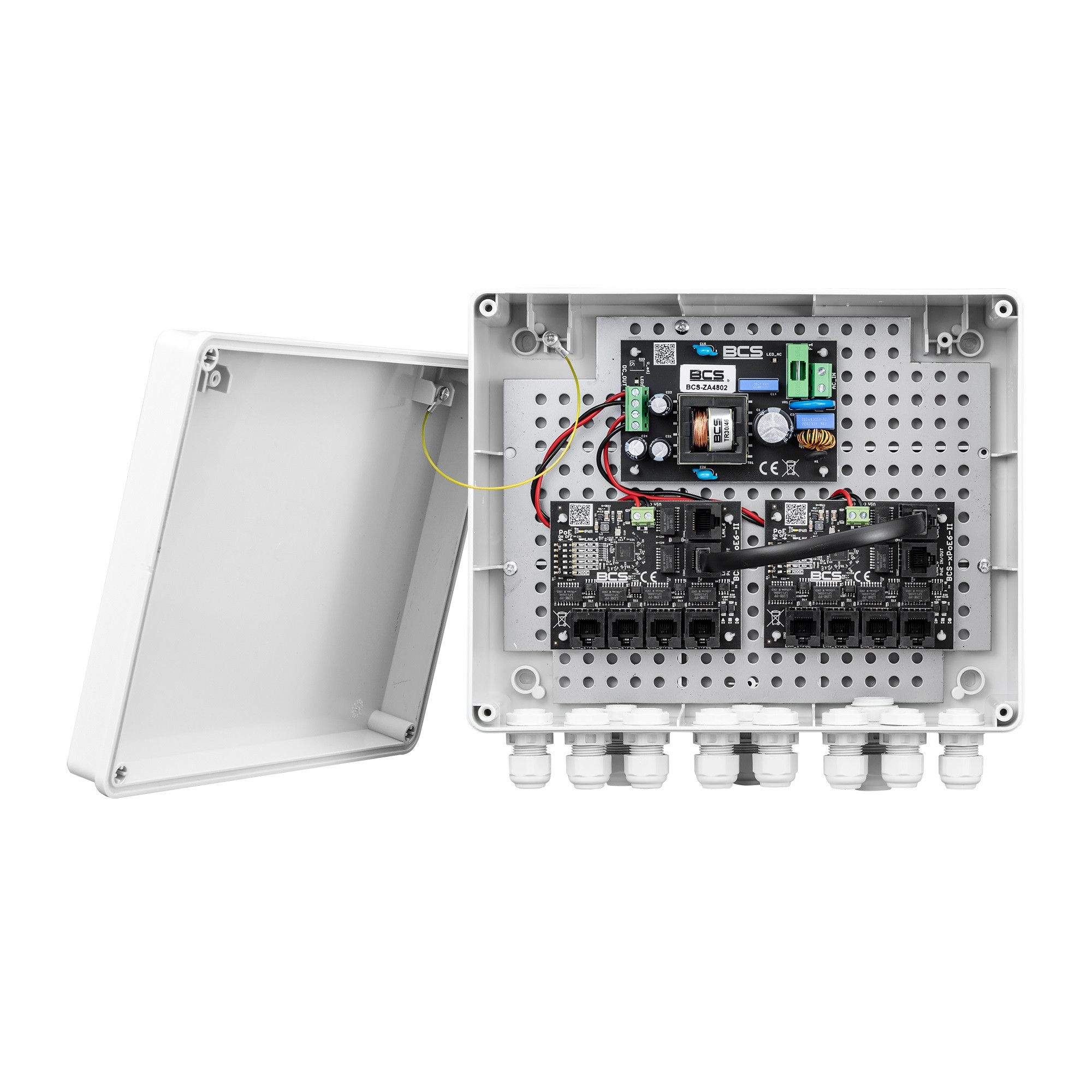

The device is closed in the BCS-L external housing, which is a convenient solution to the problem of protection of devices and cable connections installed outdoors. High-quality plastic ensures resistance to UV radiation and other unfavorable weather conditions.

Product

BCS-IP8/Z/E-S

PoE ports

9×RJ45 100Mbps

Standard IEEE

802.3af / 802.3at / PoE PASSIVE

STANDARD mode

100m

EXTEND mode

LAN_1-LAN_4 280m 10Mbps

Adapter power

96W

Power supply

V in: 190-260 VAC, 50 Hz V out: 48 VDC +/- 2%

Working environment

-25°C~+50°C max 90% RH

Weight

1 kg

Protection level

IP56

Casing

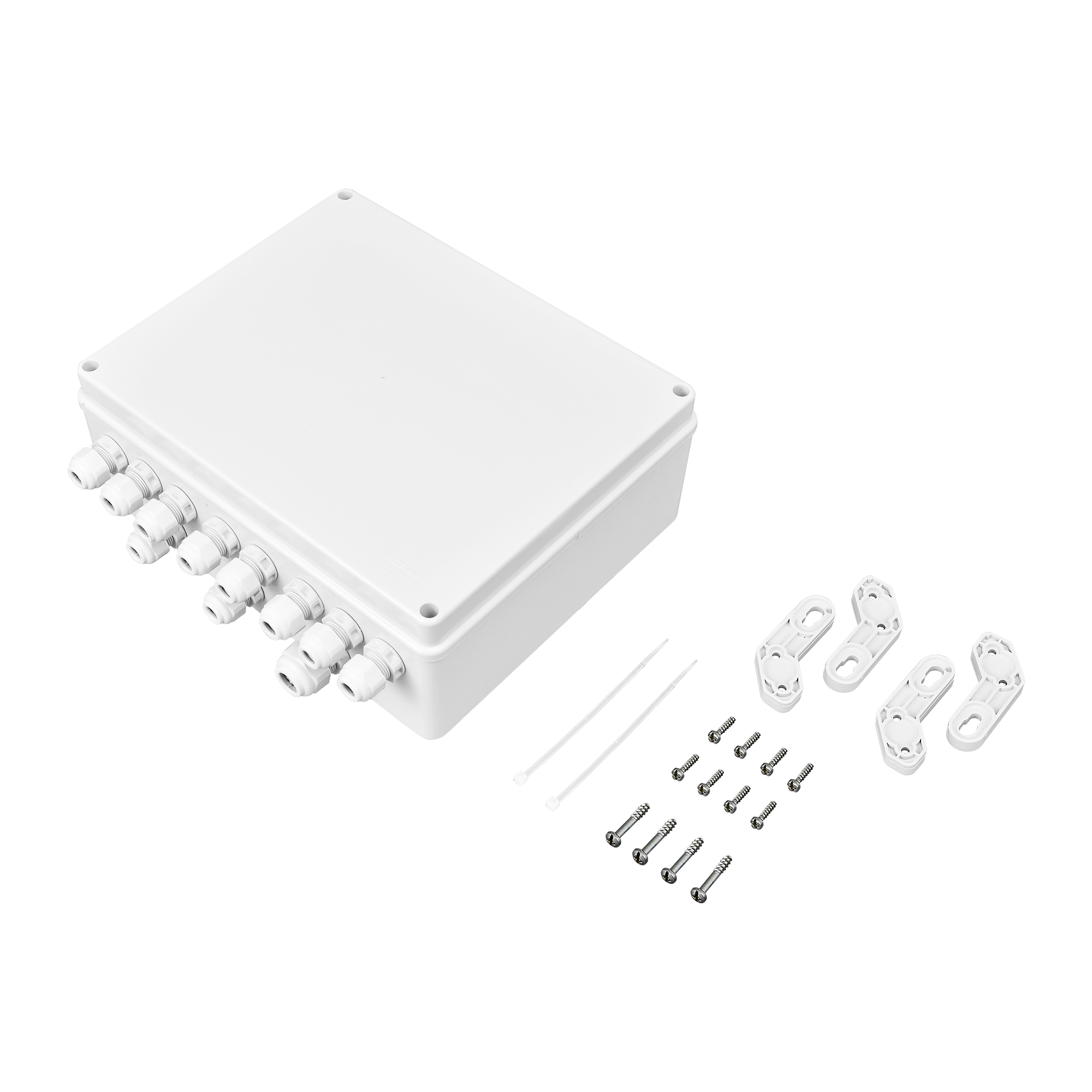

BCS-L2 housing, Halogen-free material, UV-resistant, Gray color (RAL7035), Mounted plate with 4.8 mm system holes in 10.8 mm pitch, Mounted glands 10 x M16, 1 x M20

Dimensions (W×D×H)

240×190×90mm
