| Product | BCS-ISP04G01G |
|---|---|
| PoE ports | 4×RJ45 1Gbps |
| Uplink ports | 1×RJ45 1Gbps |
| Standard IEEE | 802.3 / 802.3u / 802.3ab / 802.3x / 802.3az / 802.3af / 802.3at |
| Transfer | 10/100/1000Mbps half-duplex, full-duplex, auto-negotiation, auto MDI/MDIX |
| Packet forwarding rate | 1.48Mpps |
| Capacity | 20Gbps |
| MAC table | 8K |
| Packet buffer memory | 1Mbit |
| STANDARD mode | 100m |
| LED status | PWR(solid green): switch power supply connected, LINK/ACT(yellow): device connected, PoE(green): PoE power supply |
| PoE switch power | 120W(48VDC) / 90W(24VDC) / 60W(12VDC) |

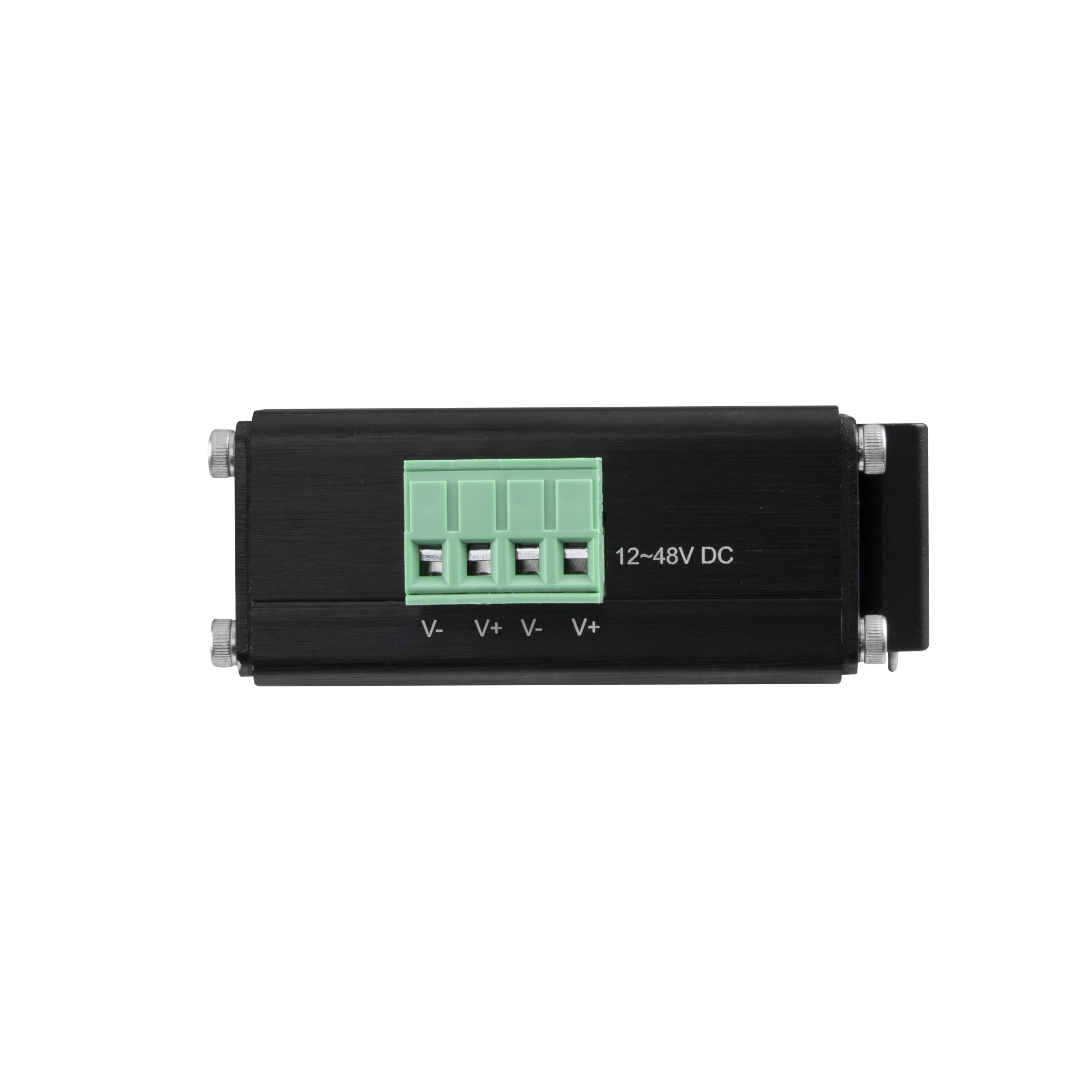

| Power supply | 12~48V DC |
| Working environment | -40°C~+80°C max 95% RH |
| MTBF | 200000h |
| Weight | 0.25 kg |

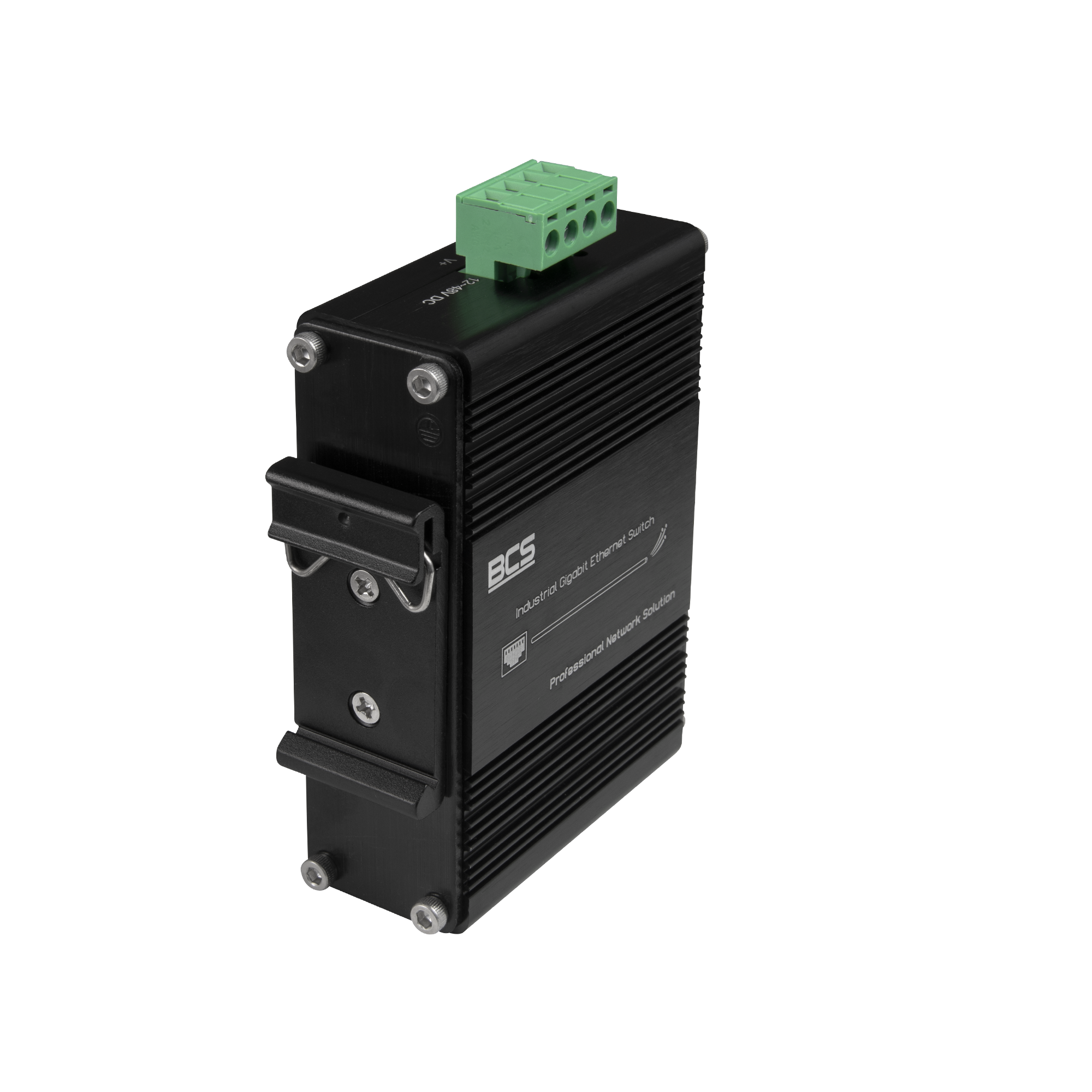

| Casing | DIN rail |
| Dimensions (W×D×H) | 95×70×29mm |
BCS UNIVERSAL
BCS-ISP04G01G
115,62 € gross
7 In Stock4-port industrial PoE switch for DIN rail mounting
- 4xPoE 1Gbps af/at
- 1x RJ45 uplink 1Gbps
- total power 120W
- The set does not include a power supply
7 in stock
- DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
- Official BCS e-commerce Business Partner
- Technical support
