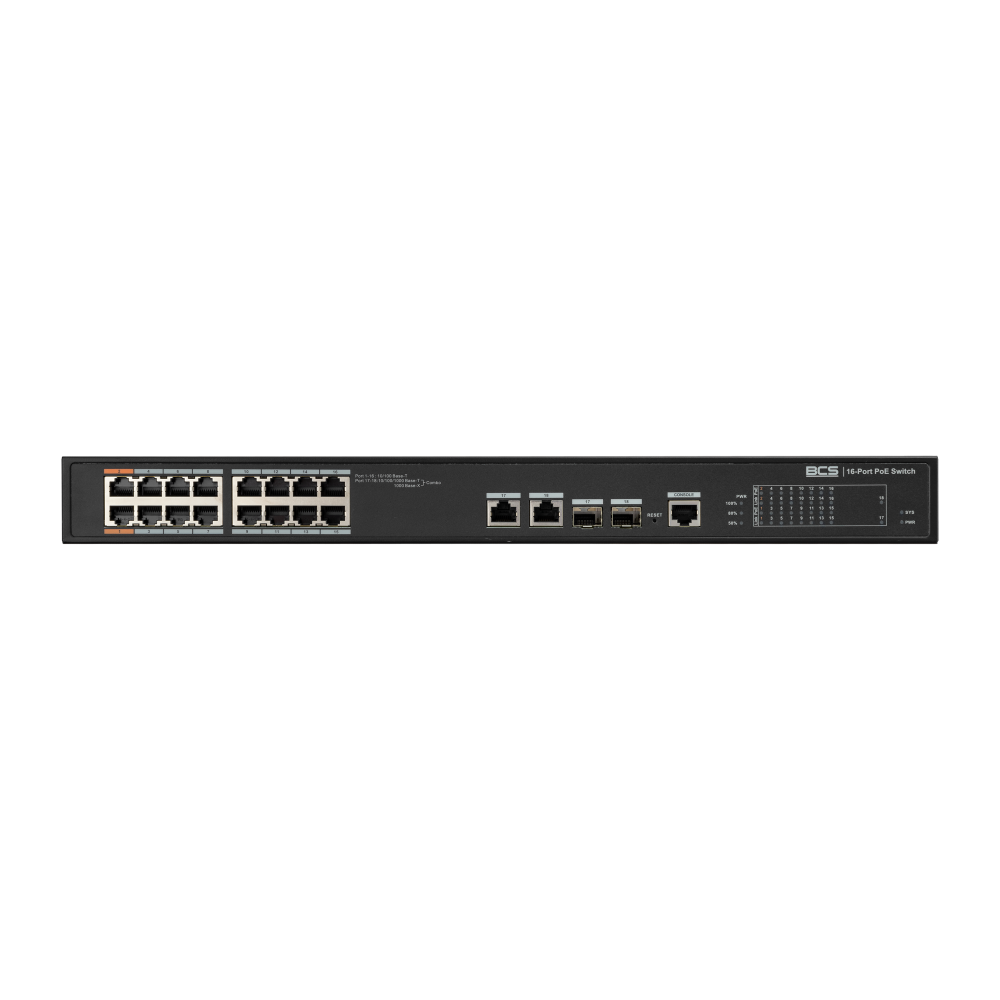

BCS-L-SP1602G-2SFP-M(2)

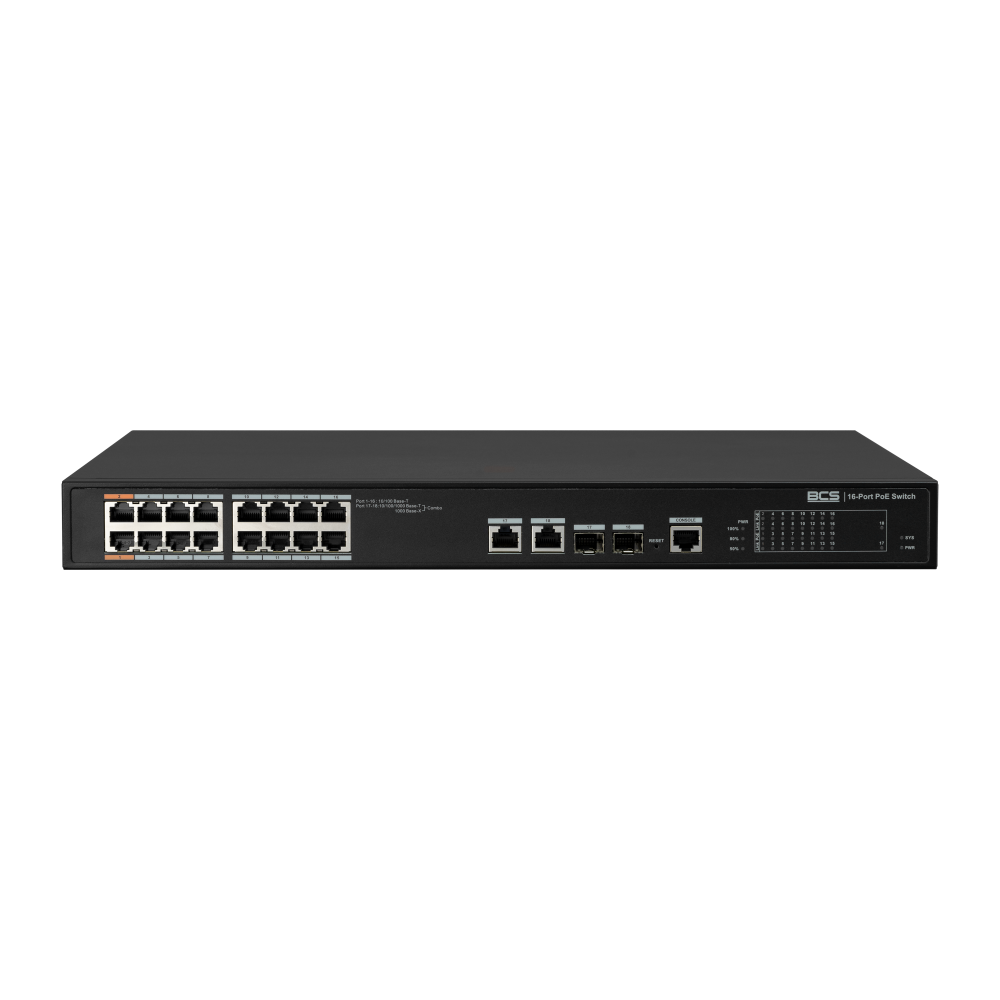

BCS-L-SP1602G-2SFP-M(2) - Image 2

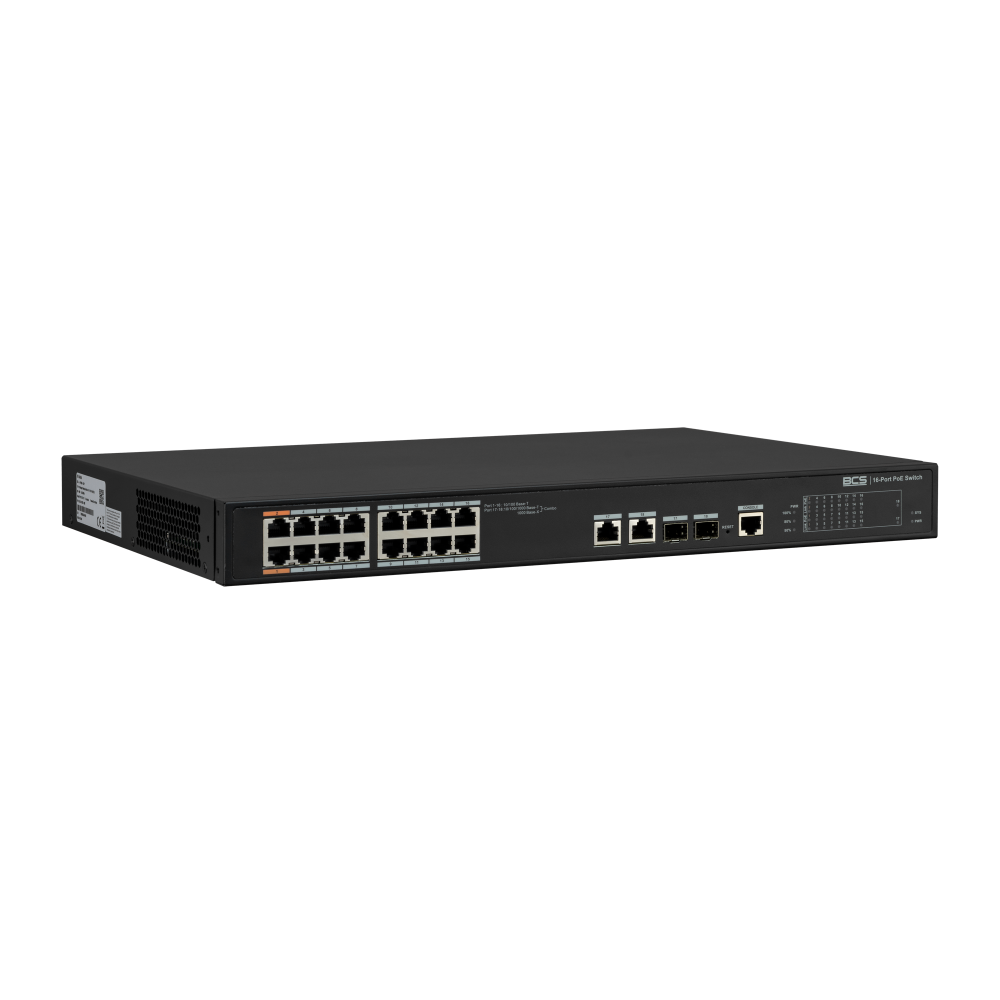

BCS-L-SP1602G-2SFP-M(2) - Image 3

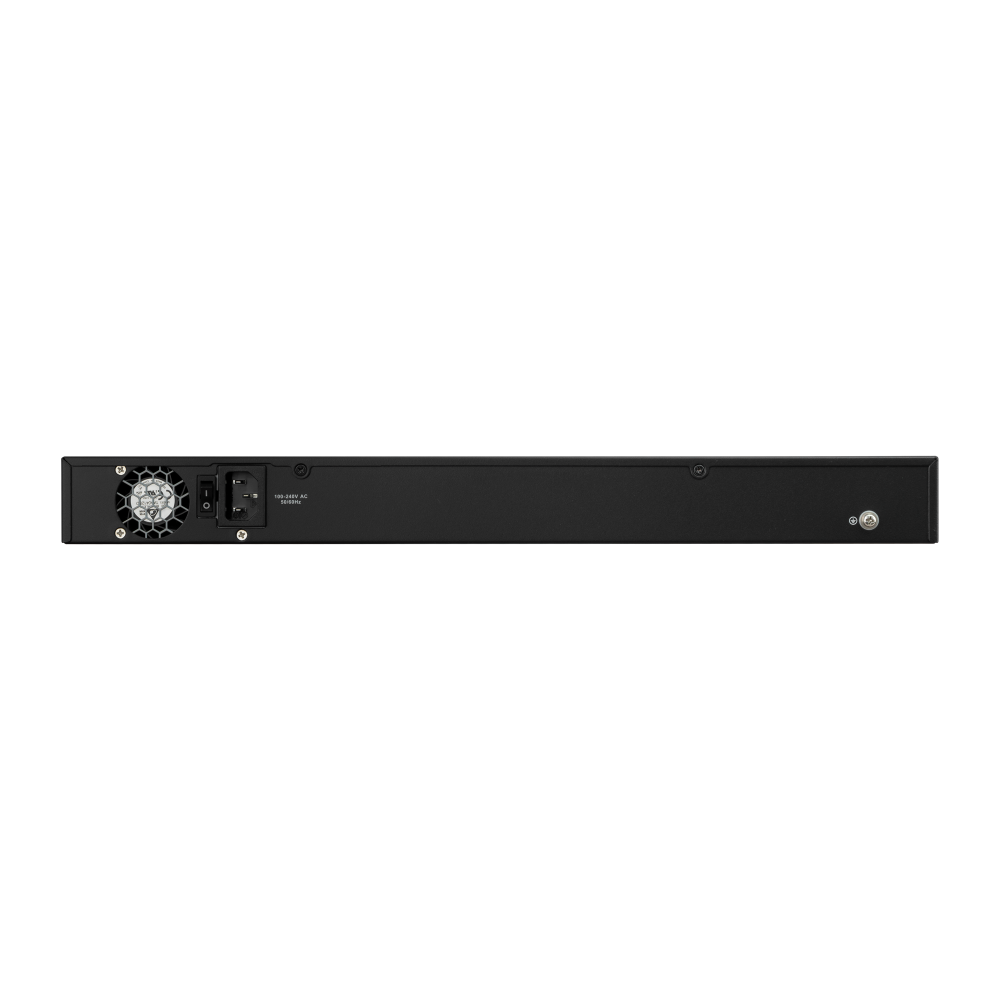

BCS-L-SP1602G-2SFP-M(2) - Image 4
BCS LINE

BCS-L-SP1602G-2SFP-M(2)

603,93 € gross

43 In Stock
16-port managed PoE switch

  • exPoE technology
  • 16x 100Mbps PoE (af/at)
  • 2 x 802.3bt 90W PoE ports
  • 2xRJ45 1Gbps uplink
  • 2xSFP uplink 1Gbps
  • Total power 240W
  • standard/extend modes

43 in stock

  • DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
  • Official BCS e-commerce Business Partner
  • Technical support
SKU: 10966 Categories: ,

18-Port Managed Switch (PoE), 16 PoE 100Mbps Ports, 2 Gigabit Uplink RJ45 Ports, 2 Gigabit SFP Fiber Ports.

Product

BCS-L-SP1602G-2SFP-M(II)
PoE ports

16×RJ45 100Mbps
Uplink ports

2×RJ45 1Gbps / 2×SFP 1Gbps
Managed

Yes
Management port

1×RJ45
Management functions

Spanning Tree Protocol, VLAN, Flow Control, Link Aggregation, Port Mirroring, Multicast, DHCP client, Security, QoS
Standard IEEE

802.3af / 802.3at / 802.3bt / 802.3 / 802.3u / 802.3x / 802.3ab / 802.3z
Transfer

10/100/1000Mbps half-duplex, full-duplex, auto-negotiation
Packet forwarding rate

5.36Mpps
Capacity

8.8Gbps
MAC table

4K
Packet buffer memory

2.75Mbit
STANDARD mode

100m
EXTEND mode

EXTEND mode suppport transmission 250m 10Mbps (cat5e, cat6)
PoE pin

1,2,4,5(+), 3,6,7,8(-)
LED status

PWR(green): power supply connected, LINK/ACT(green): device connected, PoE(yellow): device powered from PoE
PoE switch power

240W (port 1-2 max 90W / port 3-16 max 30W)
Protection

Electrostatic 8kV environment / 6kV contact, 2kV DM / 4kV surge protection CM
Power supply

100~240V AC
Working environment

-10°C~+55°C max 90% RH
Weight

3 kg
Casing

1U
Dimensions (W×D×H)

440×300×44mm
