| Product | BCS-L-DIP14FSR3-W |
|---|---|
| Camera type | Wi-Fi |
| Resolution | 4 Mpx |
| Sensor | 1/3'' CMOS |
| Scanning system | Progressive Scan |
| Pixels | 2560(H)×1440(V) |
| RAM | 64MB |
| ROM | 16MB |
| Lens | fixed |
| Focal length | 2.8 mm |
| Aperture | F2.0 |
| Focus | fixed |
| Iris | fixed |
| Digital zoom | 16× |
| Angle of view | H: 90° V: 50° D: 107° |
| DORI | Detect 68m/ Observe 27m/ Recognize 13m/ Identify 7m |
| Min illumination | 0.03Lux(Color,F2.0,30IRE) 0.003Lux(B/W,F2.0,30IRE) 0Lux(IR) |
| S/N ratio | 56dB |
| White balance | (AWB) Auto / manual |
| WDR | DWDR |
| Backlight compensation | BLC / HLC / DWDR |
| Shutter | Auto / manual 1/3~1/100000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 3D DNR |
| Image rotate | Mirror, Flip 0°180° |
| Stream support | 2 |
| Resolutions | 4M(2560×1440) /3M(2304×1296) /2M(1920×1080) /1.3M(1280×960) /720P(1280×720) /VGA(640×480) |
| Main stream | 2560×1440(1~20fps) 2304×1296/1920×1080/1280×960/1280×720(1~25/30fps) |
| Second stream | 640×480(1~25/30fps) |
| Bitrate | H.264: 24 kbps~4096 kbps H.265: 9 kbps~4096 kbps |
| Video compression | H.265+ / H.265 / H.264+ / H.264 |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED |
| IR range | 30m |
| Memory card slot | microSD 256GB |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | 4 |
| Privacy masking | 4 |
| Network | RJ-45 10/100 Mbps |
| Wi-Fi | 802.11b/g/n 2.4GHz |
| Compatibility | ONVIF(S/G) |
| Protocols | IPv4, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, DHCP, DNS, NTP, Multicast, RTMP |
| &Power supply | 12V DC |
| Power supply type | 12V DC |
| Power consumption | max 4.9W |
| Housing color | White |
| IP class | IP67 |
| IK10 | Yes |
| Working environment | -40°C~+60°C max 95% RH |
| Dimensions | Ø110.7×88.7mm |
| Weight | 0.4 kg |
| Accessories included | power supply 12V DC |
Save 56%

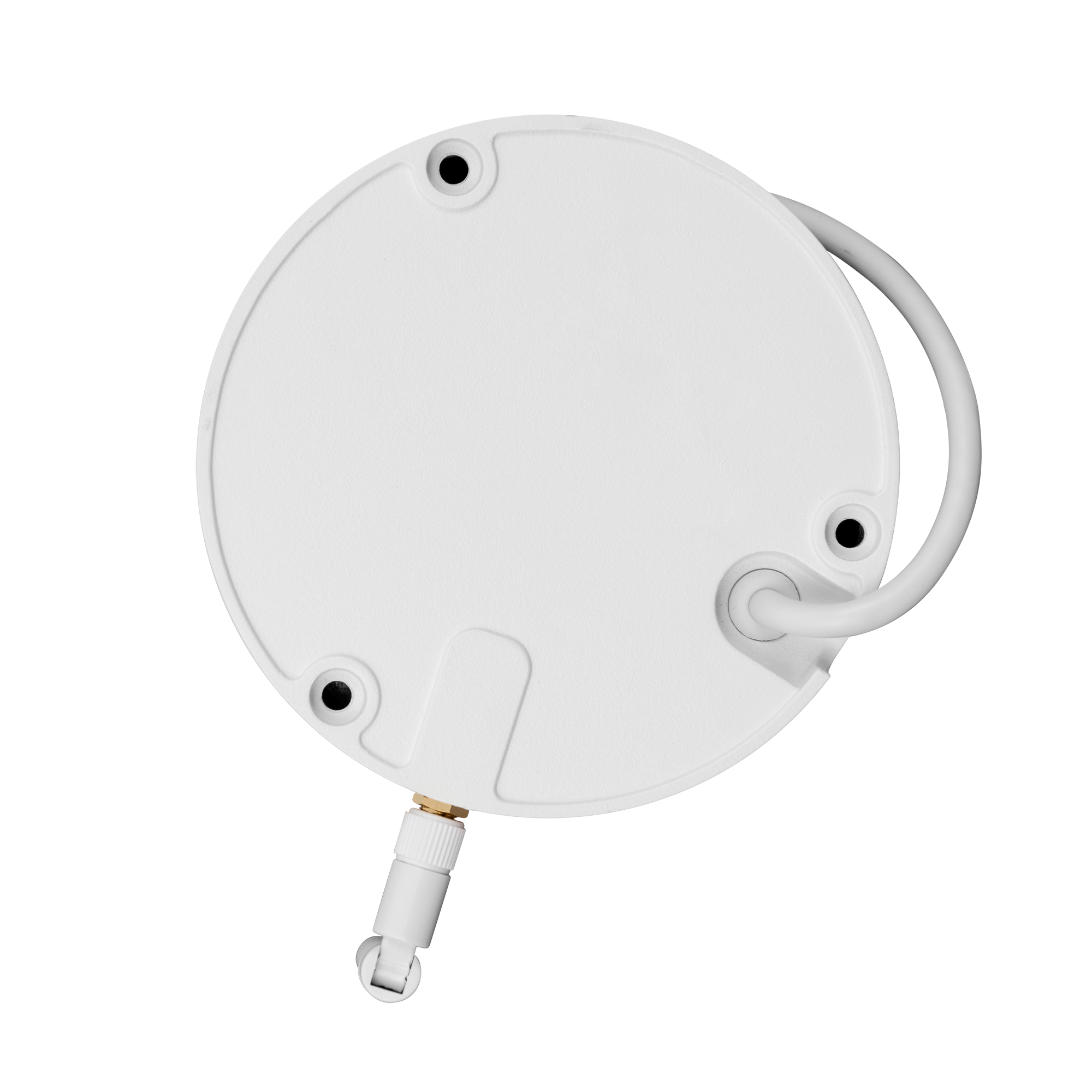

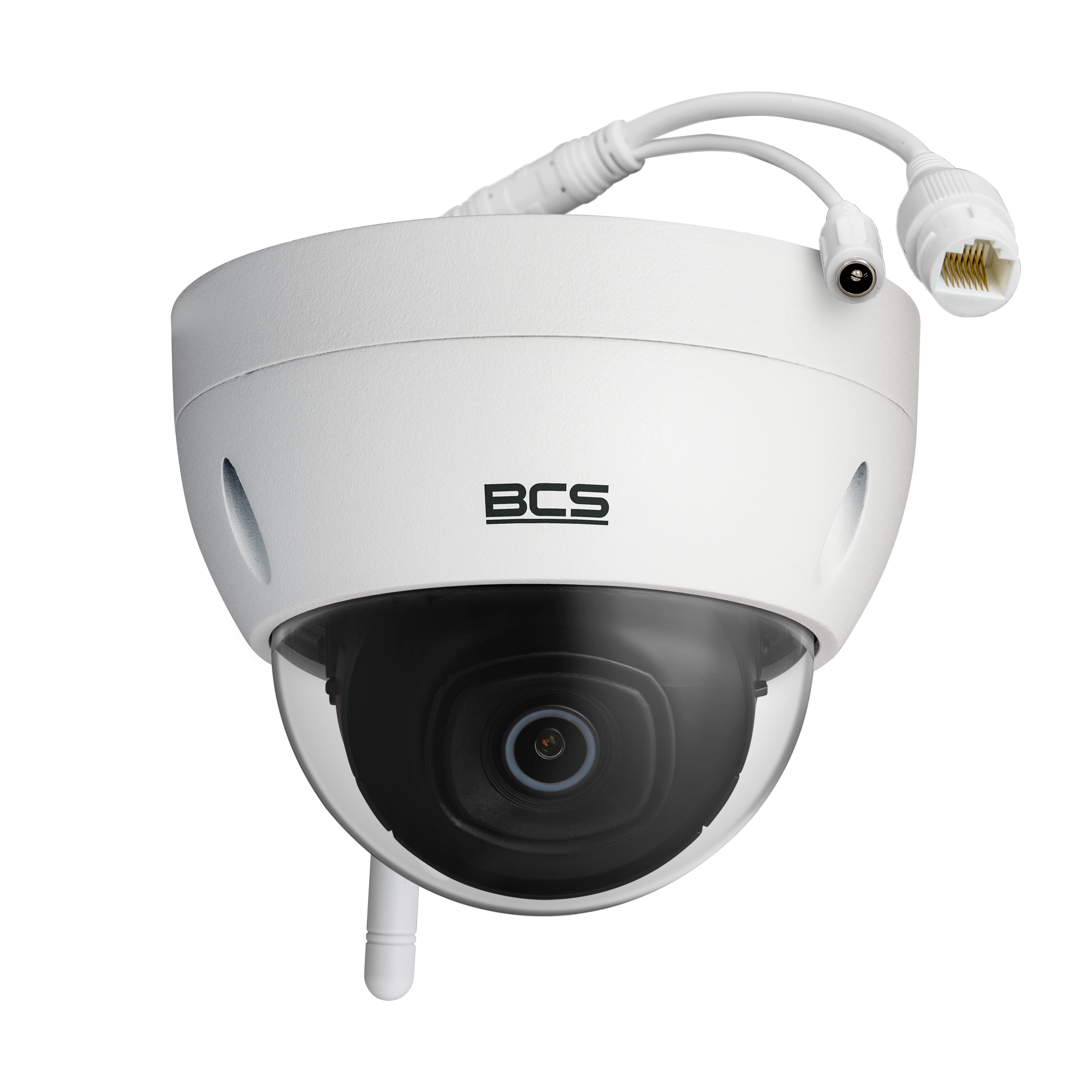

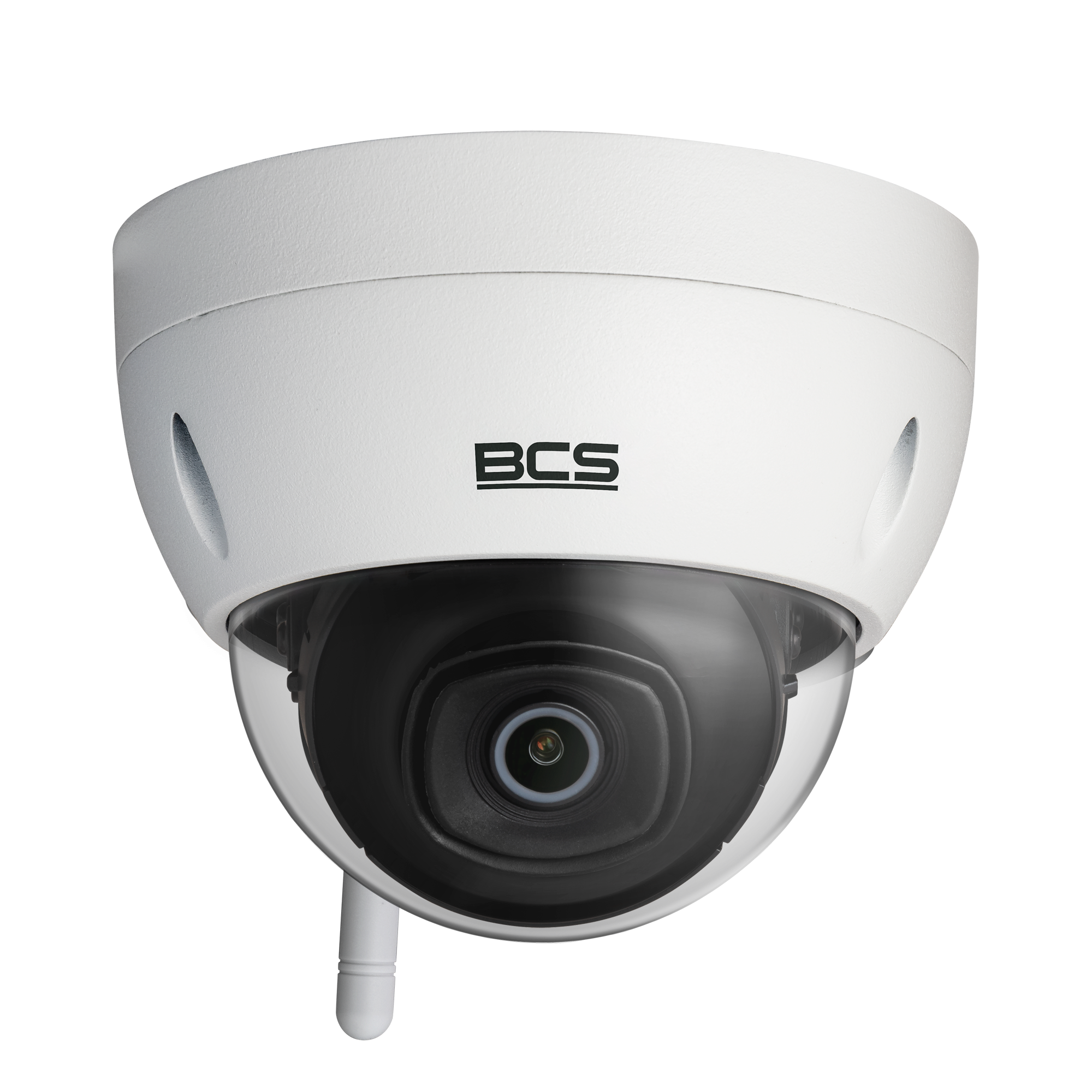

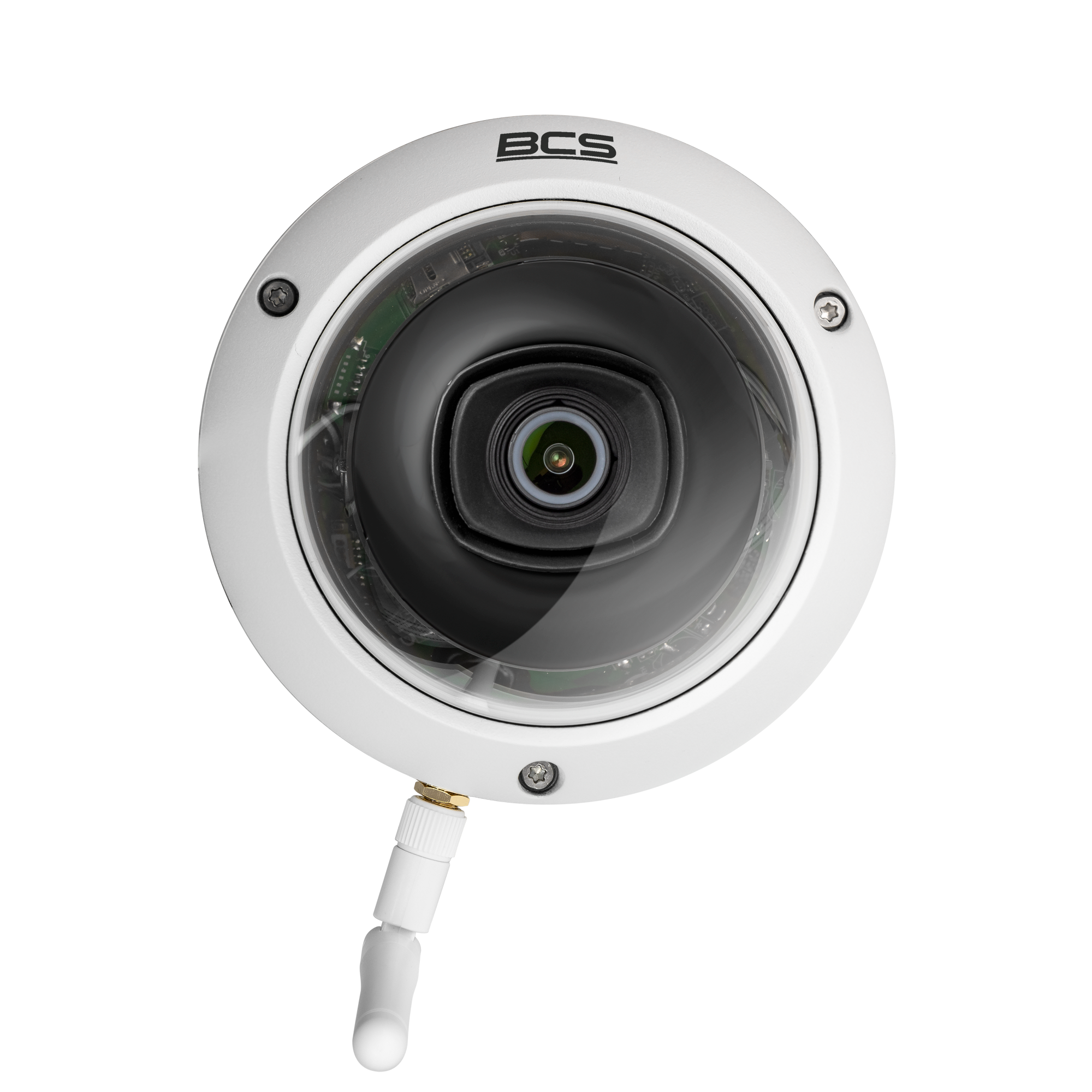

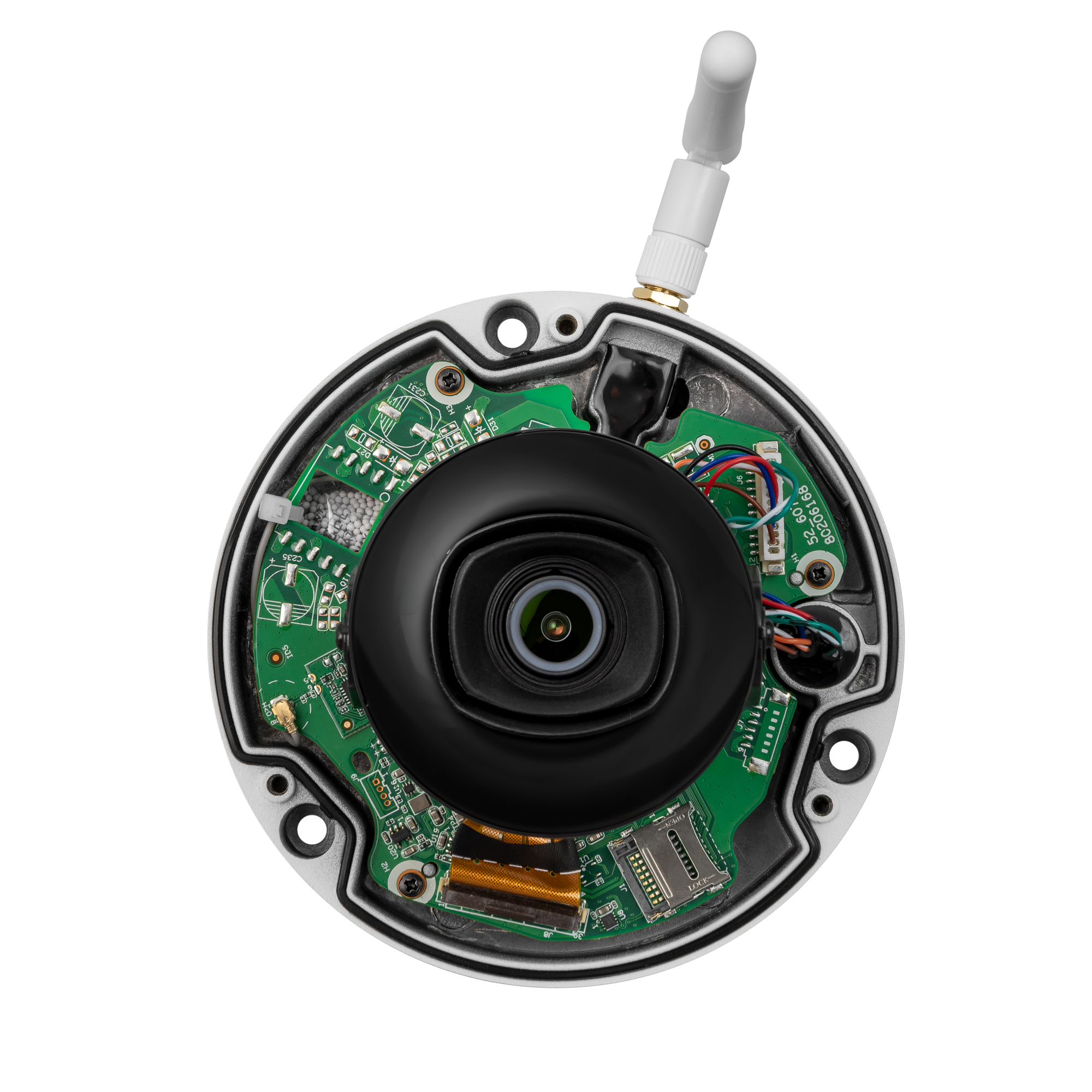

BCS-L-DIP14FSR3-W
83,60 € gross
Out of Stock- 4Mpx dome IP camera
- Wi-Fi IEEE 802.11b/g/n (2.4 GHz)
- 1/3" PS CMOS sensor
- SkyLight technology
- 2.8mm fixed lens
- IR 30m
- IP67, IK10 housing
Out of stock
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.
