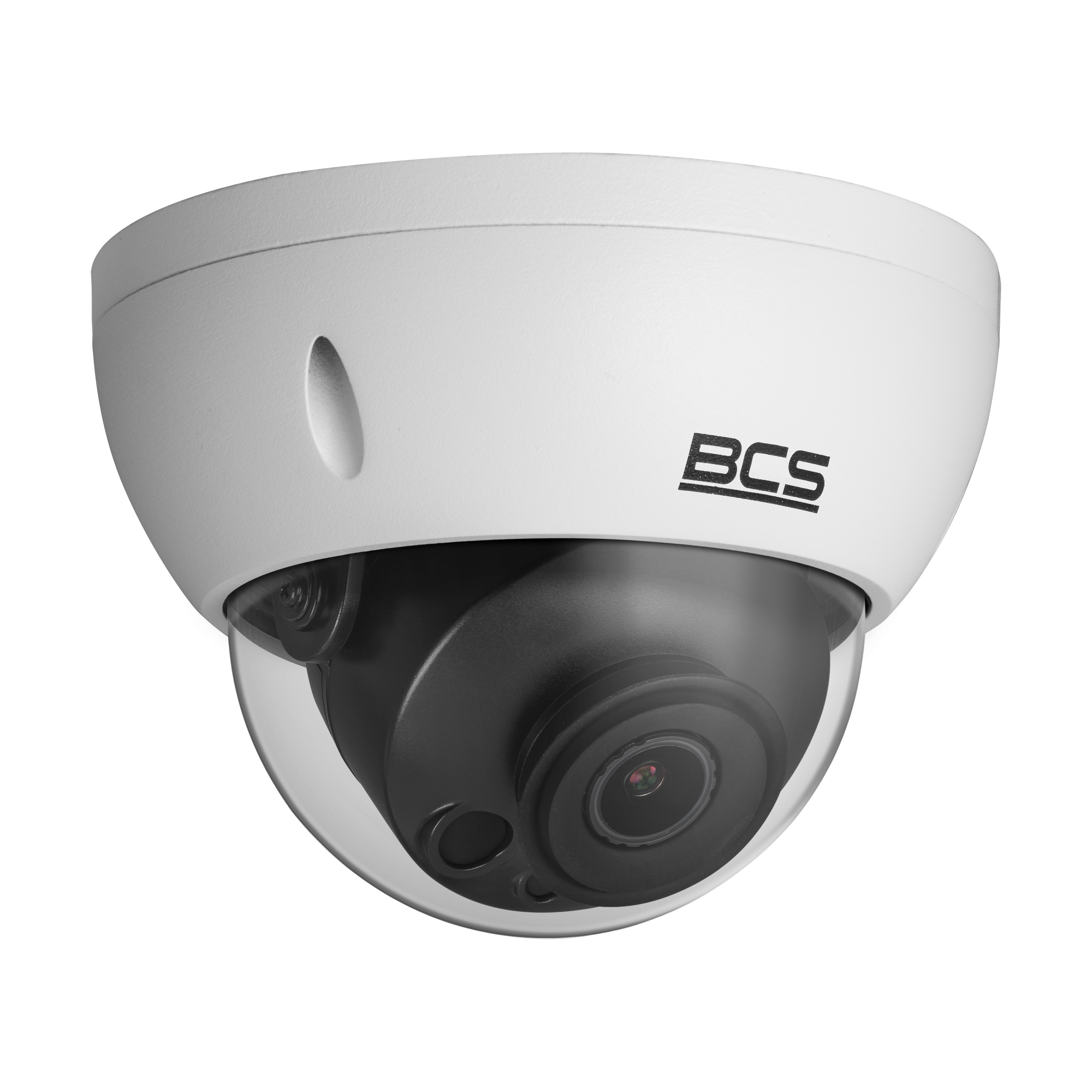

4Mpx dome IP camera by BCS Line. 1/1.8″ CMOS sensor with 3.6mm lens in NightColor technology, WDR (140dB), 1/1 alarm, 1/1 audio, smart functions, 256GB microSD memory card slot, IK10,IP67 housing in white colour, power supply: 12V DC / PoE (802.3af) Dimensions: Ø122 x 88.9mm.
Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
BCS LINE
BCS-L-DIP24FC-Ai2
392,37 € gross
1 In Stock- 4MP Dome IP Camera
- 1/1.8″ PS CMOS Sensor
- NightColor Technology
- 3.6mm Fixed Lens
- WDR 140dB
- Alarm 1/1, Audio 1/1
- IP67, IK10 Housing
- Built-in Smart Features
- DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
- Official BCS e-commerce Business Partner
- Technical support
| Ai - Human/vehicle detection | Human/vehicle classification for crossline and intrusion and fast moving reduces false alarms |
|---|---|
| Resolution | 4 Mpx |
| Scanning system | Progressive Scan |
| ROM | 128MB |
| Focus | fixed |
| DORI | Detect 70m/ Observe 28m/ Recognize 14m/ Identify 7m |
| Backlight compensation | BLC / HLC / WDR(140dB) / SSA |
| Ai - Built-in intelligent functions | Built-in intelligent algorithm of image analisis |
| Product | BCS-L-DIP24FC-Ai2 |
| Camera type | Dome |
| Image rotate | Mirror, Flip 0°/90°(corridor mode)/180°/270° |
| Sensor | 1/1.8'' CMOS |
| Pixels | 2688(H)×1520(V) |
| RAM | 1GB |
| Lens | fixed |
| Focal length | 3.6 mm |
| Aperture | F1.0 |
| Iris | fixed |
| Digital zoom | 16× |
| Angle of view | H: 93° V: 50° |
| Min illumination | 0.001Lux(Color) |
| White balance | (AWB) Auto / manual |
| WDR | 140dB |
| Shutter | Auto / manual 1/3~1/100000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 3D DNR |
| Defog | Electronic |
| Stream support | 3 |
| Resolutions | 4M(2688×1520)(2560×1440) /3M(2304×1296) /2M(1920×1080) /1.3M(1280×960) /720P(1280×720) /D1(704×576/704×480) /VGA(640×480) /CIF(352×288/352×240) |
| Main stream | 2688×1520(1~25/30fps) 2560×1440(1~25/30fps) 1920×1080(1~50/60fps) |
| Second stream | 704×576/704×480(1~25/30fps) 704×576/704×480(1~50/60fps) |
| Third stream | 1920×1080(1~16fps) |
| Bitrate | H.264: 32 Kbps~8192 Kbps H.265: 19 Kbps~8192 Kbps |
| Video compression | H.265+ / H.265 / H.264+ / H.264 |
| Day/night | ICR mechanical infrared filter |
| NightColor | Yes |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711A / G.711Mu / G.723 / G.726 / AAC |
| Alarm in | 1 |
| Alarm out | 1 |
| Memory card slot | microSD 256GB |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | 4 |
| Privacy masking | 4 |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF(S/G/T) |
| Protocols | IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, 802.1x, SNMP |
| Power supply | PoE |
| Power supply type | 12VDC / PoE(802.3af) |
| Power consumption | max 4.4W |
| Housing color | White |
| IP class | IP67 |
| IK10 | Yes |
| Working environment | -30°C~+60°C max 95% RH |
| Dimensions | Ø122×88.9mm |
| Weight | 0.45 kg |
| Ai - Perimeter protection | Intrusion, crossline, fast moving, loitering, people gathering, parking detection |
| &Ai - Object classification | Yes |
| Ai - Face detection | Face detection and tracking, snapshot, attributes and expression recognition |
| Ai - People counting | People counting for intrusion and crossline, counting people in/out/stay in, queue management, generate and export reports in periods of time |
| Ai - Heat map | Recording the movement of objects over a period of time, statistics of the time density of movement presented graphically in red/blue color tones |
