| Product | BCS-B-TIP14FSR3L1-Ai(2.0) |
|---|---|
| pa_product-line | BCS BASIC |
| NDAA | National Defense Authorization Act |
| Camera type | Bullet |
| Resolution | 4 Mpx |
| Sensor | 1/3'' CMOS |
| Scanning system | Progressive Scan |
| Pixels | 2560(H)×1440(V) |
| Lens | fixed |
| Focal length | 2.8 mm |
| Aperture | F1.6 |
| Focus | fixed |
| Iris | fixed |
| Angle of view | H: 93.2° V: 51.5° D: 108° |
| DORI | Detect 63m / Observe 25.2m / Recognize 12.6m / Identify 6.3m |
| Min illumination | 0.003Lux(F1.6,AGC) 0Lux(B/W,IR) |
| S/N ratio | 52dB |
| White balance | (AWB) Auto / manual |
| WDR | DWDR |
| Backlight compensation | BLC / HLC / DWDR |
| Shutter | Auto / manual 1~1/100000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 2D/3D DNR |
| RoI | Region of Interest |
| Defog | Digital |
| Image rotate | Mirror, Flip 0°/90°/180°/270° |
| Stream support | 2 |
| Resolutions | 4M(2560×1440) / 3M(2304×1296) / 2M(1920×1080) / (640×360) / 2CIF(704×288) / CIF(352×288) |
| Main stream | 2560×1440@25fps 2304×1296@30fps 1920×1080@30fps |
| Second stream | 640×360@30fps 704×288@30fps 352×288@30fps |
| Bitrate | 128Kbps~6144kbps |
| Video compression | H.265 / H.265+ / H.264 |
| Day/night | ICR |
| Illuminator type | IR LED + WhiteLight |
| IR range | 30m |
| pa_ir-wavelength | 850nm |
| WhiteLight range | 10m |
| Microphone | Yes |
| Audio compression | G.711A / G.711U |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | 4 |
| Privacy masking | 4 |
| Network | RJ-45 10/100Mbps |
| Compatibility | ONVIF(S/T) |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, DNS, DDNS, NTP, UPnP, HTTP, QoS, RTCP, RTMP, SNMP |
| Network security | Strong Password, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, WSSE and Digest Authentication for ONVIF, Log Encrypted Export |
| Power supply | PoE |
| Power supply type | PoE(802.3af) |
| Power consumption | max 3.5W |
| Housing color | White |
| IP class | IP67 |
| Surge protection | 4kV |
| Working environment | -30°C~+60°C max 95% RH |
| Dimensions | 140×61×65mm |
| Weight | 0.2 kg |
| pa_ai-built-in-intelligent-f | Built-in intelligent algorithm of image analisis |
| &Ai - SMD | Yes |
| pa_ai-smd-smart-motion-detec | Intelligent motion detection with human recognition |

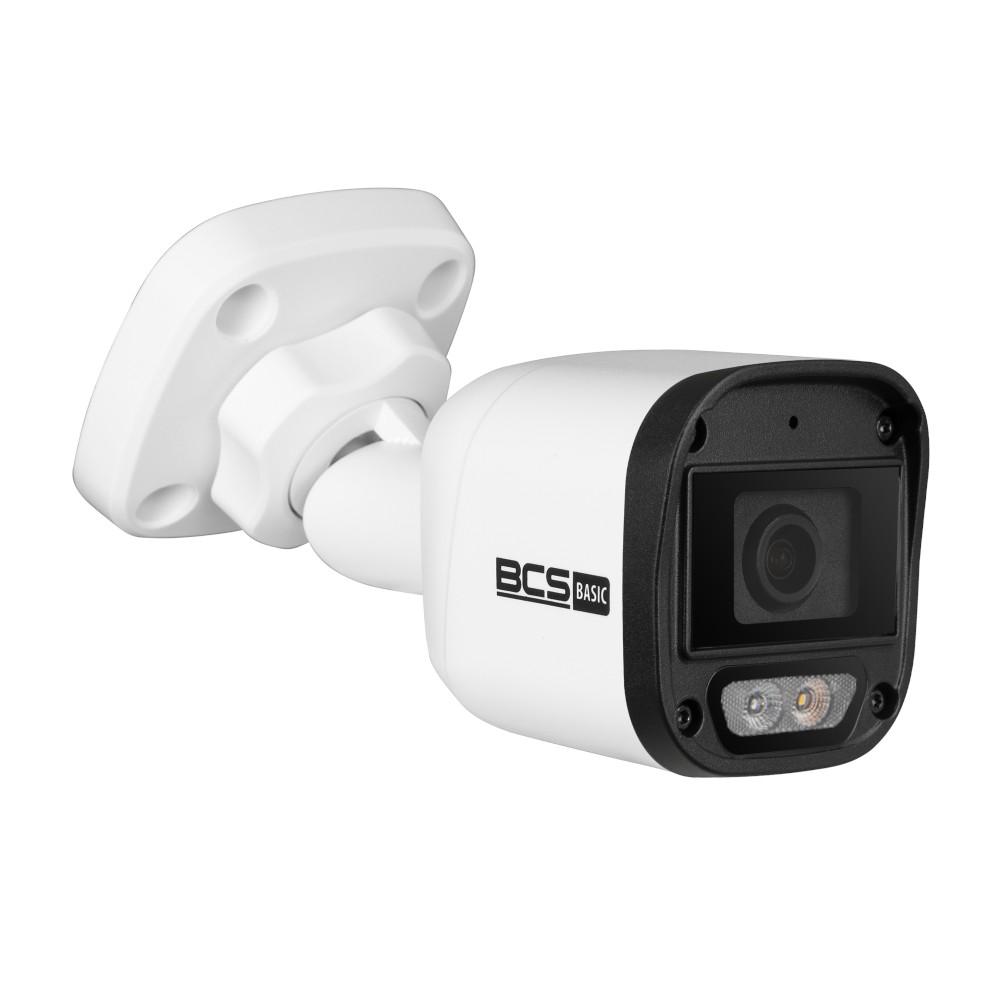

BCS-B-TIP14FSR3L1-Ai(2.0)
59,04 € gross
100 In Stock- 4Mpx IP bullet camera
- 1/3" PS CMOS sensor
- SkyLight technology
- NDAA compliant
- 2.8mm fixed lens
- IR 30m
- White Light 10m
- Microphone
- IP67-rated housing
- Smart motion detection with human recognition
100 in stock
- DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
- Official BCS e-commerce Business Partner
- Technical support
