| Flag | COMING SOON |
|---|---|
| Product | BCS-L-DIP14FSR3L3-Ai1 |
| ^Product line | BCS LINE |
| Camera type | Dome |
| Resolution | 4 Mpx |
| Sensor | 1/2.9'' CMOS |
| Scanning system | Progressive Scan |
| Pixels | 2560(H)×1440(V) |
| Lens | fixed |
| Focal length | 2.8 mm |
| Aperture | F1.6 |
| Focus | fixed |
| Iris | fixed |
| Digital zoom | 16× |
| Angle of view | H: 100° V: 56° D: 117° |
| DORI | Detect 61.6m/ Observe 24.6m/ Recognize 12.3m/ Identify 6.2m |
| Min illumination | 0.006Lux(Color,F1.6,30IRE) 0.0006Lux(F1.6,B/W,30IRE) 0Lux(IR) |
| S/N ratio | 56dB |
| White balance | (AWB) Auto / manual |
| WDR | 120dB |
| Backlight compensation | BLC / HLC / WDR(120dB) |
| Shutter | Auto / manual 1/3~1/100000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 3D DNR |
| RoI | Region of Interest |
| Image rotate | Mirror, Flip 0°/90°(corridor mode)/180°/270° |
| Stream support | 3 |
| Resolutions | 4M(2560×1440) /3M(2304×1296) /2M(1920×1080) /1.3M(1280×960) /720P(1280×720) /D1(704×576/704×480) /VGA(640×480) /CIF(352×288/352×240) |
| Main stream | 2560×1440(1~25/30fps) |
| Second stream | 704×576(1~25fps) 704×480(1~30fps) |
| Third stream | 352×288/352×240 |
| Bitrate | H.264: 32 kbps~6144kbps H.265: 12 kbps~6144kbps |
| Video compression | H.265 / H.265+ / H.264 / H.264+ / MJPEG / Super Ai Coding |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED + WhiteLight |
| IR range | 30m |
| WhiteLight range | 30m |
| NightColor | Yes |
| Microphone | Yes |
| Audio compression | G.711A / G.711Mu / G.726 / PCM |
| Storage | FTP, SFTP |
| Memory card slot | microSD 512GB |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | 4 |
| Privacy masking | 4 |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF(S/G/T) |
| Protocols | IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMP, NFS, P2P, Auto Registration |
| ^Network security | Digest, WSSE, Account lockout, Security logs, IP/MAC filtering, Generation and importing of X.509 certification, syslog, HTTPS, 802.1x, Trusted boot, Trusted execution, Trusted upgrade, Session security, Security warning, SSL/TLS1.2, AES 256 |
| &Power supply | PoE |
| Power supply type | 12V DC / PoE(802.3af) |
| Power consumption | max 5.7W |
| Housing color | White |
| IP class | IP67 |
| IK10 | Yes |
| Working environment | -40°C~+60°C max 95% RH |
| Dimensions | Ø109.9×81mm |
| Weight | 0.35 kg |
| Casing | Metal |
| ^Box dimensions in mm (W×D×H) | 138×137×115 |
| &Ai - Perimeter protection | Yes |
| &Ai - Object classification | Yes |
| &Ai - SMD | Yes |
| ^Ai - Built-in intelligent functions | Built-in intelligent algorithm of image analisis |
| Ai - Perimeter protection | Crossline, intrusion |
| Ai - Human/vehicle detection | Human/vehicle classification for crossline and intrusion reduces false alarms |
| ^Ai - SMD - Smart Motion Detection | SMD Plus |

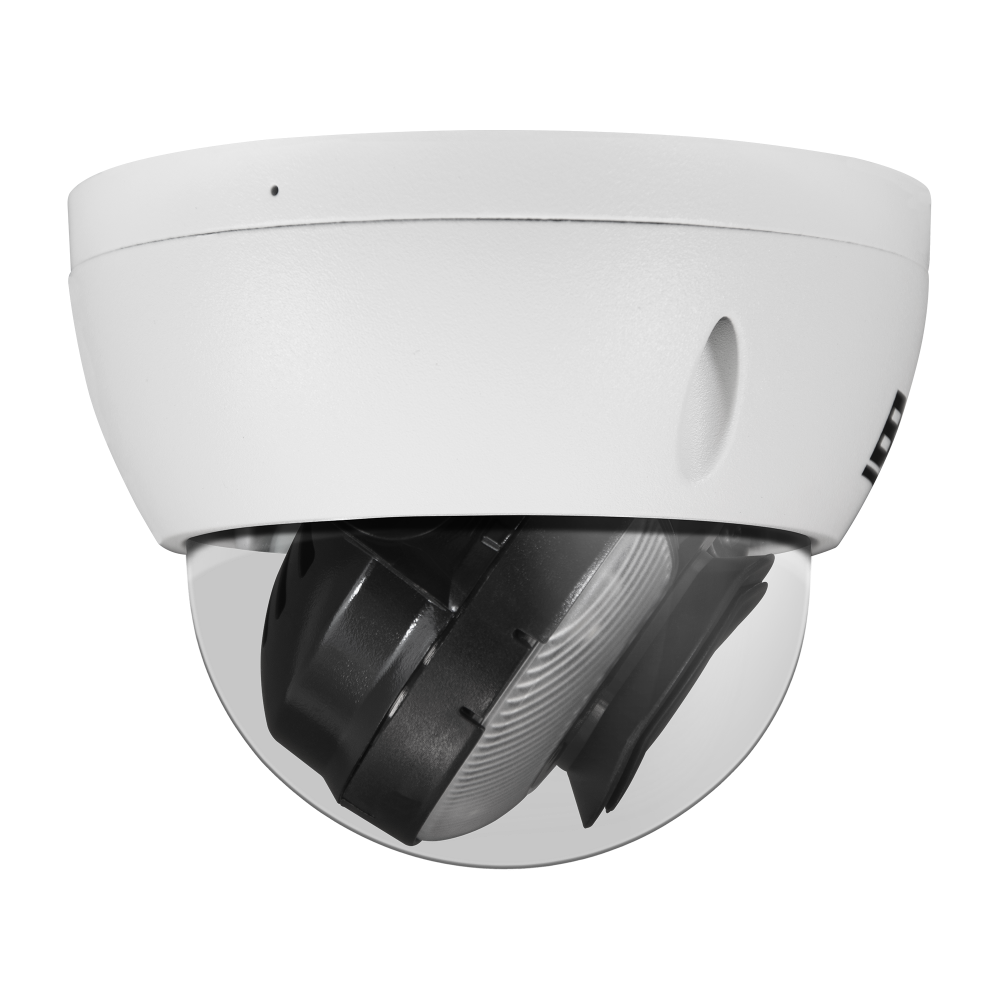

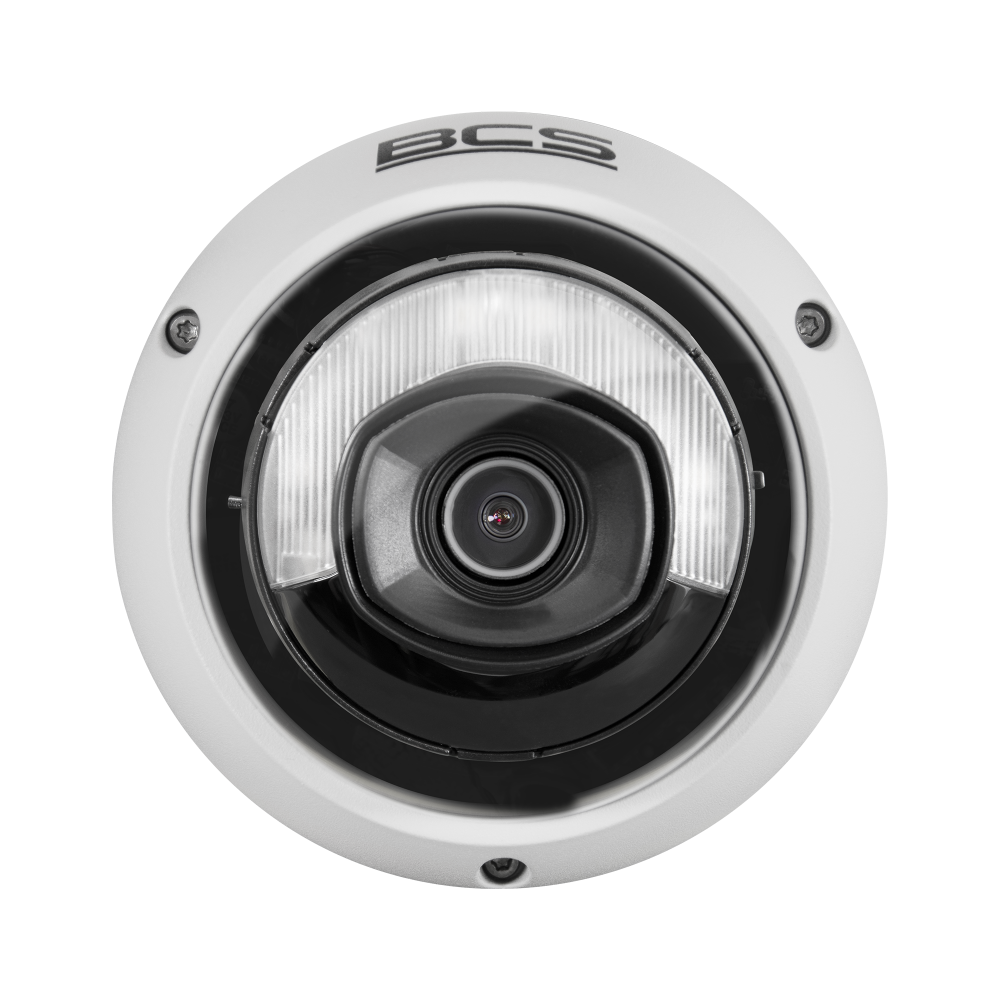

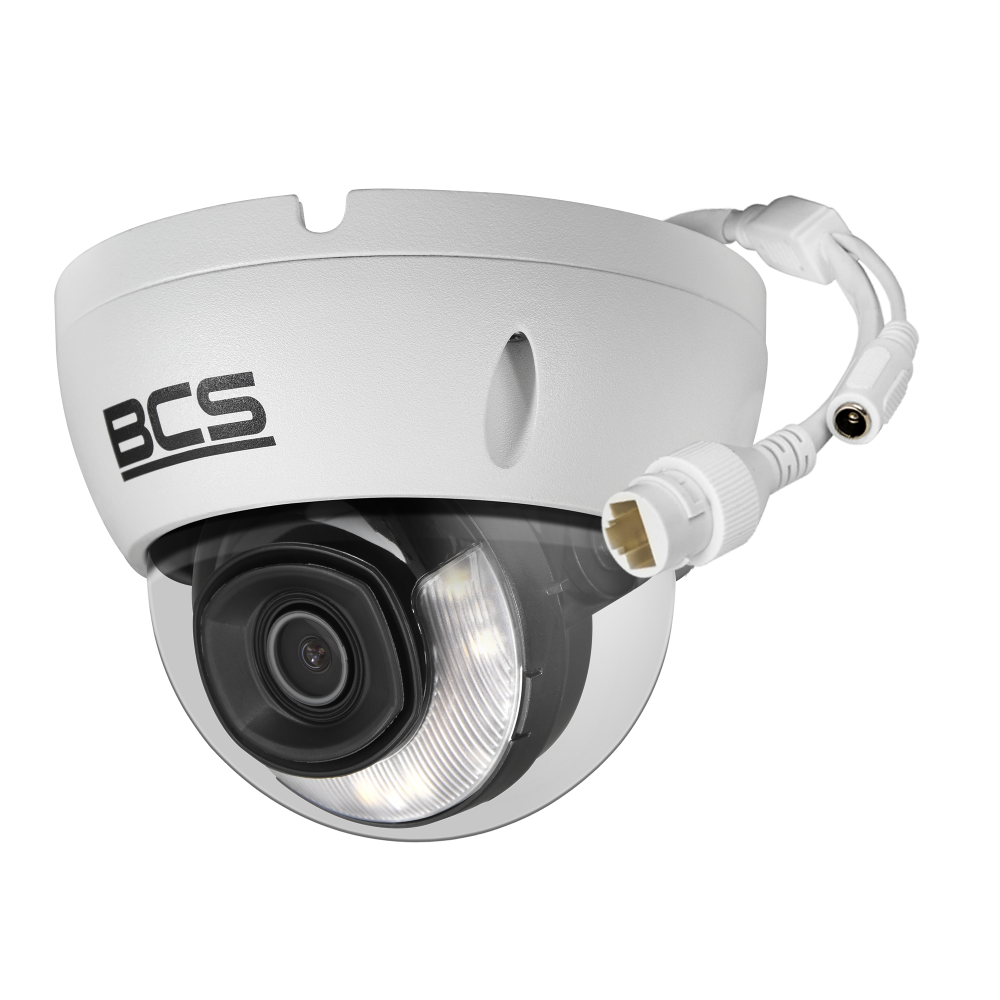

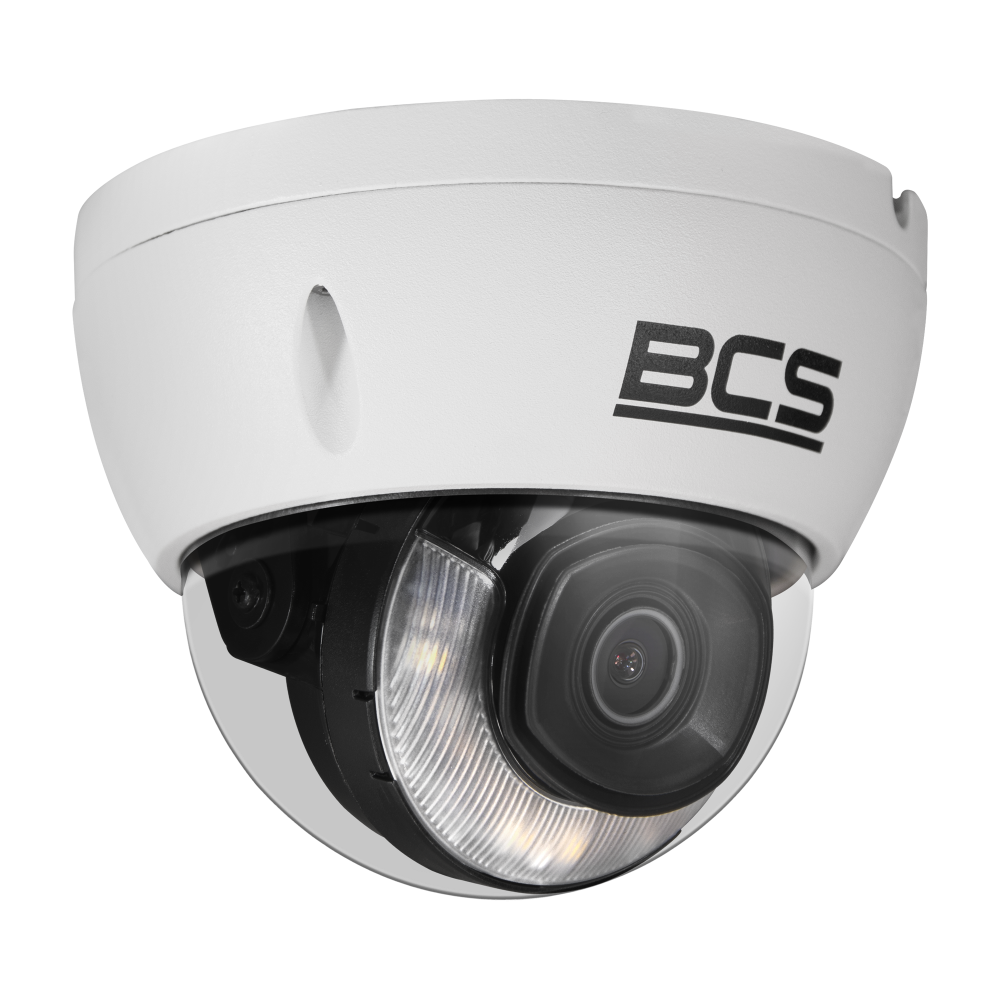

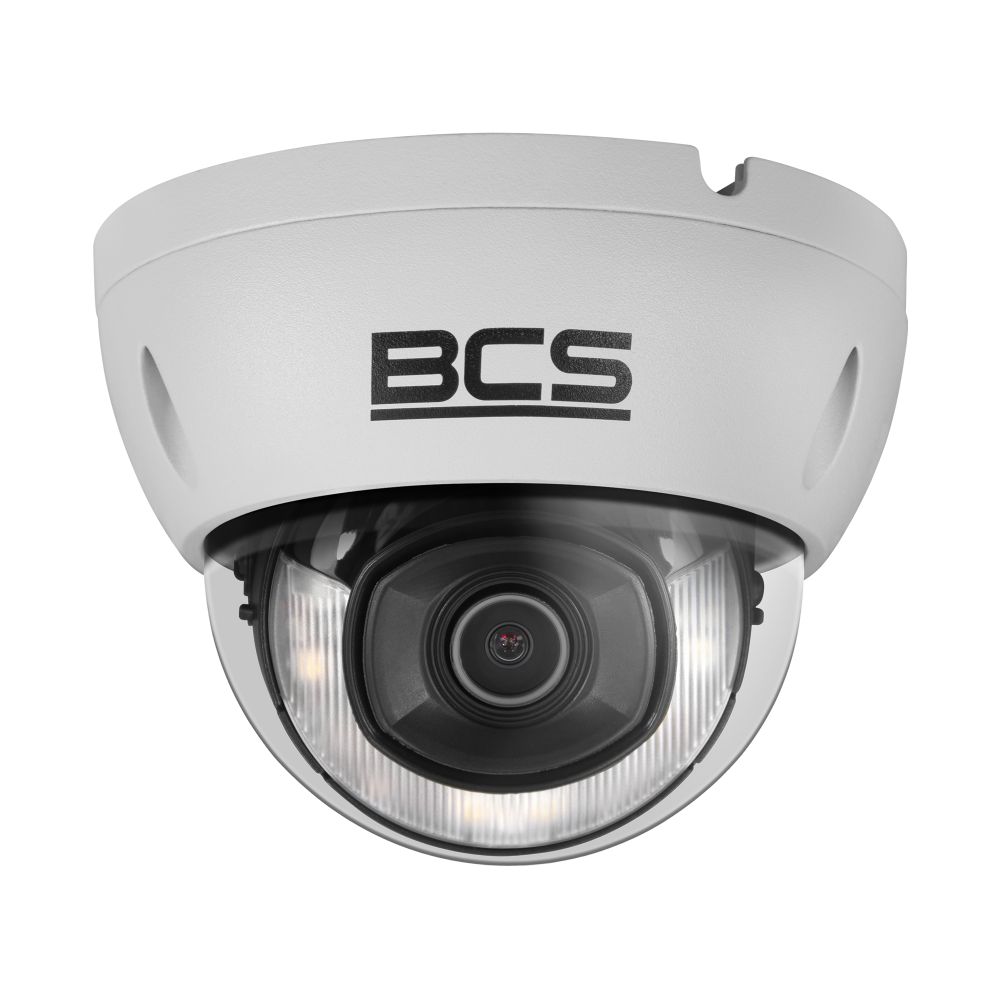

BCS-L-DIP14FSR3L3-Ai1
