| Ai - Built-in intelligent functions | Built-in intelligent algorithm of image analisis |
|---|---|
| Ai - SMD - Smart Motion Detection | SMD Plus |
| Product | BCS-L-EIP16FCR3L3-Ai1 |
| Camera type | Dome |
| Resolution | 6 Mpx |
| Sensor | 1/2.7'' CMOS |
| Scanning system | Progressive Scan |
| Pixels | 3288(H)×1850(V) |
| RAM | 256MB |
| ROM | 128MB |
| Lens | fixed |
| Focal length | 2.8 mm |
| Aperture | F1.6 |
| Focus | fixed |
| Iris | fixed |
| Digital zoom | 16× |
| Angle of view | H :112° V: 61° D: 132° |
| DORI | Detect 64m/ Observe 25m/ Recognize 13m/ Identify 6m |
| Min illumination | 0.007Lux(Color,F1.6,30IRE) 0.0007Lux(F1.6,B/W,30IRE) 0Lux(IR) |
| S/N ratio | 56dB |
| White balance | (AWB) Auto / manual |
| WDR | 120dB |
| Backlight compensation | BLC / HLC / WDR(120dB) |
| Shutter | Auto / manual 1/3~1/100000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 3D DNR |
| Image rotate | Mirror, Flip 0°/90°(corridor mode)/180°/270° |
| Stream support | 2 |
| Resolutions | 6M (3288×1850/3200×1800) /5M (2880×1620) /4M (2688×1520) /3M (2048×1536/2304×1296) /1080p (1920×1080) /1.3M (1280×960) /720p (1280×720) /D1 (704×576/704×480) /VGA (640×480) /CIF (352×288/352×240) |
| Main stream | 3288×1850@(1–20 fps) / 2688× 520@(1–25/30 fps) |
| Second stream | 704×576@(1–25 fps) / 704×480@(1–30 fps) |
| Bitrate | H.264: 32 Kbps~8192 Kbps H.265: 12 Kbps~8192 Kbps |
| Video compression | H.265 / H.265+ / H.264 / H.264+ / MJPEG |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED + WhiteLight |
| IR range | 30m |
| WhiteLight range | 30m |
| NightColor | Yes |
| Microphone | Yes |
| Audio compression | G.711A / G.711Mu / G.726 / PCM |
| Storage | FTP, SFTP, NAS |

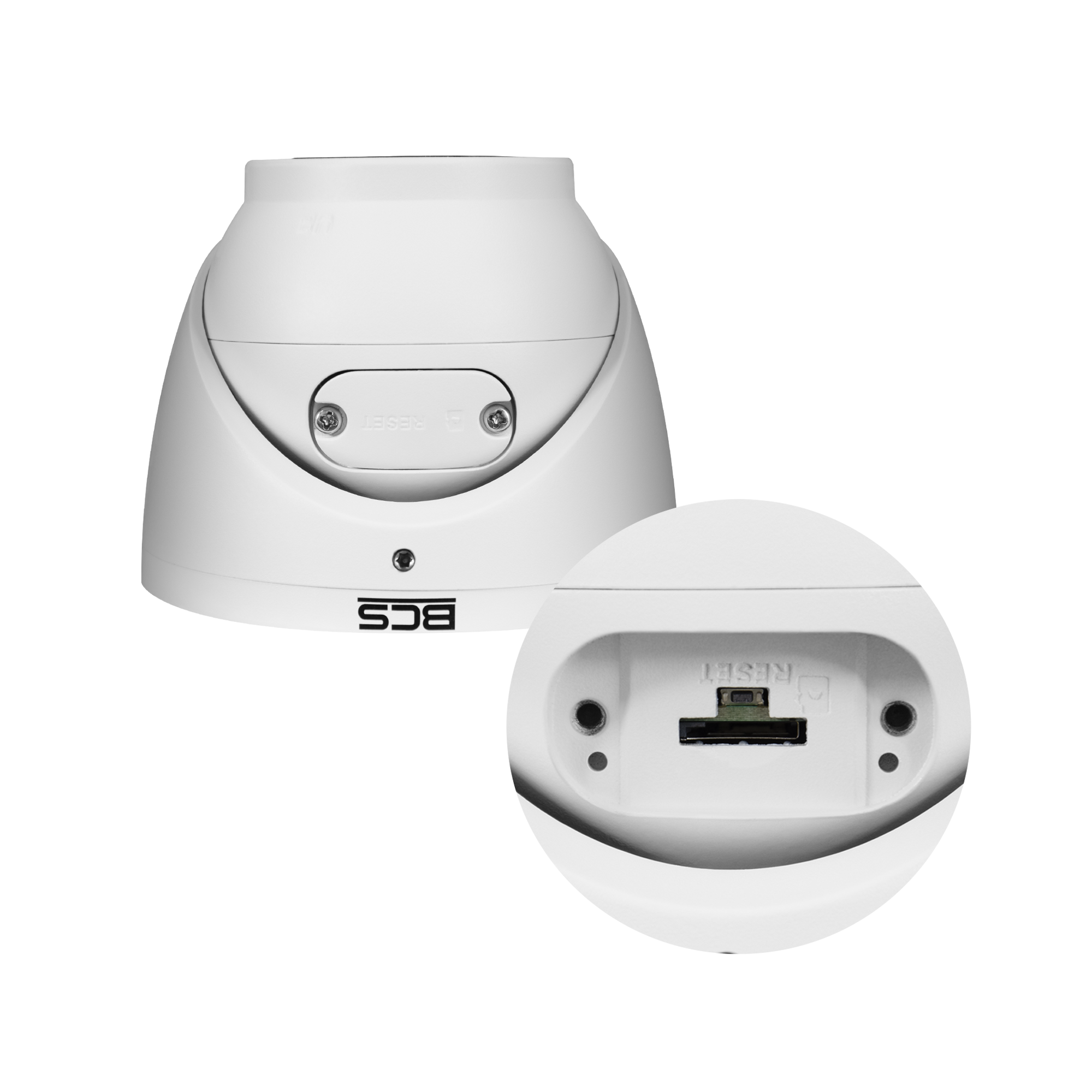

| Memory card slot | microSD 256GB |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | 4 |
| Privacy masking | 4 |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF(S/G/T) |
| Protocols | IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP , RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, P2P, Bonjour, Auto Registration |
| Network security | |
| Power supply | PoE |
| Power supply type | 12V DC / PoE(802.3af) |
| Power consumption | max 5.7W |
| Housing color | White |
| IP class | IP67 |
| Working environment | -40°C~+55°C max 95% RH |
| Dimensions | Ø106×94mm |
| Weight | 0.39 kg |
| Casing | Metal |
| Ai - Perimeter protection | Crossline, intrusion |
| &Ai - Object classification | Yes |
| &Ai - SMD | Yes |
| Ai - Human/vehicle detection | Human/vehicle classification for crossline and intrusion reduces false alarms |
Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
BCS LINE
BCS-L-EIP16FCR3L3-Ai1
372,69 € gross

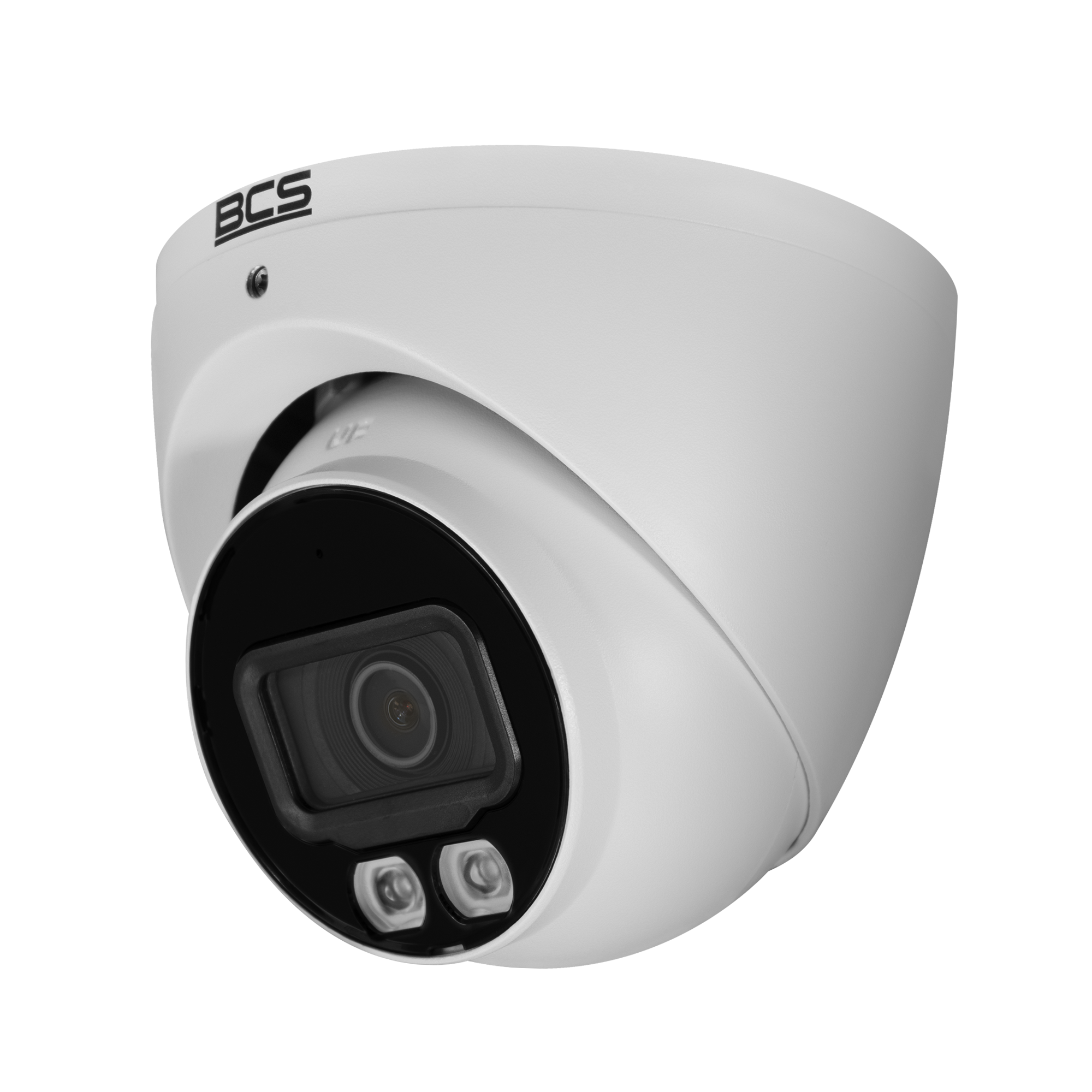

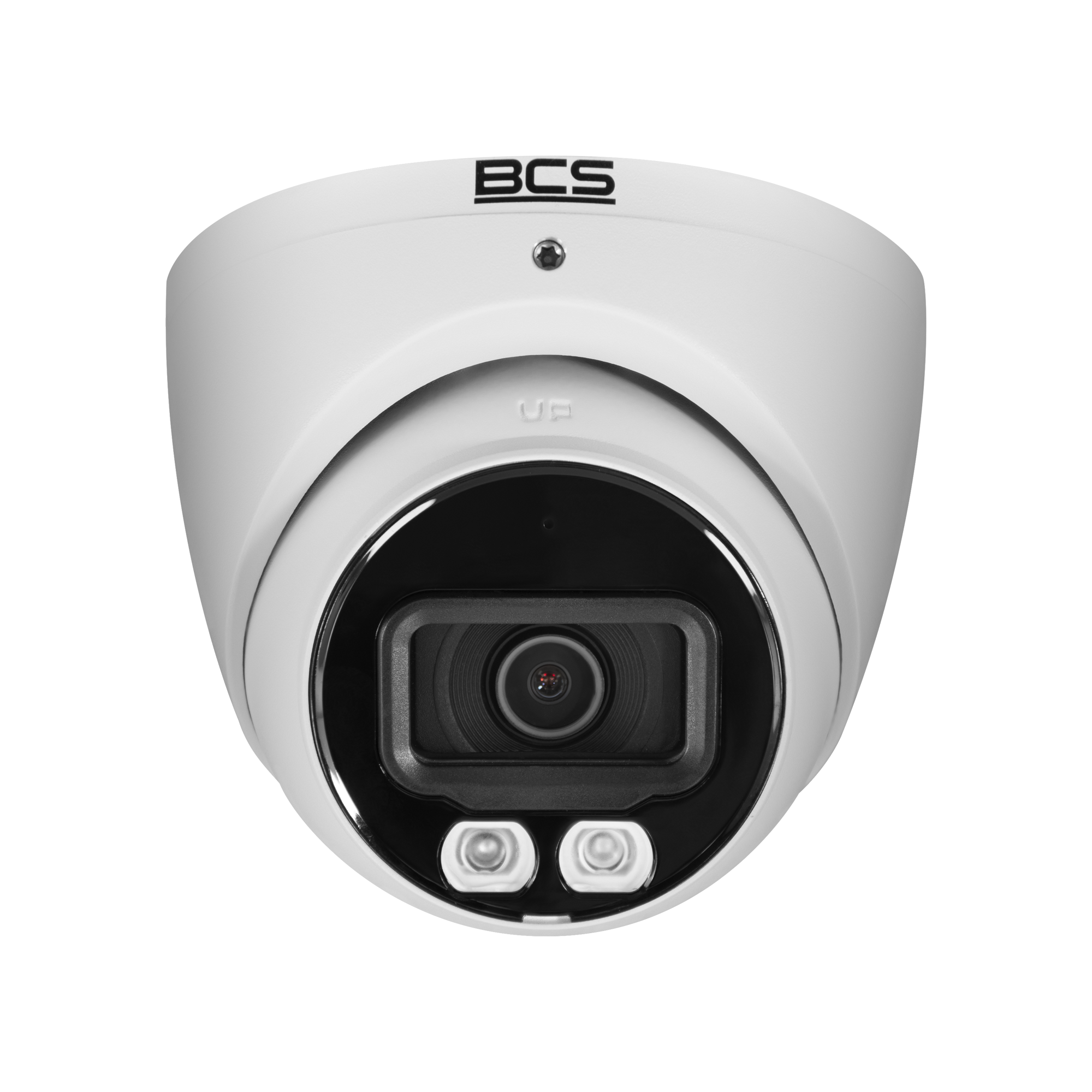

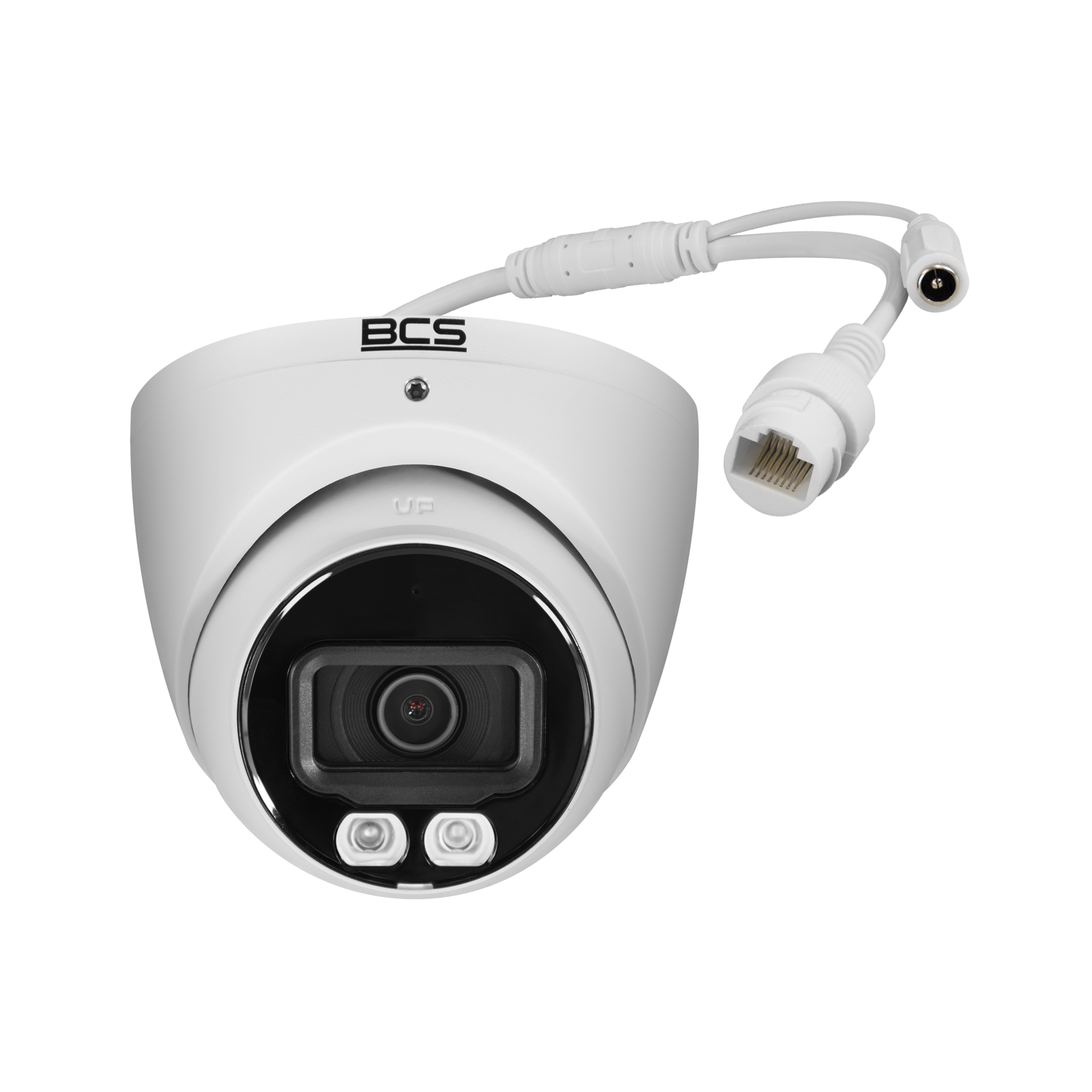

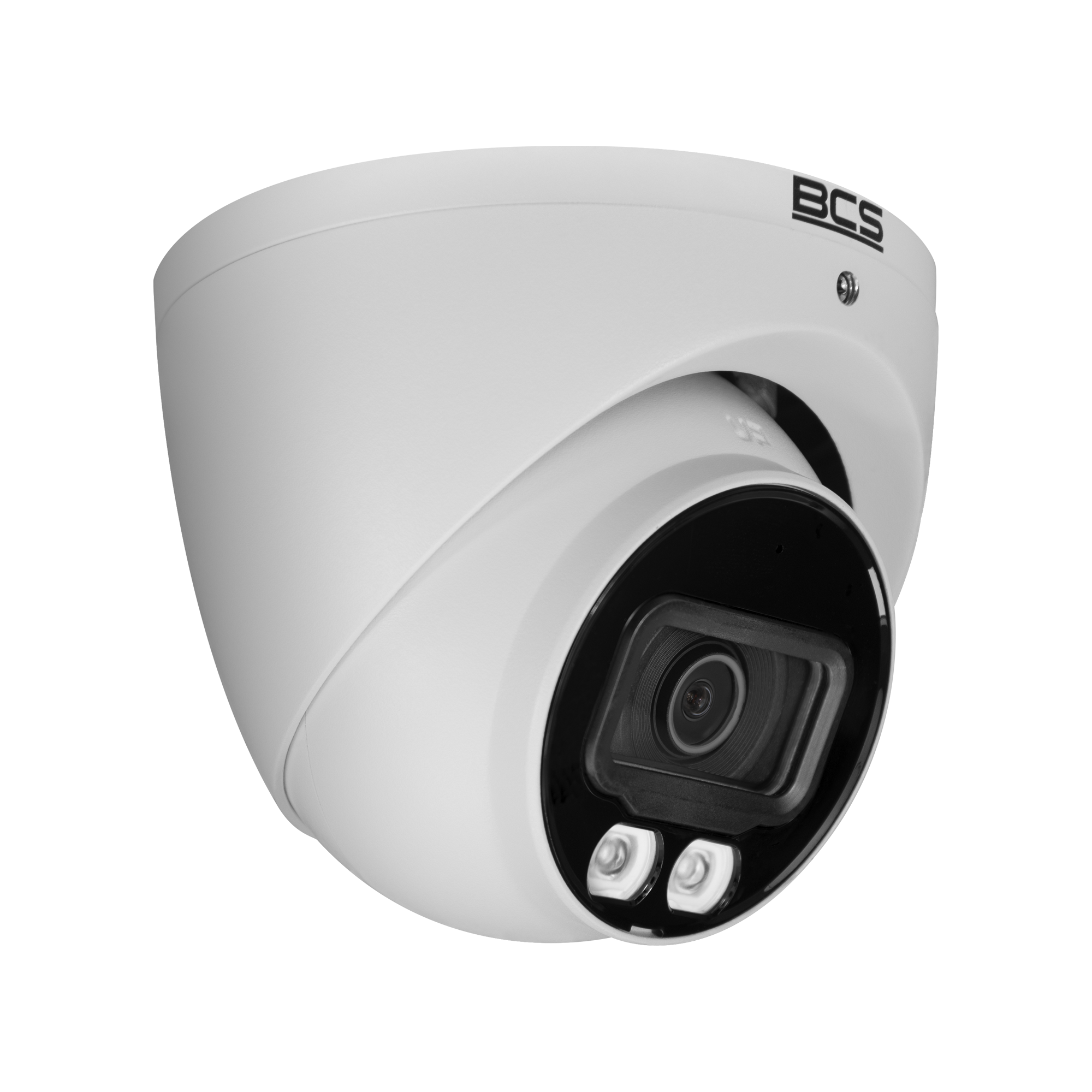

Out of Stock- 6Mpx dome IP camera
- 1/2.7" PS CMOS sensor
- NightColor technology
- 2.8 mm fixed lens
- WDR 120 dB
- Microphone
- IR illuminator 30m
- Whitelight 30m
- IP67 housing
- Built-in smart features
Out of stock
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.
