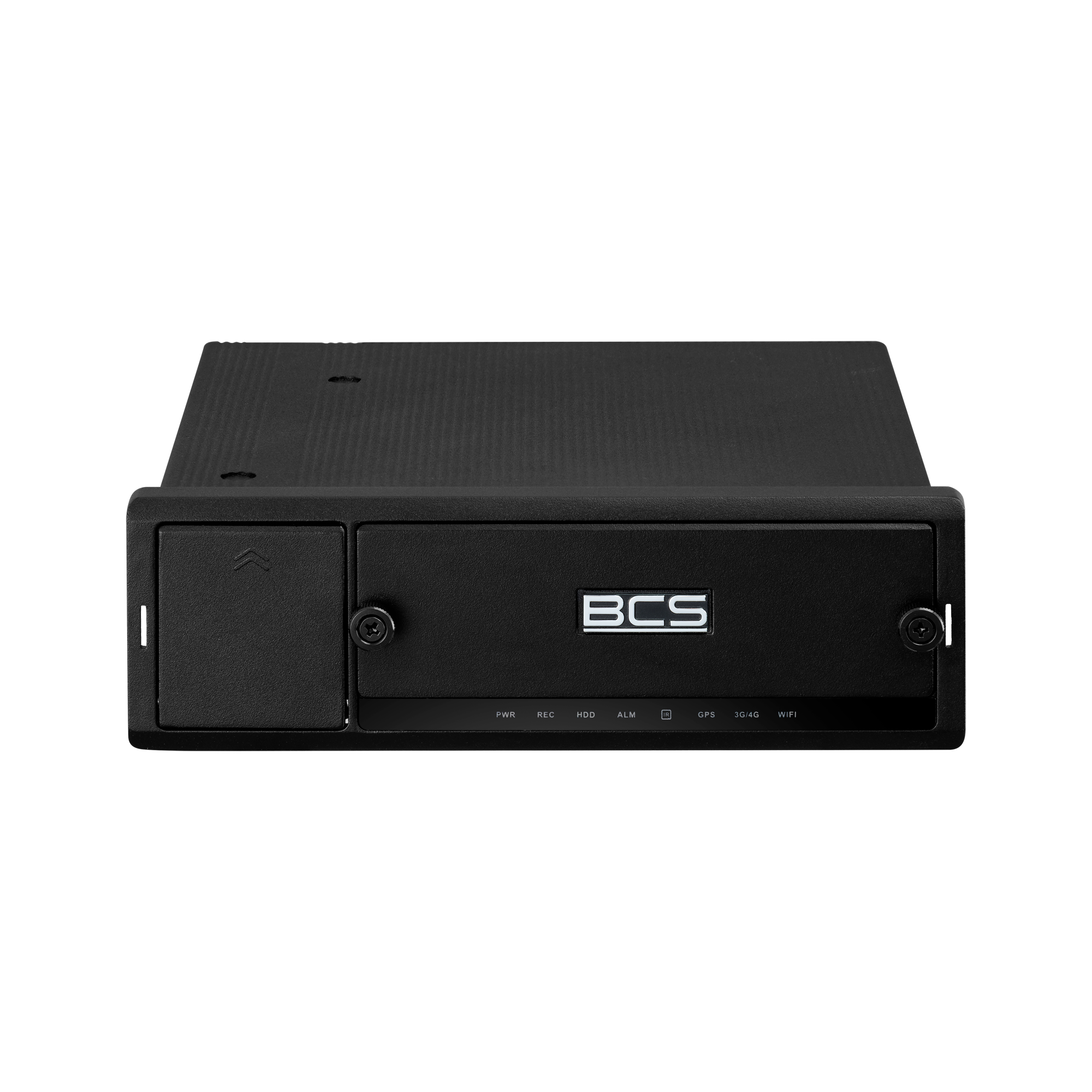

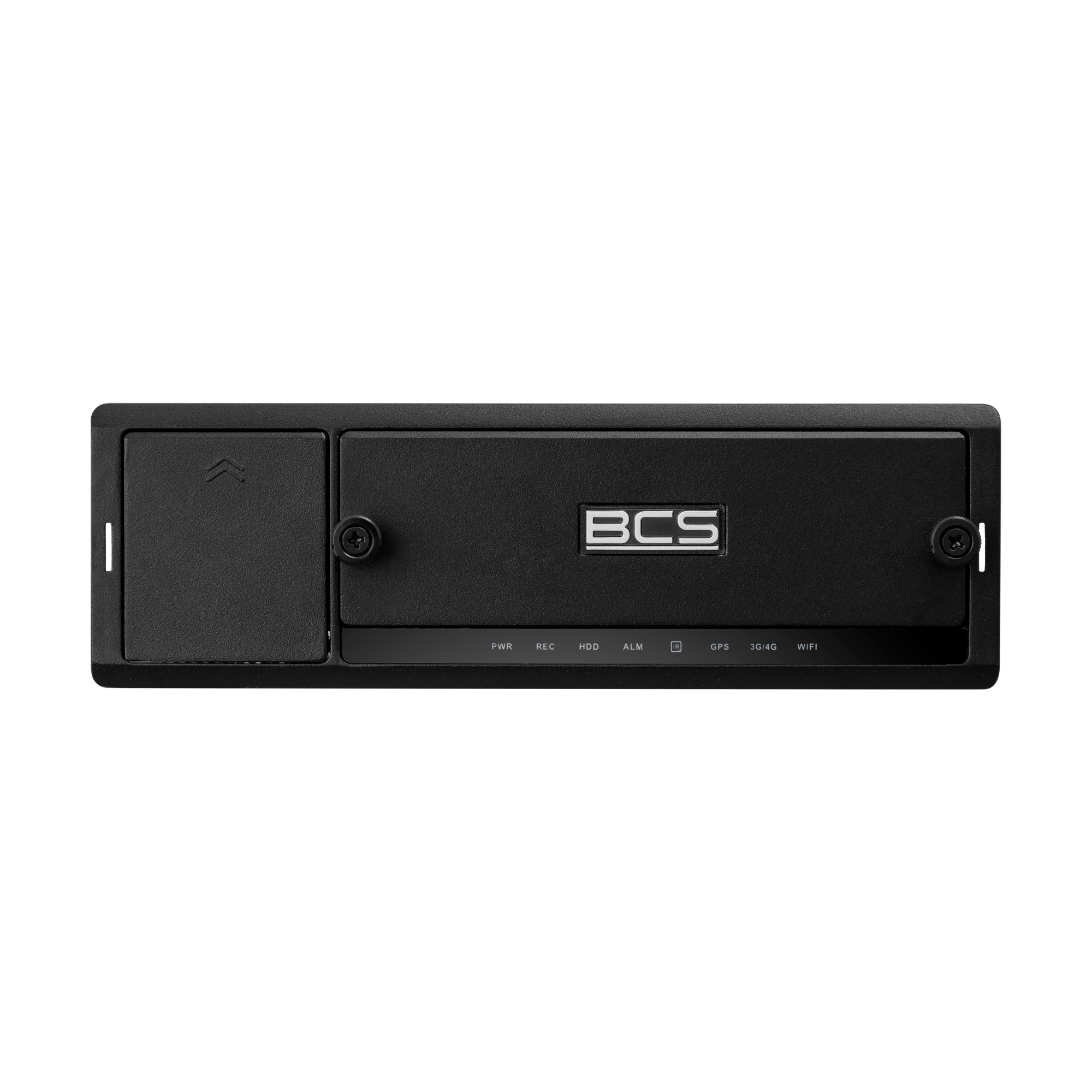

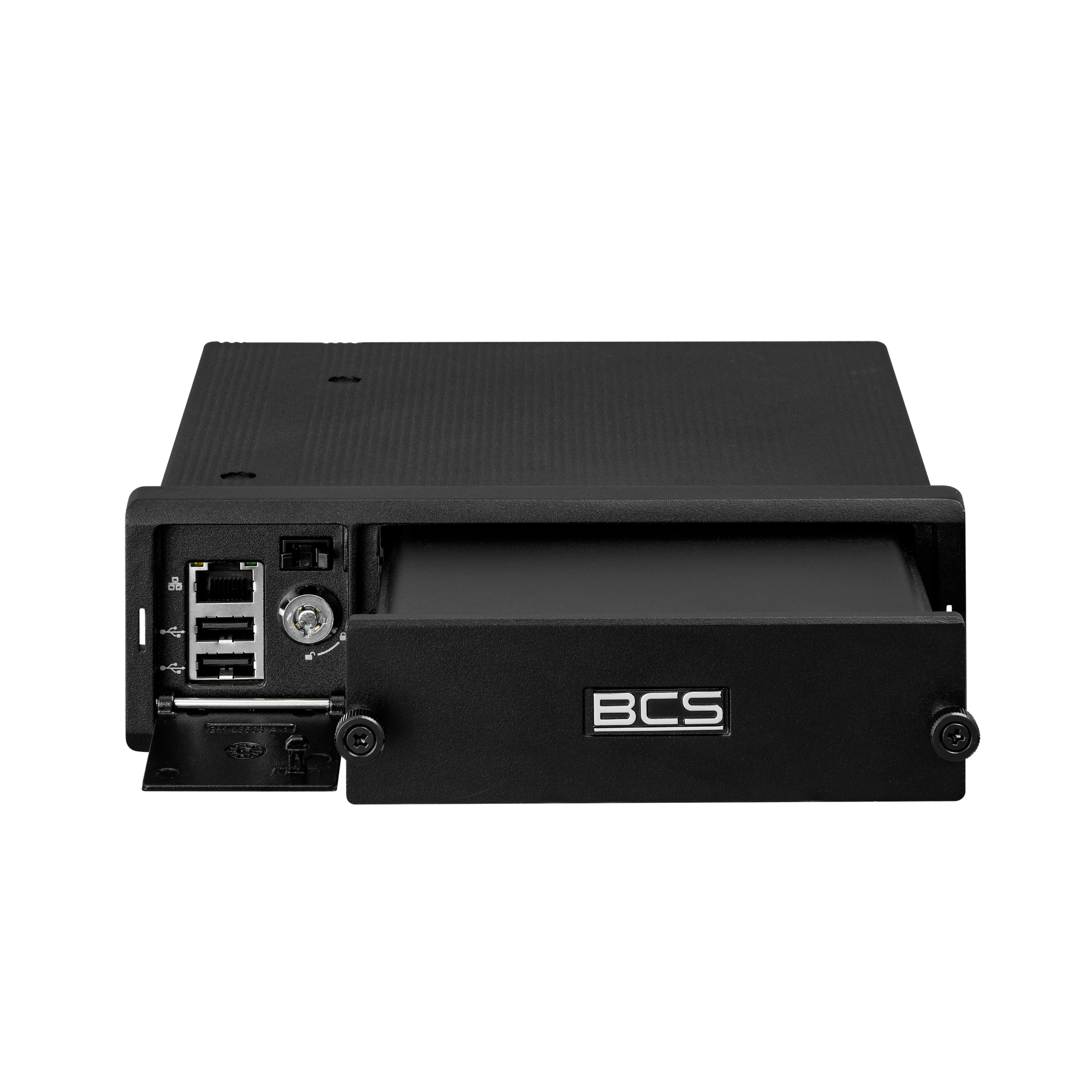

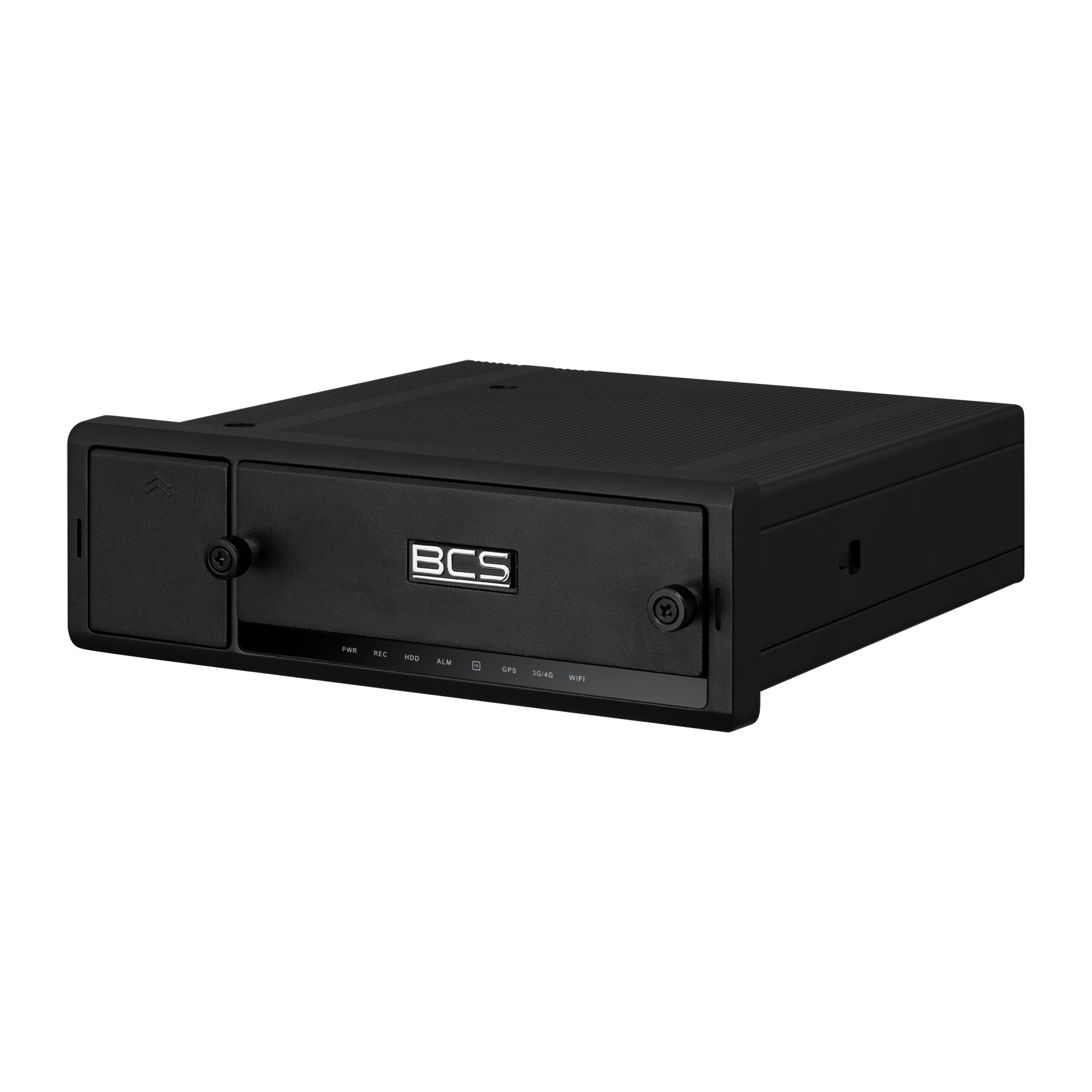

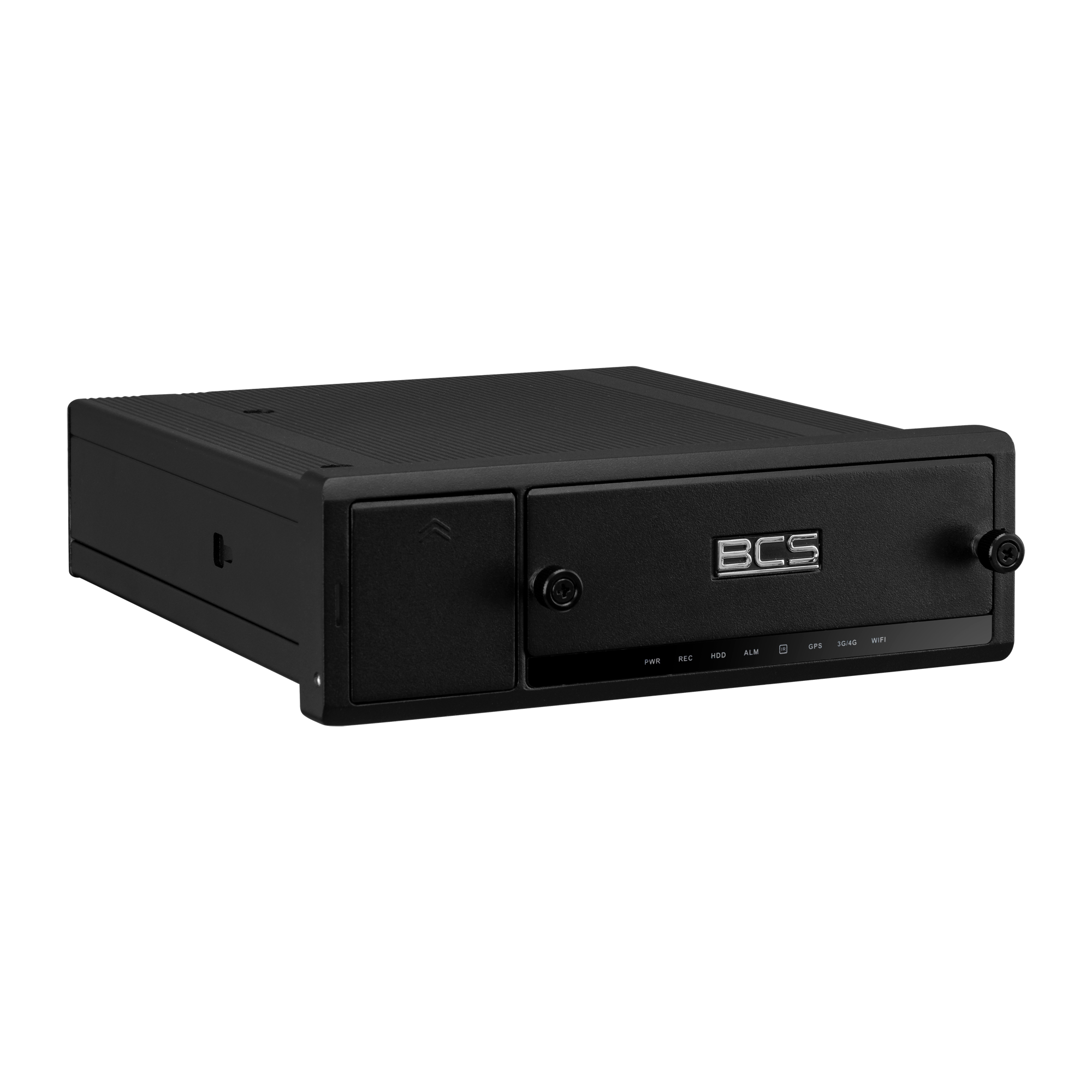

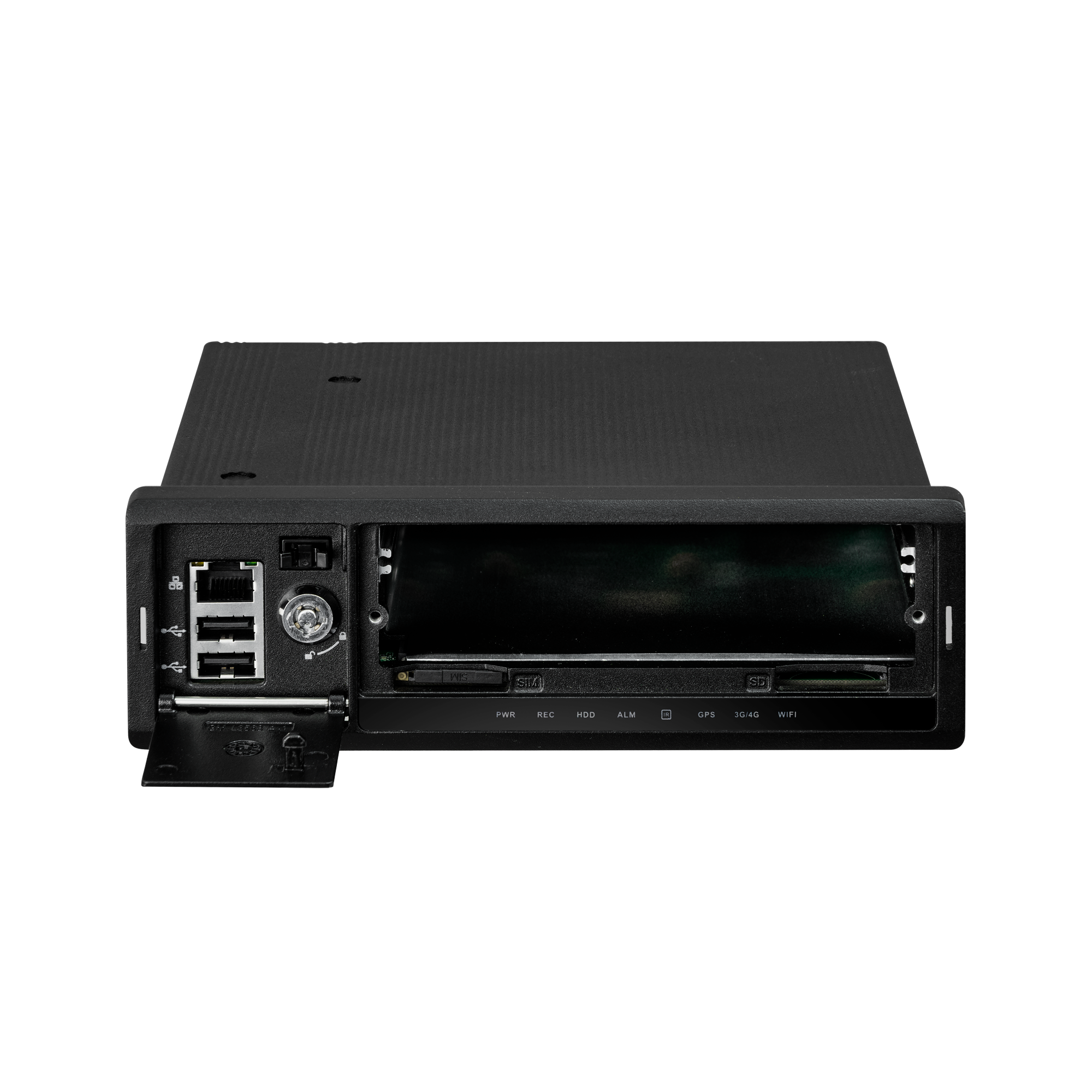

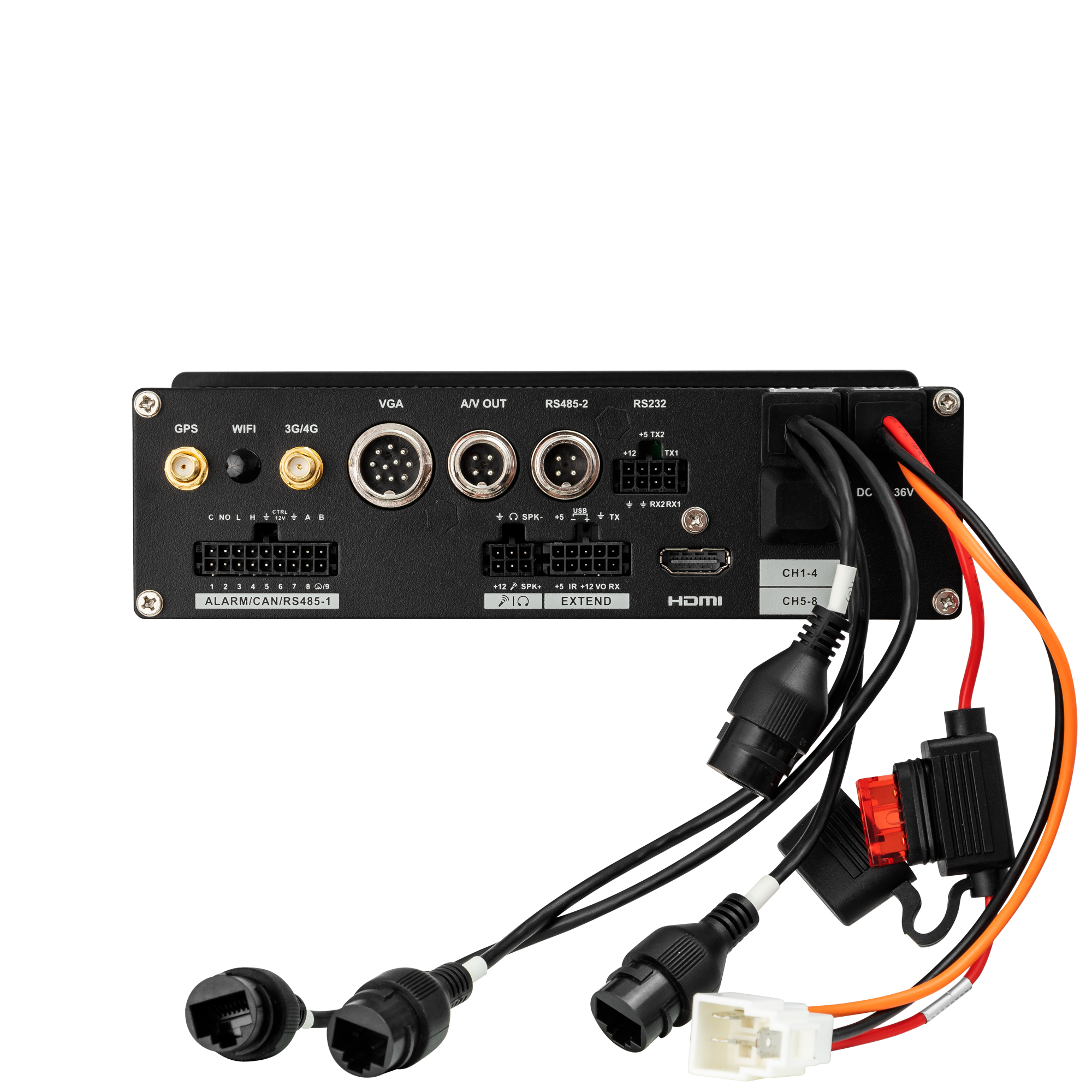

The mobile recorder can handle up to 4 IP cameras with a maximum resolution of 4Mpx. It has H.265 compression with the SMART function. One SATA 2.5 “disk can be placed inside the recorder. The device also supports SD cards up to 256GB. It has 3 USB ports, 3 RS232 ports, 2 RS485 ports and video outputs: HDMI, VGA and TV.
It is a mobile recorder that has a built-in 4G and GPS module, a 4-port PoE switch and works with a power supply in the range of 6 ~ 36VDC.
| Weight (without HDD) | 1.92 kg |
|---|---|
| Product | BCS-L-MNVR0401-A-4P-4G |
| System | IP |
| Channels | 4 |
| Max recording resolution | 4 Mpx |
| Power consumption (without HDD) | max 10.2 |
| VGA out | VGA |
| Flag | TO ORDER |
| Pentaplex function | Live view / recording / playback / archiving / remote access |
| HDD support | 1 |
| HDD capacity | 2 TB |
| Recording resolutions | 4M / 3M / 2M / 1.3M / 720P / D1 |
| Video compression | H.265+ / H265 / H.264+ / H.264 |
| HDMI out | HDMI |
| BNC out | 2×BNC |
| HDMI display resolutions | 1920×1080 / 1280×1024 / 1280×720 / 1024×768 |
| VGA display resolutions | 1920×1080 / 1280×1024 / 1280×720 / 1024×768 |
| Display split | 1/4 |
| Synchronous playback | 1/4 |
| Archiving | Possibility to download material to external media such as USB FLASH, USB HDD |
| Interfaces | 3×USB2.0, 4G module, GPS module, SIM card slot, 256GB SD card slot |
| Serial port | 3×RS232, 2×RS485 |
| Audio in | 1 |
| Audio out | 1 |
| Alarm in | 9 |
| Alarm out | 2 |
| Support | Local, Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Network | RJ-45 10/100Mbps |
| Compatibility | ONVIF, support third party cameras |
| PoE channels | 4 |
| Power supply | 6~36V DC |
| Working environment | -30°C~+70°C max 90% RH |
| Casing | mobile |
| Dimensions (W×D×H) | 180×190×50mm |
