| Power consumption (without HDD) | max 10W |
|---|---|
| &Ai - Built-in intelligent functions | Yes |
| Ai - Intelligent functions from recorder | Face detection, face identification, perimeter protection (person/vehicle recognition), metadata, SMD Plus |
| Ai - Intelligent functions from camera | Face detection, face recognition, metadata (human/vehicle classification), SMD Plus, people gathering, people counting, ARTR, vehicle density, object monitoring, heat map |
| Ai - SMD - Smart Motion Detection | 8 channels from the recorder / 8 channels from cameras |
| Product | BCS-L-NVR0802-A-8K-8P-Ai2 |
| System | IP |
| Pentaplex function | Live view / recording / playback / archiving / remote access |
| Channels | 8 |
| HDD support | 2 |
| HDD capacity | 20 TB |
| Record mode | Continuous, manual, alarm, motion detection, schedule, Ai |
| Max recording resolution | 32 Mpx |
| Incoming bandwidth | 448Mbps(200Mbps Ai) |
| Outgoing bandwidth | 448Mbps(200Mbps Ai) |
| Recording bandwidth | 448Mbps(200Mbps Ai) |
| Display efficiency | 2×32M@25fps /2×24M@25fps /5×16M@30fps /6×12M@30fps /8×8M@30fps Ai: 1×32M@25fps /2×24M@25fps /4×16M@30fps /5×12M@30fps /8×8M@30fps |
| Recording resolutions | 32M / 24M / 16M / 12M / 8M / 6M / 5M / 4M / 3M / 2M / 1.3M / 720P / D1 / CIF / QCIF |
| Video compression | H.265+ / H265 / H.264+ / H.264 / MJPEG |
| HDMI out | HDMI8K |
| VGA out | VGA |
| HDMI display resolutions | 7680×4320 / 3840×2160 / 1920×1080 / 1280×1024 / 1280×720 |
| VGA display resolutions | 1920×1080 / 1280×1024 / 1280×720 |
| Display split | Main screen: 1/4/8/9 Second screen: 1/4/8/9 |
| Recording | continuous recording, with motion detection (with recording before and after detection), alarm (with pre- and post-alarm recording), cyclic (overwriting), Ai |
| Synchronous playback | 1/4/8 |
| Archiving | Possibility to download material to external media such as USB FLASH, USB HDD |
| User connections | 128 |

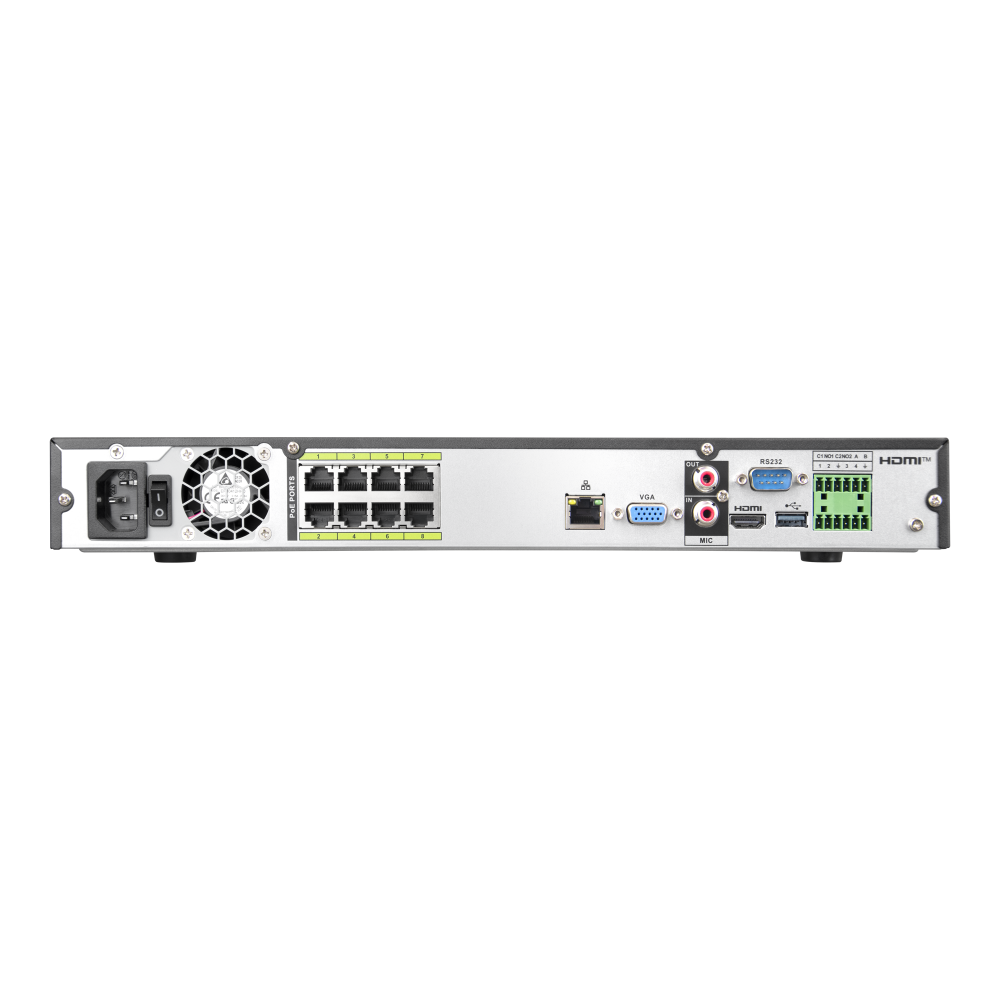

| Interfaces | 1×USB2.0, 1×USB3.0 |
| Serial port | RS232, RS485 |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711A / G.711U / G.726 / PCM |
| Alarm in | 4 |
| Alarm out | 2 |
| Alarm | Motion detection, signal lost,, sabotage, scene change, PIR, IPC, Ai functions, offline, HDD, IP, MAC, login |
| Support | Local, Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Network | RJ-45 10/100/1000Mbps |
| Compatibility | ONVIF(S/G/T/M), support for cameras from other manufacturers |
| PTZ control | Inteligent 3D positioning with PTZ cameras BCS LINE series. |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4, IPv6, UDP, NTP, FTP, SFTP, DHCP, DNS, SMTP, UPnP, DDNS, SNMP, Alarm Server, IP Search, Multicast, P2P, Auto Registration, iSCSI |
| Standard | IEEE 802.3 af/at |
| Switch PoE power | 130W max 25.5W/port |
| PoE channels | 8 |
| ePoE & EoC | Port 1~8 |
| Power supply | 100~240V AC |
| Working environment | -10°C~+55°C max 93% RH |
| Casing | 1U |
| Dimensions (W×D×H) | 375×330×53mm |
| Weight (without HDD) | 2.5 kg |
| POS | Posnet |
| Ai - Perimeter protection | 8 channels from the recorder, 10 rules per channel / 8 channels from cameras |
| &Ai - Object classification | Yes |
| Ai - Face detection | 4 channels from the recorder (12 images/s) / 8 channels from cameras / facial attributes (gender, age, glasses, facial expression, mask, facial hair) |
| &Ai - SMD | Yes |
| Ai - Face recognition | |
| Ai - Metadata | |
| Ai - Smart search | AcuPick technology – intelligent search for human/vehicle objects in the recording history with camera with the AcuPick function |
| Ai - ARTR | 8 camera channels / black and white list of 20,000 items |
Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
BCS LINE

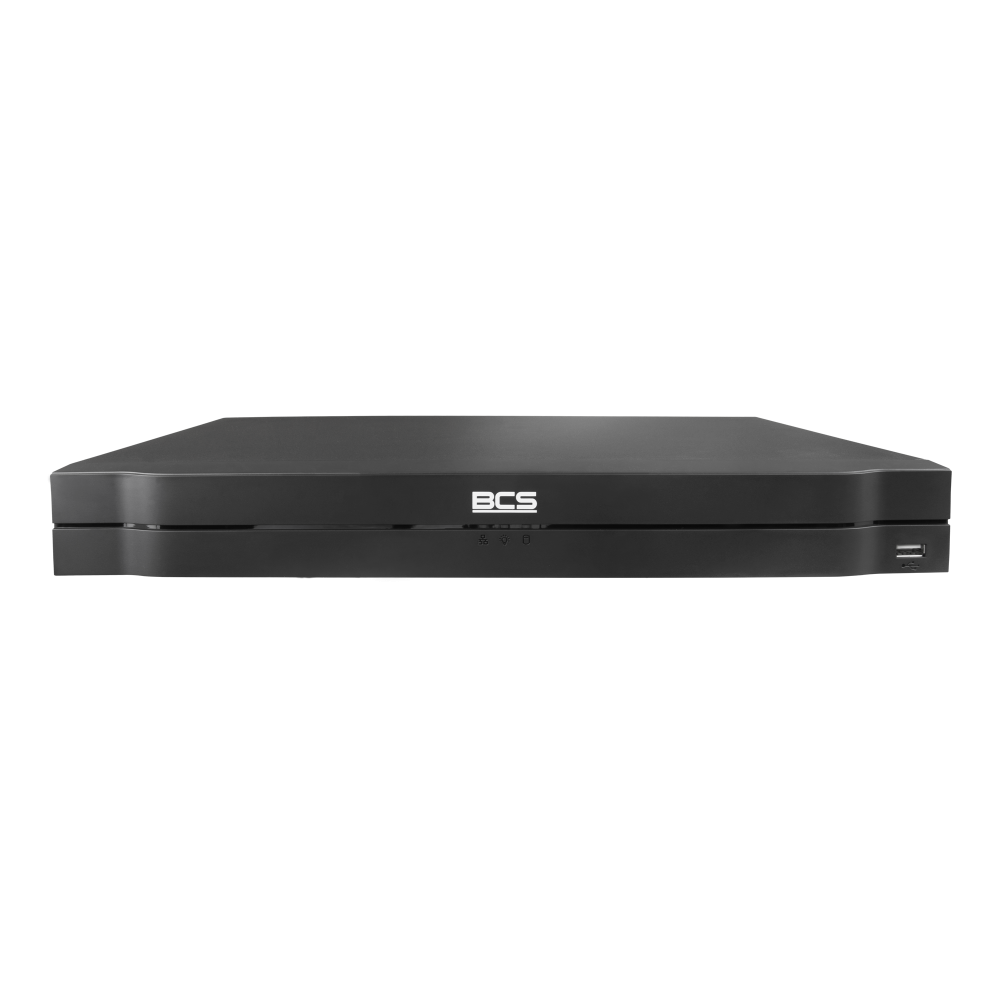

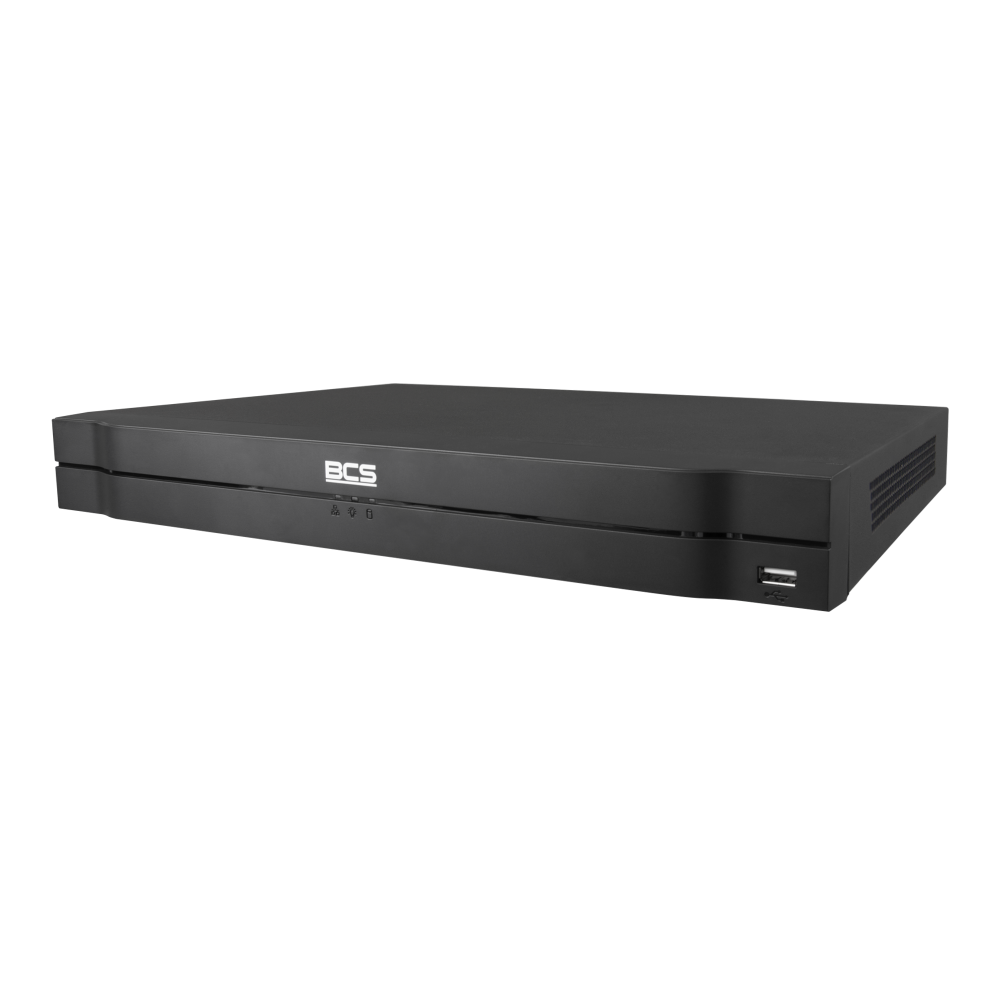

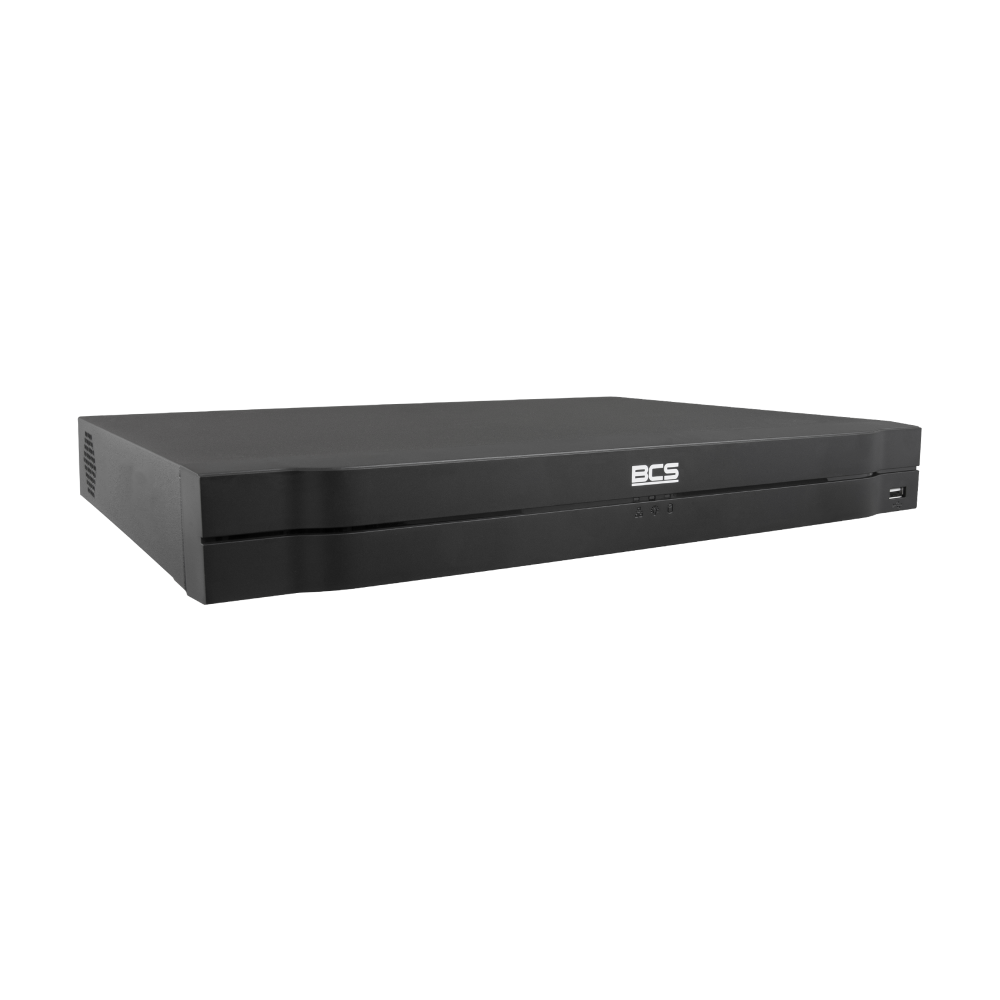

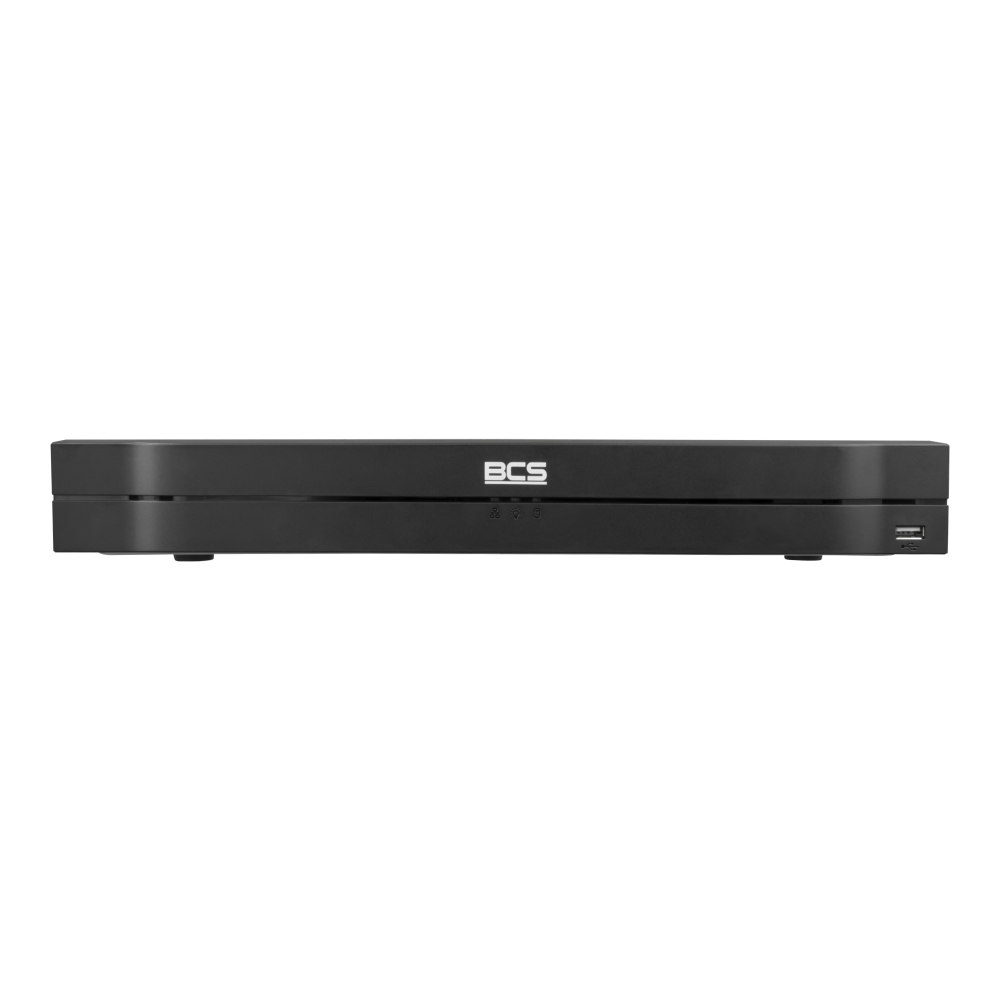

BCS-L-NVR0802-A-8K-8P-Ai2
1345,62 € gross
20 In Stock- 8-channel IP recorder
- Built-in 130W PoE switch
- AcuPick technology
- Supports 2 hard drives
- Supports 32Mpx IP cameras
- 4/2 alarm, 1/1 audio
- HDMI 8K/VGA output
- Built-in smart features
20 in stock
