| Weight (without HDD) | 1.2 kg |
|---|---|
| Pentaplex function | Live view / recording / playback / archiving / remote access |
| HDD support | 1 |
| Incoming bandwidth | 50Mbps |
| Power consumption (without HDD) | max 9W |
| Video compression | H.265+ / H265 / H.264+ / H.264 |
| Product | BCS-B-NVR0801-8P(2.0) |
| System | IP |
| Channels | 8 |
| HDD capacity | 6 TB |
| Max recording resolution | 8 Mpx |
| Outgoing bandwidth | 40Mbps |
| Display efficiency | 1×8M(30fps) / 1×5M(30fps) / 2×4M(30fps) / 4×3M(25fps) / 4×2M(30fps) / 8×720P(30fps) |
| Recording resolutions | 8M / 6M / 5M / 4M / 3M / 2M / 960P / 720P / D1 / 2CIF / CIF/ QCIF |
| HDMI out | HDMI4K |
| VGA out | VGA |
| HDMI display resolutions | 3840×2160 / 1920×1080 / 1600×1200 / 1280×1024 / 1280×720 / 1024×768 |
| VGA display resolutions | 1920×1080 / 1600×1200 / 1280×1024 / 1280×720 / 1024×768 |
| Display split | 1/4/8 |
| Synchronous playback | 1/4/9 |
| Archiving | Possibility to download material to external media such as USB FLASH, USB HDD |
| User connections | 128 |

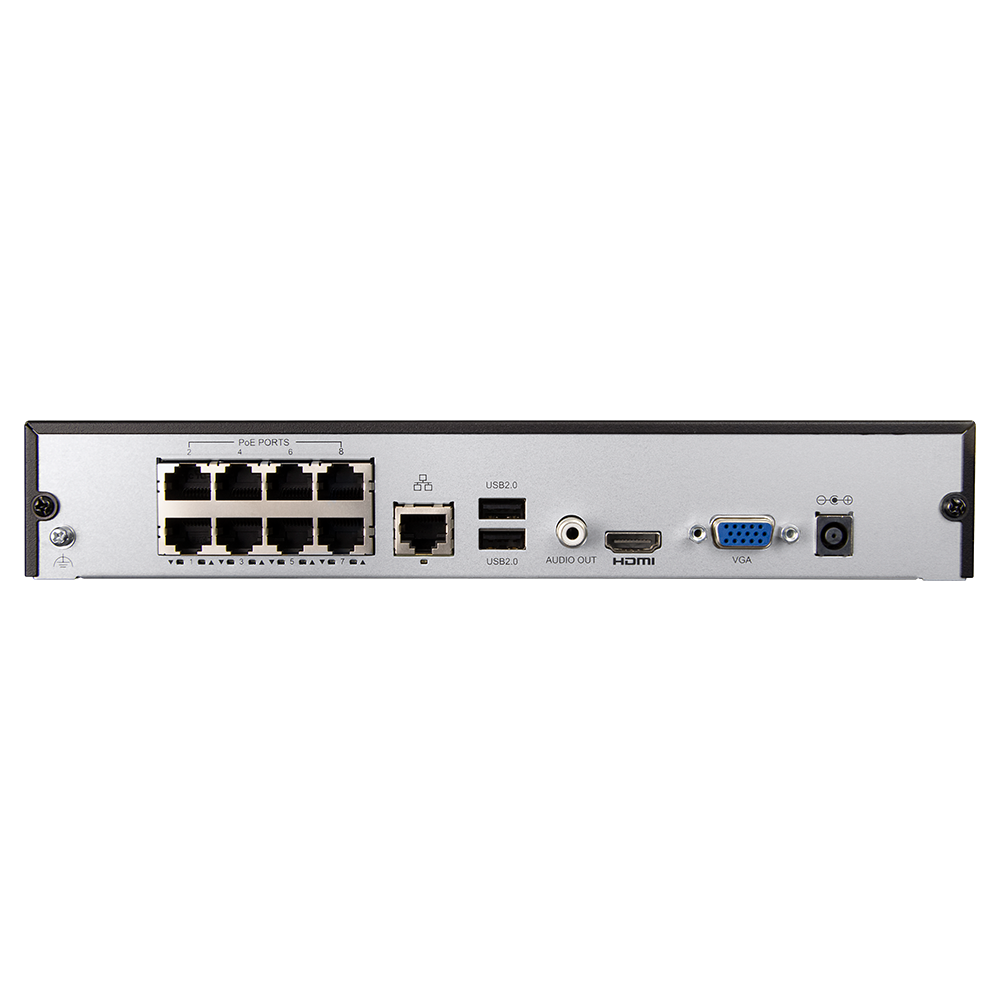

| Interfaces | 2×USB2.0 |
| Audio out | 1 |
| Support | Local, Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Network | RJ-45 10/100/1000Mbps |
| Compatibility | ONVIF, support third party cameras |
| Protocols | P2P, UPnP, DHCP |
| Standard | IEEE 802.3 af/at |
| Switch PoE power | 75W max 30W/port |
| PoE channels | 8 |
| Power supply | 52V DC |
| Working environment | -10°C~+55°C max 90% RH |
| Dimensions (W×D×H) | 260×243×46mm |
Warning: This product belongs to the BCS BASIC product line.
Use only components and devices from the same line to ensure compatibility.
BCS BASIC

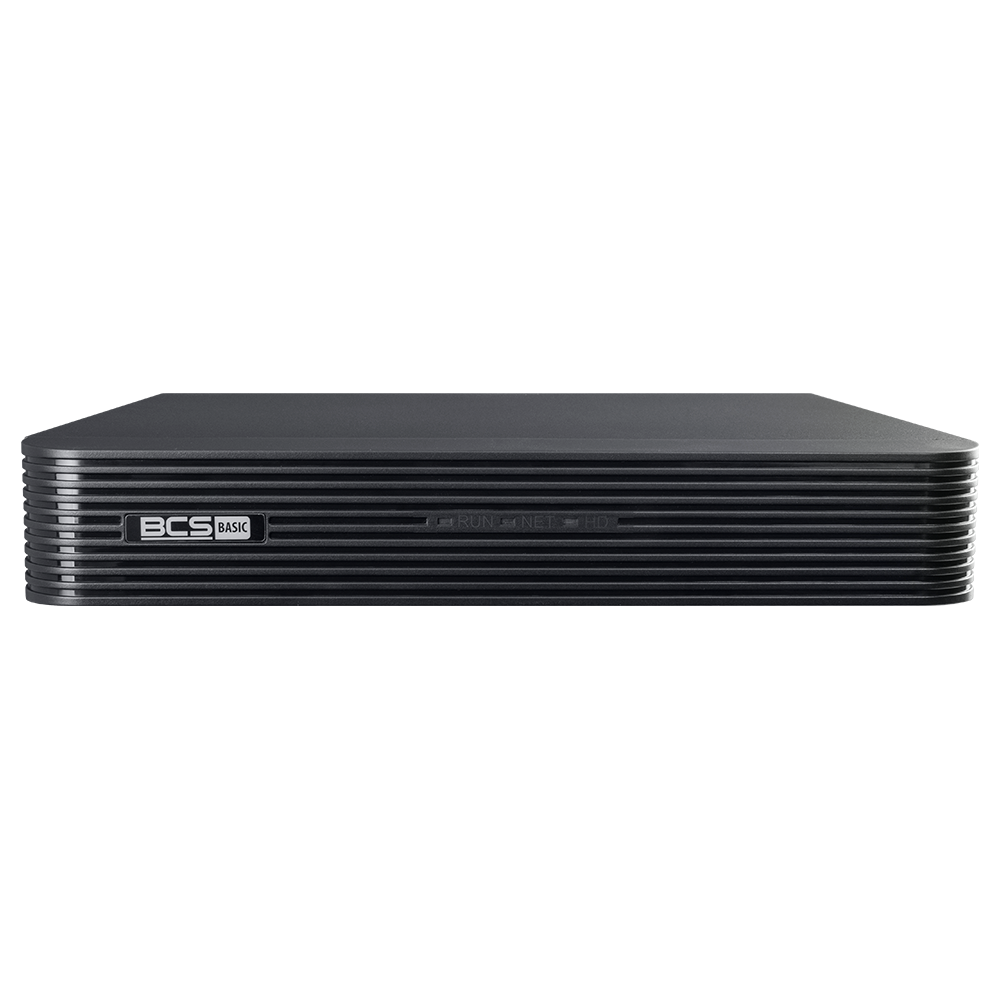

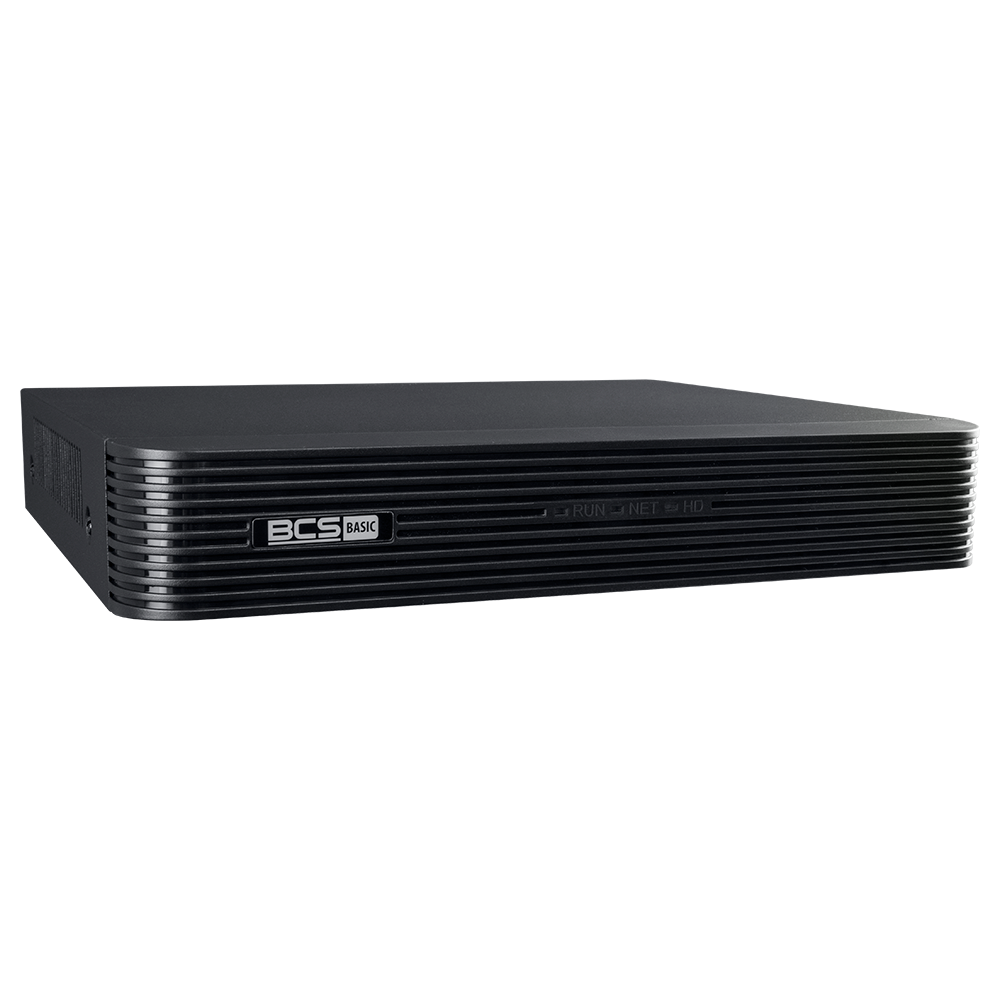

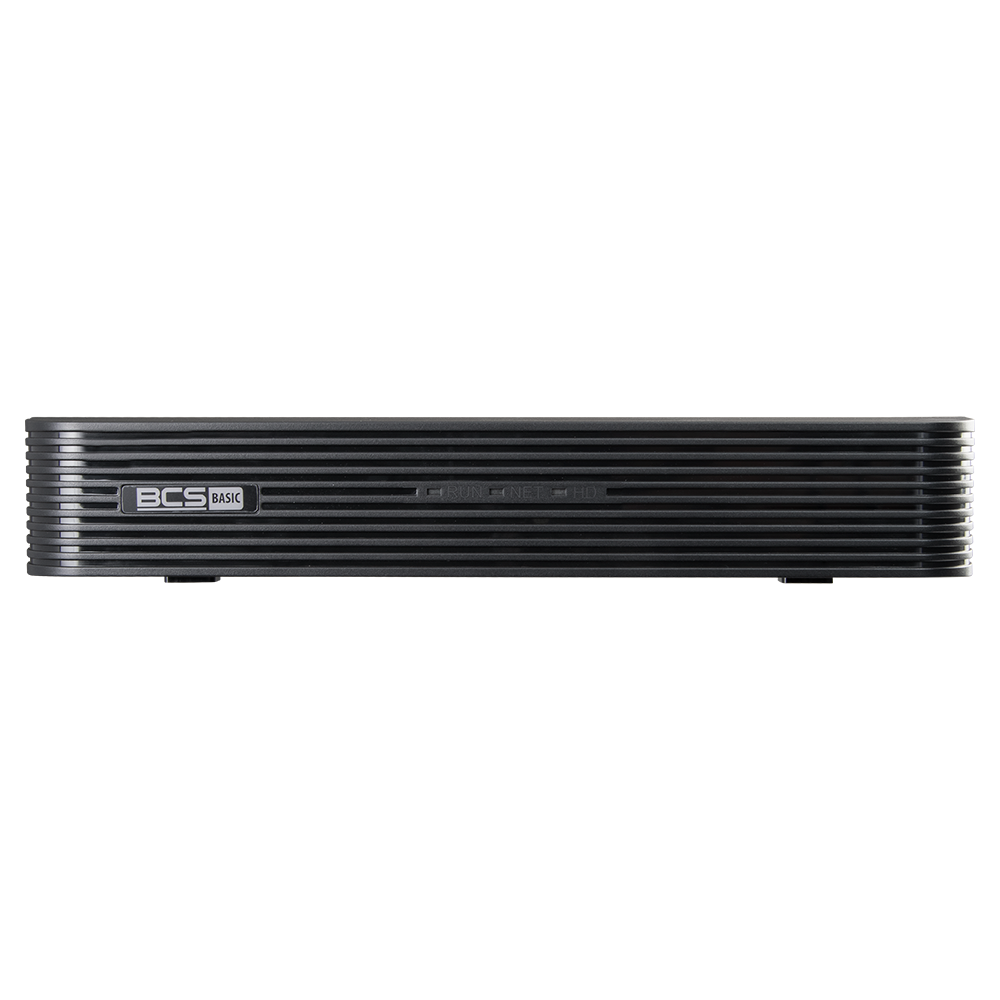

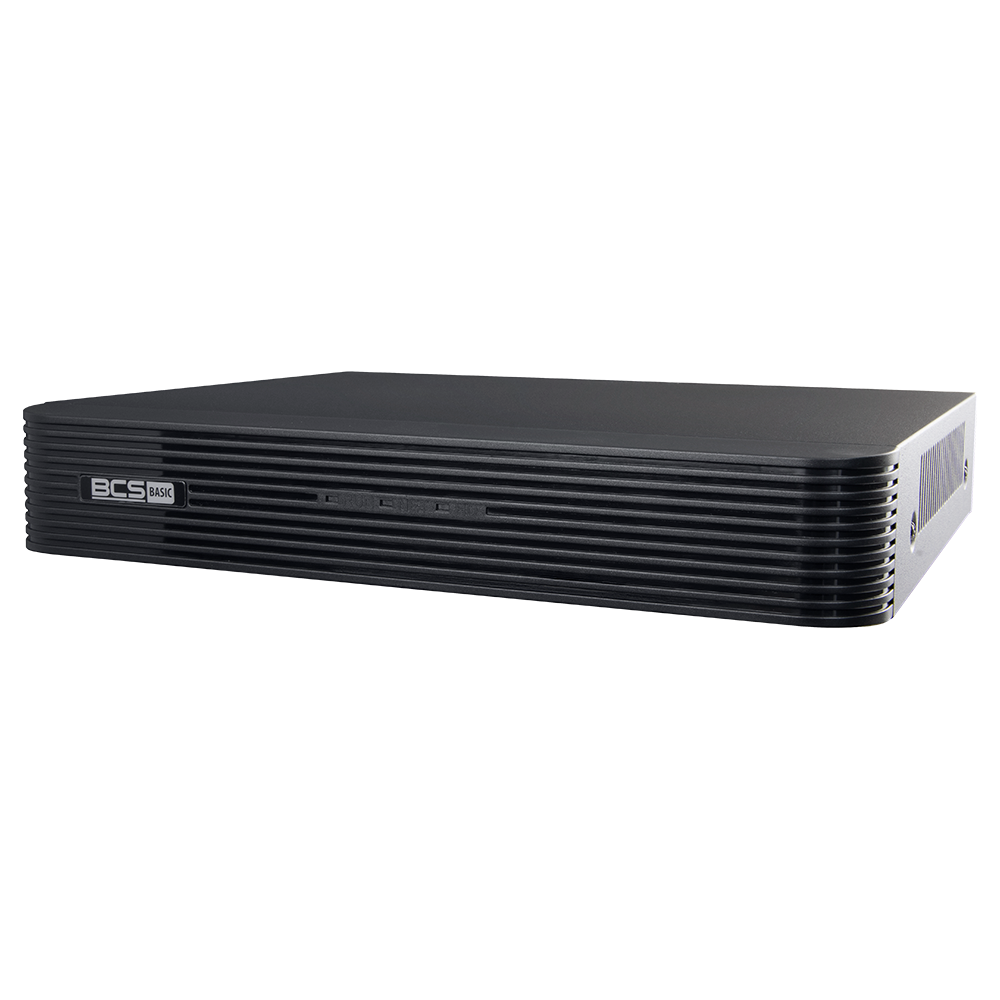

BCS-B-NVR0801-8P(2.0)
159,90 € gross
62 In Stock- 8-channel IP recorder
- Built-in 8-port 75W PoE switch
- Supports 1 hard disk
- Supports 8Mpx IP cameras
- HDMI 4K/VGA output
- Audio output
62 in stock
- DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
- Official BCS e-commerce Business Partner
- Technical support
