| Flag | COMING SOON |
|---|---|
| Product | BCS-L-XVR0801-4KE-Ai2 |
| pa_product-line | BCS LINE |
| Transmission standard | HD-CVI / AHD / HD-TVI / ANALOG / IP |
| System | Analog HD + IP |
| Pentaplex function | Live view / recording / playback / archiving / remote access |
| Channels | 8 |
| HDD support | 1 |
| HDD capacity | 16 TB |
| Max recording resolution | 8 Mpx |
| Incoming bandwidth | 128Mbps |
| Outgoing bandwidth | 128Mbps |
| Recording bandwidth | 128Mbps |
| HD-CVI camera | 4K@25/30 fps; 4K@12.5/15 fps; 6 MP@20fps; 5 MP@25 fps; 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps; 720p@50/60 fps |
| AHD camera | 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps |
| HD-TVI camera | 4K@15 fps; 5 MP(2560 x 1944)@20 fps; 5 MP(2960 x 1665)@20 fps; 4 MP@25/30 fps; 3MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps |
| ANALOG camera | CVBS PAL/NTSC |
| XVR - IP camera | 8M |
| XVR - IP channels | 8+8 |
| Recording resolutions | 8M / 6M / 5M / 4K Lite / 4M / 3M / 4M Lite / 1080P / 720P / 960H / D1 / CIF |
| Basic mode | |
| Extended mode | |
| Bitrate | 32Kbps~6144Kbps |
| Video compression | H.265+ / H265 / H.264+ / H.264 / Ai coding |
| HDMI out | HDMI4K |
| VGA out | VGA |
| HDMI display resolutions | 3840×2160 / 1920×1080 / 1280×1024 / 1280×720 |
| VGA display resolutions | 1920×1080 / 1280×1024 / 1280×720 |
| Display split | 1/4/8/9 (1/4/8/9/16 IP) |
| Synchronous playback | 1/4/9 |
| Archiving | Possibility to download material to external media such as USB FLASH, USB HDD |
| User connections | 130 |
| Interfaces | 1×USB2.0, 1×USB3.0 |
| Serial port | RS485 |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711A / G.711U / PCM |
| Support | Local, Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | Yes |
| Privacy masking | Tak |
| Network | RJ-45(10/100/1000Mbps) |
| Compatibility | ONVIF |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, FTP, DDNS, SNMP, Alarm Server, P2P, Auto Registration, IP Search |
| Power supply | 12V DC |
| pa_power-consumption-without | max 10W |
| Working environment | -10°C~+55°C max 90% RH |
| Casing | 1U |
| pa_dimensions-mm-wxdxh | 260×235×47 |
| Weight (without HDD) | 1.23 kg |
| pa_ai-built-in-intelligent-f | Yes |
| Ai - Perimeter protection | 8 kanały analog HD |
| &Ai - Object classification | Yes |
| Ai - Face detection | 4 kanały analog HD, atrybuty twarzy (płeć, wiek, okulary, ekspresja twarzy, maska, zarost), max 12 obrazów na sekunde |
| &Ai - SMD | Yes |
| Ai - Face recognition | 4 kanały analog HD, do 10 baz danych twarzy, 20 tyś obrazów |
| Ai - Smart search | AcuPick 8 kanały z rejestratora |
| pa_ai-intelligent-functions- | Ochrona perymetryczna (rozpoznawanie osoba/pojazd mechaniczny), inteligentna detekcja ruchu (rozpoznawanie osoba/pojazd mechaniczny), detekcja twarzy, identyfikacja twarzy, EPTZ |
| pa_ai-smd-smart-motion-detec | 8 kanały z rejestratora, 16 kanałów z kamer |

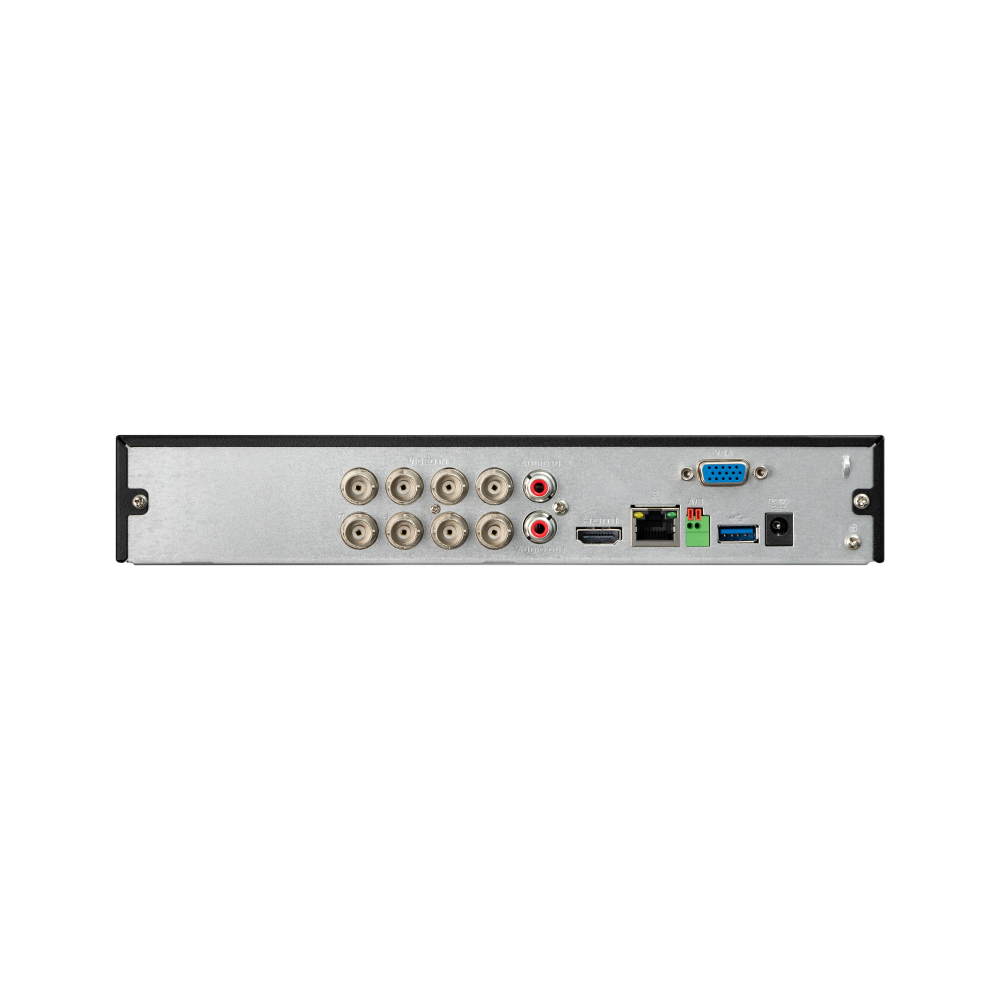

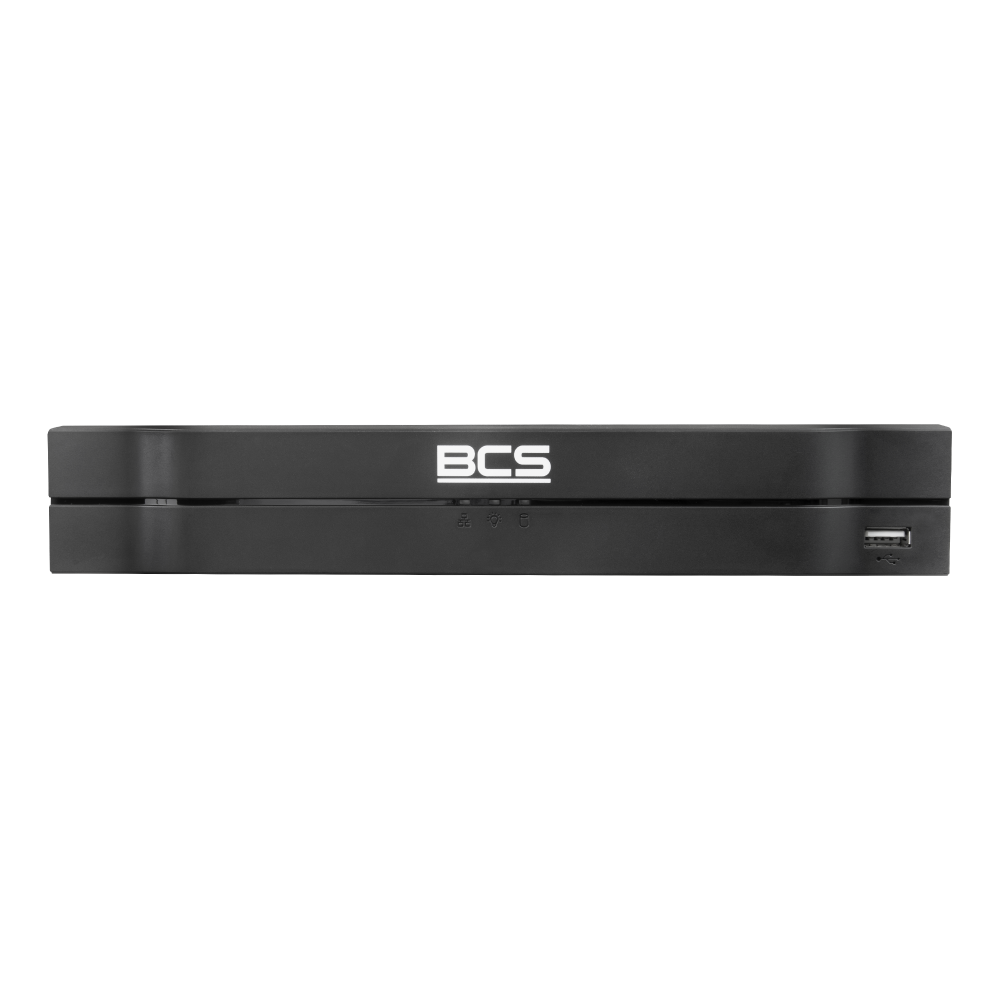

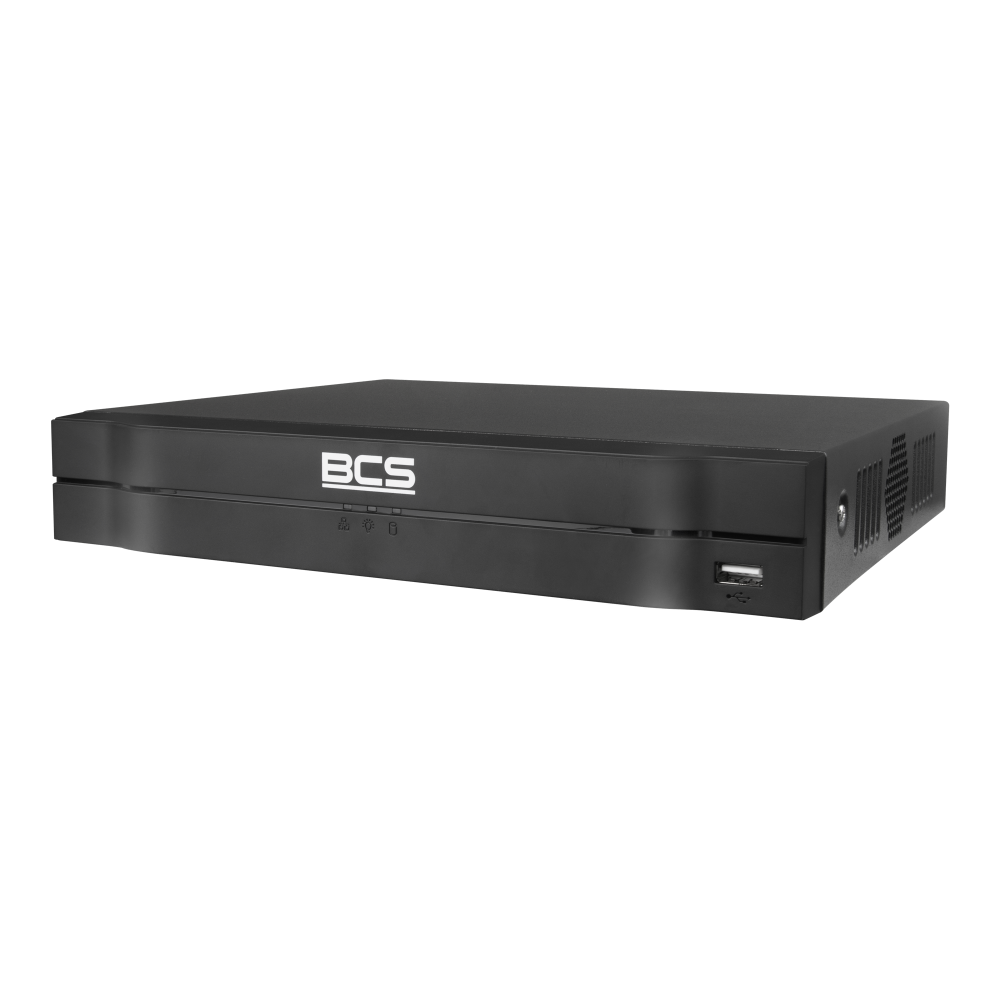

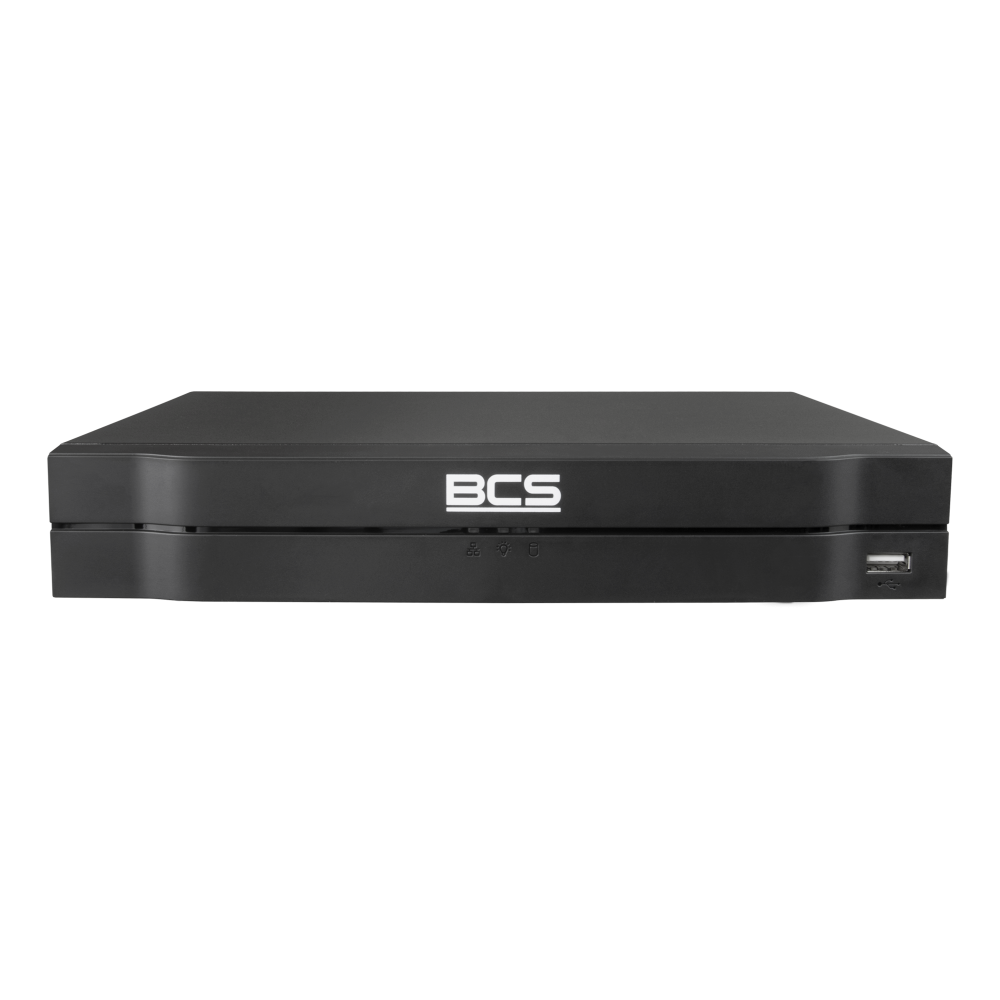

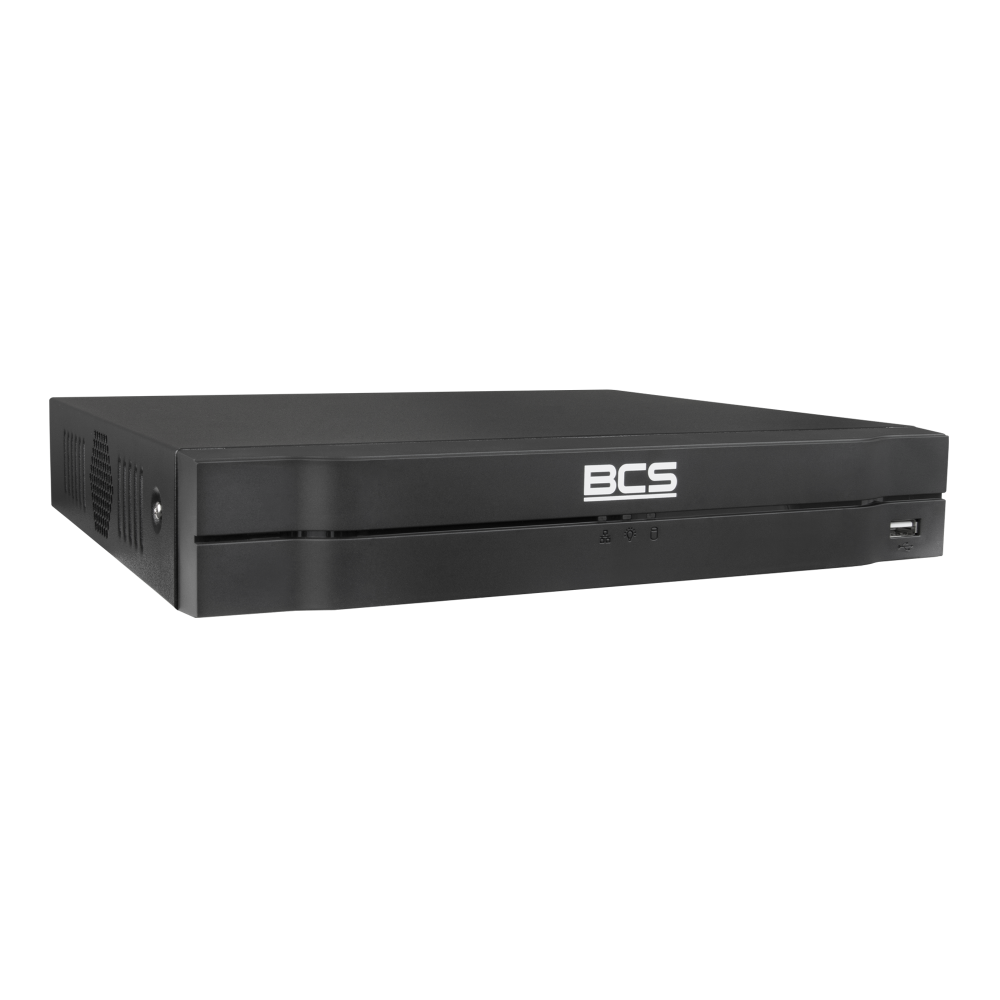

BCS-L-XVR0801-4KE-Ai2
532,59 € gross
70 In Stock- 8-channel, 5-system recorder
- HDCVI/AHD/TVI/ANALOGUE/IP
- Supports 1 hard drive
- Supports 8Mpx analogue HD and 8Mpx IP cameras.
- HDMI 4K/VGA output
- Audio 1/1
- Built-in smart features
70 in stock
