| Power consumption (without HDD) | max 10W |
|---|---|
| &Ai - Built-in intelligent functions | Yes |
| Ai - Intelligent functions from recorder | Face detection, face recognition, perimeter protection (human/vehicle classification), SMD Plus |
| Ai - Intelligent functions from camera | Face detection, face identification, perimeter protection (human/vehicle classification), SMD Plus, people counting, ARTR, heat map |
| Ai - SMD - Smart Motion Detection | 4 channels from nvr / 8 channels from camera |
| Flag | TO ORDER |
| Product | BCS-L-NVR1608-A-4KE-16P(2) |
| System | IP |
| Pentaplex function | Live view / recording / playback / archiving / remote access |
| Channels | 16 |
| HDD support | 8 |
| HDD capacity | 16 TB |
| Max recording resolution | 16 Mpx |
| Incoming bandwidth | 256Mbps(180Mbps Ai) |
| Outgoing bandwidth | 256Mbps(180Mbps Ai) |
| Recording bandwidth | 256Mbps(180Mbps Ai) |
| Display efficiency | 2×16M@30fps /2×12M@30fps /4×8M@30fps /6×5M@30fps /8×4M@30fps /16×2M@30fps /1×16M Ai@30fps /2×12M Ai@30fps /3×8M Ai@30fps /4×5M Ai@30fps /6×4M Ai@30fps /12×2M Ai@30fps |
| Recording resolutions | 16M / 12M / 8M / 6M / 5M / 4M / 3M / 2M / 1.3M / 720P / D1 / CIF |
| Video compression | H.265+ / H265 / H.264+ / H.264 / MJPEG |
| HDMI out | HDMI4K |
| VGA out | VGA |
| HDMI display resolutions | 3840×2160 / 1920×1080 / 1280×1024 / 1280×720 / 1024×768 |
| VGA display resolutions | 1920×1080 / 1280×1024 / 1280×720 / 1024×768 |
| Display split | 1/4/8/9/16 |
| Synchronous playback | 1/4/9/16 |
| Archiving | Possibility to download material to external media such as USB FLASH, USB HDD |
| User connections | 128 |
| Interfaces | 1×USB2.0, 1×USB3.0 |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711A / G.711U / G.726 / PCM |
| Alarm in | 16 |
| Alarm out | 4 |
| Support | Local, Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Network | RJ-45 10/100/1000Mbps |
| Compatibility | ONVIF(S/G/T), support third party cameras |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search, P2P, auto register |
| Standard | IEEE 802.3 af/at |
| Switch PoE power | 150W max 25.5W/port |
| PoE channels | 16 |
| Power supply | 100~240V AC |
| Working environment | -10°C~+55°C max 93% RH |
| Casing | 2U |
| Dimensions (W×D×H) | 440×458.4×94.9mm |
| Weight (without HDD) | 6.72 kg |
| Ai - Perimeter protection | 2 kanały z rejestratora, 10 zasad na kanał / 16 kanałów z kamer |
| &Ai - Object classification | Yes |
| Ai - Face detection | 1 channel from nvr (12 images/s) / 8 channels from camera / face attributes (gender, age, glasses, expression, mask, beard) |
| &Ai - SMD | Yes |
| Ai - Face recognition |
Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
BCS LINE

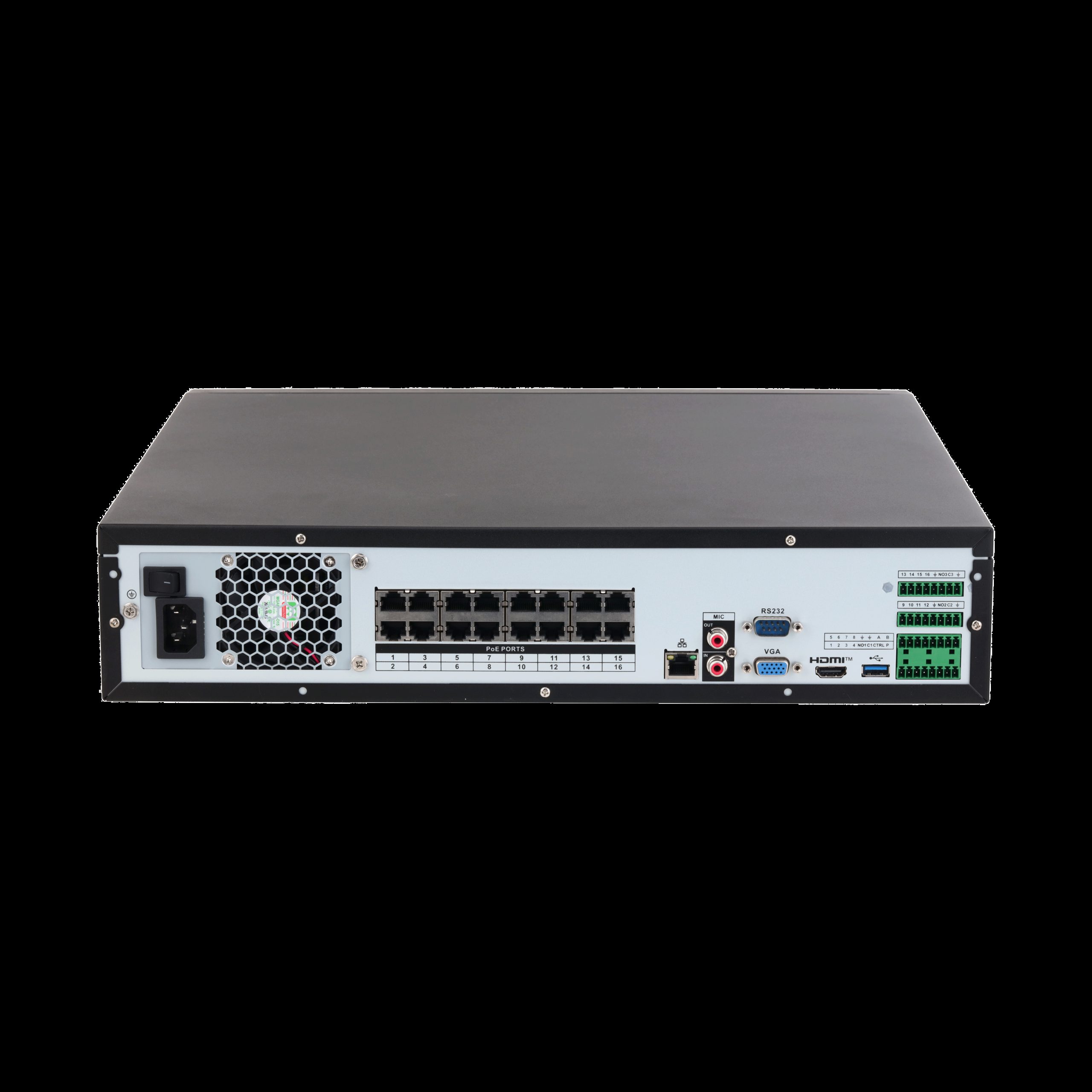

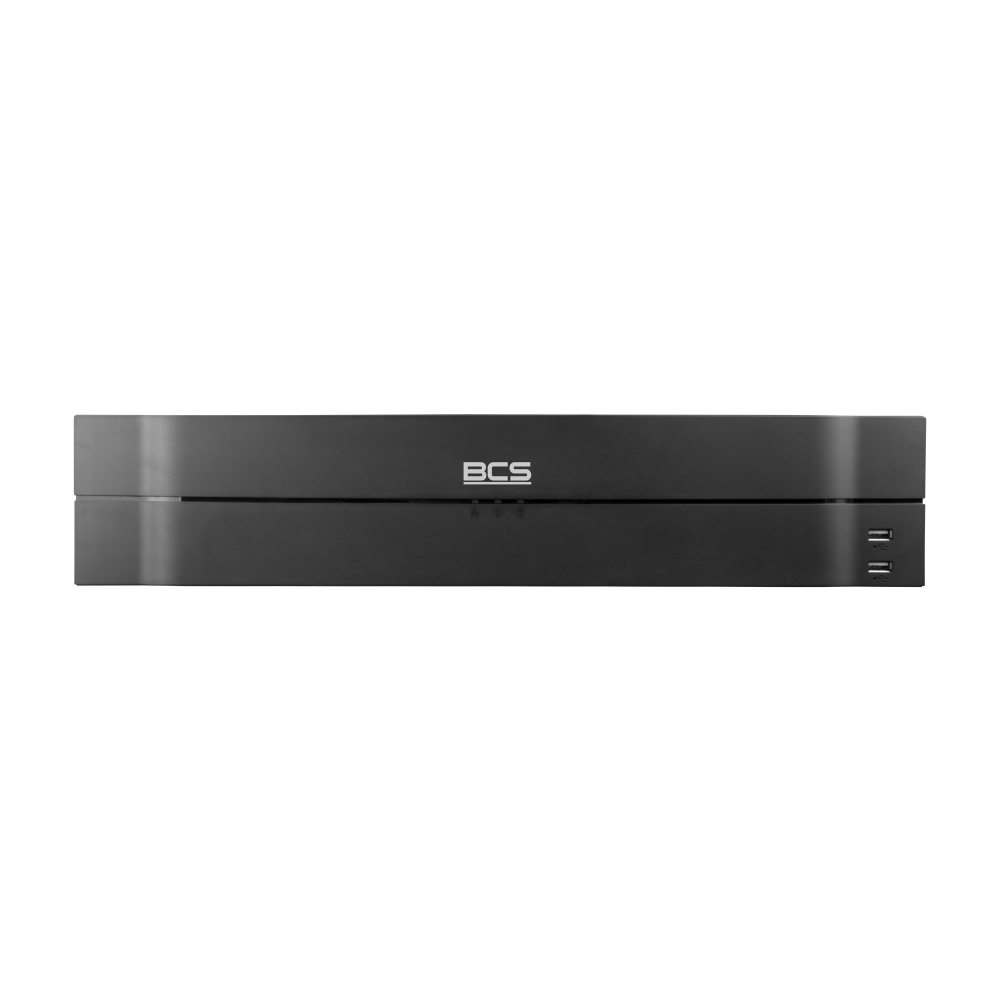

BCS-L-NVR1608-A-4KE-16P(2)
0,00 € gross
Out of Stock- 16-channel IP recorder
- Built-in 16-port 150W PoE switch
- Supports 8 hard drives
- Supports 16Mpx IP cameras
- HDMI 4K/VGA output
- 16/4 alarm channels, 1/1 audio channels
- Built-in smart features
