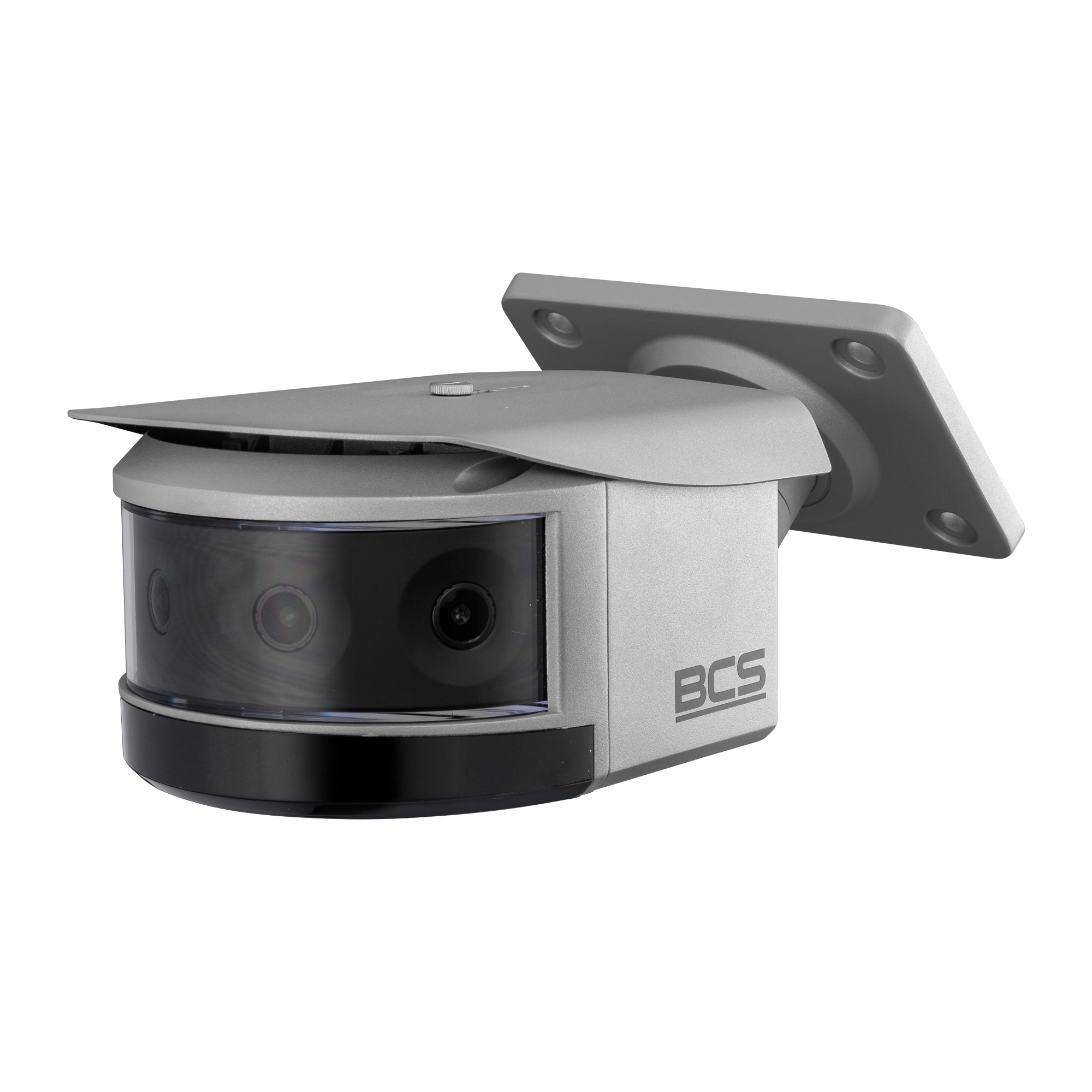

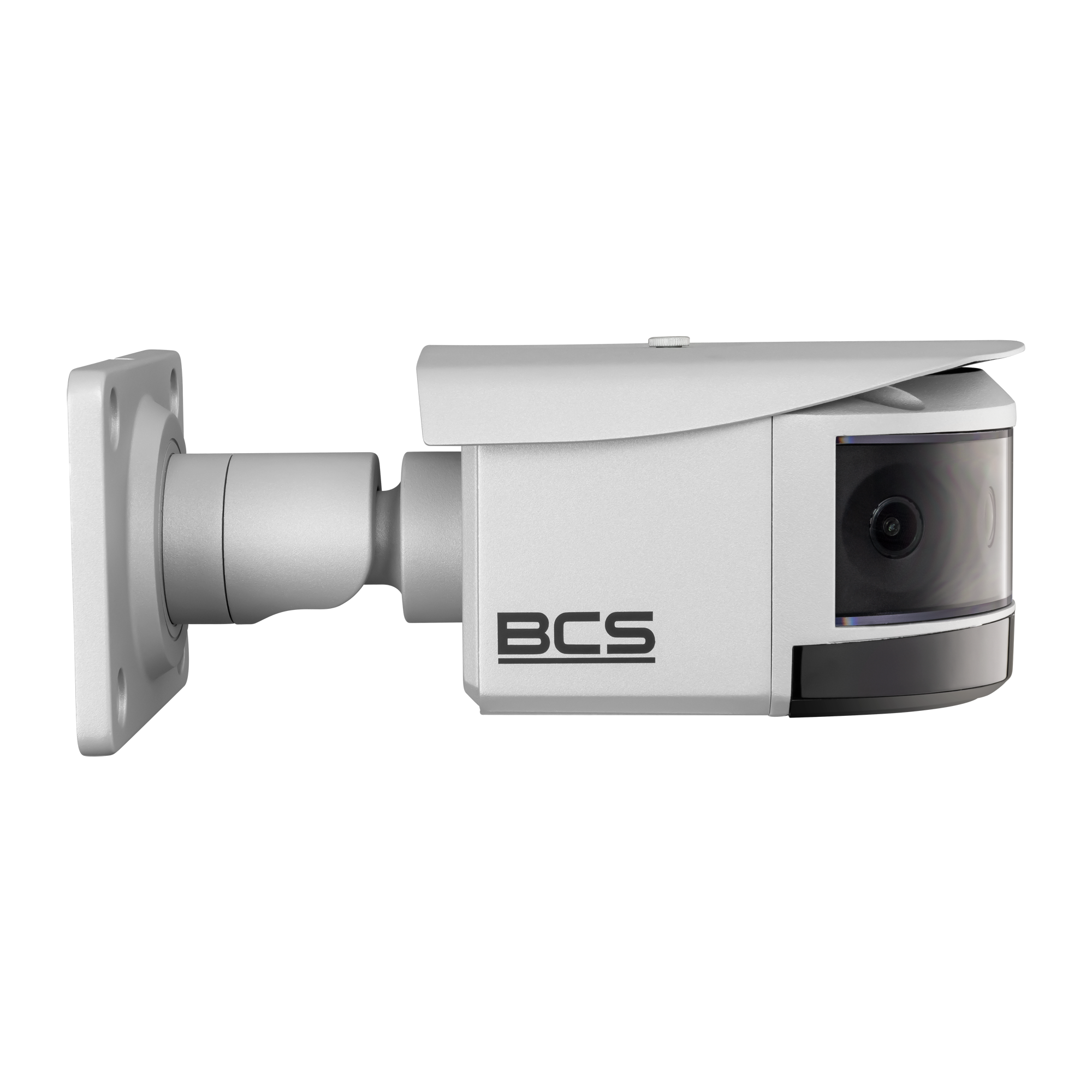

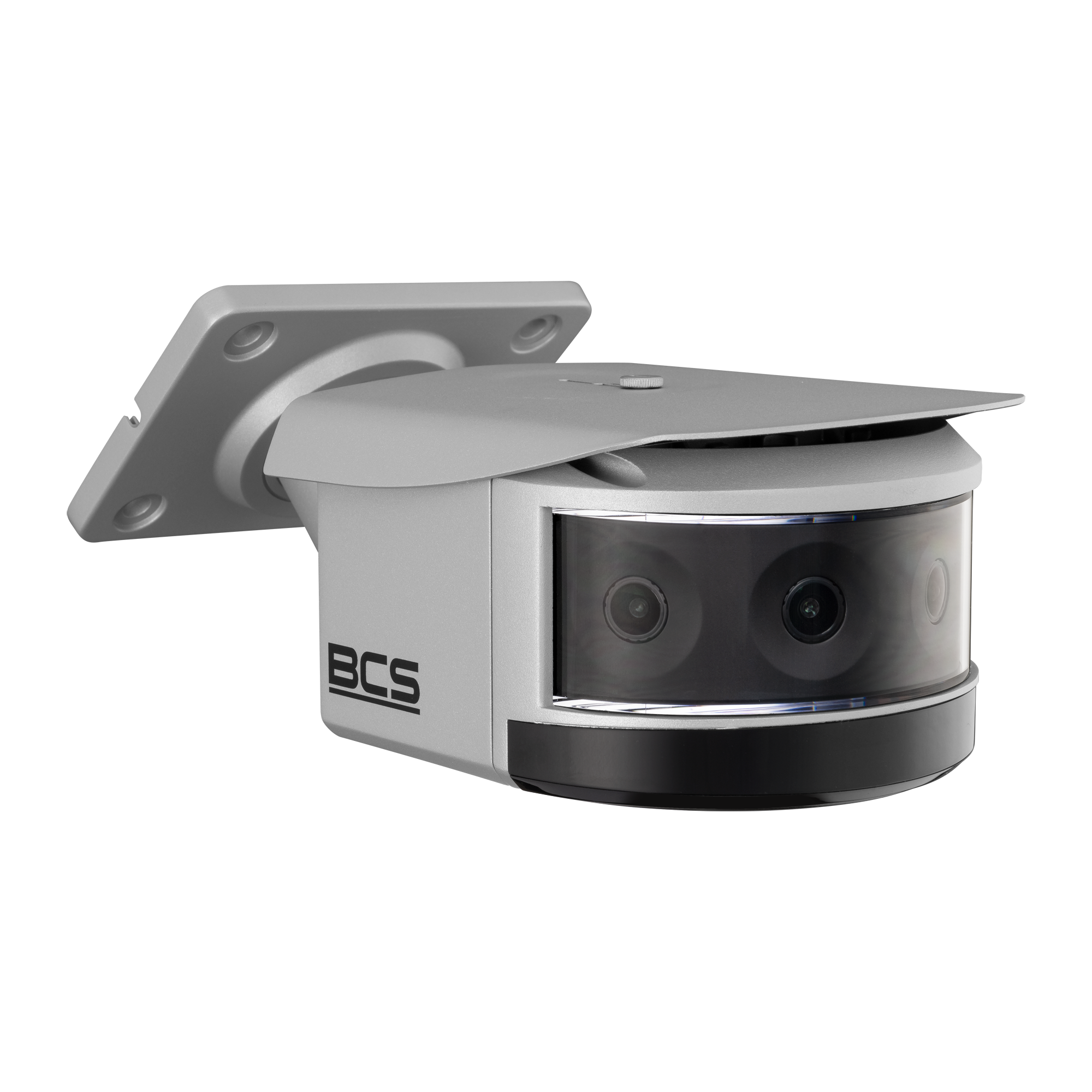

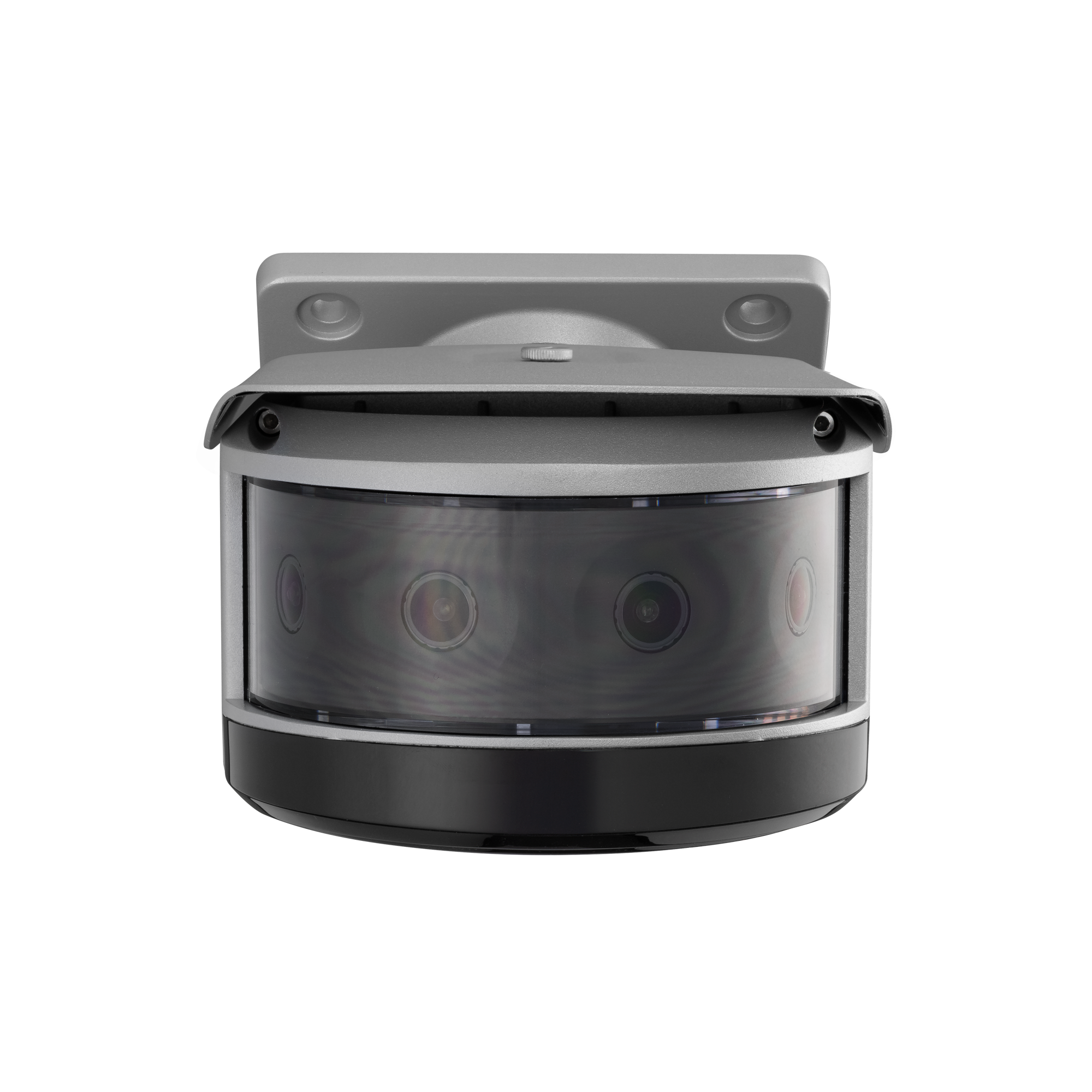

8Mpx tube IP camera, 4×1/1.8″ PS CMOS sensor with 2.8mm lens. Sensor type: 4x 8Mpx Progressive Scan CMOS, Number of pixels: 8192×3840, 180 ° panoramic view, Video compression: H.265 + / H.265 / H.264 / MJPEG, Focal length of the lens: 4x 2.8mm, IR illuminator: Up to 30 meters, Functions: 3DNR, DWDR, BLC, HLC, AWB, AGC, Memory cards support: Micro SD up to 256GB, Alarm input / output: 2/2, Audio input / output: 1/1, Day / Night function (ICR), Protection classes: IP67, IK10, Power supply: DC12V.
Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
BCS LINE
BCS-L-PTIP4X8FSR3-Ai2
5141,40 € gross
Out of Stock- 8Mpx four-sensor IP camera
- 180° panoramic
- 4 x 1/1.8" PS CMOS sensors
- SkyLight technology
- 4x fixed 2.8mm lens
- IR 30m
- Alarm 2/2, audio 1/1
- IP67 housing. IK10
- Built-in smart features
Out of stock
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.
| Ai - Human/vehicle detection | Human/vehicle classification for crossline and intrusion reduces false alarms |
|---|---|
| Product | BCS-L-PTIP4X8FSR3-Ai2 |
| Camera type | Panoramic |
| Sensor | 4×1/1.8'' CMOS |
| RAM | 4GB |
| Aperture | F1.6 |
| Angle of view | H: 180° V: 100° |
| White balance | (AWB) Auto / manual |
| Ai - Built-in intelligent functions | Built-in intelligent algorithm of image analisis |
| Flag | TO ORDER |
| Noise reduction | 3D DNR |
| Resolution | 8 Mpx |
| Scanning system | Progressive Scan |
| Pixels | 8192(H)×3840(V) |
| ROM | 8GB |
| Lens | fixed |
| Focal length | 4×2.8 mm |
| Focus | fixed |
| Iris | fixed |
| Digital zoom | 16× |
| DORI | Detect 84m / Observe 34m / Recognize 17m / Identify 8m |
| Min illumination | 0.005Lux(Color,F1.6,30IRE) 0.0005Lux(F1.6,B/W,30IRE) 0Lux(IR) |
| S/N ratio | 56dB |
| WDR | DWDR |
| Backlight compensation | BLC / HLC / DWDR |
| Shutter | Auto / manual 1/3~1/100000s |
| Gain control | (AGC) Auto / manual |
| Stream support | 3 |
| Resolutions | 8192×3840 /7680×3600 /7168×3360 /6720×3152 /5760 ×2700 /4800×2252 /4096×1920 /2880×1360 /2304×1080 /2048× 960 /1520×712 /1280×600 |
| Main stream | 8192×3840(1~25/30fps) z Ai 20fps |
| Second stream | 1280×600(1~25/30fps) z Ai 20fps |
| Third stream | 2304×1080(1~25/30fps) z Ai 20fps |
| Bitrate | H.264: 96kbps~32768kbps H.265: 38kbps~32768kbps |
| Video compression | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED |
| IR range | 30m |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711A / G.711Mu / G.723 / G.726 / PCM |
| Alarm in | 2 |
| Alarm out | 2 |
| Memory card slot | microSD 256GB |
| Other interfaces | RS485, BNC |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | 4 |
| Privacy masking | 4 |
| Network | RJ-45 10/100/1000 Mbps |
| Compatibility | ONVIF(S/G/T) |
| Protocols | IPv4, IPv6, HTTP,TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP |
| Power supply | PoE |
| Power supply type | 12V DC / 24V AC / PoE(802.3at) |
| Power consumption | max 25W |
| Housing color | Graphite |
| IP class | IP67 |
| IK10 | Yes |
| Working environment | -40°C~+60°C max 95% RH |
| Dimensions | 298×172×120mm |
| Weight | 3.16 kg |
| Ai - Perimeter protection | Crossline, intrusion |
| &Ai - Object classification | Yes |
| Ai - People counting | People counting for intrusion and crossline, counting people in/out/stay in, queue management, generate and export reports in periods of time |
