| &Ai - SMD | Yes |
|---|---|
| PAN speed | 40°/s(40°/s preset) |
| Angle of view overview camera | H: 93.5° V: 51.9° D: 110.1° |
| Min illumination overview camera | 0.0005Lux(Color,F1.0,30IRE) 0Lux(B/W,IR) |
| Illuminator type overview camera | WhiteLight |
| WhiteLight range overview camera | 30m |
| Active deterrence function ADC | Sound-optical alarm |
| Pixels | 2304(H)×1296(V) |
| ROM | 256MB |
| Focal lenght overview camera | 2.8 mm |
| RAM | 256MB |
| Lens | fixed |
| Pixels overview camera | 2304(H)×1296(V) |
| RAM overview camera | 256MB |
| Focal length | 3.6 mm |
| Ai - SMD - Smart Motion Detection | SMD 3.0 |
| Product | BCS-L-SIP1336FCL5-Ai-4G(SET) |
| Camera type | PTZ+fixed |
| Resolution | 3 Mpx |
| Resolution overview camera | 3 Mpx |
| Sensor | 1/2.8'' CMOS |
| Sensor overview camera | 1/2.8'' CMOS |
| Scanning system | Progressive Scan |
| ROM overview camera | 256MB |
| Aperture | F1.0 |
| Aperture overview camera | F1.0 |
| Focus | fixed |
| Iris | fixed |
| Angle of view | H: 81.5° V: 44.3° D: 96.3° |
| DORI | Detect 51m / Observe 20m / Recognize 10m / Identify 5m |
| DORI overview camera | Detect 40m / Observe 16m / Recognize 8m / Identify 4m |
| Min illumination | 0.0005Lux(Color,F1.0,30IRE) 0Lux(B/W,IR) |
| S/N ratio | 55dB |
| White balance | (AWB) Auto / manual |
| WDR | DWDR |
| WDR overview camera | DWDR |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 3D DNR |
| Image rotate | Flip 180° |
| Stream support | 1 |
| Resolutions | 3M (2304×1296) / 1080p(1920×1080) / 720p(1280×720) / 640×360 |
| Resolutions overview camera | 3M (2304×1296) / 1080p(1920×1080) / 720p(1280×720) / 640×360 |
| Main stream | 3M/1080p/720p/640 × 360@(15 fps) |
| Main stream overview camera | 3M/1080p/720p/640 × 360@(15 fps) |
| Bitrate | H265: 54~1280 kbps |
| Bitrate overview camera | H265: 54~1280 kbps |
| Video compression | Smart H.265+ |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | WhiteLight |
| WhiteLight range | 50m |
| NightColor | Yes |
| Microphone | Yes |
| Loudspeaker | Yes |

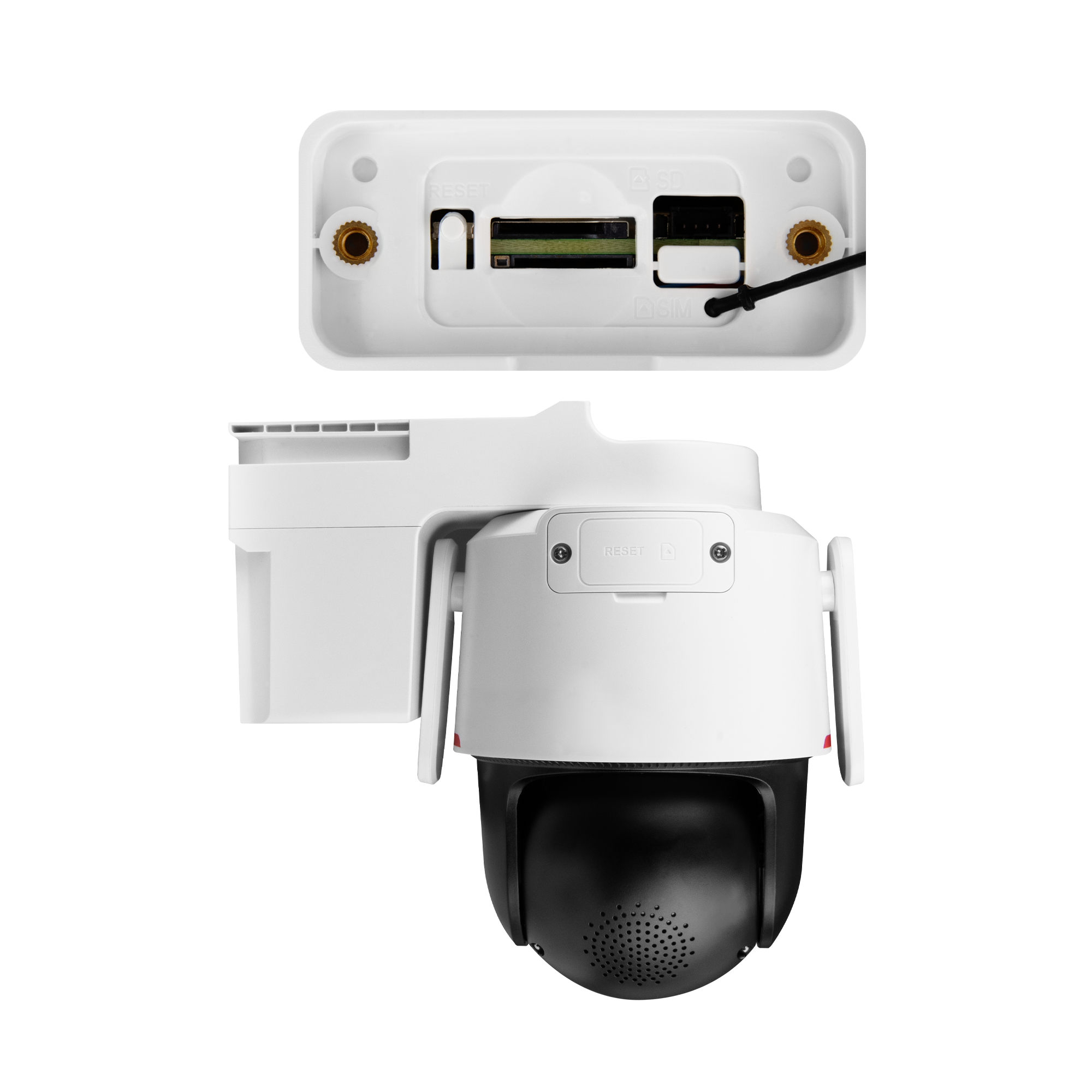

| Memory card slot | microSD 512GB |
| Other interfaces | USB C |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | Yes |
| Mobile network | LTE-FDD: B1/B3/B5/B7/B8/B20/B28 LTE-TDD: B38/B40/B41 4G: Power class3: 23 dBm ± 2.7 dB |
| Housing color | White |
| IP class | IP66 |
| Surge protection | TVS 2kV |
| Working environment | -20°C~+60°C max 95% RH |
| Dimensions | 223.2×130.0×215.0mm |
| Weight | 1.8 kg |
| TILT speed | 40°/s(40°/s preset) |
| PAN range | Fixed Lens: Pan: 0° to 210° PT Lens: Pan: 0° to 350° |
| TILT range | Fixed Lens: Tilt: -7° to +20° (manual) PT Lens: Tilt: 0° to +90° (Electric) |
| Auto tracking | Autotracking Lite |
Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
BCS LINE

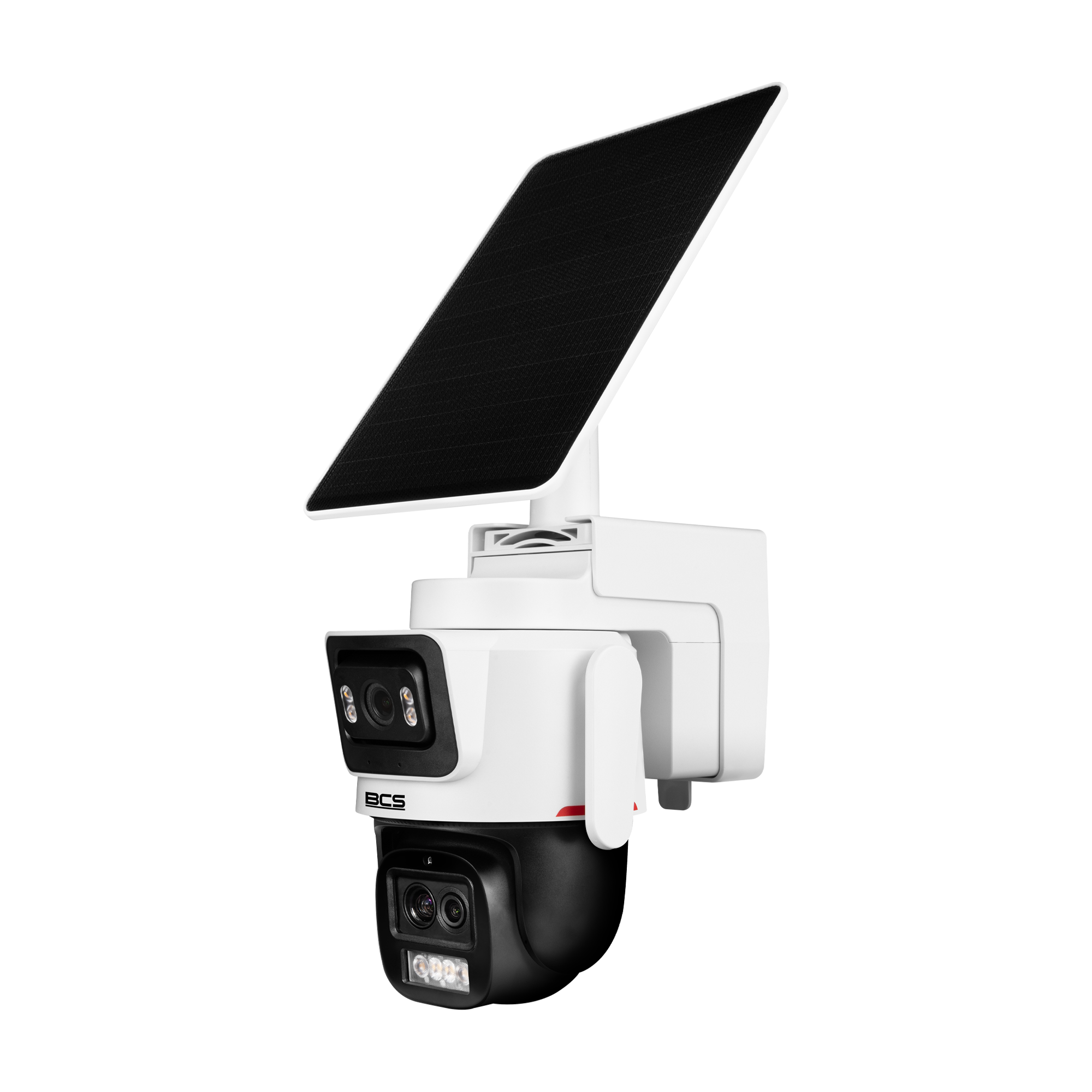

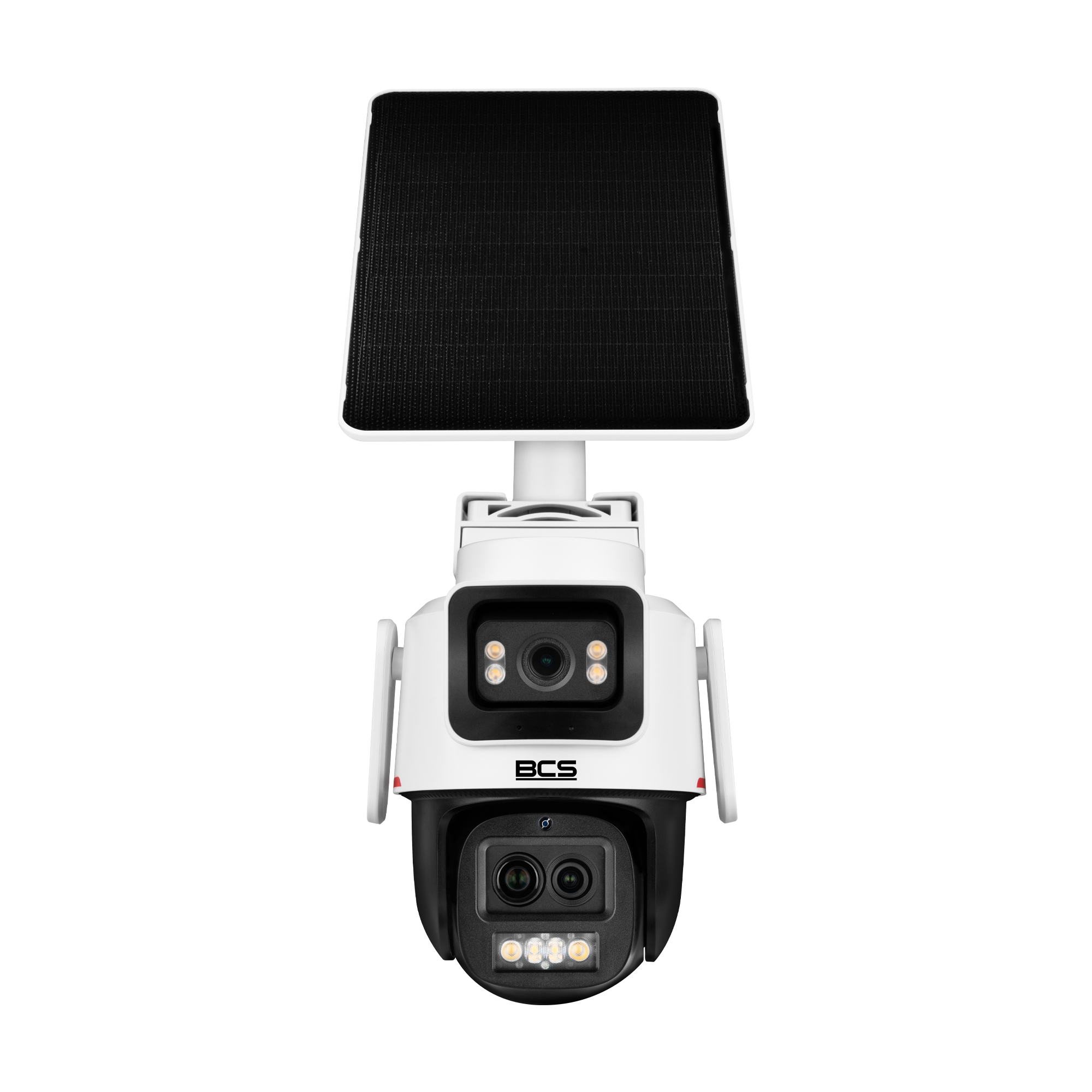

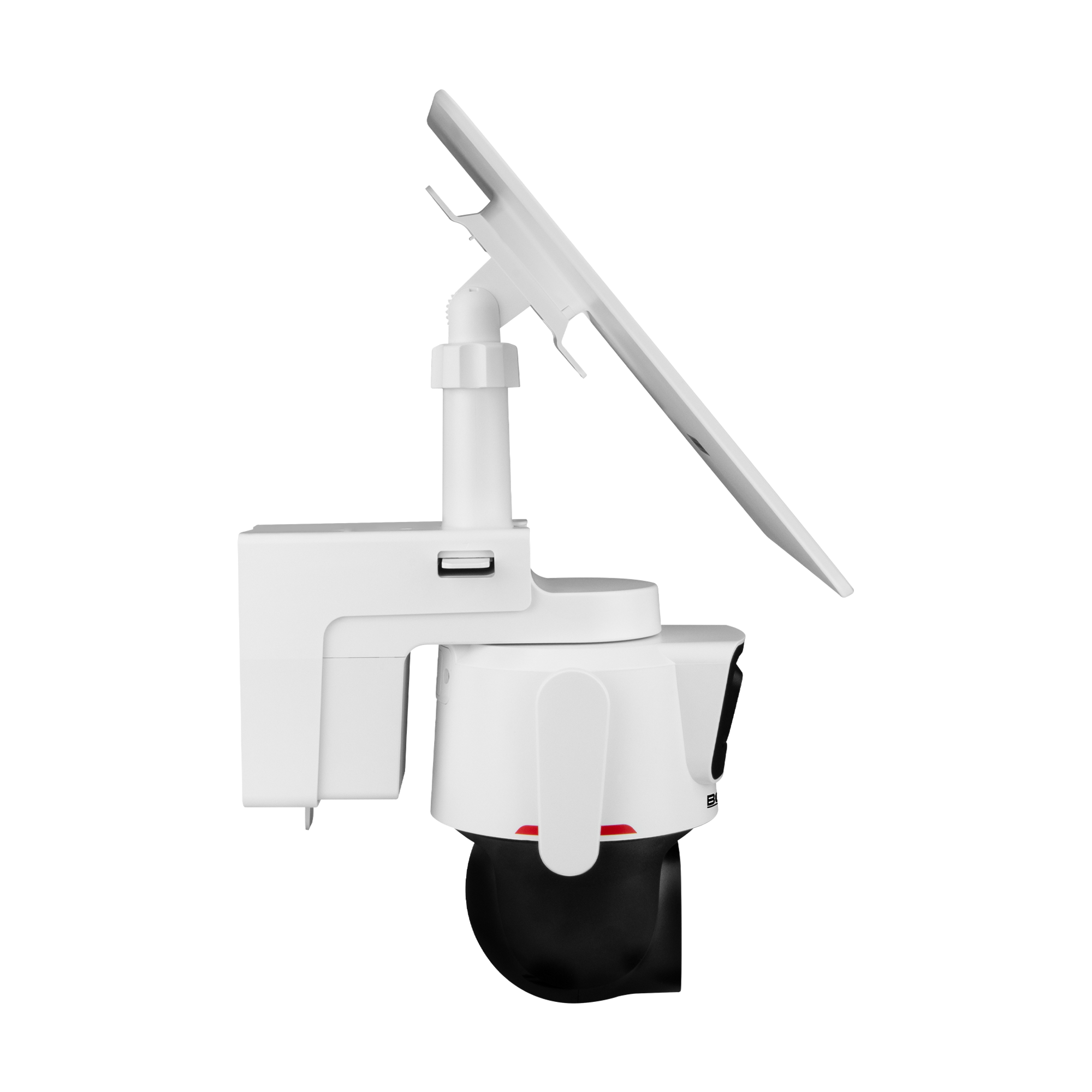

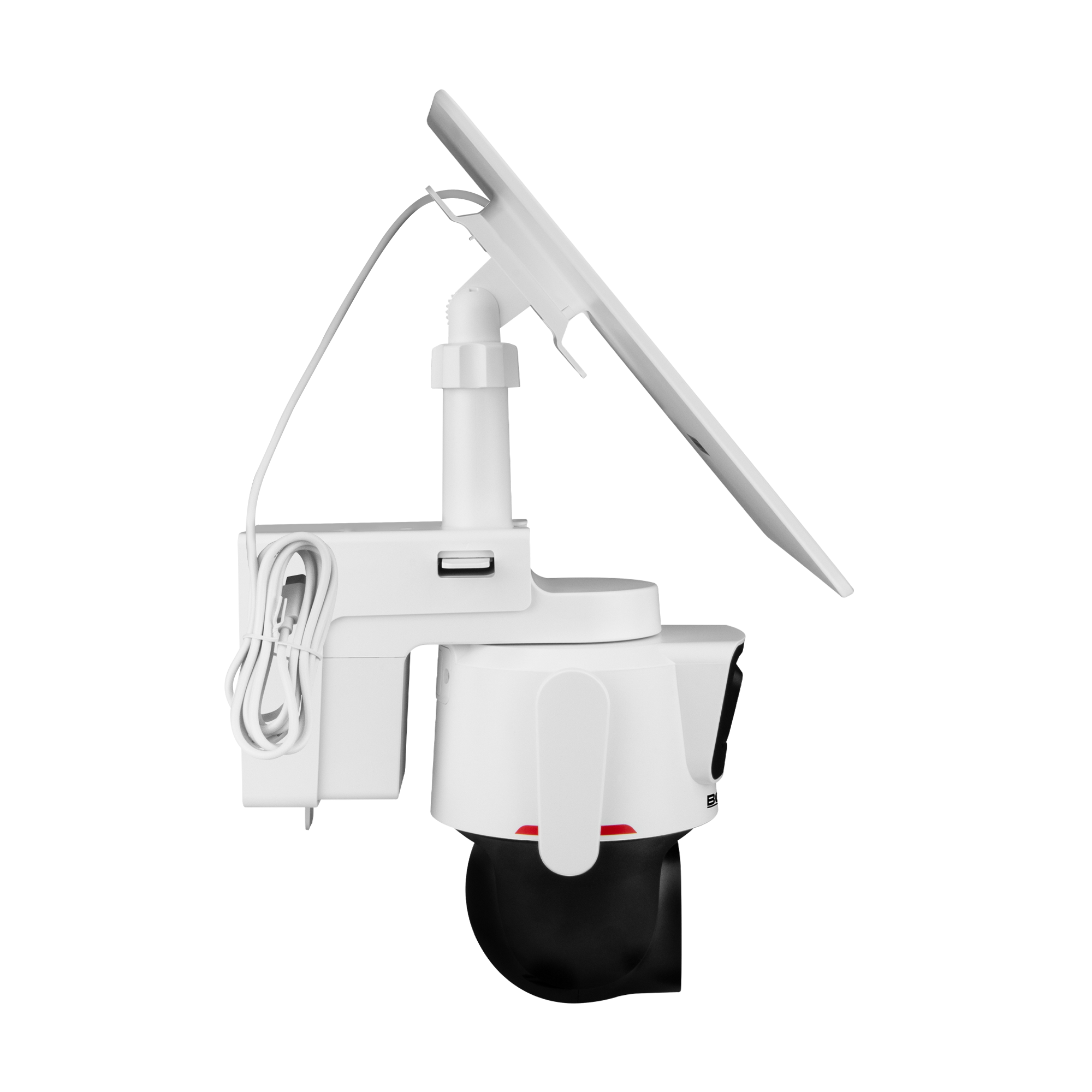

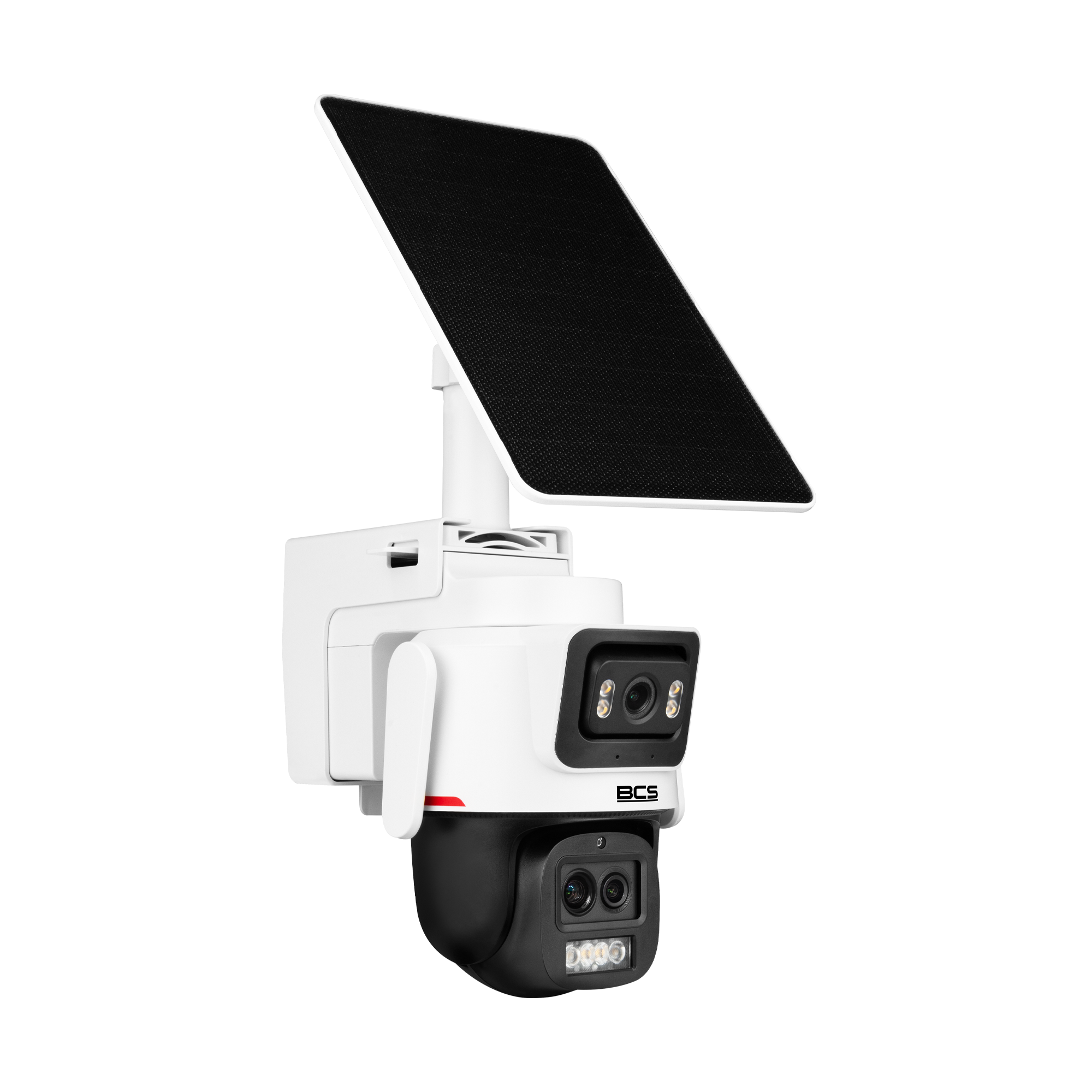

BCS-L-SIP1336FCL5-Ai-4G(SET)
731,85 € gross
14 In Stock- 3Mpx PTZ pan-tilt-zoom camera with built-in 3Mpx fixed camera
- 4G mobile connection
- 8W solar panel
- 65Wh battery
- Built-in microphone and speaker
- Active deterrence technology
- Audible and visual alarms
- White light range up to 50m
- Recognition of people and motor vehicles
- 512GB microSD card slot
14 in stock
- DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
- Official BCS e-commerce Business Partner
- Technical support
