| Active deterrence function ADC | Sound-optical alarm |
|---|---|
| Ai - SMD - Smart Motion Detection | SMD |
| Product | BCS-L-TIP24FCR3L2-Ai-4G(SET) |
| Camera type | Bullet |
| Resolution | 4 Mpx |
| Sensor | 1/3'' CMOS |
| Scanning system | Progressive Scan |
| Pixels | 2560(H)×1440(V) |
| RAM | 128MB |
| ROM | 128MB |
| Lens | fixed |
| Focal length | 3.6 mm |
| Aperture | F1.6 |
| Focus | fixed |
| Iris | fixed |
| Angle of view | H: 78.4° V: 42.4° D: 92.4° |
| DORI | Detect 78m/ Observe 31m/ Recognize 16m/ Identify 8m |
| Min illumination | 0.01Lux(Color,F1.6,30IRE) 0.001Lux(B/W,F1.6,30IRE) 0Lux(IR) |
| S/N ratio | 40dB |
| White balance | (AWB) Auto / manual |
| WDR | DWDR |
| Backlight compensation | BLC / HLC / DWDR |
| Shutter | Auto / manual 1/3~1/100000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 3D DNR |
| Stream support | 2 |
| Resolutions | 4M(2560×1440) / 3M(2048×1536) / 2M(1920×1080) / 1.3M(1280×960) / 720P(1280×720) / D1 (704×576/704×480) / VGA (640×480) / CIF (352×288/352×240) |
| Main stream | 2560×1440(1~15fps) |
| Second stream | 640×360(1~15fps) |
| Bitrate | H.265: 32~4096kbps |
| Video compression | H.265 |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED + WhiteLight |
| IR range | 30m |
| WhiteLight range | 20m |
| NightColor | Yes |
| Microphone | Yes |
| Loudspeaker | Yes |
| Audio compression | G.711A |
| Memory card slot | microSD 512GB |
| Other interfaces | USB C |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | 4 |
| Privacy masking | 4 |
| Network | RJ-45 10/100 Mbps |
| Mobile network | FDD-LTE: B1/B3/B5/B7/B8/B20/B28 Power class 3: 23dBm ±2.7dB |
| Power supply | 12V DC |
| Power supply type | 12V DC |
| Power consumption | Ultra power saving mode: 0.036W, Power saving mode: 0.047W, AOV mode: 0.26W, Performance mode: 1.33W |
| Housing color | White |
| IP class | IP67 |
| Working environment | -20°C~+60°C max 95% RH |
| Dimensions | 256×290×197mm |
| Weight | 1.3 kg |
| Casing | Plastik |
| &Ai - SMD | Yes |
Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
BCS LINE

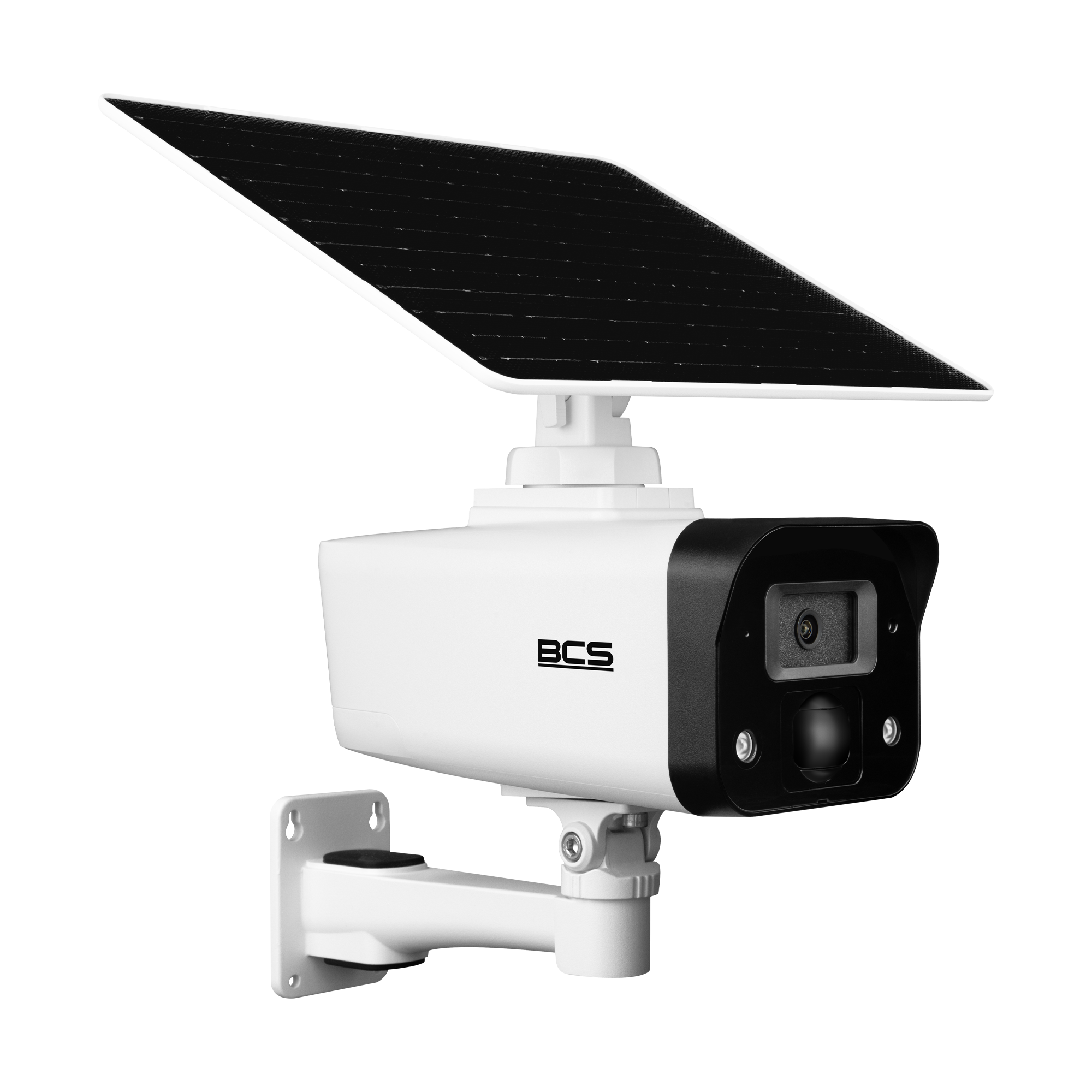

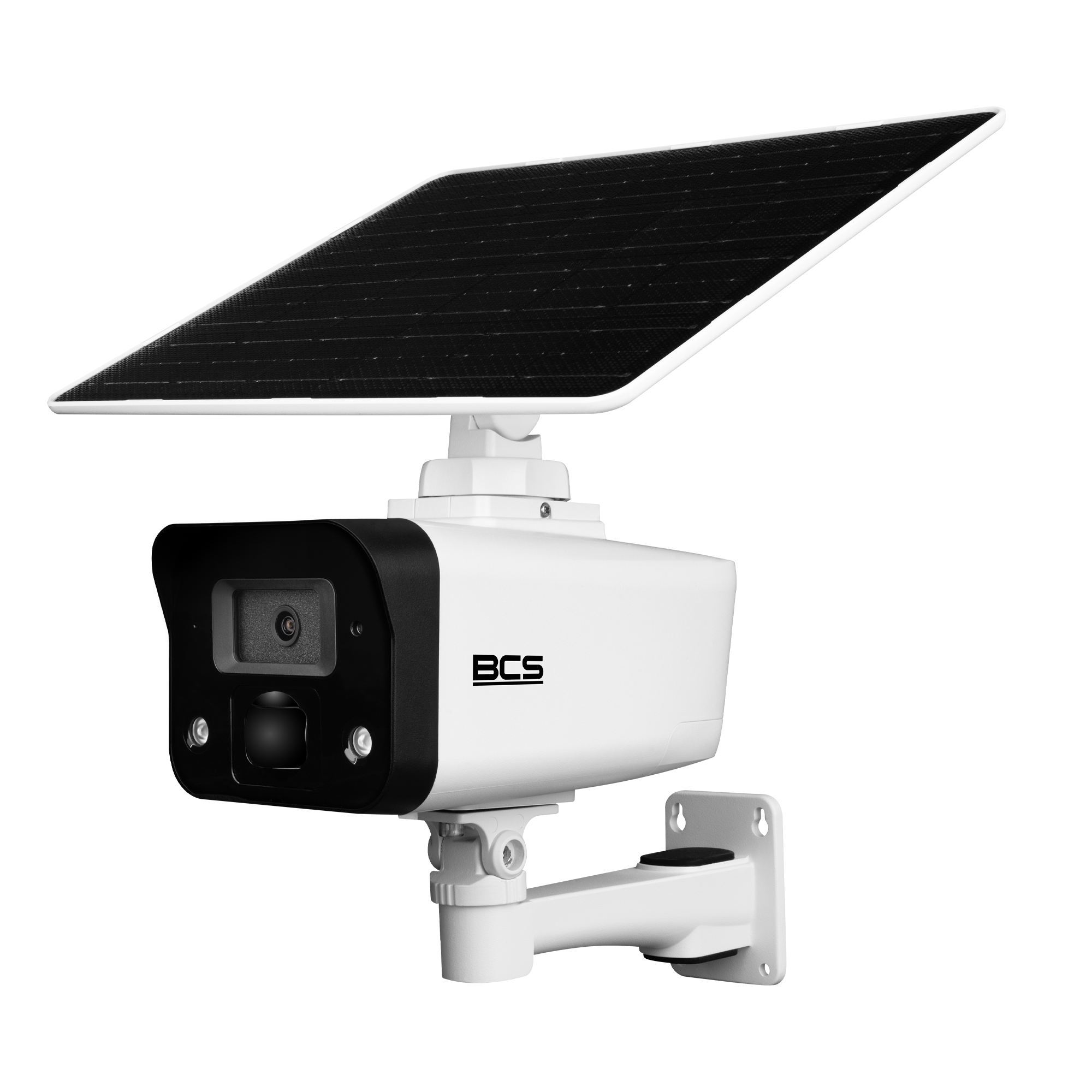

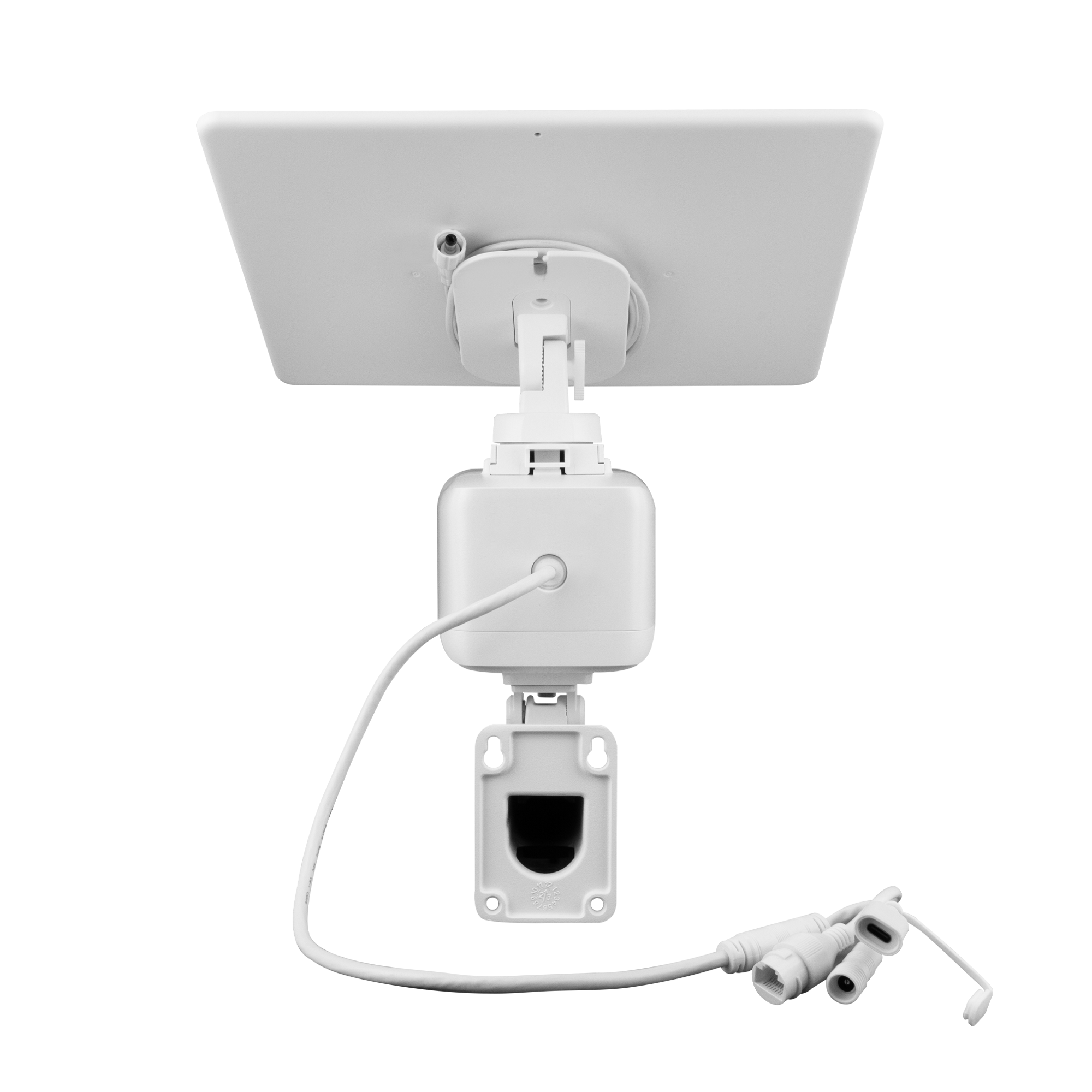

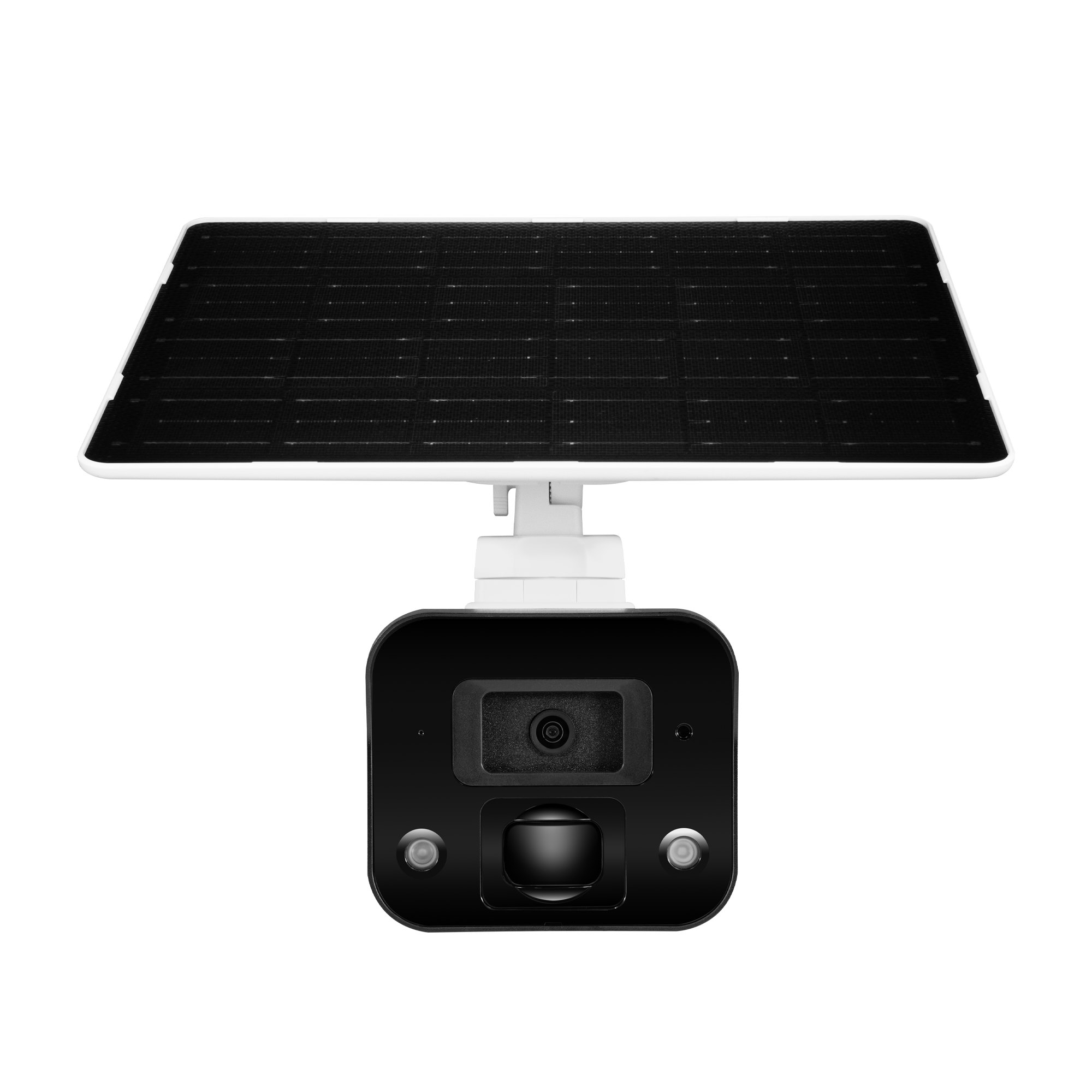

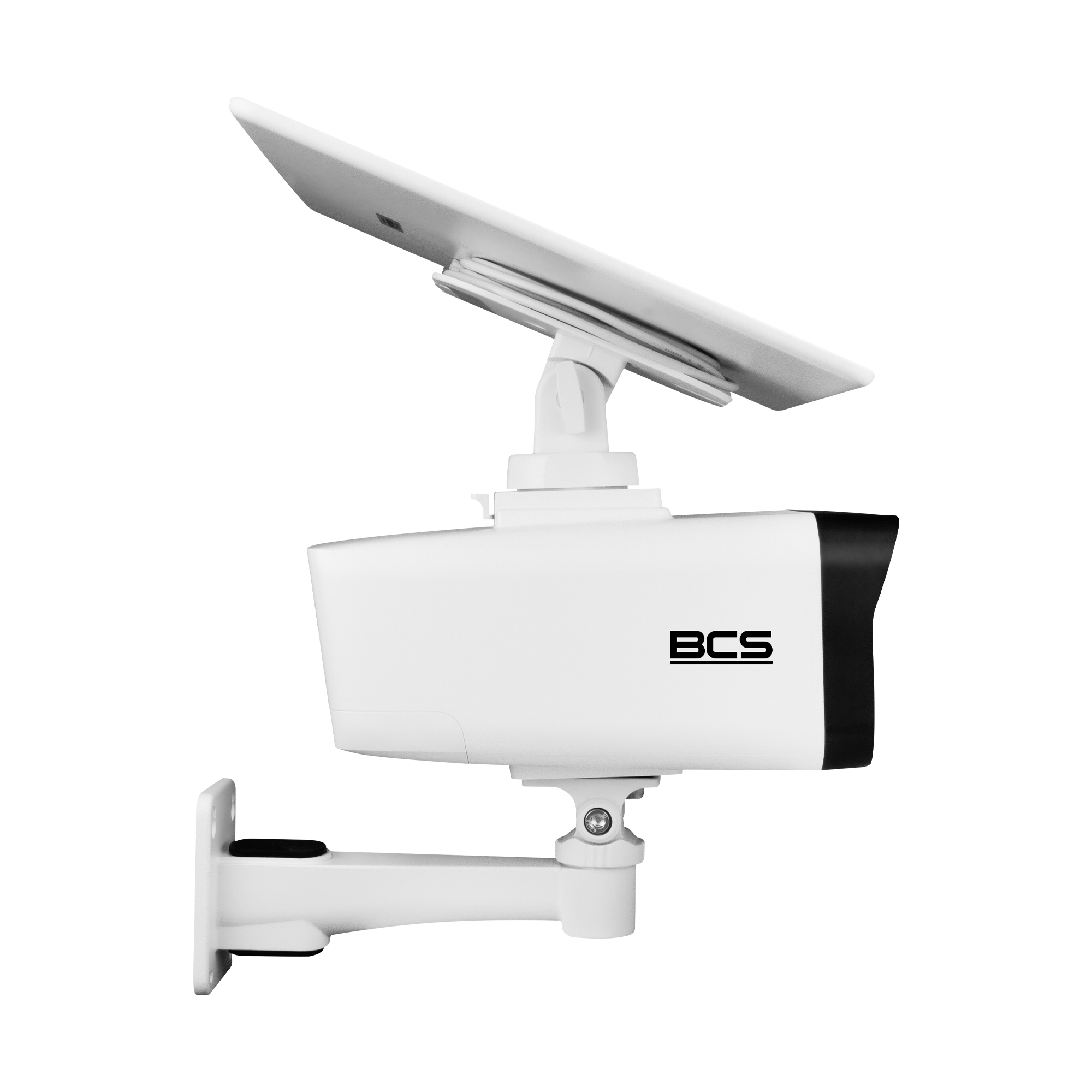

BCS-L-TIP24FCR3L2-Ai-4G(SET)
686,34 € gross
23 In Stock- 4Mpx IP camera with a 1/3'' sensor and a 3.6mm lens
- 4G mobile connection

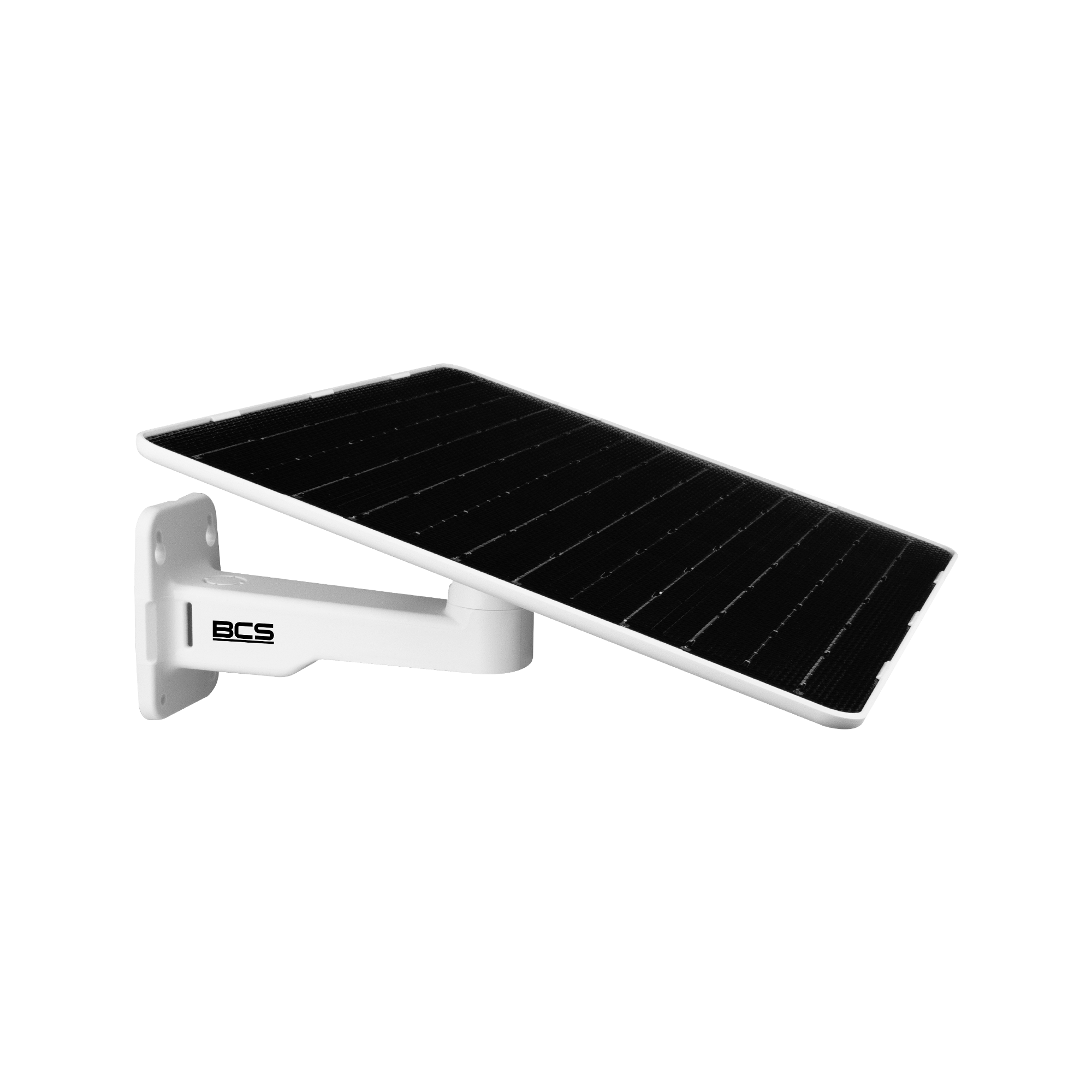

- 10.5W solar panel
- 64Wh 6.4V battery
- Built-in microphone and speaker
- Active deterrence technology
- Audible and visual alarms
- IR range 30m and white light range 20m
- Built-in PIR sensor for detecting people

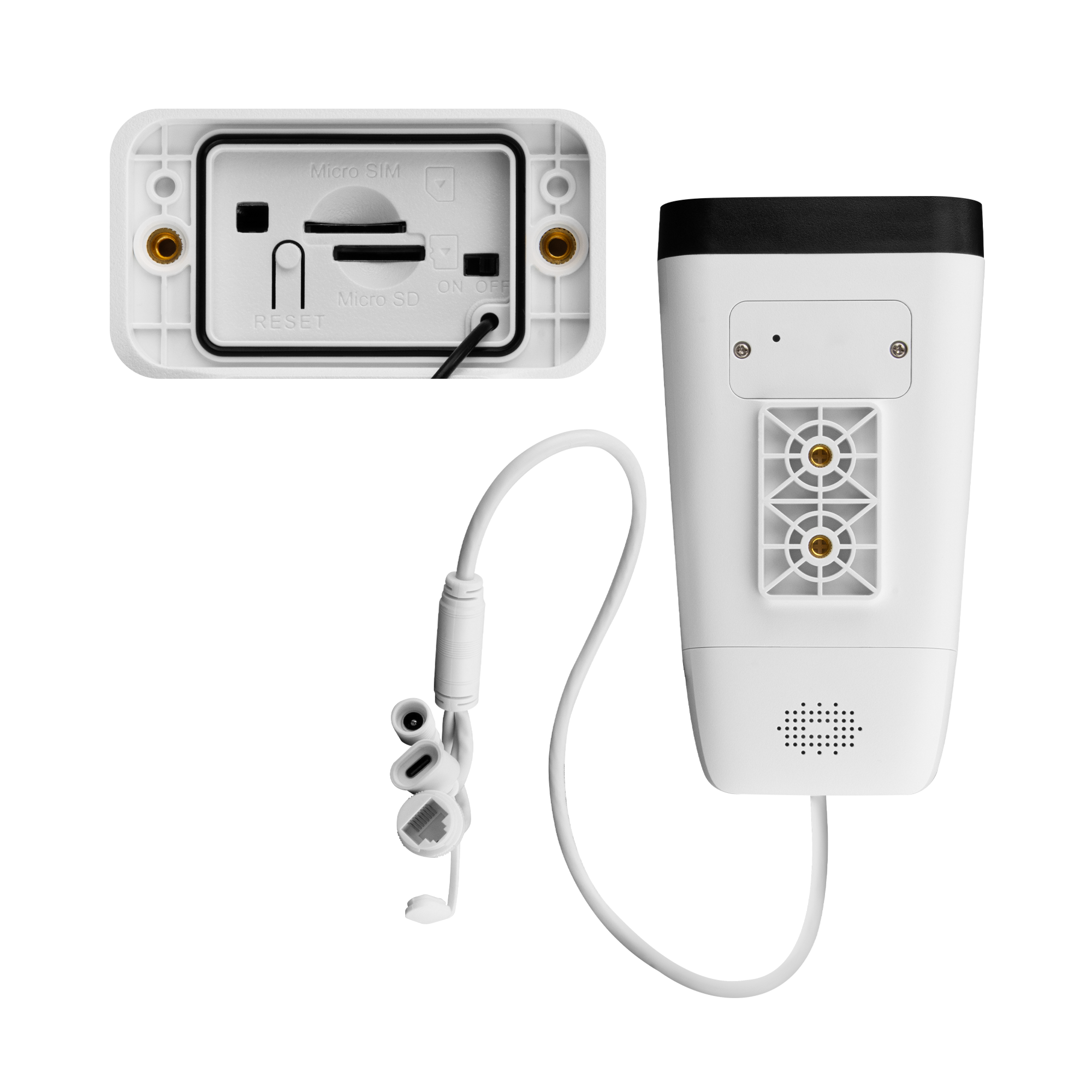

- microSD card slot (up to 512GB)
- Operating time in Ultra Power Saving Mode: up to 76 days (recording only when an event is detected by the built-in PIR sensor – slow camera activation)
- Operating time in Power-saving mode: up to 56 days (recording only when an event is detected by the built-in PIR sensor – fast camera activation)
- Operating time in AOV mode: up to 10 days (high-quality recording only when events are detected; video without events recorded in low quality)
- Continuous recording operating time: up to 2 days
23 in stock
