Name: BCS-L-SIP2425SR10L5-Ai2
SKU: 13030
Price: 778.59 EUR
Availability: InStock

BCS-L-SIP2425SR10L5-Ai2

778,59 € gross

79 In Stock

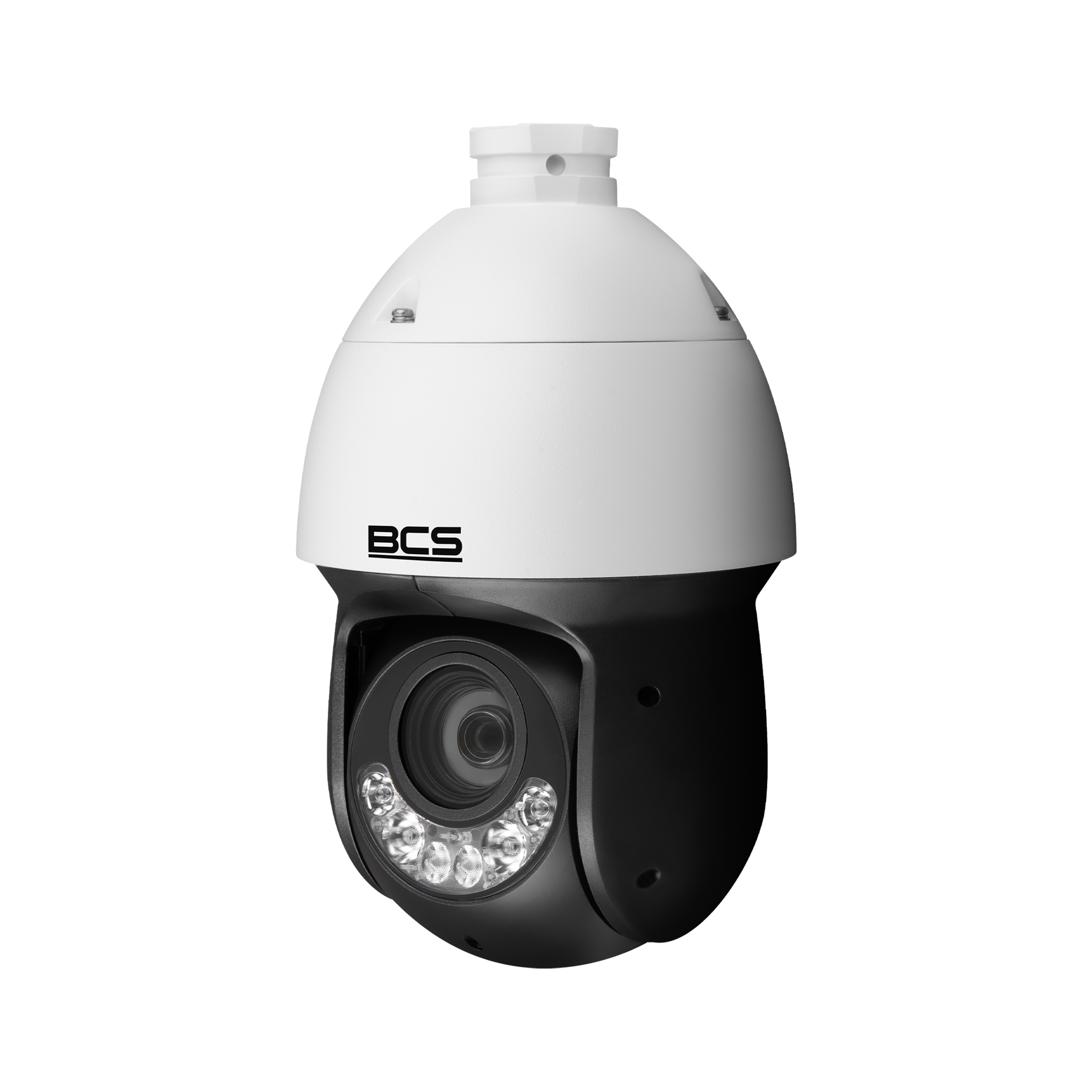

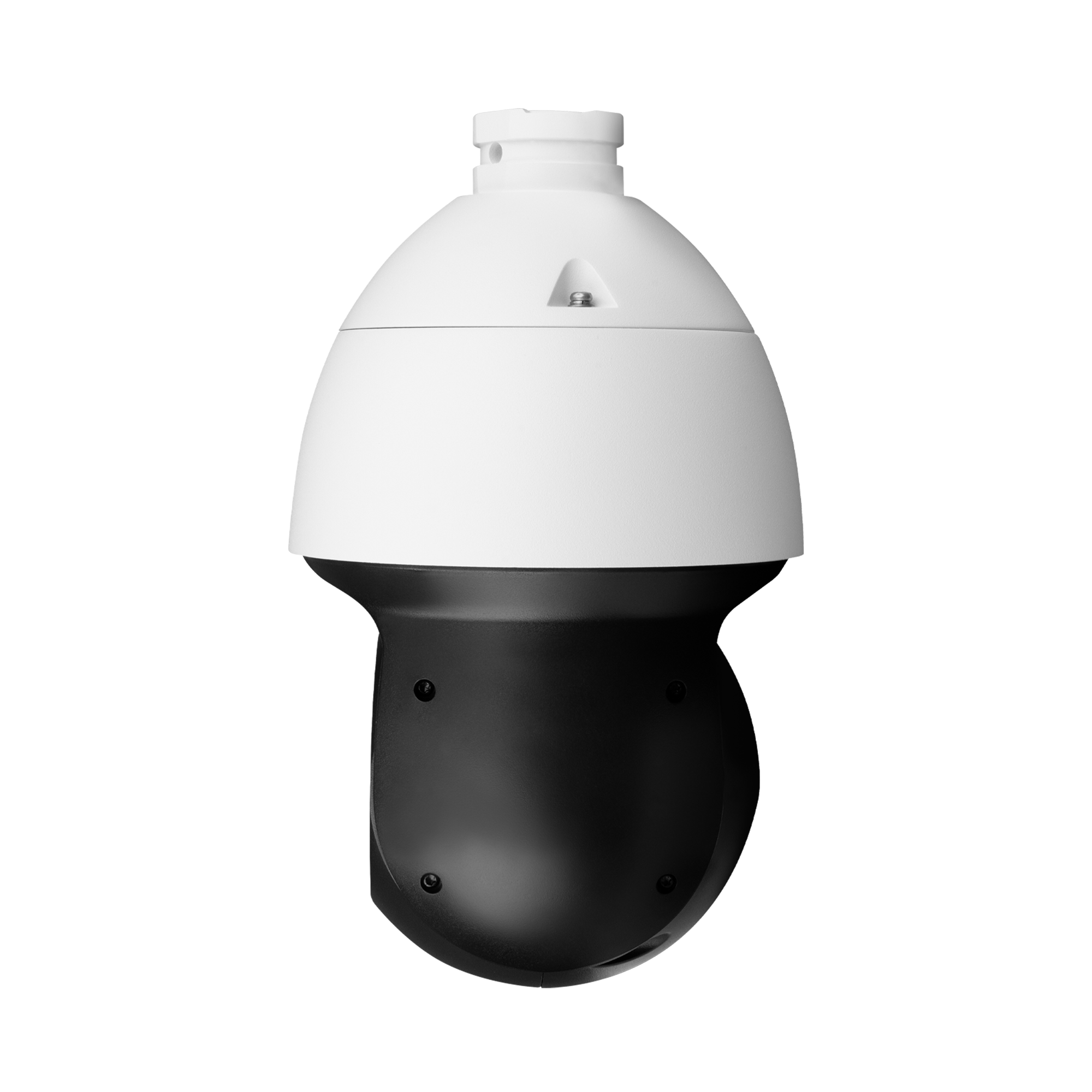

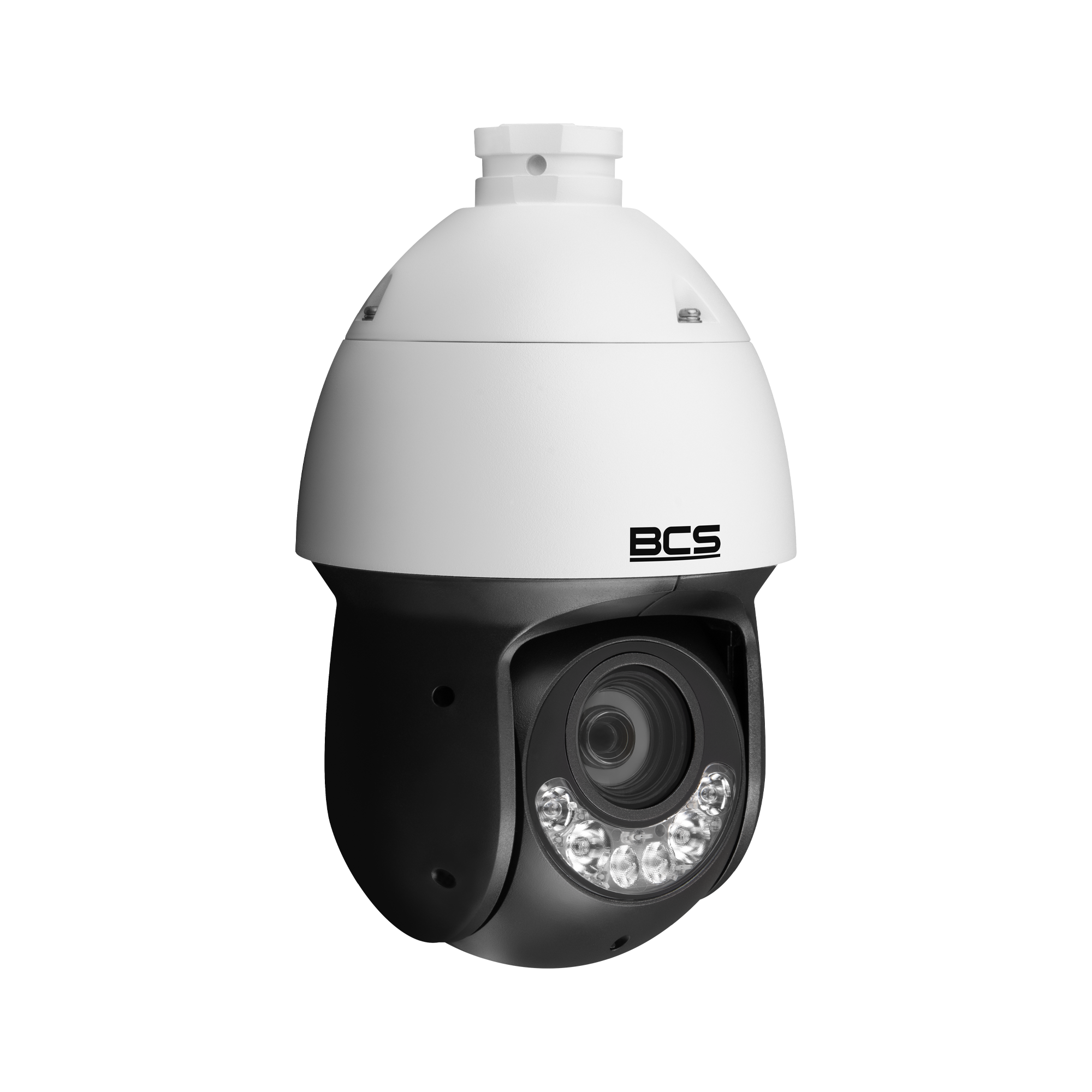

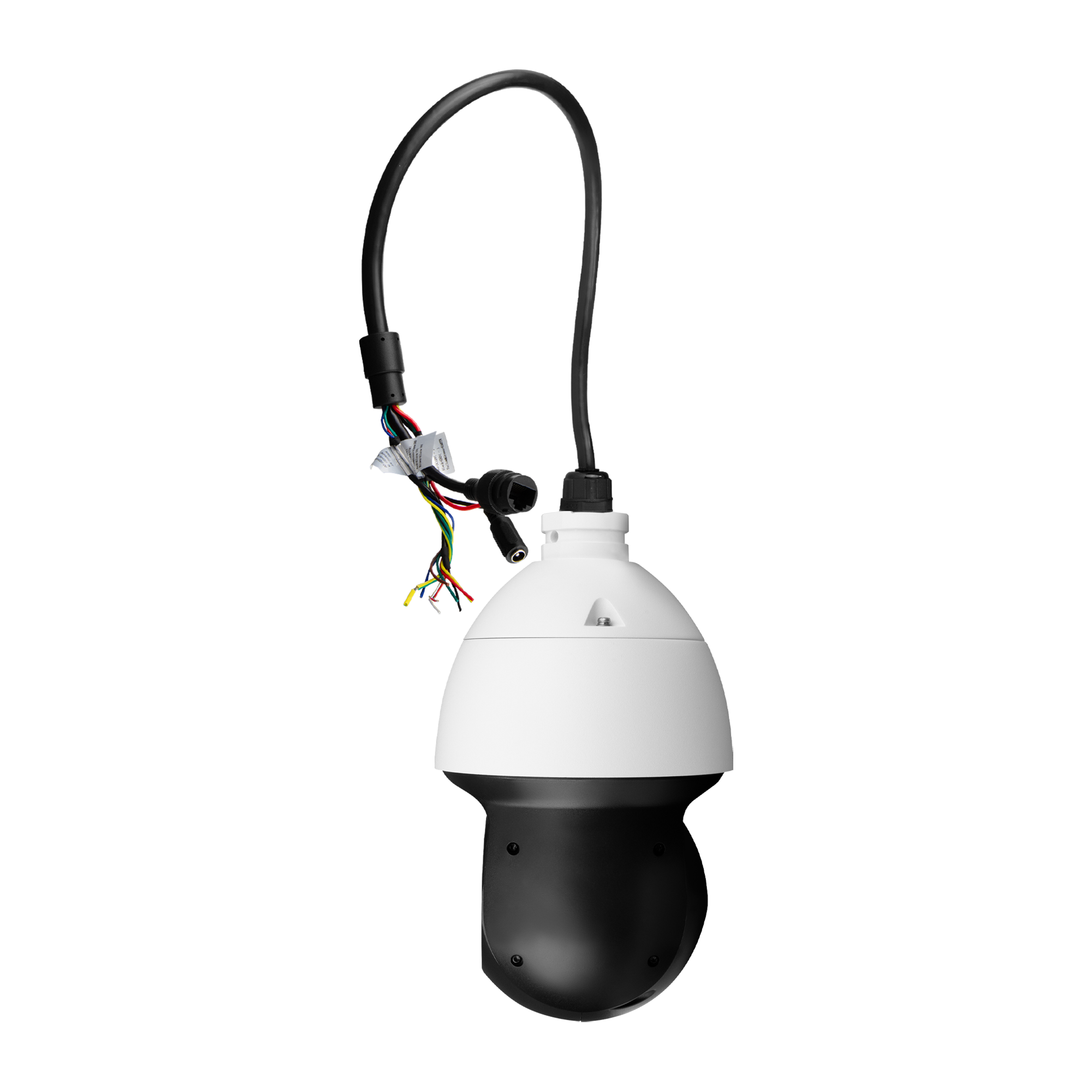

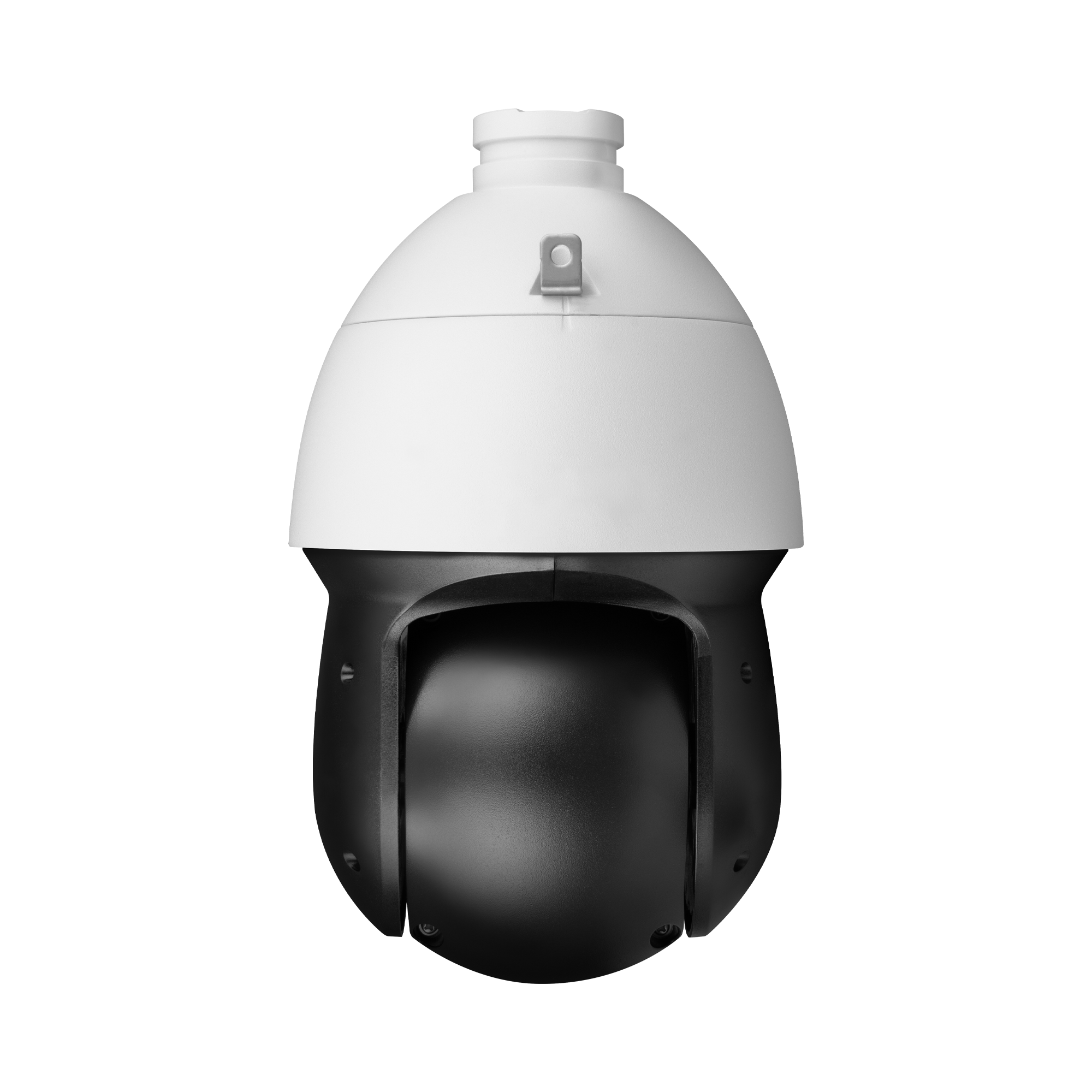

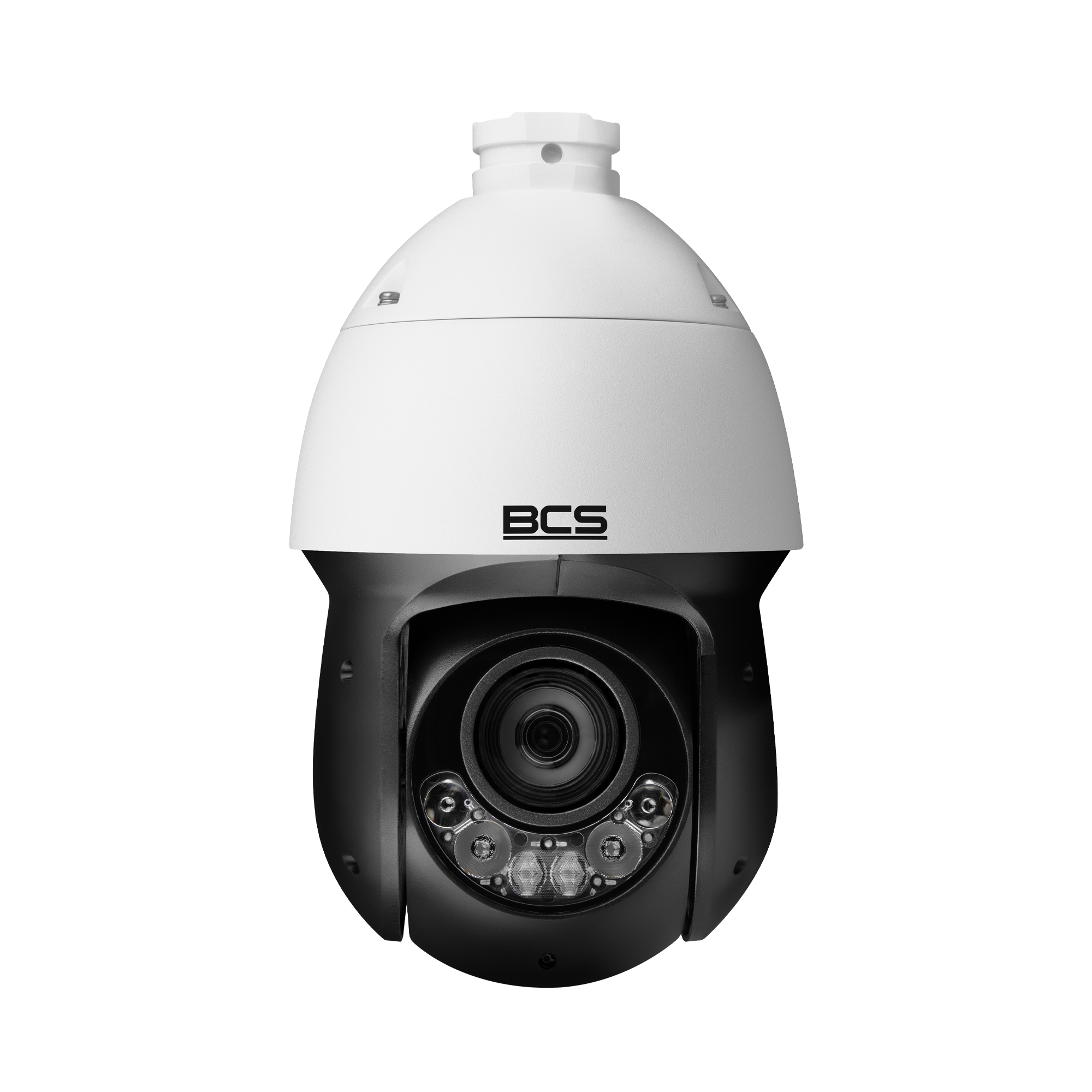

4Mpx pan-tilt IP camera
1/2.8" STARVIS PS CMOS sensor
SkyLight technology
AcuPick technology
5–125 mm motorised zoom lens
25x optical zoom
WDR 120dB
IR 100m, WhiteLight 50m
Alarm 2/1, audio 1/1
IP67-rated housing
Built-in smart features

79 in stock

DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)

Official BCS e-commerce Business Partner

Technical support

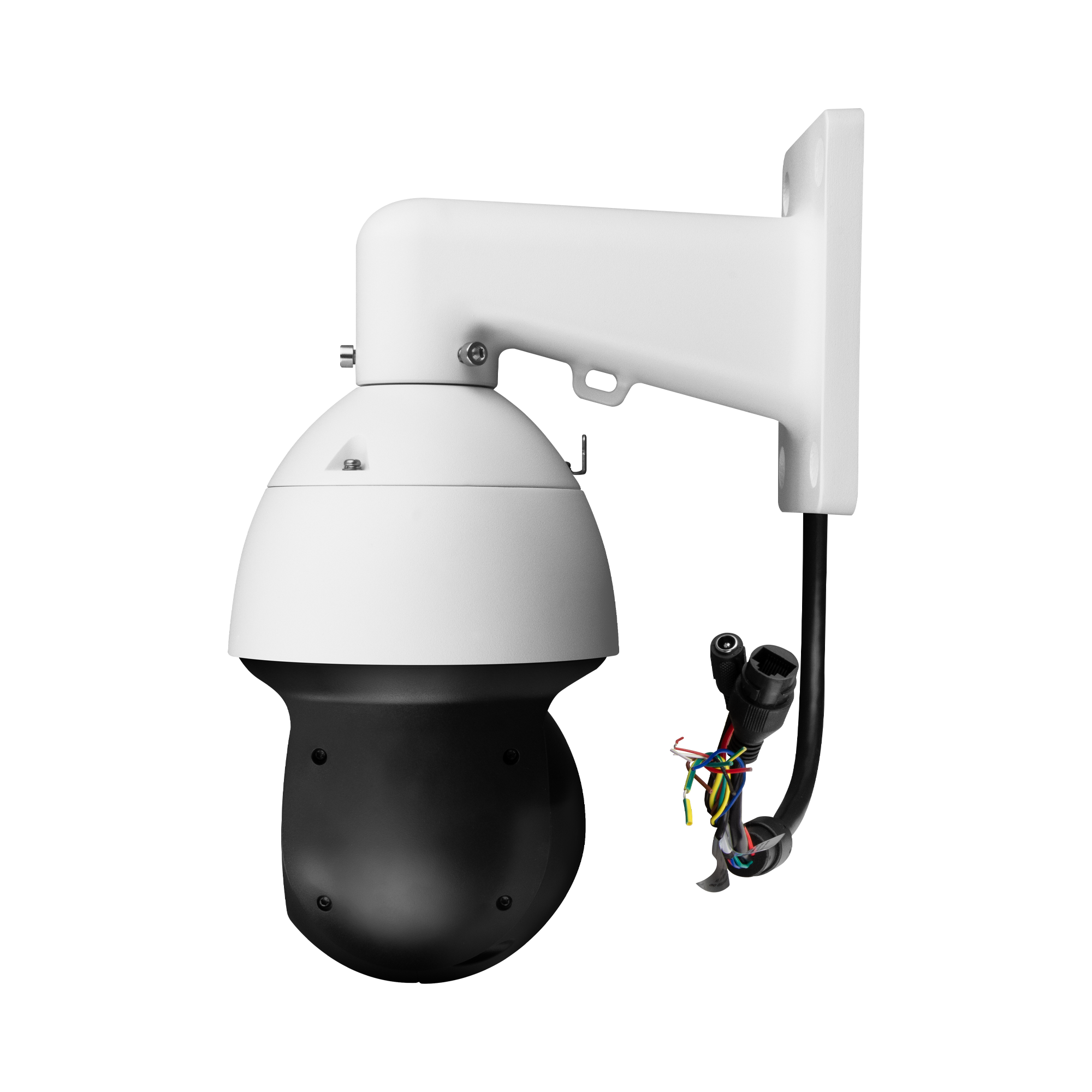

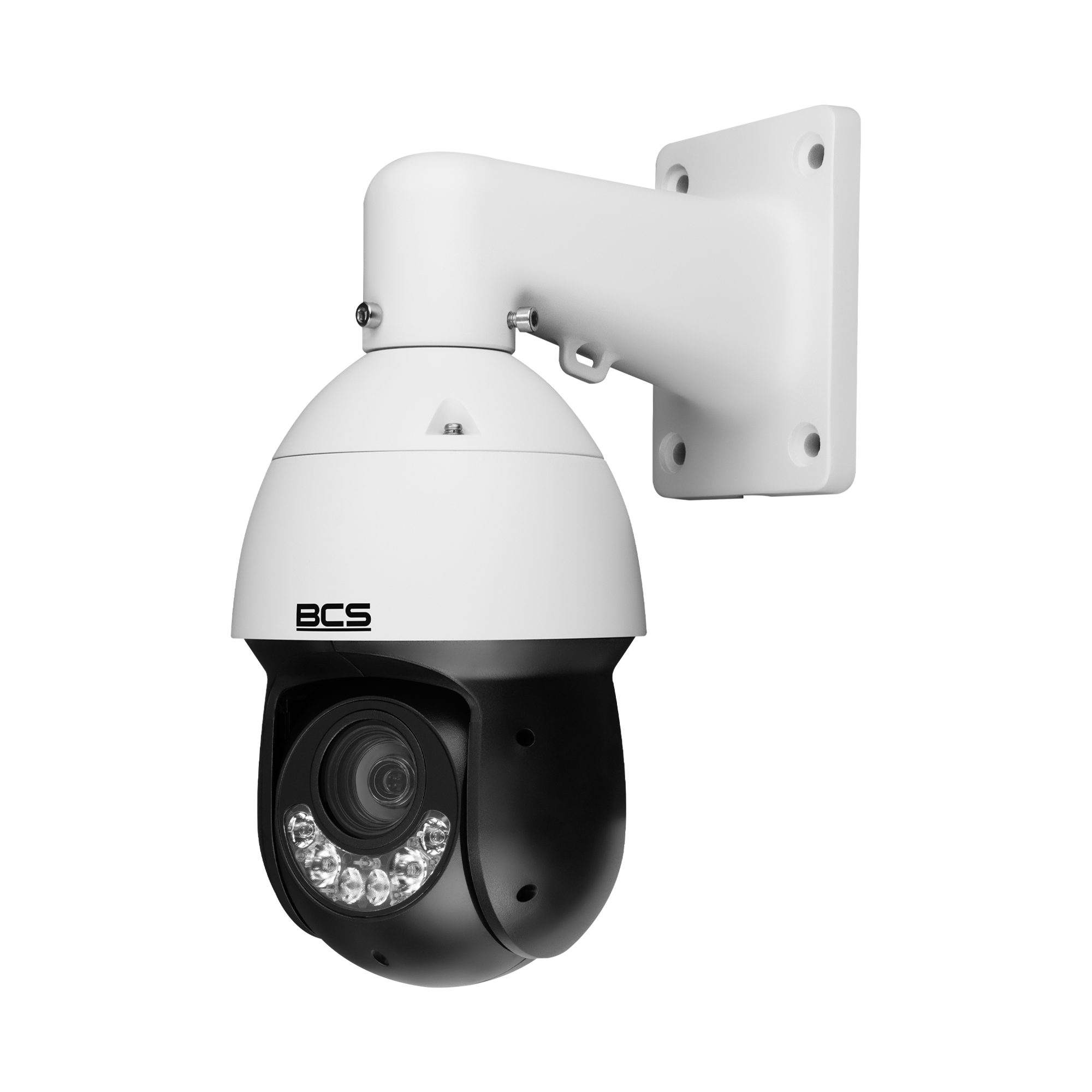

Accessories included	Wall mount
Product	BCS-L-SIP2425SR10L5-Ai2
Camera type	PTZ
Scanning system	Progressive Scan
ROM	4GB
Aperture	F 1.6~3.6
Digital zoom	16×
White balance	(AWB) Auto / manual
Noise reduction	2D/3D DNR
Ai - Built-in intelligent functions	Built-in intelligent algorithm of image analisis
Ai - SMD - Smart Motion Detection	SMD 4.0
Stream support	3
Resolution	4 Mpx
Sensor	1/2.8'' CMOS STARVIS
Pixels	2560(H)×1440(V)
RAM	1GB
Lens	motozoom
Focal length	5~125 mm
Focus	Auto / manual
Iris	Auto / manual
Optical zoom	25×
Angle of view	H:54.1°~3.4° V:31.4°~1.9° D:61.1°~3.9°
DORI	Detect 100~2500m / Observe 40~1000m / Recognize 20~500m / Identify 10~250m
Min illumination	0.005Lux(Color,F1.6) 0.0005Lux(F1.6,B/W) 0Lux(B/W,IR)
S/N ratio	55dB
WDR	120dB
Backlight compensation	BLC / HLC / WDR(120dB)
Shutter	Auto / manual 1~1/30000s
Gain control	(AGC) Auto / manual
RoI	Region of Interest
Image Stabilization	Electronic (EIS)
Defog	Electronic
Image rotate	Flip 180°
Resolutions	4M(2560×1440) / 3M(2304×1296) / 2M(1920×1080) / 1.3M(1280×960) / 720P(1280×720) / D1(704×576)(704×480) / CIF(352×288)(352×240)
Main stream	2560×1440 / 2304×1296 / 1920×1080 / 1920×960 / 1280×960/ 1280×720 (25/30fps)
Second stream	704×576 / 704×480 / 640×480 / 352×288 / 352×240(25/30fps)
Third stream	1920×1080 / 1280×960 / 1280×720(25/30fps)
Bitrate	H264: 96 kbps–11,776 kbps H265: 38 kbps–7,168 kbps
Video compression	H.265 / H.265+ / H.264+ / H.264 / H.264B / H.264H / H.264M / MJPEG
Day/night	ICR mechanical infrared filter
Illuminator type	IR LED + WhiteLight
IR range	100m
WhiteLight range	50m
Audio in	1
Audio out	1
Audio compression	G.711A / G.711Mu / G.726 / G.722.1 / G.723 / G.729 / PCM / MPEG2-L2
Alarm in	2
Alarm out	1
Storage	FTP, SFTP, NAS
Memory card slot	microSD 512GB
Support	Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android)
Motion detect	4
Privacy masking	24
Network	RJ-45 10/100 Mbps
Compatibility	ONVIF(S/G/T)
Protocols	HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, IPv6, 802.1x, SSL, QoS, FTP, UPnP, ICMP, SNMP, IGMP, ARP, RTCP, RTP, PPPoE, RTMP, Bonjour, SMB, NFS
Power supply	PoE
Power supply type	12V DC / PoE(802.3at)
Power consumption	max 23W
Housing color	White
IP class	IP67
Surge protection	TVS 6kV
Working environment	-40°C~+70°C max 95% RH
Dimensions	Ø160mm×270mm
Weight	2.4 kg
PAN speed	0.1°/s~200°/s(240°/s preset)
TILT speed	0.1°/s~120°/s(200°/s preset)
PAN range	0°~360°
TILT range	-15°~90° auto-flip
Auto tracking	Yes
Automatic functions	300 presets, 8 tour(32 presety), 5 pattern, 5 auto scan
Ai - Perimeter protection	Intrusion, crossline, fast moving, loitering, people gathering, parking detection
&Ai - Object classification	Yes
Ai - Face detection	Face detection and tracking, snapshot, attributes and expression recognition
&Ai - SMD	Yes
Ai - Smart search	AcuPick technology – intelligent search for human/vehicle objects in the recording history with a recorder with the AcuPick function
Ai - Human/vehicle detection	Human/vehicle classification for crossline and intrusion and fast moving reduces false alarms
