| Active deterrence function ADC | Sound-optical alarm |
|---|---|
| Ai - Built-in intelligent functions | Built-in intelligent algorithm of image analisis |
| Ai - SMD - Smart Motion Detection | SMD 3.0 |
| Flag | PROMOTION |
| Product | BCS-L-SIP145CR5L3-Ai2 |
| Camera type | PTZ |
| Resolution | 4 Mpx |
| Sensor | 1/2.8'' CMOS |
| Scanning system | Progressive Scan |
| Pixels | 2560(H)×1440(V) |
| RAM | 512MB |
| ROM | 128MB |
| Lens | motozoom |
| Focal length | 2.7~13.5 mm |
| Aperture | F1.6~3.0 |
| Focus | Auto / manual |
| Iris | Auto / manual |
| Optical zoom | 5× |
| Digital zoom | 16× |
| Angle of view | H: 94.9°~30.1° V: 51°~17.1° D: 112.3°~34.6° |
| DORI | Detect 270m / Observe 107m / Recognize 54m / Identify 27m |
| Min illumination | 0.005Lux(Color,F1.6) 0.0005Lux(F1.6,B/W) 0Lux(B/W,IR) |
| S/N ratio | 55dB |
| White balance | (AWB) Auto / manual |
| WDR | 120dB |
| Backlight compensation | BLC / HLC / WDR(120dB) |
| Shutter | Auto / manual 1~1/30000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 2D/3D DNR |
| RoI | Region of Interest |
| Image Stabilization | Electronic (EIS) |
| Defog | Electronic |
| Image rotate | Flip 180° |
| Stream support | 3 |
| Resolutions | 4M(2560×1440) / 3M(2048×1536) / 2M(1920×1080) / 1.3M(1280×960) / 720P(1280×720) / D1(704×576)(704×480) / CIF(352×288)(352×240) |
| Main stream | 2560×1440 / 2048×1536 / 1920×1080 / 1280×960 / 1280×720(25/30fps) |
| Second stream | 704×576 / 704×480 / 352×288 / 352×240(25/30fps) |
| Third stream | 1280×720(25/30fps) |
| Bitrate | H.264: 96 kbps~14848 kbps H.265: 38 kbps~8960 kbps |
| Video compression | H.265 / H.265+ / H.264+ / H.264 / MJPEG |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED + WhiteLight |
| IR range | 50m |
| WhiteLight range | 30m |
| NightColor | Yes |
| Microphone | Yes |
| Loudspeaker | Yes |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711A / G.711Mu / G.726 / G.722.1 / MPEG2-L2 / PCM |
| Alarm in | 1 |
| Alarm out | 1 |
| Storage | FTP, SFTP, NAS |
| Memory card slot | microSD 512GB |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | Yes |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF(S/G/T) |
| Protocols | FTP, RTMP, IPv6, Bonjour, IPv4, DNS, RTCP, PPPoE, NTP, RTP, 802.1x, HTTPS, SNMP, TCP/IP, DDNS, UPnP, NFS, ICMP, UDP, IGMP, SMB, HTTP, SSL, DHCP, SMTP, Qos, RTSP, ARP |
| Power supply | PoE |
| Power supply type | 12V DC / PoE(802.3at) |
| Power consumption | max 15W |
| Housing color | White |
| IP class | IP66 |
| Surge protection | TVS 6kV |
| Working environment | -30°C~+60°C max 95% RH |
| Dimensions | 142.6×140×236.1mm |
| Weight | 1.5 kg |
| PAN speed | 0.1°/s~36°/s(35.7°/s preset) |
| TILT speed | 0.1°/s~25.8°/s(27.1°/s preset) |
| PAN range | 0°~355° |
| TILT range | -15°~90° |
| Auto tracking | Autotracking Lite |
| Automatic functions | 300 presets |
| Ai - Perimeter protection | Intrusion, crossline, fast moving, loitering, people gathering, parking detection |
| &Ai - Object classification | Yes |
| Ai - Face detection | Face detection and tracking, photo face. |
| &Ai - SMD | Yes |
| Ai - Human/vehicle detection | Human/vehicle classification for crossline and intrusion and fast moving reduces false alarms |

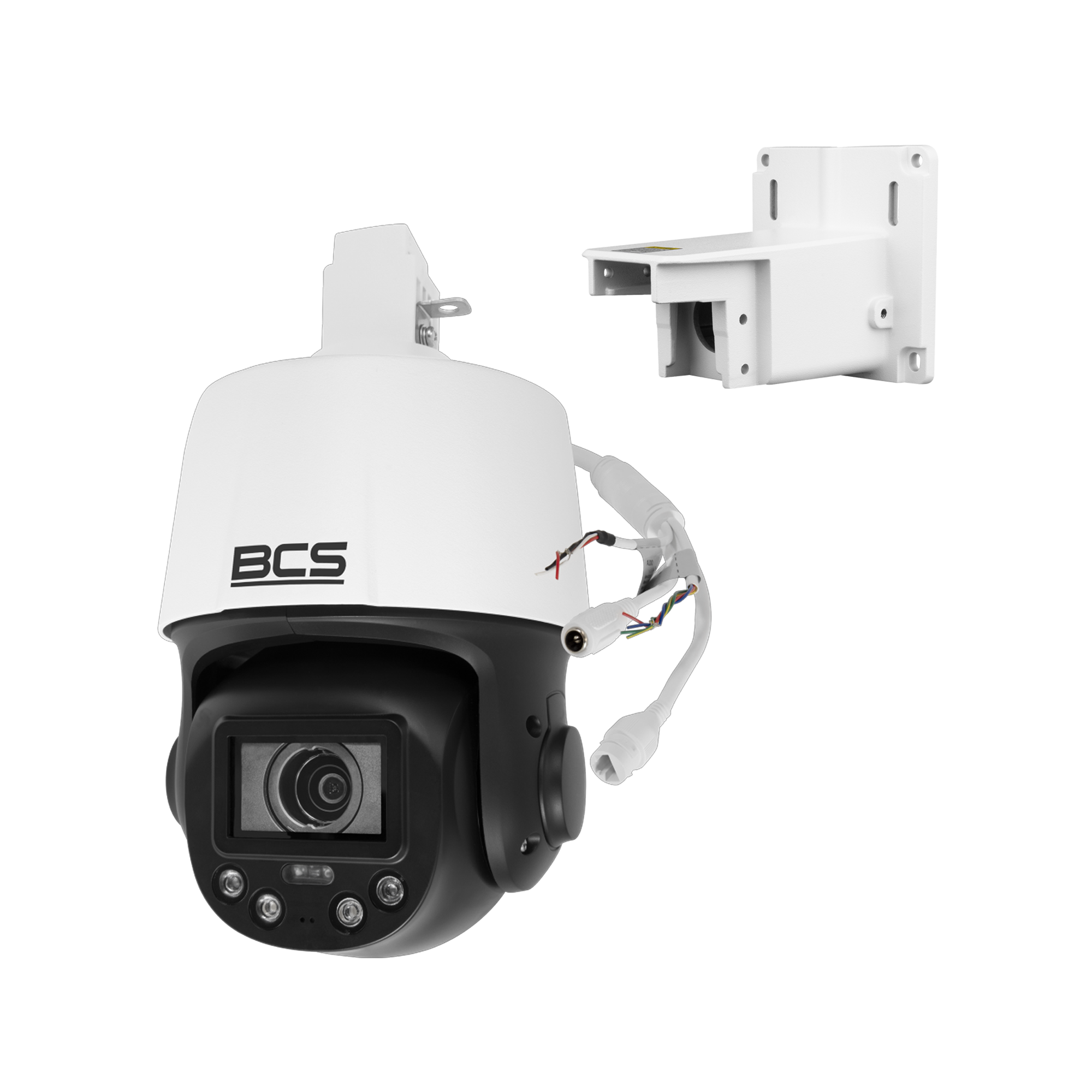

| Accessories included | Mounting bracket |
Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
BCS LINE

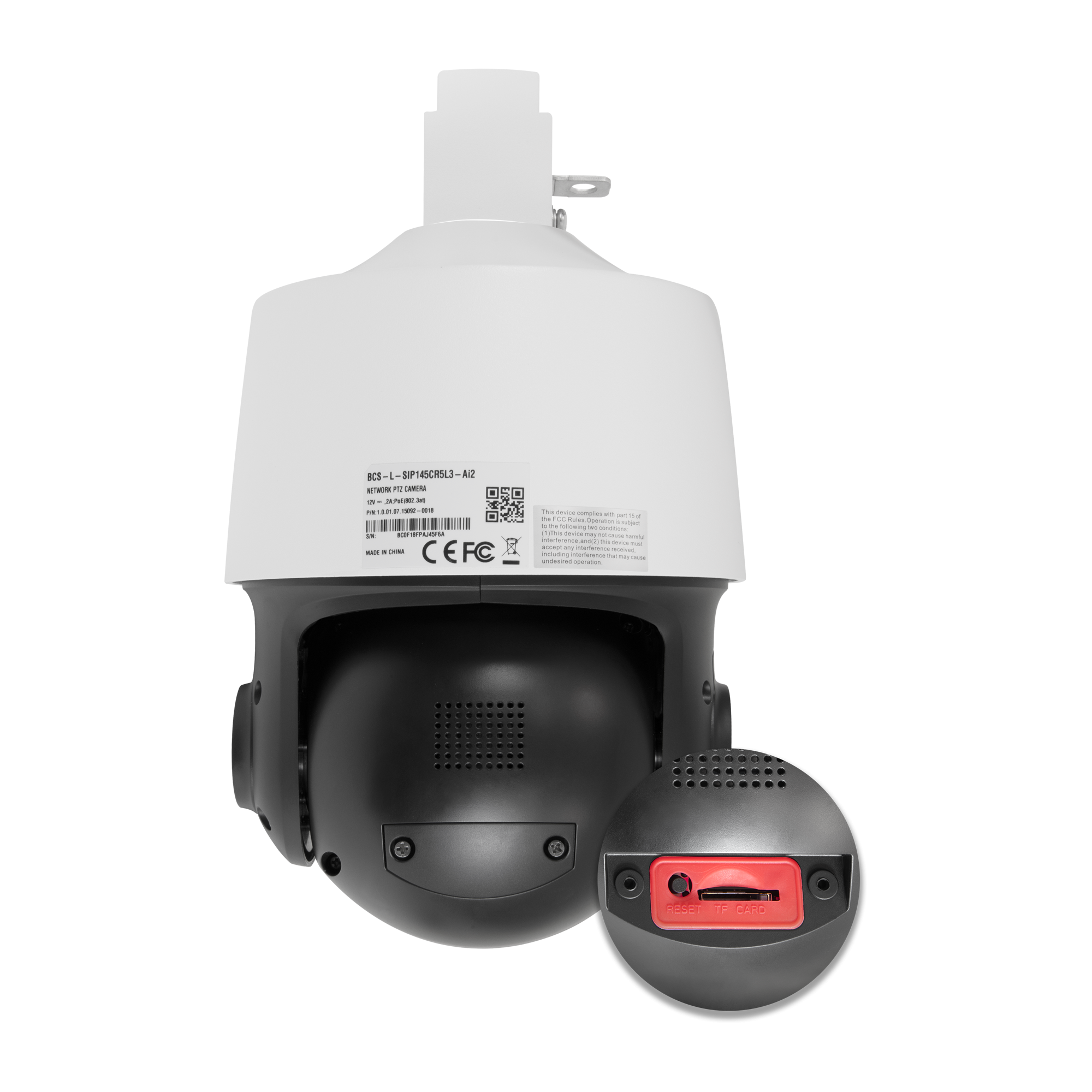

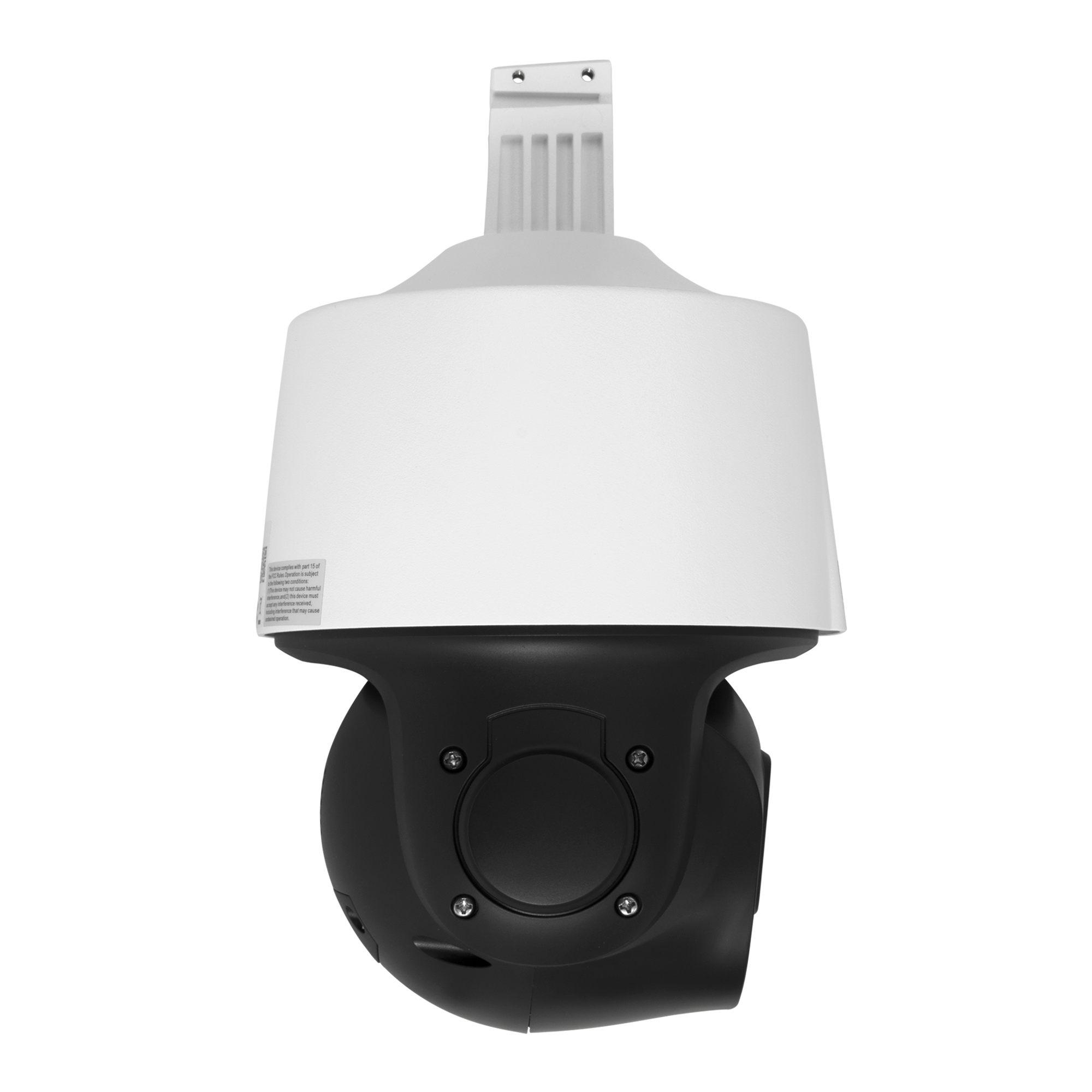

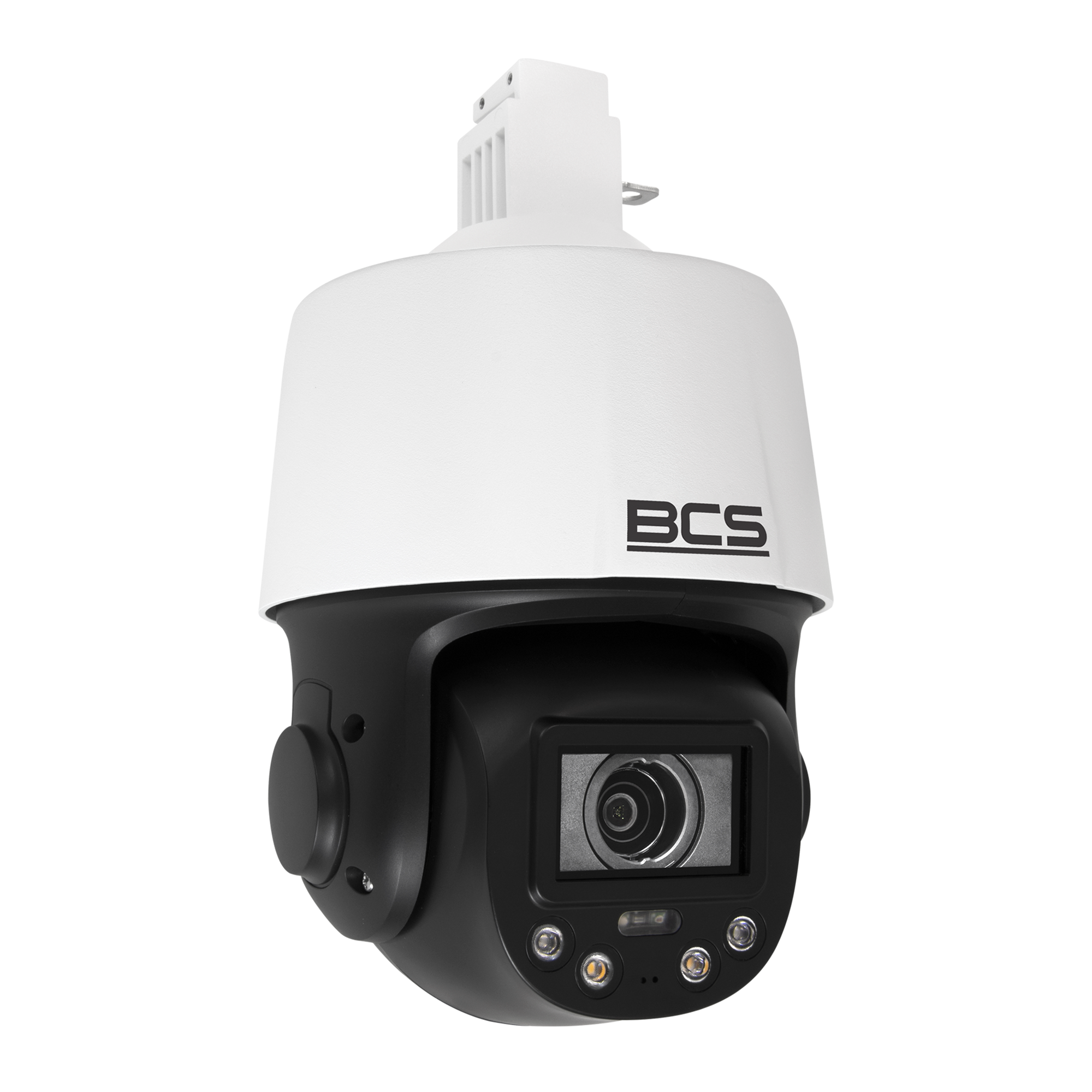

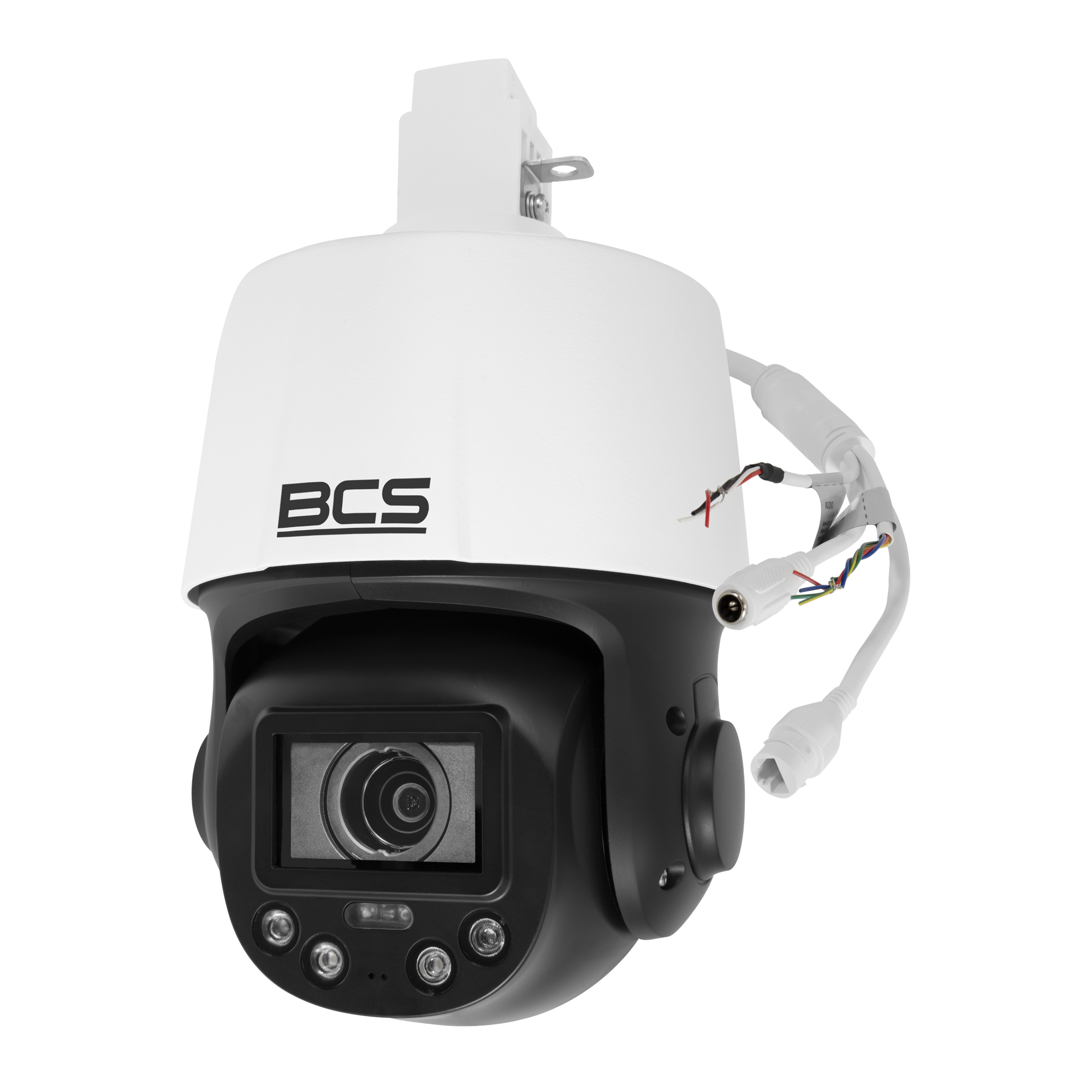

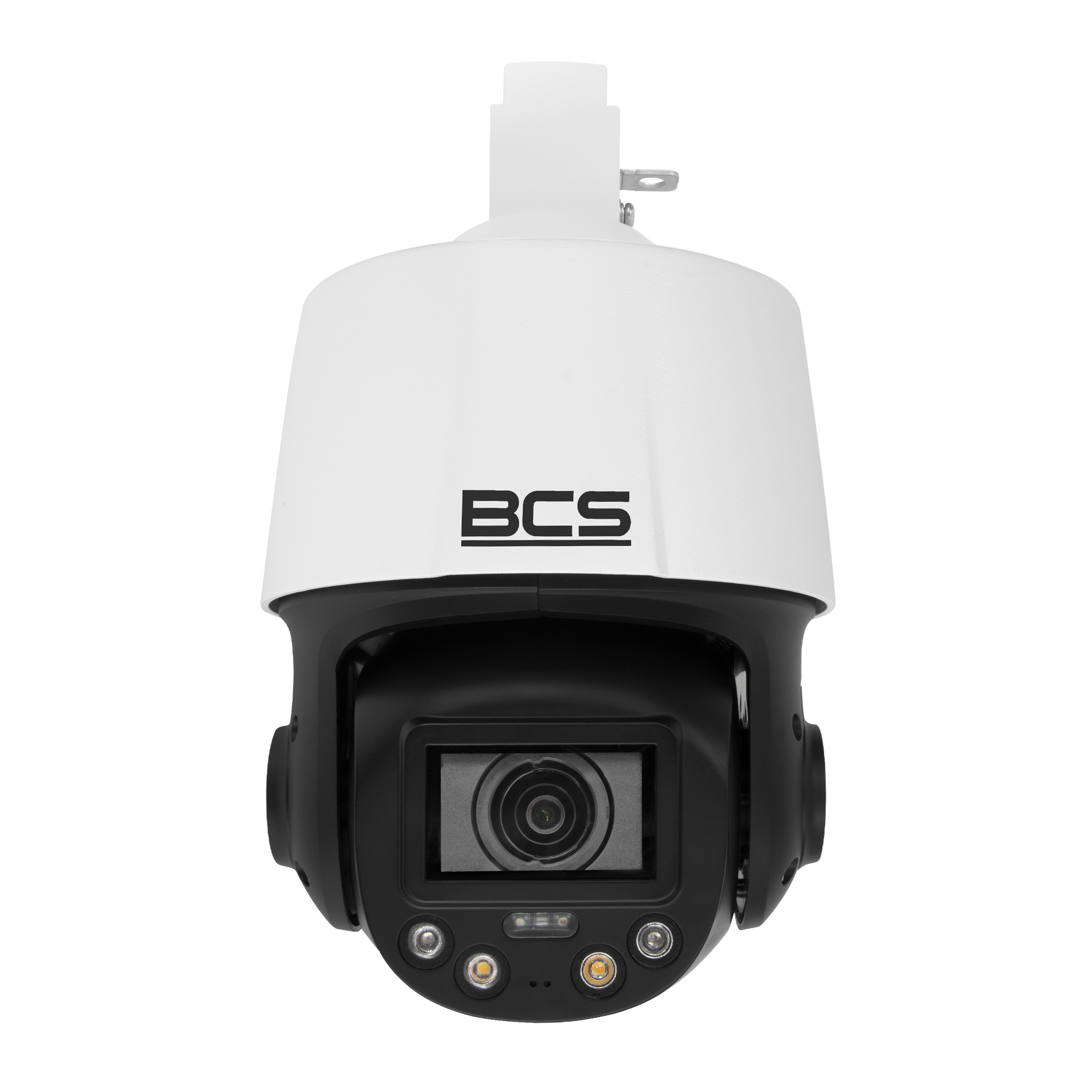

BCS-L-SIP145CR5L3-Ai2
574,41 € gross
Out of Stock- 4Mpx pan-tilt IP camera
- 1/2.8" PS CMOS sensor
- NightColor technology
- ADC technology
- 2.7–13.5 mm motorised zoom lens
- 5x optical zoom
- WDR 120dB
- IR 50m WhiteLight 50m
- Warning lights and loudspeaker
- Alarm 1/1, audio 1/1
- IP66 housing
- Built-in smart features
Out of stock
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.
