| Accessories included | Adapter PTZ, power supply 12VDC |
|---|---|
| Min illumination overview camera | 0.003Lux(F1.6,AGC) 0Lux(B/W,IR) |
| Angle of view overview camera | H: 91.3° V: 51.5° D: 112.3° |
| Second stream overview camera | 1920×1080(25/30fps) |
| Illuminator type overview camera | IR LED |
| Active deterrence function ADC | Sound-optical alarm |
| Ai - Built-in intelligent functions | Built-in intelligent algorithm of image analisis |
| Product | BCS-P-SDIP24425SR10-AI2 |
| NDAA | National Defense Authorization Act |
| Recording in BCS CLOUD | Yes |
| Camera type | PTZ+fixed |
| Resolution | 4 Mpx |
| Resolution overview camera | 4 Mpx |
| Sensor | 1/2.7'' CMOS |
| Sensor overview camera | 1/2.7'' CMOS |
| Scanning system | Progressive Scan |
| Pixels | 2688(H)×1520(V) |
| Pixels overview camera | 2688(H)×1520(V) |
| Lens | motozoom |
| Focal length | 4.8~120 mm |
| Focal lenght overview camera | 4 mm |
| Aperture | F 1.5~F3.8 |
| Aperture overview camera | F1.6 |
| Focus | Auto / manual |
| Iris | Auto / manual |
| Optical zoom | 25× |
| Digital zoom | 16× |
| Angle of view | H:55.46°~3.09°V:32.94°~1.73° D:68.22°~3.65° |
| DORI | Detect 124~2475m / Observe 49~990m / Recognize 25~495m / Identify 12~247m |
| DORI overview camera | Detect 90m / Observe 36m / Recognize 18m / Identify 9m |
| Min illumination | 0.003Lux(F1.5,AGC) 0Lux(B/W,IR) |
| S/N ratio | 56dB |
| White balance | (AWB) Auto / manual |
| WDR | 120dB |
| Backlight compensation | BLC / HLC / WDR(120dB) |
| Shutter | Auto / manual 1~1/100000s |
| Shutter overview camera | Auto / manual 1~1/100000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 2D/3D DNR |
| Image rotate | Mirror, Flip 0°/90°/180°/270° |
| Stream support | 3 |
| Resolutions | 4M(2688×1520) / 2M(1920×1080) / 720P(1280×720) / D1(720×576) / 2CIF(704×288) / (640×360) / CIF(352×288) |
| Resolutions overview camera | 4M(2688×1520) / 2M(1920×1080) / 720P(1280×720) / D1(720×576) / 2CIF(704×288) / (640×360) / CIF(352×288) |
| Main stream | 2688×1520 / 1920×1080 / 1280×720(25/30fps) |
| Main stream overview camera | 2688×1520 / 1920×1080 / 1280×720(25/30fps) |
| Second stream | 1280×720(25/30fps) |
| Third stream | 720×576(25/30fps) |
| Third stream overview camera | 720×576(25/30fps) |
| Bitrate | 128Kbps~16Mbps |
| Bitrate overview camera | 128Kbps~16Mbps |
| Video compression | H.265 / H.265+ / H.264 / H.264+ / MJPEG |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED |
| IR range | 100m |
| IR range overview camera | 30m |
| Loudspeaker | Yes |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711U / G.711A |
| Alarm in | 2 |
| Alarm out | 1 |
| Storage | NAS(NFS) |
| Memory card slot | microSD 256GB |
| Other interfaces | RS485 |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | 4 |
| Privacy masking | 24 |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF(S/G/T) |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS |
| Network security | HTTPS, SSL, TLS, Digest Authentication, Login Authentication, Account Lockout, IP address filtering, ARP protection |
| Power supply | PoE |
| Power supply type | 12VDC / PoE(802.3at) |
| Power consumption | max 24W |
| Housing color | White |
| IP class | IP66 |
| Working environment | -40°C~+65°C max 95% RH |
| Dimensions | Ø163×304mm |
| Weight | 2.27 kg |
| PAN speed | 0.1°/s~80°/s(80°/s preset) |
| TILT speed | 0.1°/s~80°/s(80°/s preset) |
| PAN range | 0°~360° |
| TILT range | -15°~90° auto-flip |
| Auto tracking | Yes |
| Ai - Perimeter protection | Crossline, intrusion |
| &Ai - Object classification | Yes |
| Ai - People counting | People counting for intrusion and crossline, counting people in/out |
| Ai - Human/vehicle detection | Human/vehicle classification for crossline and intrusion reduces false alarms |
Warning: This product belongs to the BCS POINT product line.
Use only components and devices from the same line to ensure compatibility.
BCS POINT

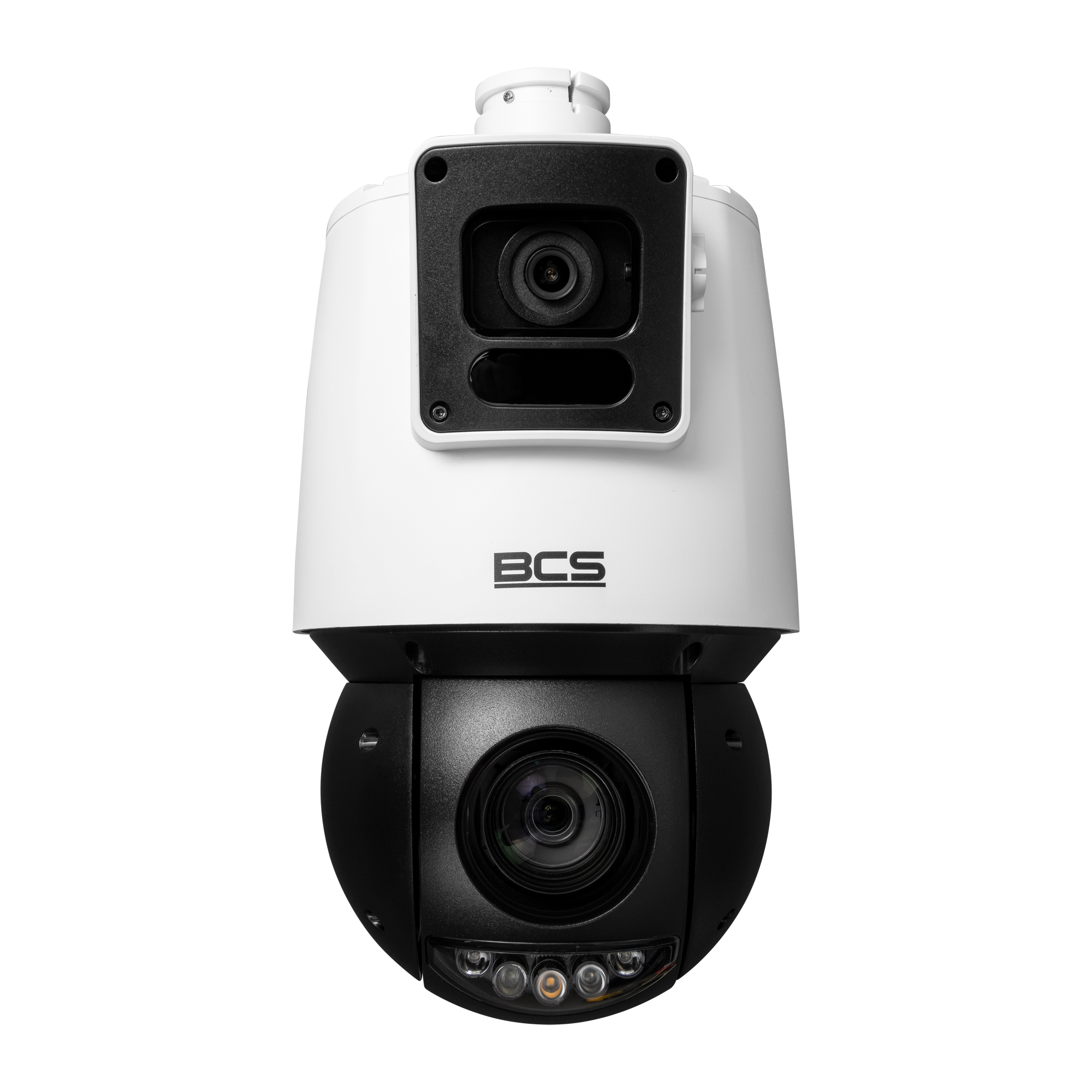

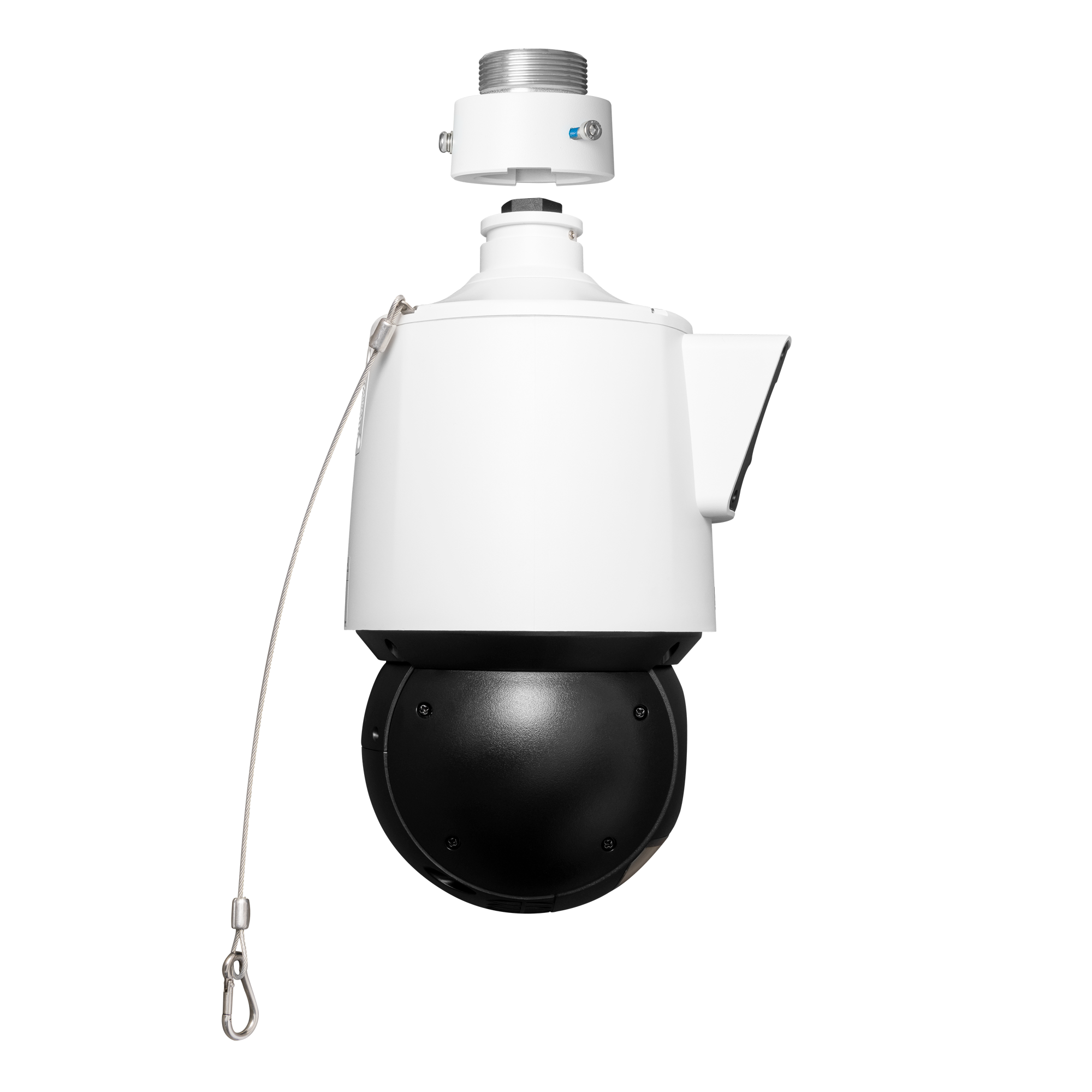

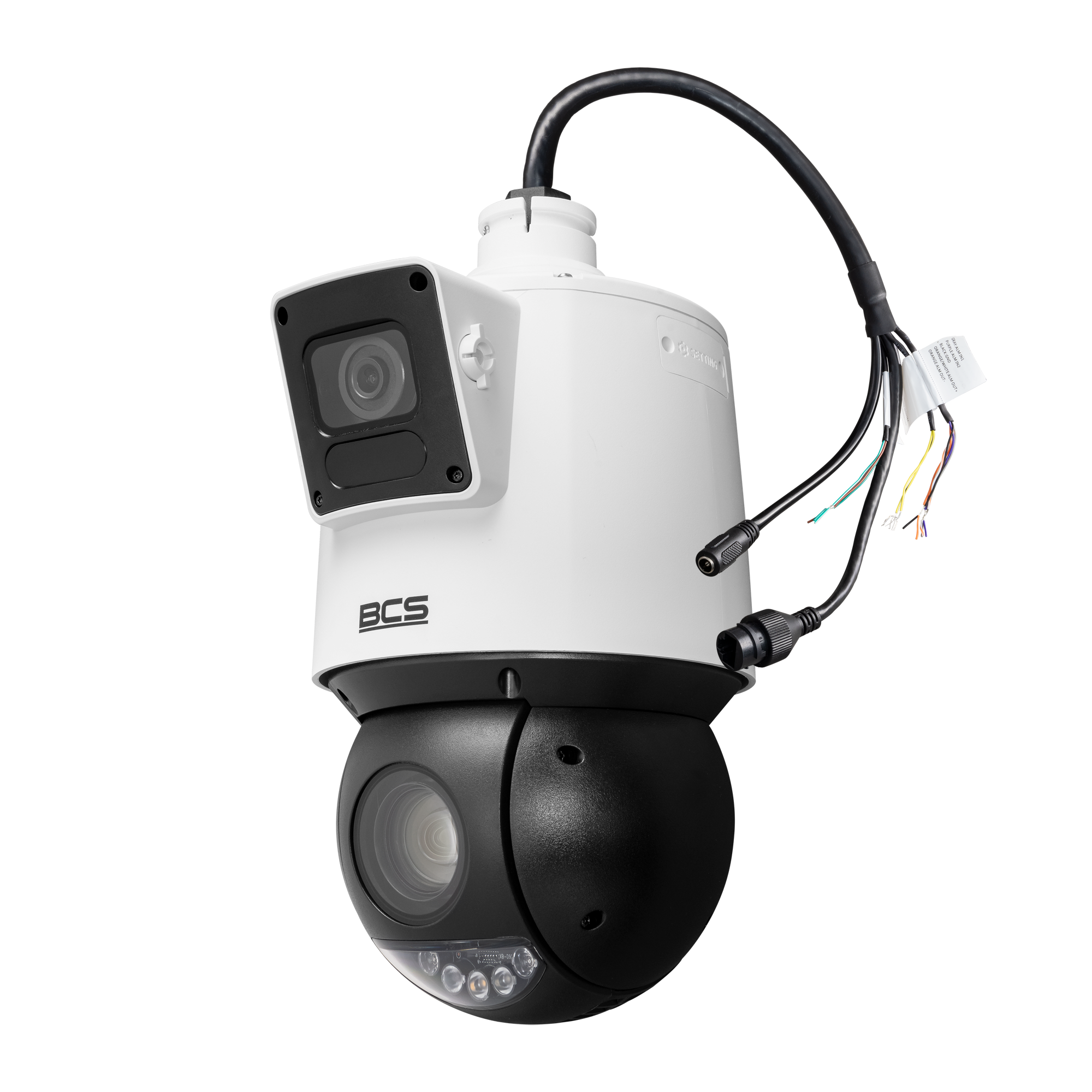

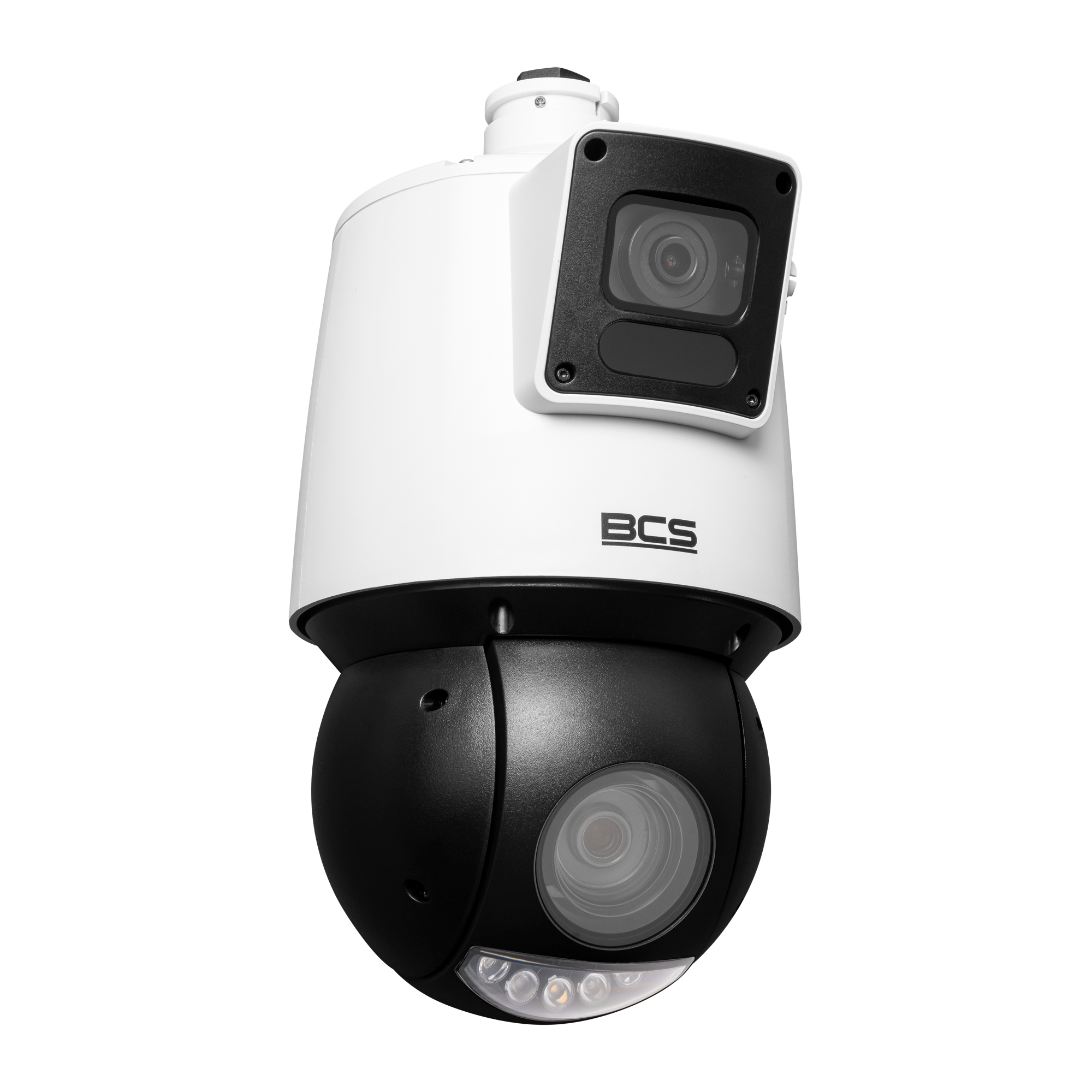

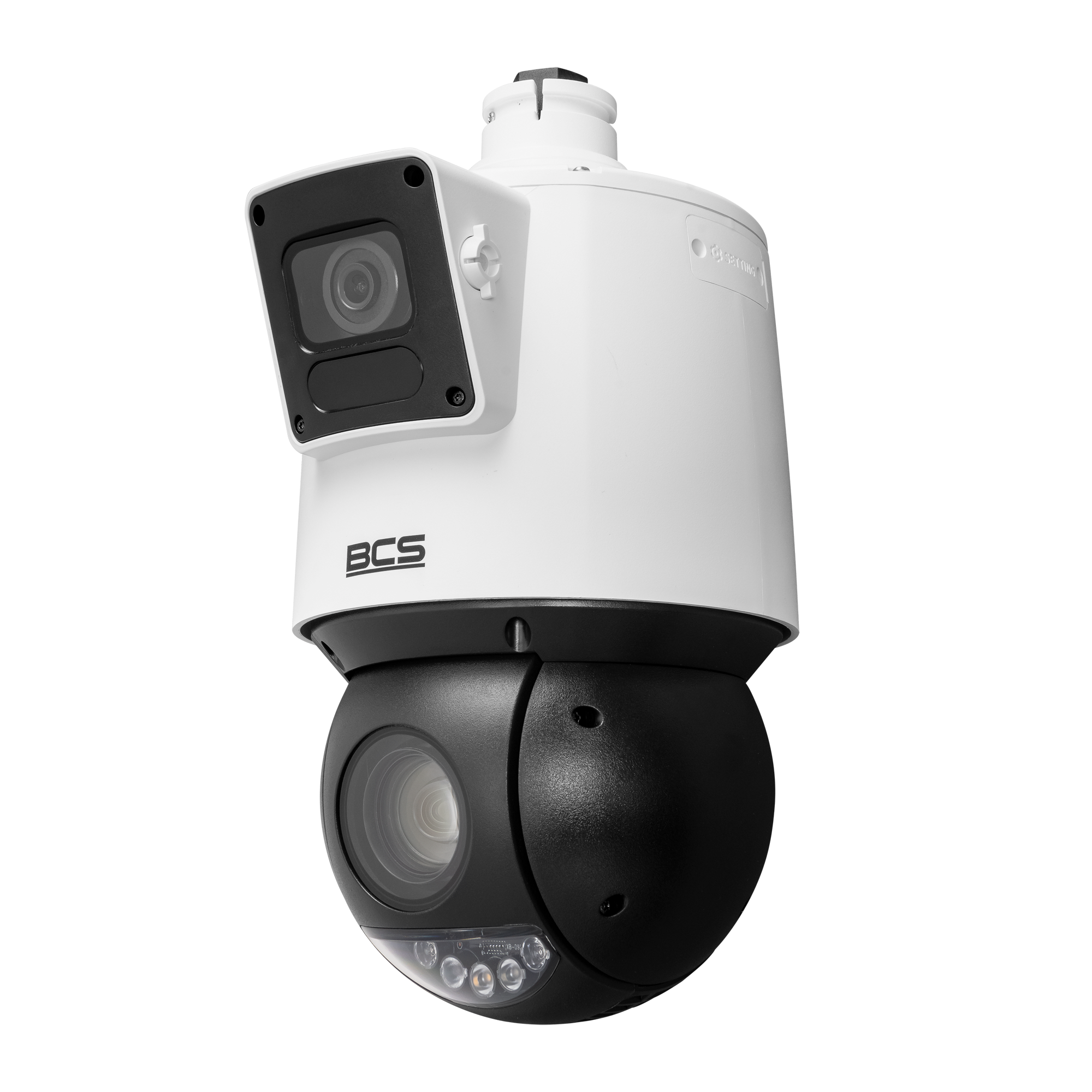

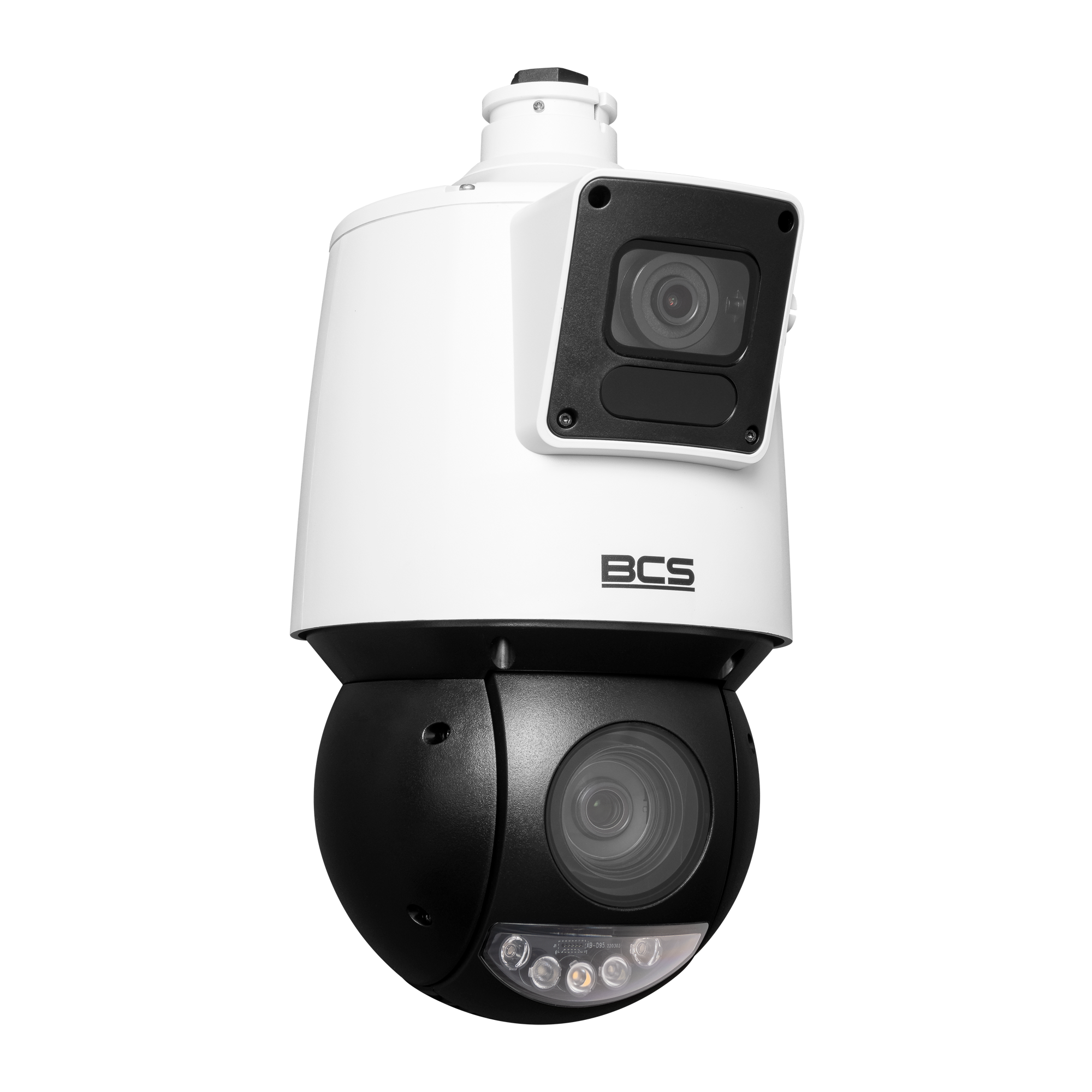

BCS-P-SDIP24425SR10-AI2
1046,73 € gross
34 In Stock- 4Mpx pan-tilt IP camera
- 1/2.7" PS CMOS sensor
- SkyLight technology
- ADC technology
- NDAA compliance
- 4.8–120 mm motorised zoom lens
- 25x optical zoom
- Built-in 4Mpx fixed-position camera with 4mm lens
- WDR 120dB
- IR 100m
- Alarm 2/1, audio 1/1, loudspeaker
- IP66 housing
- Built-in smart features
34 in stock
