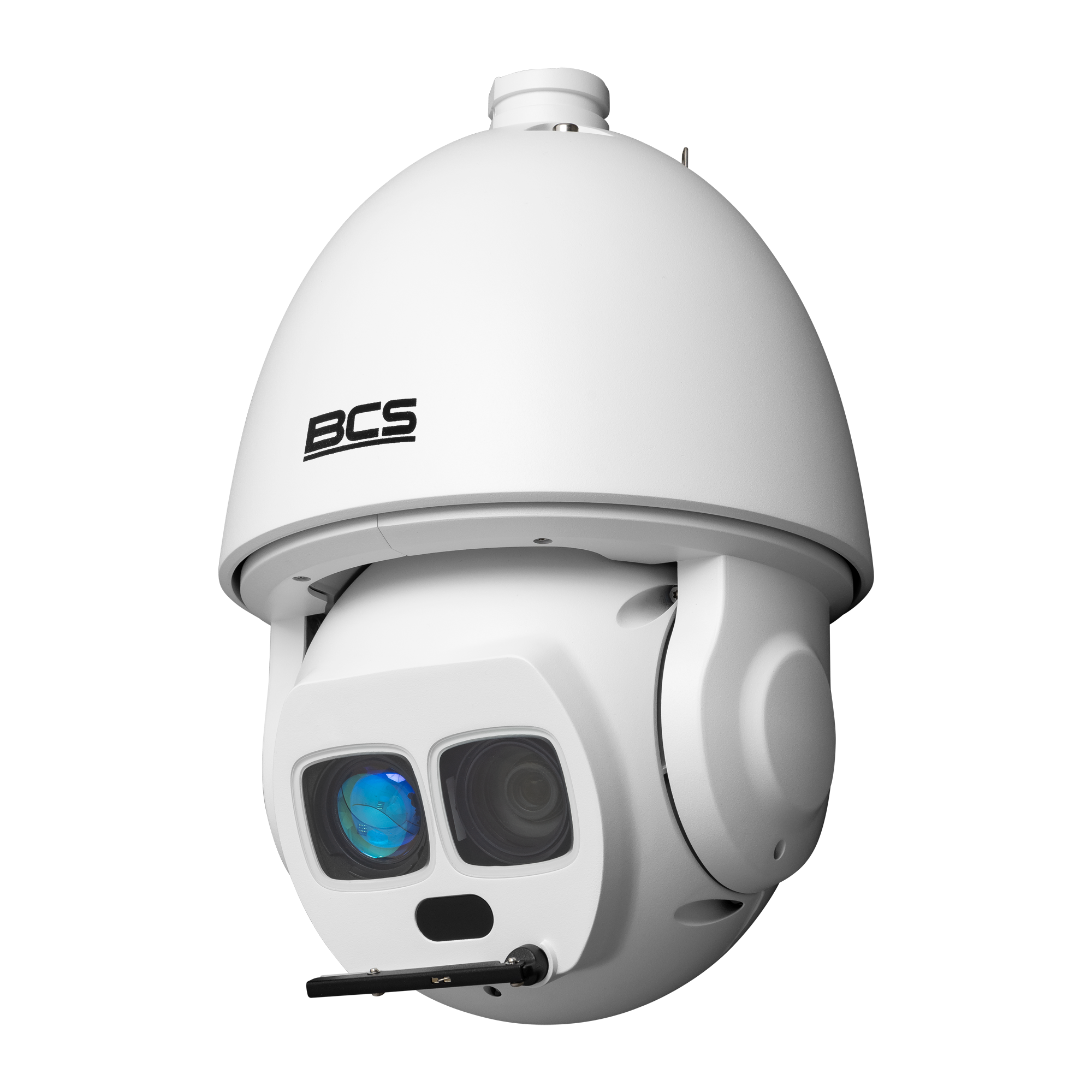

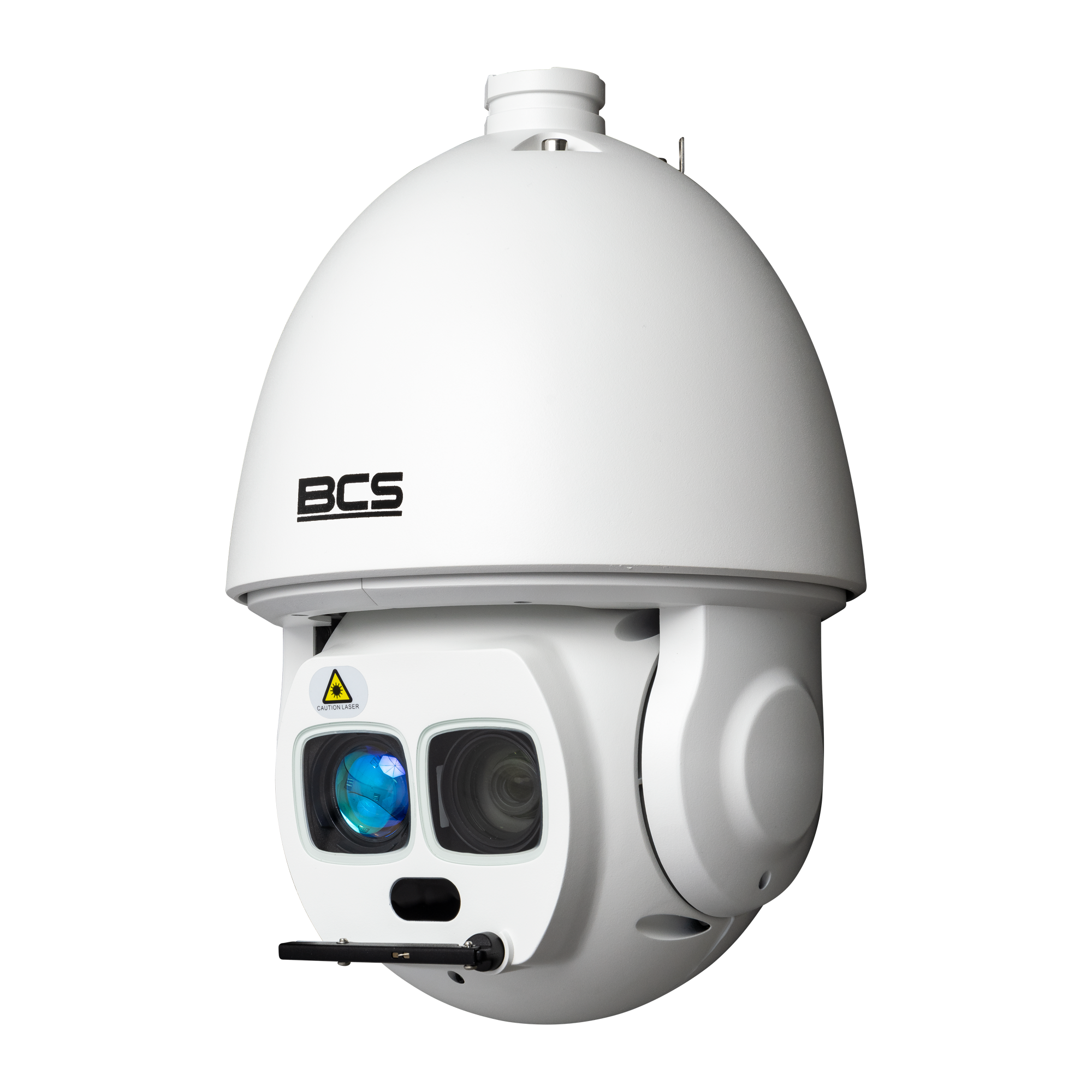

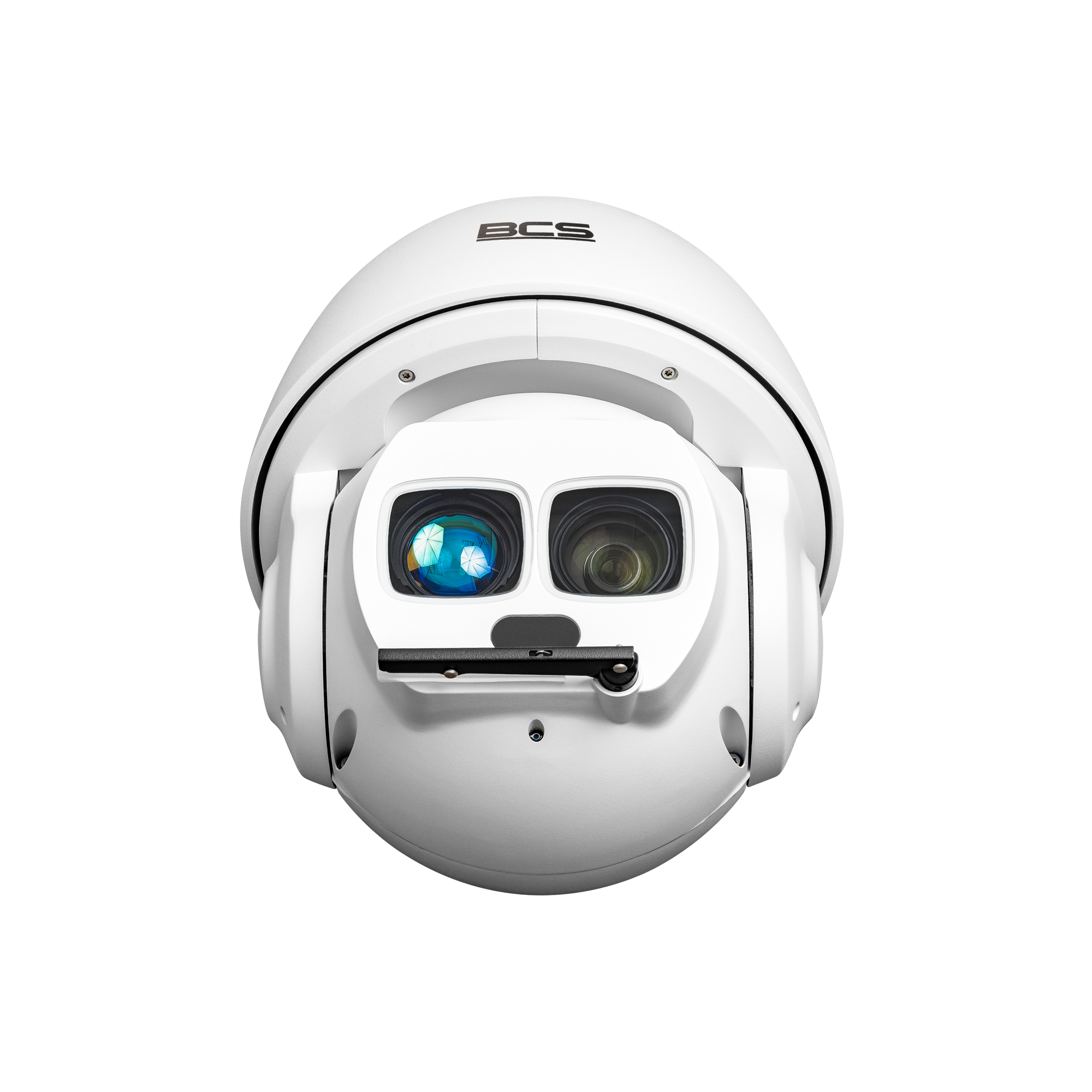

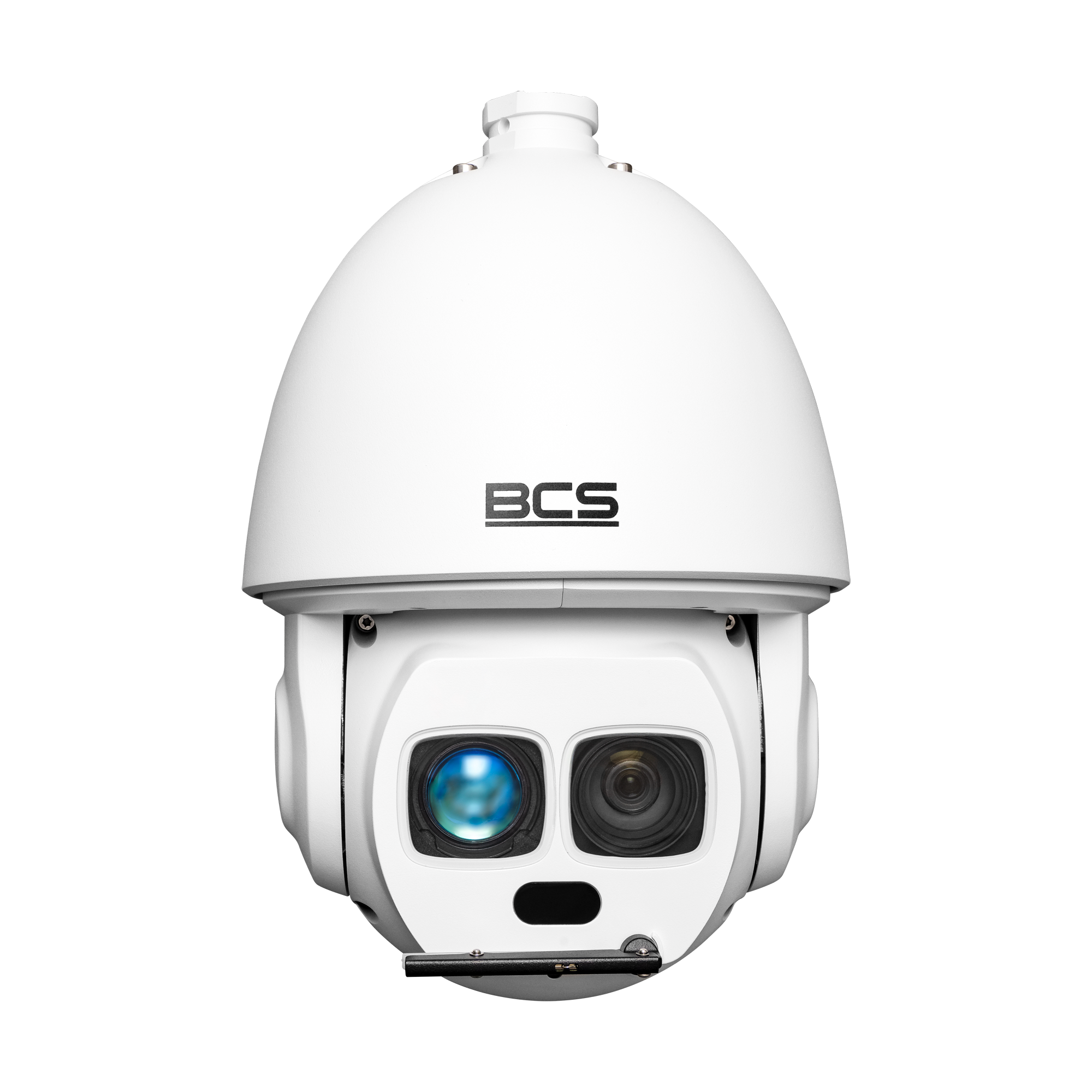

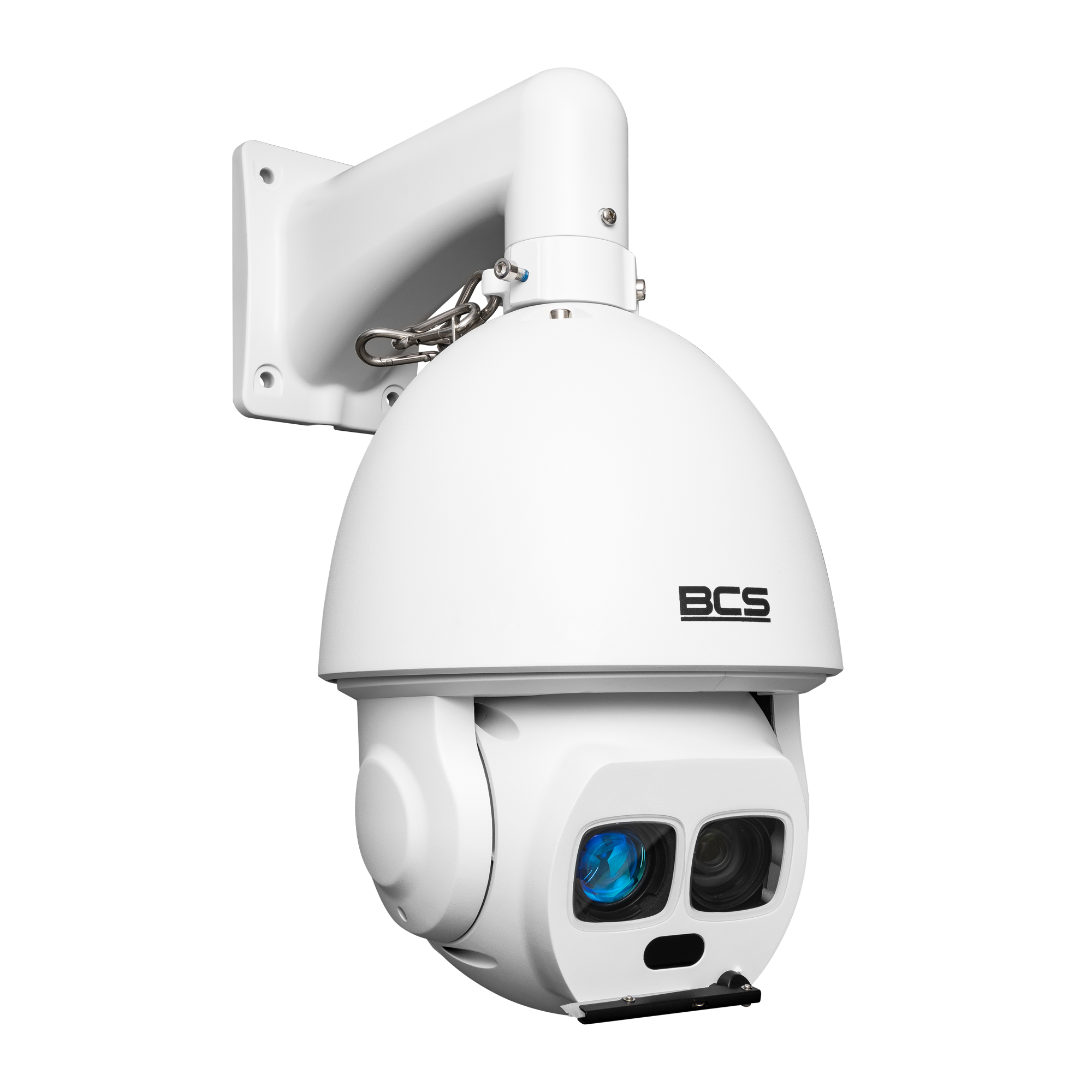

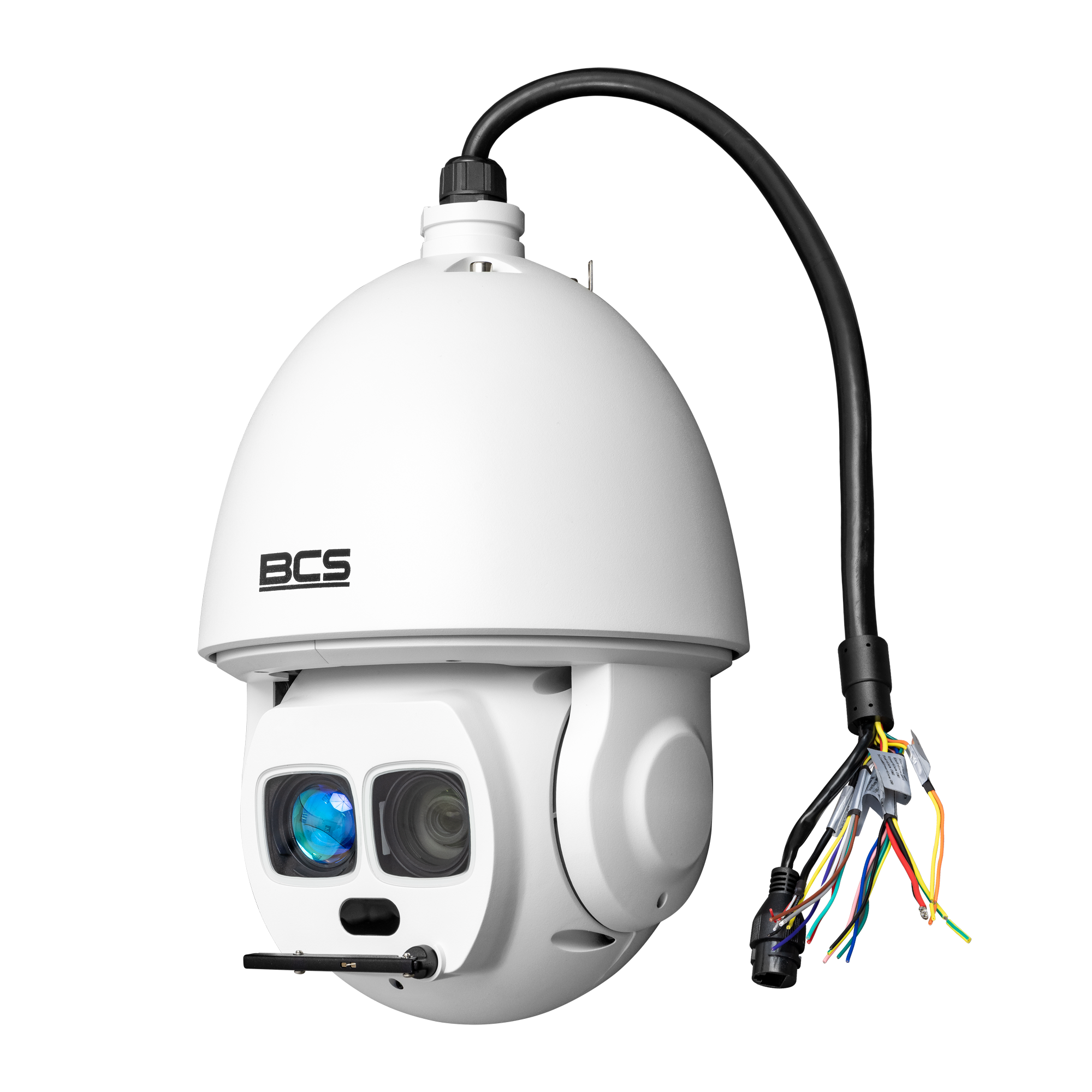

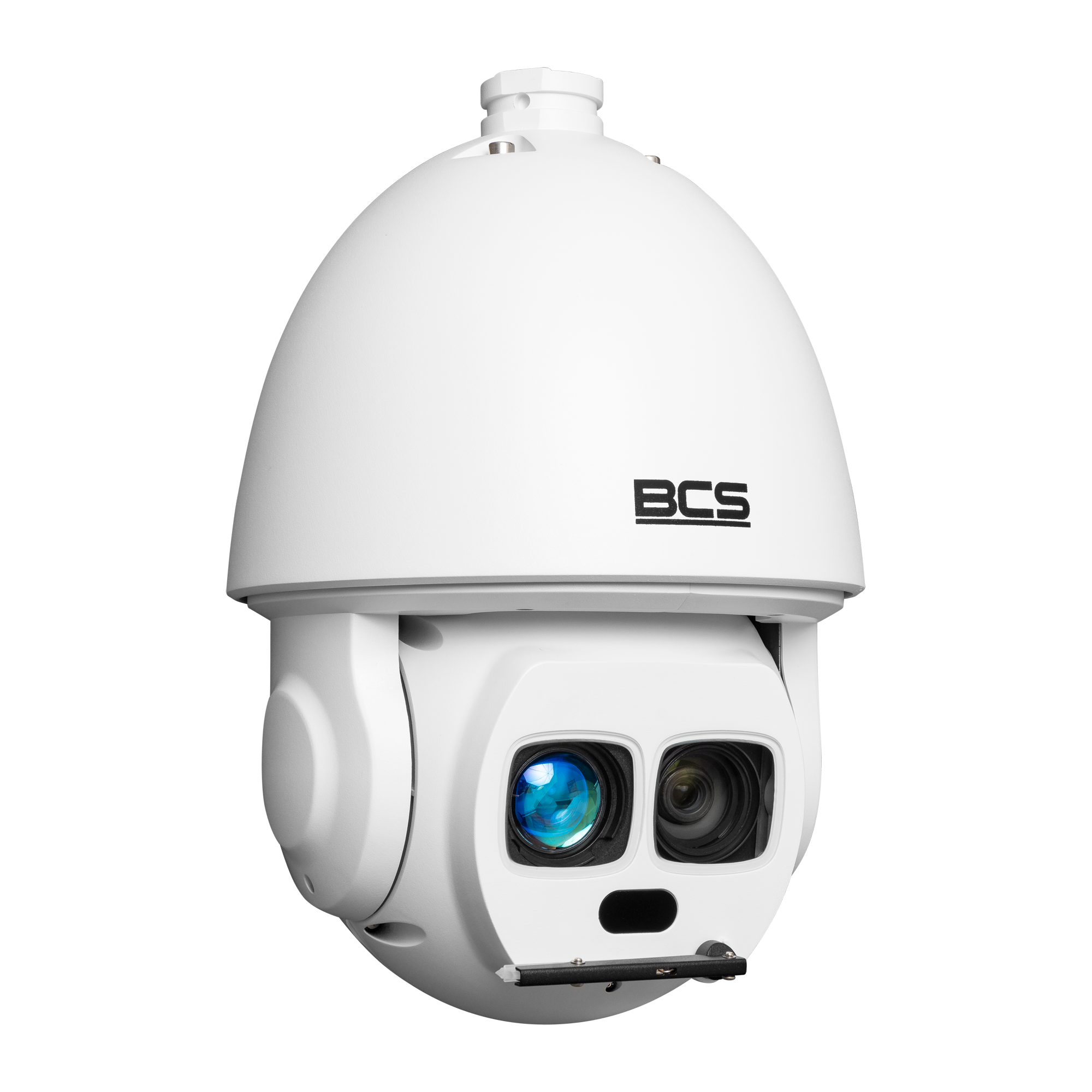

4Mpx PTZ IP camera with 1/2.8″ CMOS sensor by BCS Line.
Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
BCS LINE
BCS-L-SIP8445SR30-Ai2
0,00 € gross
Out of Stock- 4Mpx pan-tilt IP camera
- 1/2.8" STARVIS PS CMOS sensor
- SkyLight technology
- 3.95–177.7 mm motorised zoom lens
- 45x optical zoom
- WDR 120dB
- IR 300m
- Alarm 7/2, audio 1/1
- IP67-rated housing
- Built-in smart features
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.
| Accessories included | Wall mount, adapter APTZ2, power supply 36VDC |
|---|---|
| Flag | TO ORDER |
| Sensor | 1/2.8'' CMOS STARVIS |
| RAM | 1GB |
| Focal length | 3.95~177.7 mm |
| Optical zoom | 45× |
| S/N ratio | 55dB |
| Gain control | (AGC) Auto / manual |
| Ai - Built-in intelligent functions | Built-in intelligent algorithm of image analisis |
| Ai - SMD - Smart Motion Detection | SMD 4.0 |
| Stream support | 3 |
| Product | BCS-L-SIP8445SR30-Ai2 |
| Camera type | PTZ |
| Resolution | 4 Mpx |
| Scanning system | Progressive Scan |
| Pixels | 2560(H)×1440(V) |
| ROM | 4GB |
| Lens | motozoom |
| Aperture | F 1.6~4.95 |
| Focus | Auto / manual |
| Iris | Auto / manual |
| Digital zoom | 16× |
| Angle of view | H:63.2°~1.8° V:37.6°~1.1° D:70.8°~2.1° |
| DORI | Detect 3555m / Observe 1404m / Recognize 711m / Identify 355m |
| Min illumination | 0.005Lux(Color,F1.6) 0.0005Lux(F1.6,B/W) 0Lux(B/W,IR) |
| White balance | (AWB) Auto / manual |
| WDR | 120dB |
| Backlight compensation | BLC / HLC / WDR(120dB) |
| Shutter | Auto / manual 1~1/30000s |
| Noise reduction | 2D/3D DNR |
| Image Stabilization | Electronic (EIS) |
| Defog | Electronic |
| Image rotate | Flip 180° |
| Resolutions | 4M(2560×1440) / 3M(2048×1536) / 2M(1920×1080) / 1.3M(1280×960) / 720P(1280×720) / D1(704×576)(704×480) / VGA(640×480) / CIF(352×288)(352×240) |
| Main stream | 2560×1440 / 2048×1536 / 1920×1080 / 1280×960 / 1280×720(25/30fps) |
| Second stream | 704×576 / 704×480 / 640×480 / 352×288 / 352×240(25/30fps) |
| Third stream | 1920×1080 / 1280×960 / 1280×720(25/30fps) |
| Bitrate | H.264: 96 kbps~14,848 kbps H.265: 38 kbps~8,960 kbps |
| Video compression | H.265 / H.265+ / H.264+ / H.264 / MJPEG |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED |
| IR range | 300m |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711A / G.711Mu / G.726 / AAC / G.722.1 / G.723 / G.729 / PCM / MPEG2-L2 |
| Alarm in | 7 |
| Alarm out | 2 |
| Storage | FTP, SFTP, NAS |
| Memory card slot | microSD 512GB |
| Other interfaces | RS485 |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | 4 |
| Privacy masking | 24 |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF(S/G/T) |
| Protocols | FTP, RTMP, IPv6, Bonjour, IPv4, DNS, RTCP, PPPoE, NTP, RTP, 802.1x, HTTPS, SNMP, TCP/IP, DDNS, UPnP, NFS, ICMP, UDP, IGMP, HTTP, SSL, DHCP, SMTP, Qos, RTSP, ARP |
| Power supply | PoE |
| Power supply type | 36V DC / PoE(802.3bt) |
| Power consumption | max 27W |
| Housing color | White |
| IP class | IP67 |
| Surge protection | TVS 6kV |
| Working environment | -40°C~+70°C max 95% RH |
| Dimensions | Ø240mm×382mm |
| Weight | 6.8 kg |
| PAN speed | 0.1°/s~200°/s(240°/s preset) |
| TILT speed | 0.1°/s~120°/s(200°/s preset) |
| PAN range | 0°~360° |
| TILT range | -20°~90° auto-flip |
| Auto tracking | Yes |
| Automatic functions | 300 presets, 8 tour(32 presety), 5 pattern, 5 auto scan |
| Ai - Perimeter protection | Intrusion, crossline, fast moving, loitering, people gathering, parking detection |
| &Ai - Object classification | Yes |
| Ai - Face detection | Face detection and tracking, snapshot, attributes and expression recognition |
| &Ai - SMD | Yes |
| Ai - Metadata | People attributes (gender, clothes, color, bag, hat, umbrella), face attributes (gender, age, expression, glasses, mask, beard), vehicle attributes (type, color, logo, seat belts, smoking, calling) |
| Ai - Human/vehicle detection | Human/vehicle classification for crossline and intrusion and fast moving reduces false alarms |
