| Ai - Human/vehicle detection | Recognition of people entering the area and crossing the line reduces false alarms. |
|---|---|
| Fire detection and alarm | Yes |
| Ai - Built-in intelligent functions | Built-in intelligent algorithm of image analisis |
| Temperature measurement range | Low gain: -20°C~150°C High gain: 0°C~550°C |
| Temperature measurement accuracy | Max (±2°C, ±2%) |
| Temperature measurement environment | -20°C~+60°C |
| Flag | TO ORDER |
| Product | BCS-L-TIP94F-THT-Ai1(25) |
| Camera type | Thermal |
| Digital zoom | 4× |
| Gain control | (AGC) Auto / manual |
| RoI | Region of Interest |
| Noise reduction | 3D DNR |
| Image rotate | Mirror, flip 180° |
| Bitrate | H.264: 640 ~ 8192Kbps |
| Video compression | H.265 / H.264 / MJPEG |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711a / G.711mu / AAC / PCM |
| Alarm in | 2 |
| Alarm out | 2 |
| Storage | NAS |
| Memory card slot | microSD 256GB |
| Other interfaces | RS485, BNC |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | 4 |
| Privacy masking | 4 |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF(S/G) |
| Protocols | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x |
| Power supply | PoE |
| Power supply type | 12V DC / PoE(802.3af) / ePoE |
| Power consumption | max 13W |
| Housing color | White |
| IP class | IP67 |
| Surge protection | Surge protection: 6 kV |
| Working environment | -40°C~+70°C max 95% RH |
| Dimensions | 291×103×97mm |
| Weight | 1.5 kg |
| Casing | Metal |
| Ai - Perimeter protection | Intrusion, crossline |
| &Ai - Object classification | Yes |
| Thermal camera sensor | Microbolometric sensor with active absorbing material Vox |
| Thermal camera resolution | 400(H)×300(V) |
| Thermal camera main stream | 1280×1024 / 720P / 400×300 @25/30fps |
| Thermal camera second stream | 640×512 / 400×300 @25/30fps |
| Thermal camera lens | 25 mm |
| Thermal camera aperture | F1.0 |
| Thermal camera angle of view | H: 15.5° V: 11.6° |
| Thermal camera DORI | Person(vehicle) Detect 735(1634)m / Recognize 189(420)m / Identify 95(210)m |
| Temperature measurement | Yes |
| Temperature measurement mode | Spot 12 / Line 12 / Area 12 |
| Cold and Hot Spot Trace | Tracking the coldest and warmest temperature points on screen |
| Pixel size | 17um |
| Thermal sensitivity | 40mK |
| Spectral range | 8~14um |
Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
BCS LINE
BCS-L-TIP94F-THT-Ai1(25)
0,00 € gross

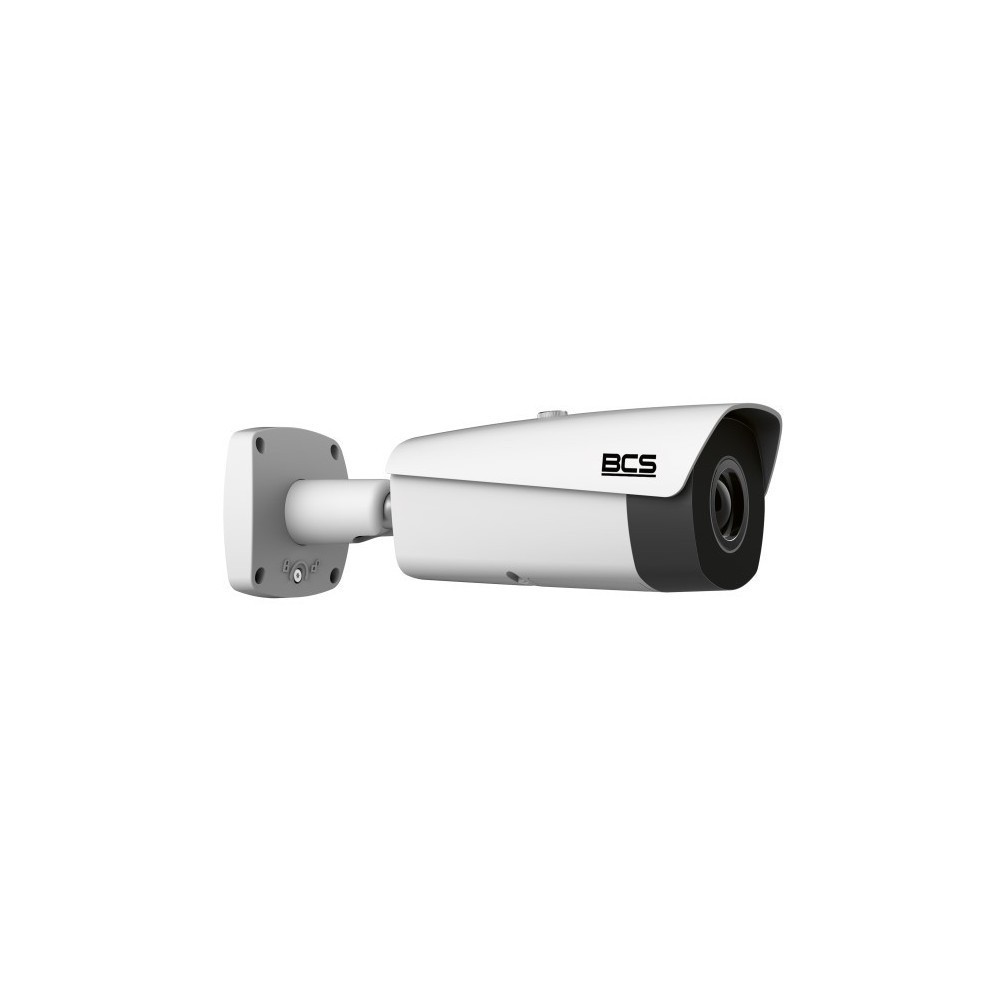

Out of Stock- Tube-type thermal imaging IP camera
- 400×300 thermal sensor with a 25mm lens
- 2/2 alarm, 1/1 audio
- IP67-rated housing
- Fire detection and alarm
- Temperature measurement
- Built-in smart functions
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.
