| Ai - Heat map | Recording the movement of objects over a period of time, statistics of the time density of movement presented graphically in red/blue color tones |
|---|---|
| Product | BCS-L-TSIP5245SR35-Ai2 |
| Camera type | PTZ |
| Sensor | 1/2.8'' CMOS STARVIS |
| Lens | motozoom |
| Iris | Auto / manual |
| DORI | Detect 2345m / Observe 938m / Recognize 469m / Identify 234m |
| WDR | 120dB |
| RoI | Region of Interest |
| Ai - Built-in intelligent functions | Built-in intelligent algorithm of image analisis |
| Flag | TO ORDER |
| Main stream | 1920×1080 / 1280×960 / 1280×720(50/60fps) |
| Min illumination | 0.005Lux(Color,F1.6) 0.0005Lux(F1.6,B/W) 0Lux(B/W,IR) |
| Resolution | 2 Mpx |
| Scanning system | Progressive Scan |
| Pixels | 1920(H)×1080(V) |
| Focal length | 3.95~177.7 mm |
| Aperture | F 1.6~4.95 |
| Focus | Auto / manual |
| Optical zoom | 45× |
| Digital zoom | 16× |
| Angle of view | H:70.3°~1.8° |
| S/N ratio | 56dB |
| White balance | (AWB) Auto / manual |
| Backlight compensation | BLC / HLC / WDR(120dB) |
| Shutter | Auto / manual 1~1/30000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 2D/3D DNR |
| Image Stabilization | Electronic (EIS) |
| Defog | Electronic |
| Image rotate | Flip 180° |
| Stream support | 3 |
| Resolutions | 2M(1920×1080) / 1.3M(1280×960) / 720P(1280×720) / D1(704×576/704×480) / CIF(352×288/352×240) |
| Second stream | 704×576 / 704×480 / 352×288 / 352×240(25/30fps) |
| Third stream | 1920×1080 / 1280×960 / 1280×720 / 704×576 / 704×480 / 352×288 / 352×240(25/30fps) |
| Bitrate | 448Kbps~8192Kbps |
| Video compression | H.265 / H.265+ / H.264+ / H.264 |
| Day/night | ICR mechanical infrared filter |
| Illuminator type | IR LED |
| IR range | 350m |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711a / G.711mu / PCM / G.726 / AAC / G722.1 / G.729 / MPEG2-Layer2 |
| Alarm in | 7 |
| Alarm out | 2 |
| Storage | NAS |
| Memory card slot | microSD 256GB |
| Other interfaces | RS485, BNC |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | 4 |
| Privacy masking | 24 |
| Network | RJ-45 10/100 Mbps |
| Compatibility | ONVIF(S/G) |
| Protocols | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP,DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x |
| Power supply | PoE |
| Power supply type | 24V AC / PoE(802.3bt) |
| Power consumption | max 80W |
| Housing color | White |
| IP class | IP68 |
| Built-in heater | Yes |
| Surge protection | TVS 8kV |
| Working environment | AC 24V: -50°C ~ 70°C Hi-PoE : -40°C ~ 70°C |
| Dimensions | Ø234mm×205×405.5mm |
| Weight | 9.8kg |
| PAN speed | 0.1°/s~120°/s(120°/s preset) |
| TILT speed | 0.1°/s~60°/s(60°/s preset) |
| PAN range | 0°~360° |
| TILT range | 0°~360° (-55°~223°) |
| Auto tracking | Yes |
| Automatic functions | 300 presets, 8 tour(32 presety), 5 pattern, 5 auto scan |
| Casing | Metal |
| Ai - Perimeter protection | Crossline, intrusion |
| Ai - Smart object detection | Intelligent detection missing/abandoned objects |
| Ai - Face detection | Face detection and tracking, snapshot, attributes and expression recognition |
Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
BCS LINE

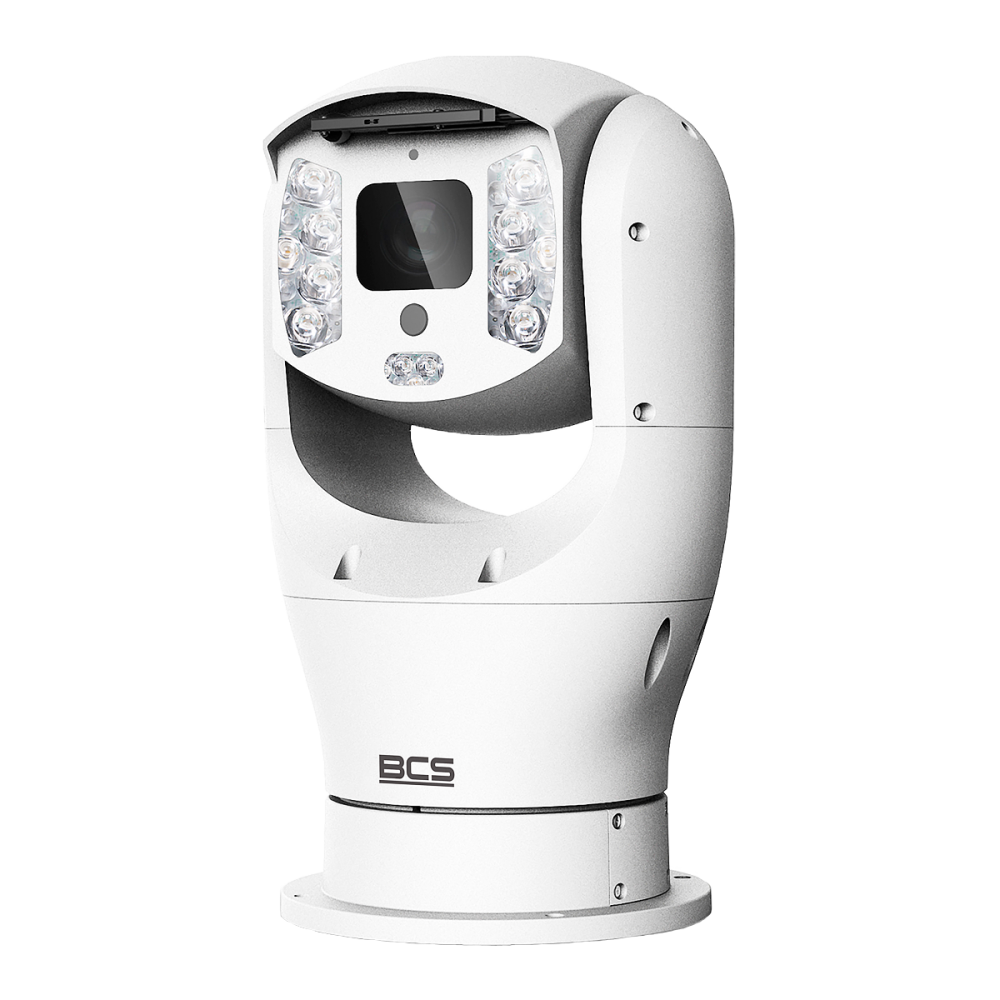

BCS-L-TSIP5245SR35-Ai2
0,00 € gross
Out of Stock- 2Mpx pan-tilt IP camera
- 1/2.8" STARVIS PS CMOS sensor
- SkyLight technology
- 3.95–177.7 mm motorised zoom lens
- 45x optical zoom
- WDR 120dB
- IR 350m
- Alarm 7/2, audio 1/1
- IP68-rated housing
- Built-in smart features
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.
