| Power consumption (without HDD) | max 7W |
|---|---|
| Ai - Built-in intelligent functions | Yes |
| Ai - Intelligent functions from recorder | Perimeter protection (human/vehicle recognition), smart motion detection (human/vehicle recognition), face detection, face recognition |
| Ai - SMD - Smart Motion Detection | 8 channels analog HD |
| Product | BCS-L-XVR0801(6) |
| Transmission standard | HD-CVI / AHD / HD-TVI / ANALOG / IP |
| System | Analog HD + IP |
| Pentaplex function | Live view / recording / playback / archiving / remote access |
| Channels | 8 |
| HDD support | 1 |
| HDD capacity | 16 TB |
| Max recording resolution | 5 Mpx |
| Incoming bandwidth | 64Mbps |
| Outgoing bandwidth | 64Mbps |
| Recording bandwidth | 64Mbps |
| HD-CVI camera | 5M@20fps, 5M@25fps, 5M@10/12.5fps, 4M@25/30fps, 1080p@25/30fps, 720p@50/60fps, 720p@25/30fps |
| AHD camera | 5M@20fps, 4M@25/30fps, 1080p@25/30fps, 720p@25/30fps |
| HD-TVI camera | 5M@20fps, 4M@25/30fps, 1080p@25/30fps, 720p@25/30fps |
| ANALOG camera | CVBS PAL/NTSC |
| XVR - IP camera | 6M |
| XVR - IP channels | 8+4 |
| Recording resolutions | 5M / 5M Lite / 4M Lite / 1080P / 1080N / 720P / 960H / D1 / CIF |
| Main stream | 5M(6fps)/CH1~4, 5M Lite(12fps), 4M Lite/1080P(15fps), 1080N/720P/960H/D1/CIF(25/30fps) |
| Second stream | D1/CIF(15fps) |
| Bitrate | 32Kbps~6144Kbps |
| Video compression | H.265+ / H265 / H.264+ / H.264 / Ai coding |
| HDMI out | HDMI |
| VGA out | VGA |
| HDMI display resolutions | 1920×1080 / 1280×1024 / 1280×720 |
| VGA display resolutions | 1920×1080 / 1280×1024 / 1280×720 |
| Display split | 1/4/8/9 (1/4/8/9/16 IP) |
| Synchronous playback | 1/4/9 |
| Archiving | Possibility to download material to external media such as USB FLASH, USB HDD |
| User connections | 128 |
| Interfaces | 2×USB2.0 |
| Serial port | RS485 |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711A / G.711U / PCM |
| Support | Local, Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | Areas: 396(22×18) |
| Privacy masking | 4 |
| Network | RJ-45(10/100Mbps) |
| Compatibility | ONVIF |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, DDNS, Alarm Server, P2P, Auto Registration |
| Power supply | 12V DC |
| Working environment | -10°C~+55°C max 90% RH |
| Casing | 1U |
| Dimensions (W×D×H) | 260×235×47mm |
| Weight (without HDD) | 1 kg |
| POS | Yes |
| Ai - Perimeter protection | 4 channels analog HD |
| &Ai - Object classification | Yes |
| Ai - Face detection | 2 channel analog HD, face attributes (gender, age, glasses, expression, mask, beard), max 12 pictures for second |
| &Ai - SMD | Yes |
| Ai - Face recognition | 2 channels analog HD, max. 8 pictures/second, 10 databases, 10k face pictures |
Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
BCS LINE

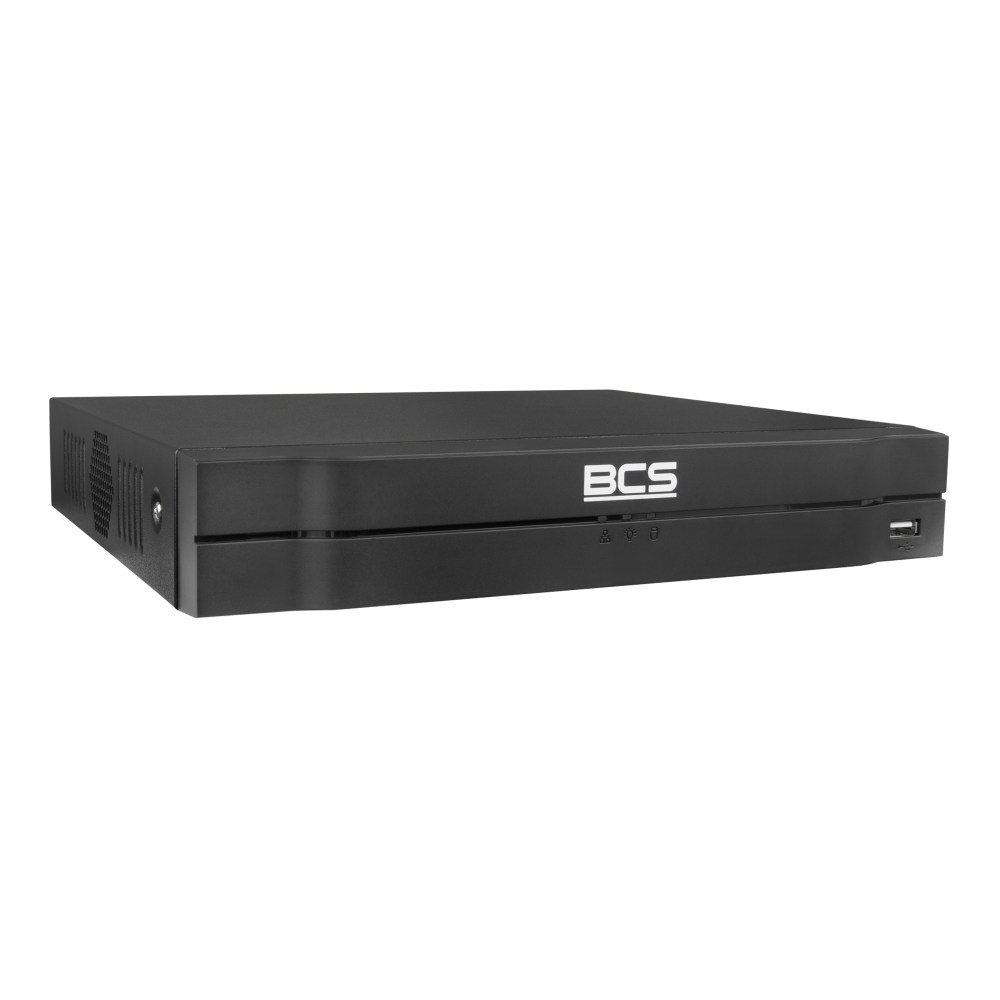

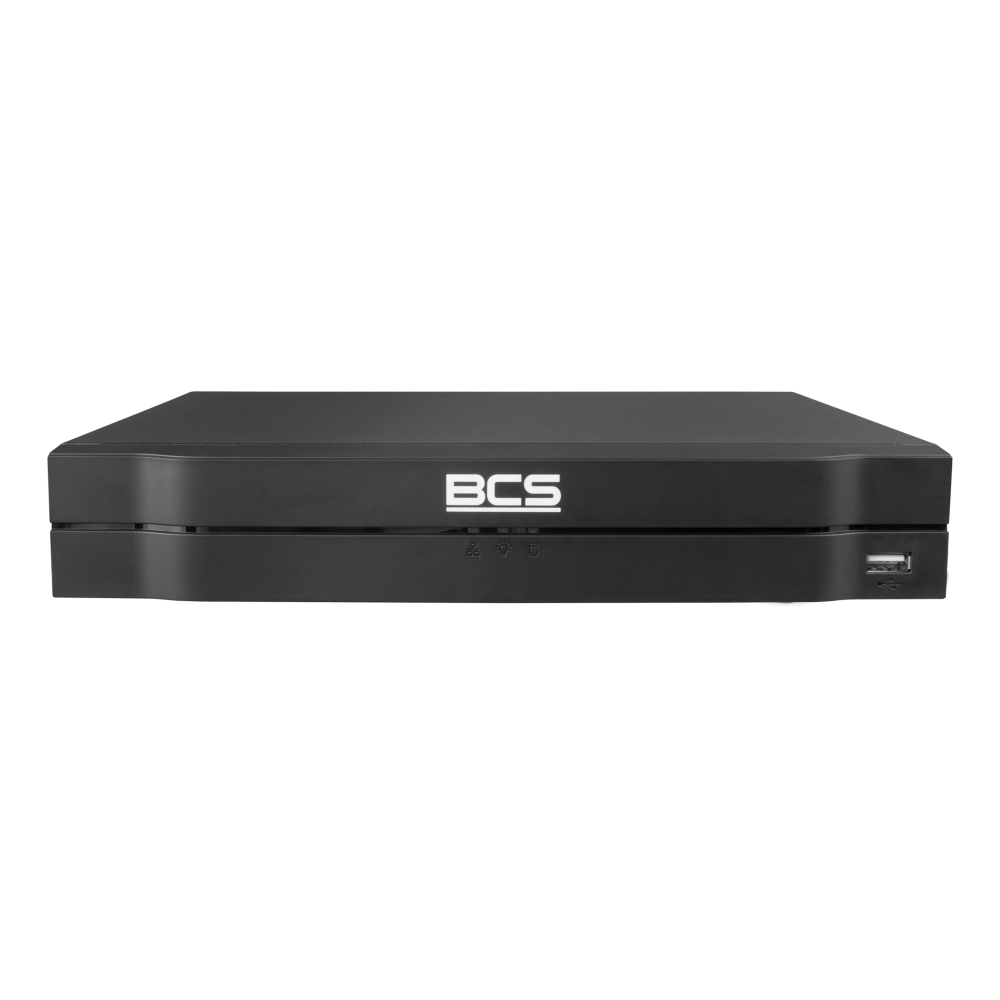

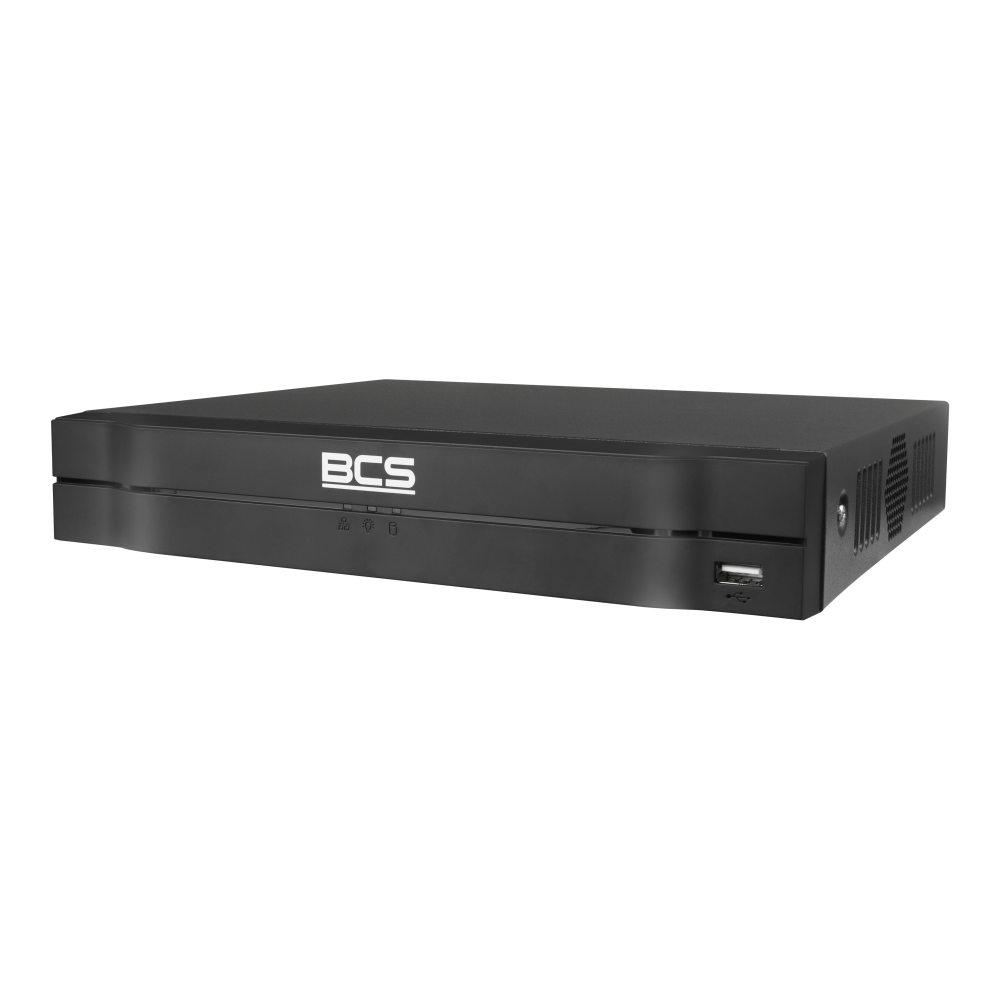

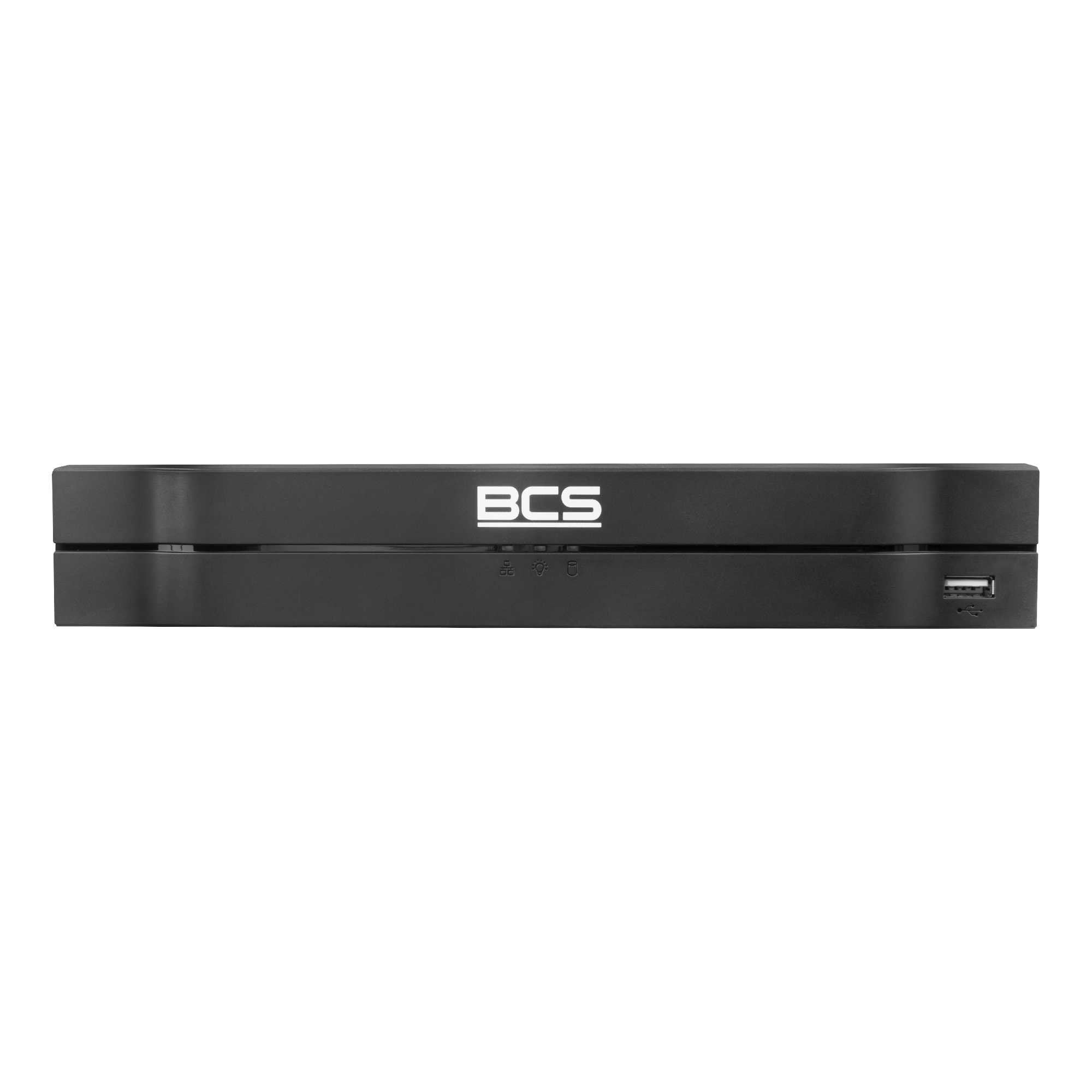

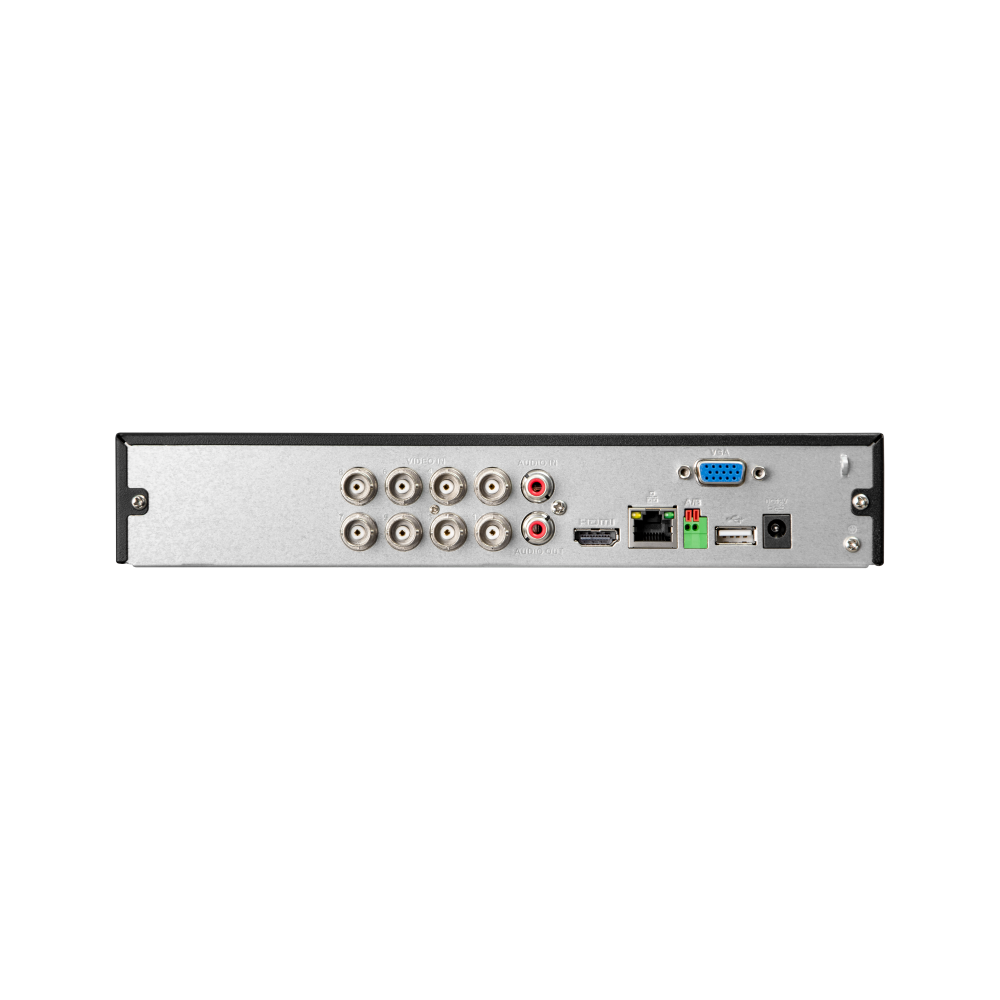

BCS-L-XVR0801(6)
277,98 € gross
Out of StockOut of stock
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.
