| Power consumption (without HDD) | max 16W |
|---|---|
| Ai - Built-in intelligent functions | Yes |
| Ai - Intelligent functions from recorder | Perimeter protection (human/vehicle recognition), smart motion detection (human/vehicle recognition), face detection, face recognition |
| Ai - SMD - Smart Motion Detection | 32 kanałów analog HD |
| Product | BCS-L-XVR3202(6) |
| Transmission standard | HD-CVI / AHD / HD-TVI / ANALOG / IP |
| System | Analog HD + IP |
| Pentaplex function | Live view / recording / playback / archiving / remote access |
| Channels | 32 |
| HDD support | 2 |
| HDD capacity | 16 TB |
| Max recording resolution | 5 Mpx |
| Incoming bandwidth | 192Mbps |
| Outgoing bandwidth | 192Mbps |
| Recording bandwidth | 192Mbps |
| HD-CVI camera | 5 MP@25 fps; 5 MP@20 fps; 5 MP@10/12.5 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@50/60 fps; 720p@25/30fps |
| AHD camera | 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30fps; 720p@25/30 fps |
| HD-TVI camera | 5 MP(2560 x 1944)@20 fps; 5 MP(2960 x1665)@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps |
| ANALOG camera | CVBS PAL/NTSC |
| XVR - IP camera | 6M |
| XVR - IP channels | 32+16 |
| Basic mode | Strumień główny: Ch1-4;17-20 5M-N@(25fps)/4M-N/1080p@(30 fps), pozostałe 5M-N@(12fps); 4M-N/1080p@(15fps); 1080N/720p/960H/D1/CIF@(30fps) Strumień drugi: D1/CIF@(15fps) |
| Extended mode | Strumień główny: Ch1-8;17-24 5M-N@(20fps)/4M-N/1080p@(25fps), pozostałe 5M-N@(12fps); (4 kanały 5MP@6 fps),4M-N/1080p@(15fps); 1080N/720p/960H/D1/CIF@(30fps) Strumień drugi: D1/CIF@(15fps) |
| Bitrate | 32Kbps~6144Kbps |
| Video compression | H.265+ / H265 / H.264+ / H.264 / Ai coding |
| HDMI out | HDMI4K |
| VGA out | VGA |
| HDMI display resolutions | 3840×2160 / 1920×1080 / 1280×1024 / 1280×720 |
| VGA display resolutions | 1920×1080 / 1280×1024 / 1280×720 |
| Display split | 1/4/8/9/16/25/36 second screen 1/4/8/9/16 |
| Synchronous playback | 1/4/9/16 |
| Archiving | Possibility to download material to external media such as USB FLASH, USB HDD |
| User connections | 128 |
| Interfaces | 1×USB2.0, 1×USB3.0 |
| Serial port | RS485 |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711A / G.711U / PCM |
| Support | Local, Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | Yes |
| Privacy masking | Tak |
| Network | RJ-45(10/100/1000Mbps) |
| Compatibility | ONVIF |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, FTP, DDNS, SNMP, Alarm Server, P2P, Auto Registration, IP Search |
| Power supply | 12V DC |
| Working environment | -10°C~+55°C max 90% RH |
| Casing | 1U |
| Dimensions (W×D×H) | 375×289×53mm |
| Weight (without HDD) | 1.9 kg |
| POS | Yes |
| Ai - Perimeter protection | 8 channels analog HD |
| &Ai - Object classification | Yes |
| Ai - Face detection | 2 channel analog HD, face attributes (gender, age, glasses, expression, mask, beard), max 12 pictures for second |
| &Ai - SMD | Yes |
| Ai - Face recognition | 2 channels analog HD, max. 12 pictures for second, up to 10 databases, 10k pictures |
Warning: This product belongs to the BCS LINE product line.
Use only components and devices from the same line to ensure compatibility.
BCS LINE

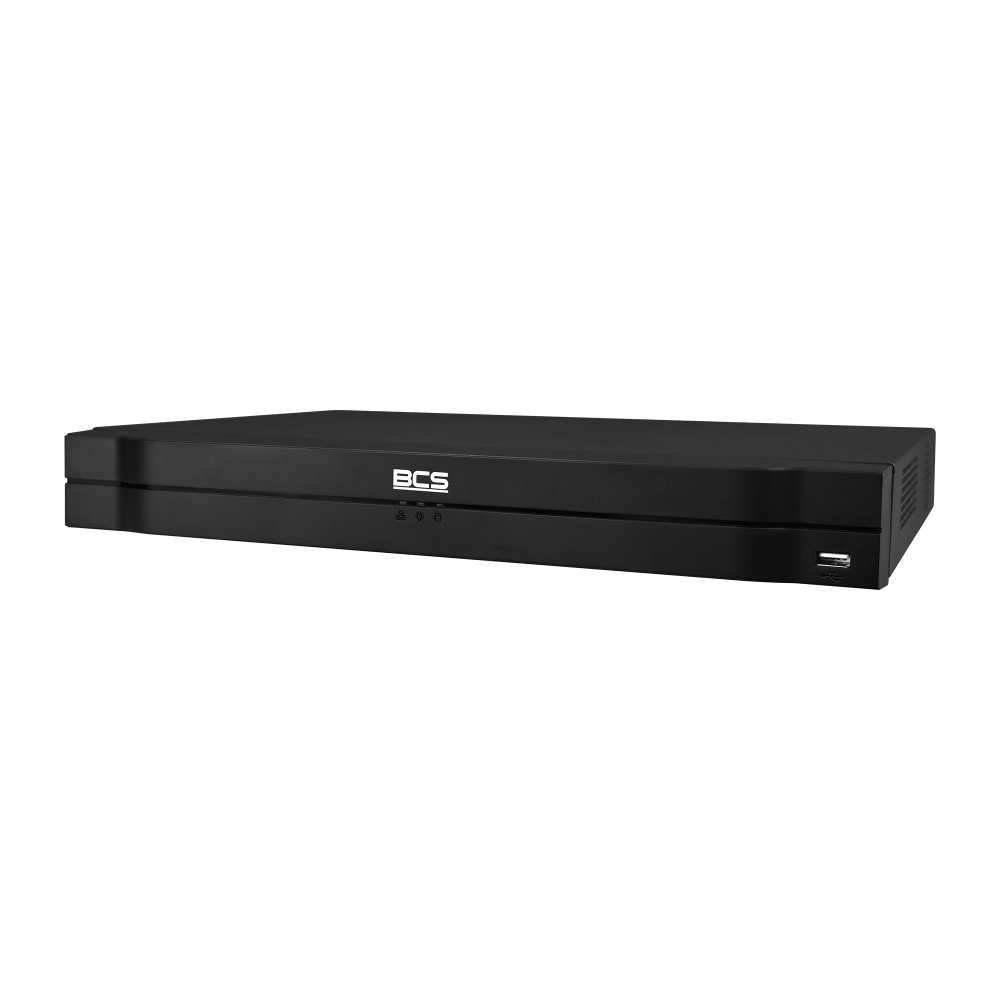

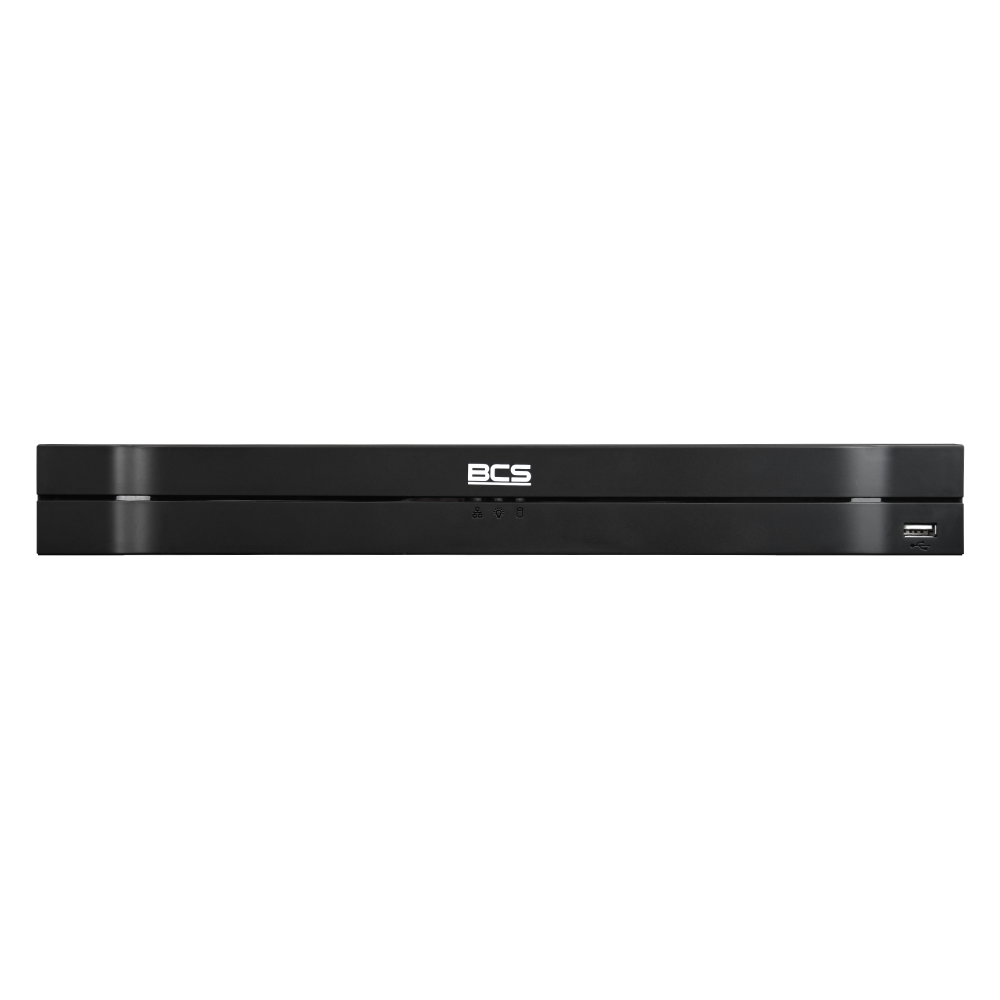

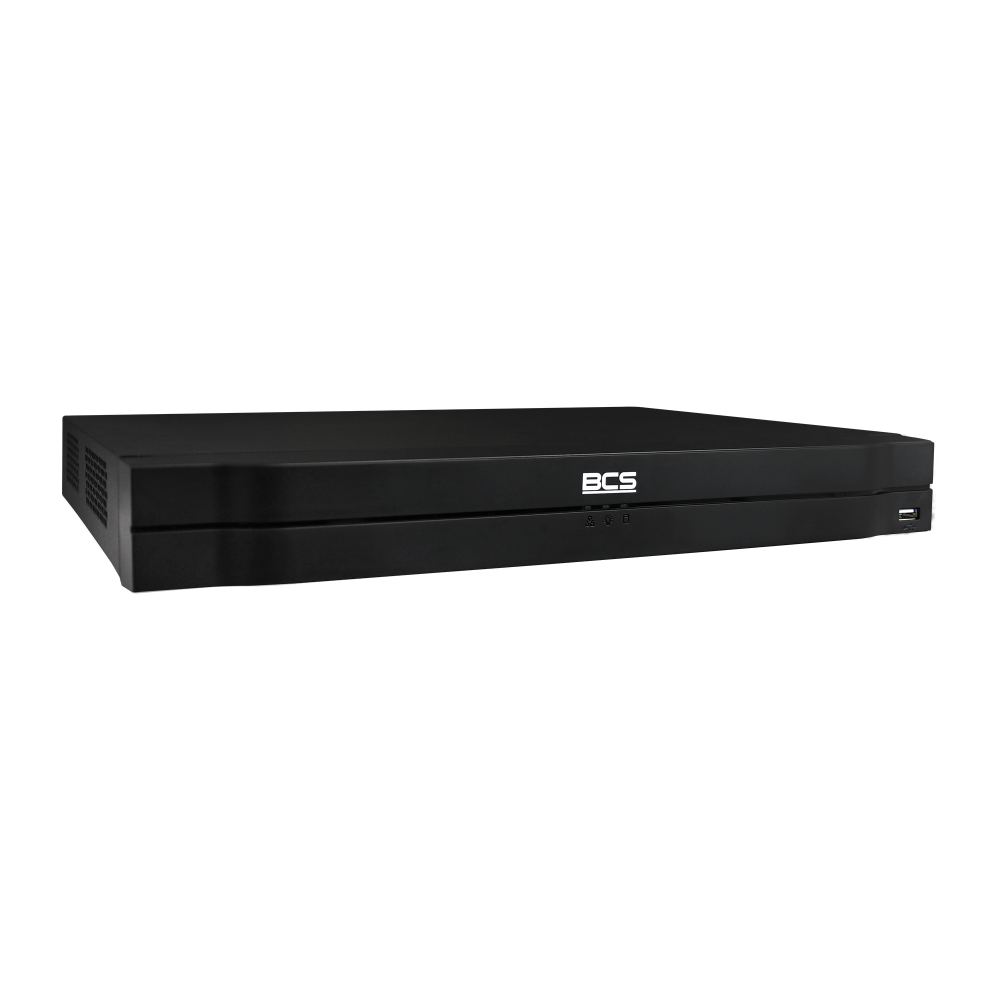

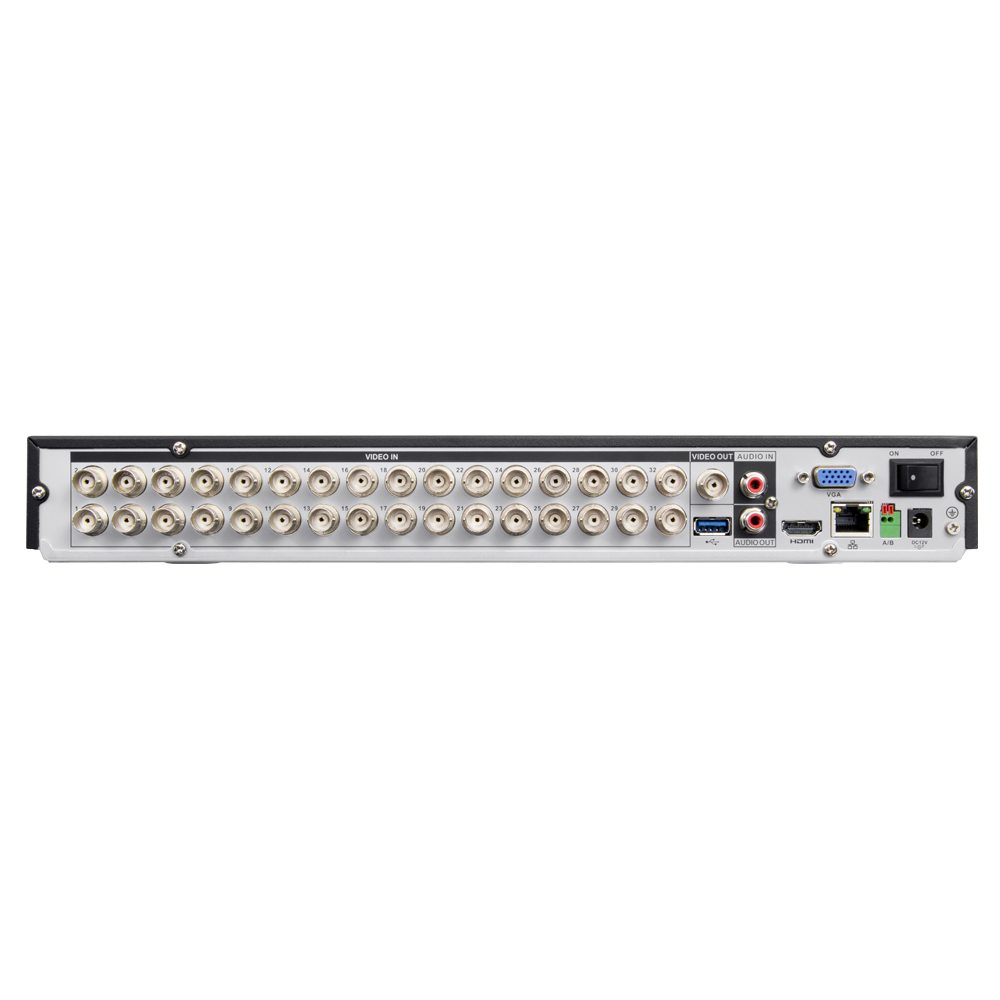

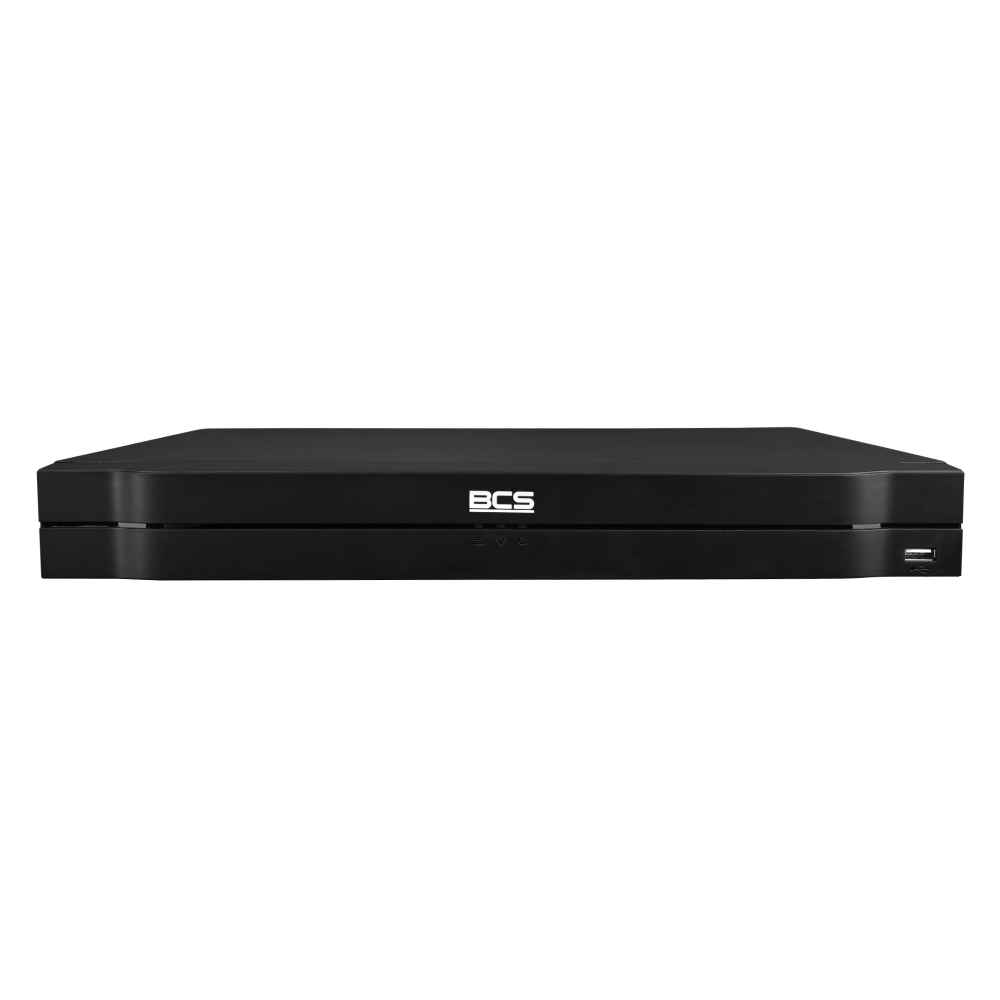

BCS-L-XVR3202(6)
984,00 € gross
Out of Stock- 32-channel, 5-system recorder
- HDCVI/AHD/TVI/ANALOGUE/IP
- Supports 2 hard drives
- Supports 5Mpx analogue HD and 6Mpx IP cameras.
- HDMI 4K/VGA output
- Audio 1/1
- Built-in smart features
Out of stock
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.
