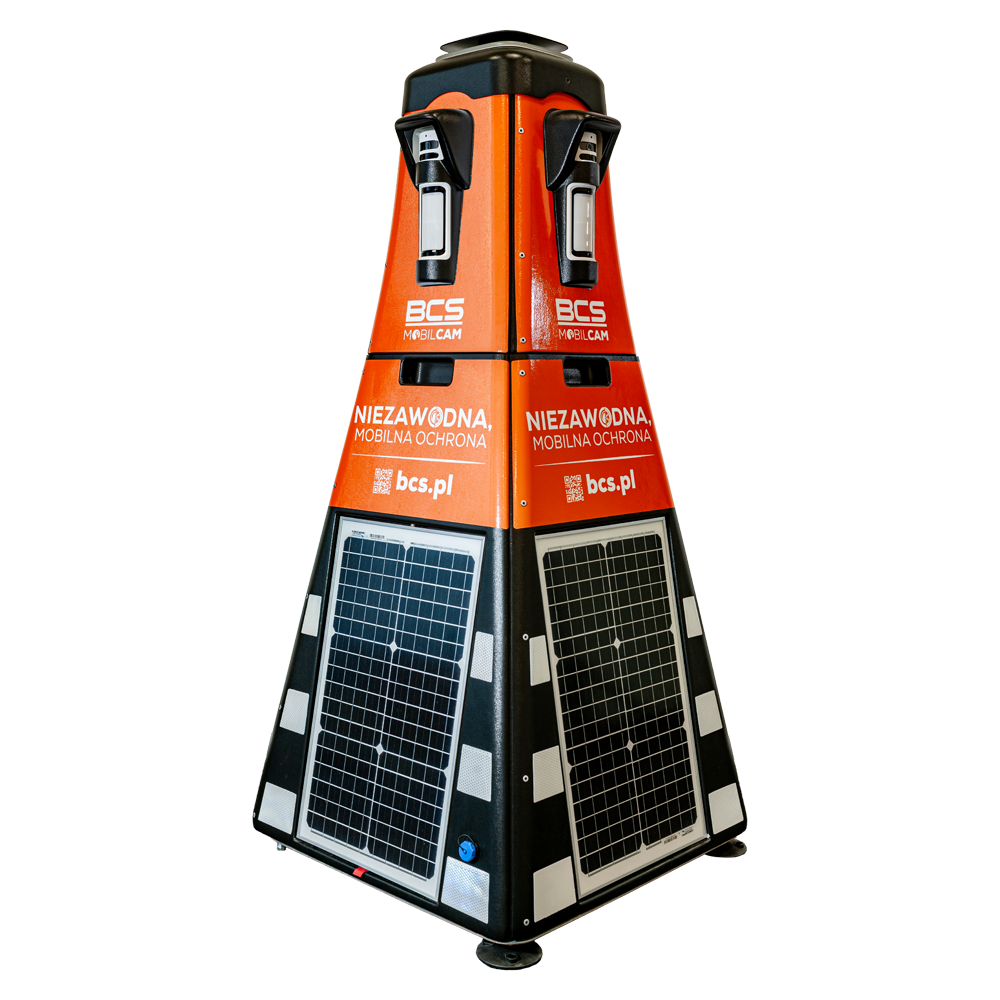

Mini Tower is a stand-alone alarm post designed to protect building sites, car parks, warehouses, temporary facilities and outdoor events – to name but a few. The system is based on an alarm control panel and four detectors fitted with cameras, which detect intruders and enable immediate visual verification of the alarm – even at night. The BCS-MCAM02 (AirShield) system offers LAN, Wi-Fi and LTE Dual SIM connectivity. In the event of an alarm, a siren with a sound level of up to 105 dB is triggered, along with a notification featuring footage of the incident. The Mini Tower features a fully wireless architecture and an autonomous power supply based on a 33Ah gel battery and a 30W solar panel utilising Victron components, enabling it to operate without a constant power source. It is ideal for mobile security, fleet monitoring and securing equipment operating in the field. Fitted with a Pulson LE-910 transmitter, it enables GPS monitoring and telemetry, allowing for real-time position tracking and data transmission to the monitoring centre. The kit includes a customised wrap featuring the client’s logos, allowing the Mini Tower to be fully tailored to the company’s corporate identity and ensuring professional brand exposure within the protected area. A post charger is available as an optional extra, enabling convenient and rapid charging of the system during servicing or installation.
Control unit:
- Inputs/outputs Alarm inputs: up to 64 (expandable)
- Alarm outputs: up to 64 (expandable)
- System supporting up to 150 devices
- (wireless + wired)
- Remote controls: up to 64, Keypads: up to 8, Sirens: up to 6 (including 4 intercom sirens), Repeaters: up to 4, PIR-Cam / detectors: up to 64, Zones: 32
- Network Communication mode: LAN / Wi-Fi / LTE
- (dual SIM – 1 active)
- LAN port: 1× RJ-45 (100 Mbps)
- Power supply: 4750 mAh battery (built-in)
- Video/Audio: Up to 8 IP cameras
- Audio: 1 channel, Volume control: Yes
- Voice announcements: Yes (local speaker / telephone)
- Control: app / keypad / remote control / card / SMS / schedule; SMS notifications to up to 12 numbers
- Calls to up to 12 numbers
- Event log: up to 50 offline + up to 5,000 logs
- Users: 33 users (1 admin + 31 users + 1 installer)
- RF communication: 868 MHz band
- Transmission power: 25 mW
- Range: up to 2,000 m
- Two-way communication
- AES128 encryption
- Language Support for 17 languages (English by default)
- Power supply: 100–240 V AC
- Battery life up to 12 h, Power consumption 80 mA (max) / 40 mA (standby)
- Operating conditions: Temperature: -10°C to +55°C
- Battery charging 0°C to +45°C
- Humidity: 10–90%
- Housing Material: PC + ABS
- Dimensions: 174.8 × 174.8 × 38.3 mm
- Net weight: 510 g
- Storage temperature: -10°C to +55°C
- Storage humidity 10–90%
- Wi-Fi Standard: IEEE 802.11 b/g/n
- Frequency band: 2.4 GHz (2400–2483.5 MHz)
- Transmission power ≤20 dBm
- Mobile network standard: LTE / 3G / 2G LTE (EU): B1 / B3 / B7 / B8 / B20 / B28 ATDD: B38 / B40 / B41
- 3G WCDMA: B1 / B8
- 2G GSM: 900 / 1800 MHz
- Transmitter power
- (EIRP) 4G 23 dBm ±2 dB
- 3G 24 dBm ±1 / -3 dB
- 2G 30–33 dBm
Sensor:
- Video Field of view 110° (H) / 60° (V)
- Range up to 15 m
- Sensitivity: 3 levels
- Pet immunity: up to 40 kg / 80 cm
- Frequency band: 868 MHz
- RF range up to 1600 m
- RF-HD range up to 1,400 m
- Two-way communication
- IR (infrared) illumination IR range up to 15 m
- Image format: JPEG Resolution: 1280×960 / 640×480 / 320×240 / 160×120 / Frame rate: 2 fps
- Day/night mode: Colour / black and white
- IR (infrared) illumination IR range up to 15 m
- Power supply: 4× CR123A batteries; Operating life: ~3.5 years
- Operating conditions: Temperature -25°C to +60°C; Humidity 10–90%
