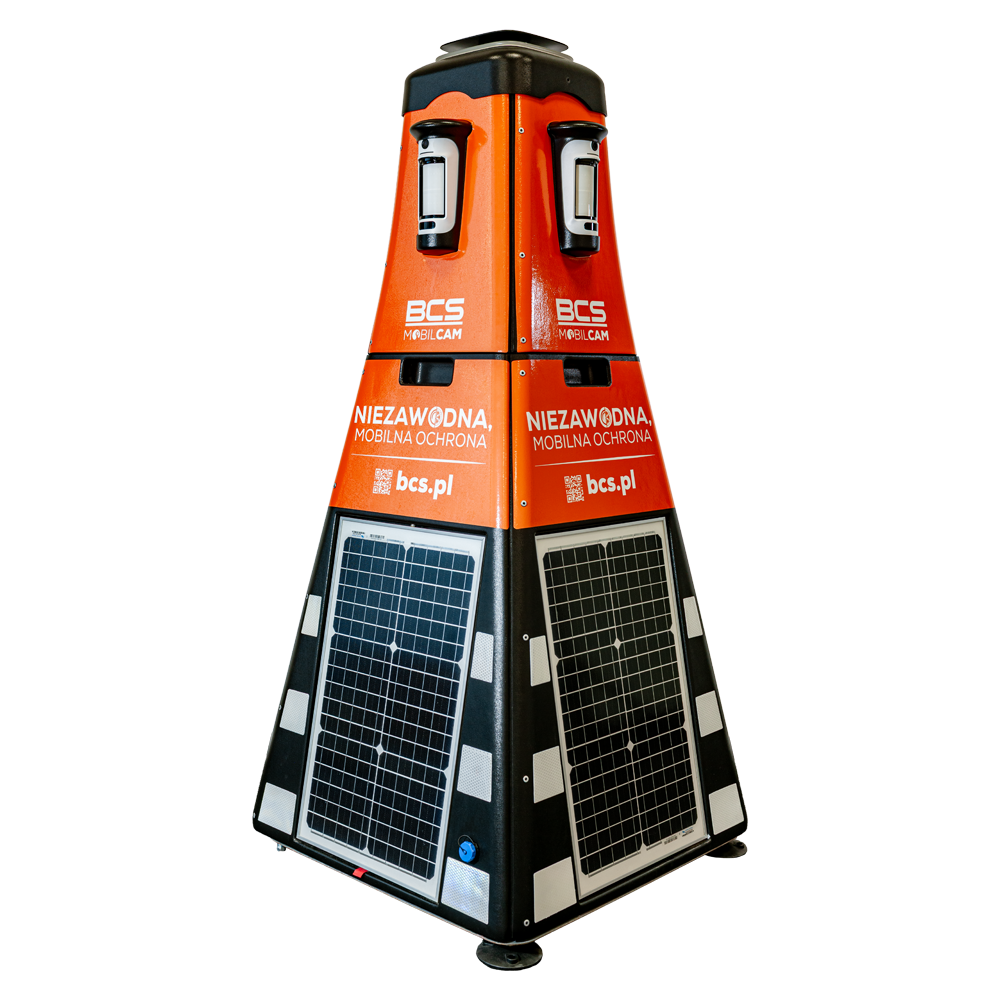

Mini Tower is a stand-alone alarm post designed to protect building sites, car parks, warehouses, temporary facilities and outdoor events – to name but a few. The system is based on an alarm control panel and four detectors fitted with cameras, which detect intruders and enable immediate visual verification of the alarm – even at night. The BCS-MCAM02 (Ajax) system offers LAN, Wi-Fi and LTE Dual SIM connectivity. In the event of an alarm, a siren with a sound level of up to 105 dB is triggered, along with a notification featuring footage of the incident. The Mini Tower features a fully wireless architecture and an autonomous power supply based on a 33Ah gel battery and a 30W solar panel utilising Victron components, enabling it to operate without a constant power source. It is ideal for mobile security, fleet monitoring and securing equipment operating in the field. Fitted with a Pulson LE-910 transmitter, it enables GPS monitoring and telemetry, allowing for real-time position tracking and data transmission to the monitoring centre. The kit includes a customised wrap featuring the client’s logos, allowing the Mini Tower to be fully tailored to the company’s branding and ensuring professional brand visibility within the protected area. A post charger is available as an optional extra, enabling convenient and rapid charging of the system during servicing or installation.
Control panel:
- Up to 100 Ajax wireless devices
- Specifically, up to 10 sirens or keypads with built-in sirens and 5 range extenders.
- IP cameras or DVRs: up to 25
- Seamless integration with IP cameras and DVRs from Dahua, Hikvision, Safire, EZVIZ and Uniview
- RTSP support.
- Up to 50 users
- Wireless communication: Jeweller communication technology
- Two-way communication
- Advanced anti-tampering
- Block cipher with dynamic key
- Instant notifications
- Remote configuration via the Ajax app
- GFSK radio signal modulation
- Radio signal range up to 2,000 m
- Between the hub and connected devices (in open space).
- The maximum range depends on the connected device.
- Encrypted communication Frequency hopping
- The device’s operating voltage is
- 110–240 V
- Ethernet 1 × 8P8C socket up to 100 Mb/s
- GSM: 2 micro-SIM card slots
- Mobile frequencies: 2G GSM900/DCS1800 (B3/B8), 3G WCDMA 850/900/2100 (B1/B5/B8), 4G (LTE)
- Automatic switching between communication channels
- Communication channel priority: 1. Ethernet 2. Mobile connectivity
- Supported notification types: Push notifications, SMS, voice calls
- Photographic verification Alarm photos Scenario-based photos On-demand photos Scheduled photos Photo resolution up to 640 × 480 pixels
- Number of photos per series: 1 to 5 photos
- Supported protocols: SIA (DC-09), SurGard (Contact ID), ADEMCO 685
- Other proprietary protocols
- Mains power supply: 110–240 V~, 50/60 Hz
- Built-in 3 Ah Li-ion battery
- Up to 15 hours of operation in offline mode, with the Ethernet connection disconnected. The Battery Saver function allows you to extend the backup battery life.
- Tamper alarm
- Dimensions 163 × 163 × 36 mm
- Weight: 362 g
- Operating temperature range: −10°C to +40°C
- Operating humidity: up to 75%
- IP20 protection rating
Detectors
- Jeweller communication technology
- Two-way communication.
- Advanced anti-tamper protection.
- Block encryption with a dynamic key.
- Instant notifications.
- Remote configuration via the Ajax app.
- Maximum effective radiated power (ERP) up to 20 mW
- Radio signal range up to 1,700 m between the sensor and the control panel or range extender in open space.
- Encrypted communication Wings communication technology
- Two-way communication.
- Block cipher with a dynamic key.
- Advanced anti-tamper protection.
- Data packet re-transmission in the event of transmission errors.
- Photo delivery verification.
- Radio signal range up to 1,700 m between the sensor and the control panel or range extender in open space.
- Detection
- 2 × PIR sensors
- Motion detection range: 3 to 15 metres
- When installed at a height of 0.8–1.3 m. Adjustable via the adjustment strap on the device housing.
- Motion detection angles
- horizontally — 90°
- vertically — N/A
- Detected movement speed: 0.3 to 2.0 m/s
- Sensitivity: 3 levels
- Pet immunity
- Weight: any
- Height: up to 80 cm
- Temperature compensation Effective motion detection at temperatures ranging from −25°C to +60°C.
- Photographic verification
- Photo resolution: 640 × 352 pixels, 320 × 176 pixels (default)
- This setting can be adjusted via PRO or by a user with administrator rights in the Ajax app.
- Camera viewing angles: horizontal — 105°, vertical — 50°
- IR illumination
- For night-time and low-light photography.
- Photo burst
- from 1 to 5 photos with a resolution of 320 × 176 pixels
- 1 to 3 photos with a resolution of 640 × 352 pixels
- When the hub is connected via Ethernet or 4G, and the Wings signal strength between the hub and the device is 2–3 bars
- It is recommended that the sensor be mounted at a height of 0.8–1.3 m.
- Tamper protection
- Anti-masking system
- 4 × CR123A batteries. Fitted at the factory.
- Expected battery life: up to 3 years
- Entry delay function disabled
- Operating voltage range 4–6.4 V⎓
- Nominal operating voltage: 6 V⎓
- Standby current at rated voltage: 50 μA
- Maximum current draw at rated voltage: 1 A
- Full battery capacity 3200 mAh
- Battery capacity at end of life: 3,080 mAh
- Dimensions 206 × 108 × 93 mm
- Weight: 470 g
- Permissible operating temperature: −25°C to +60°C
- Permissible humidity: up to 95%
- IP56 protection rating
