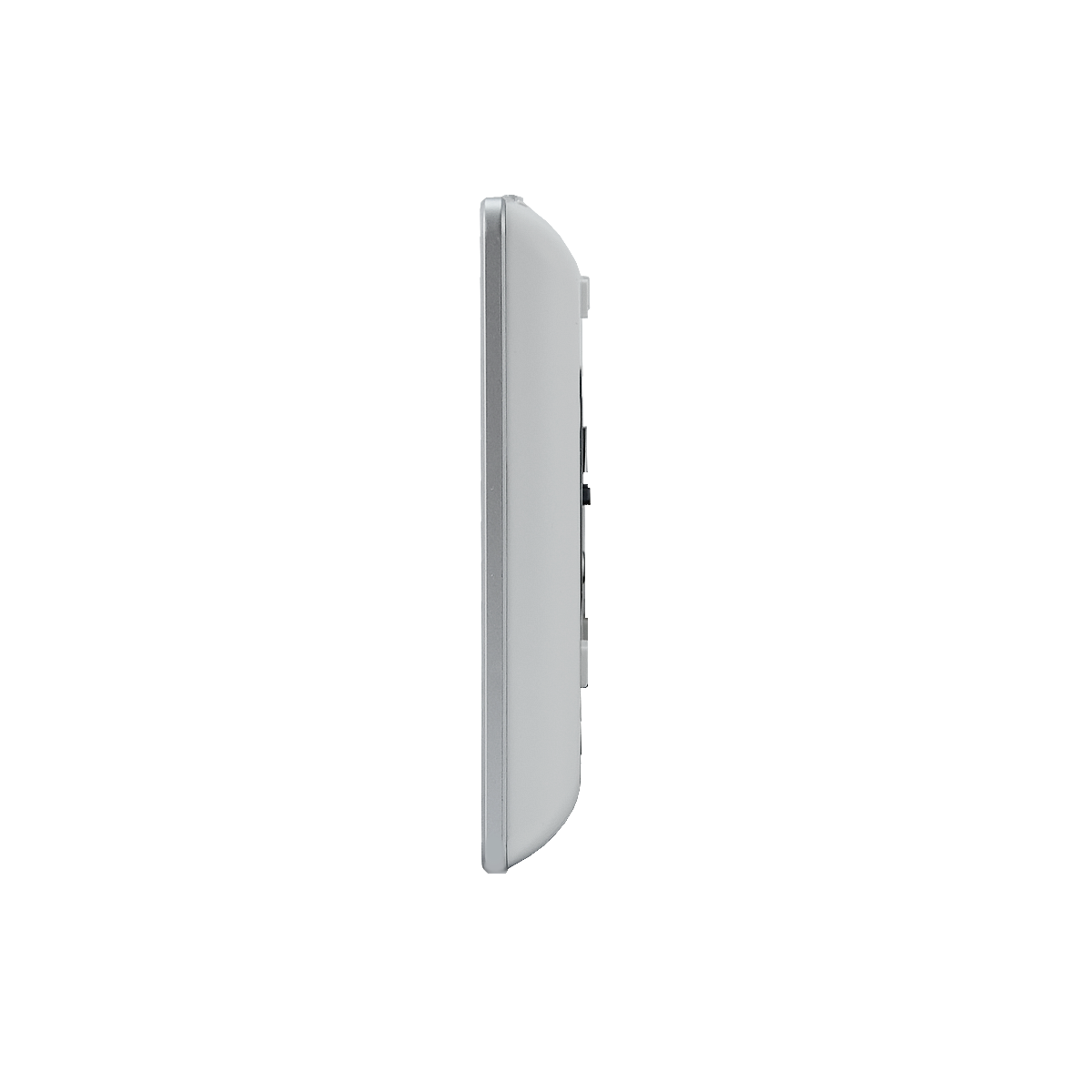

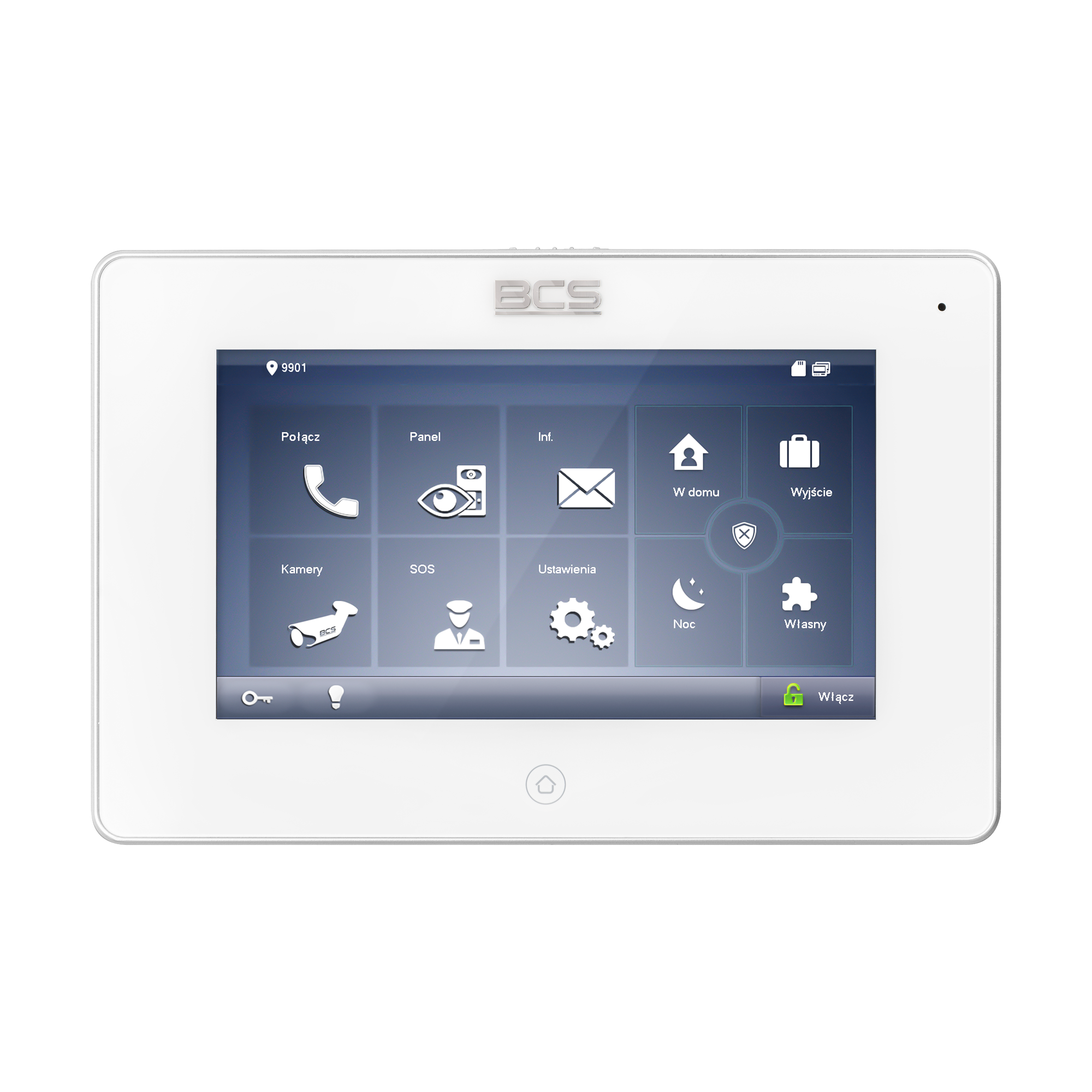

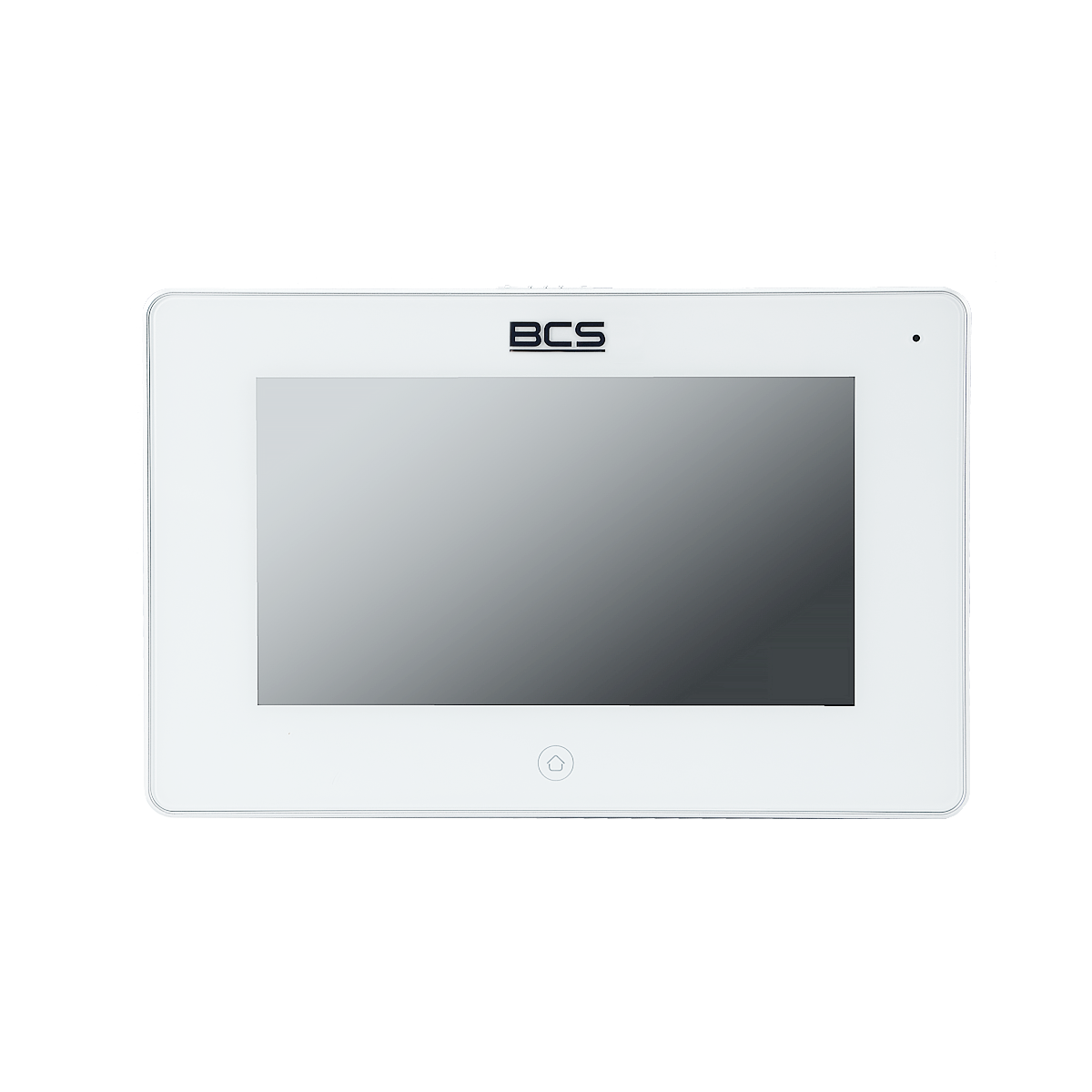

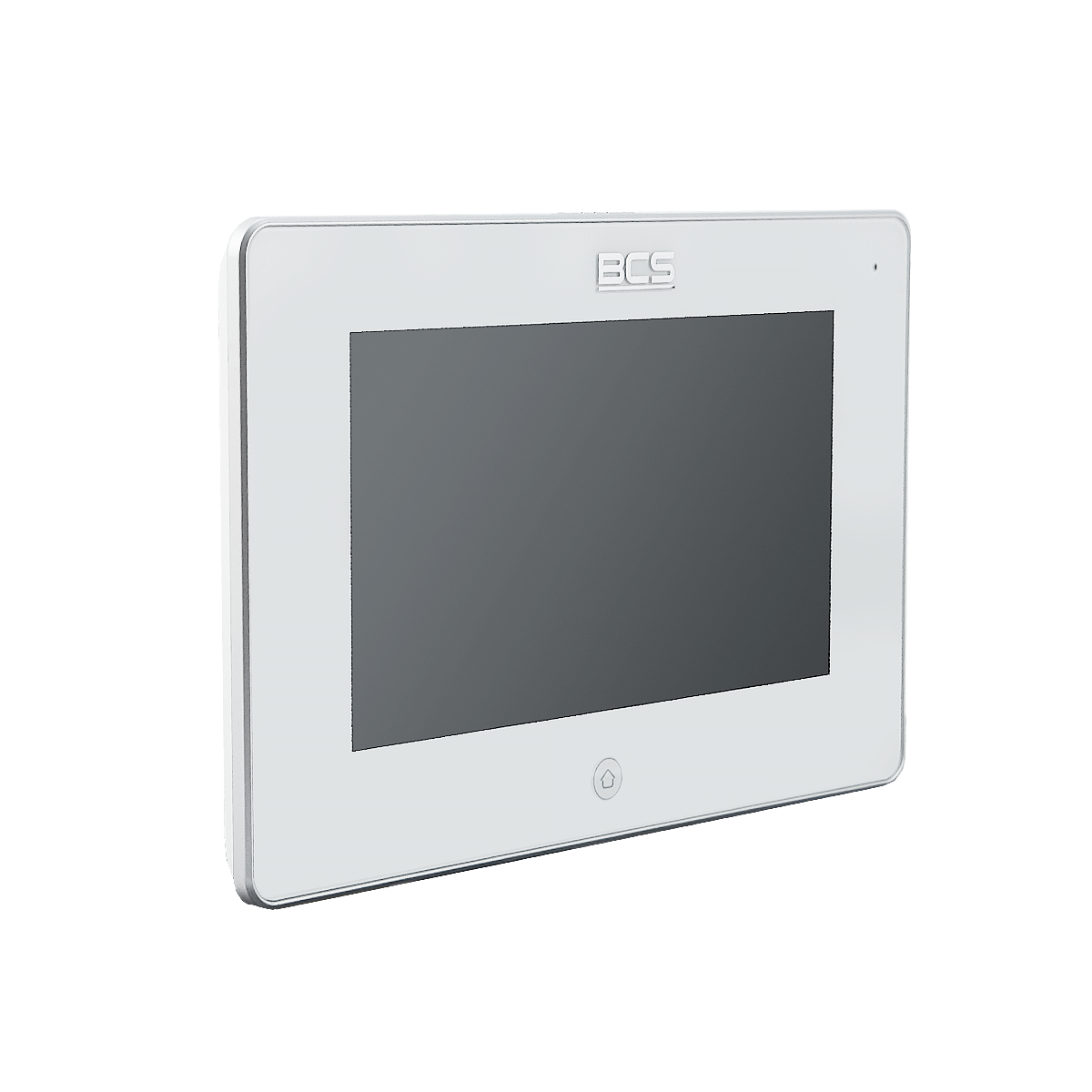

IP video monitor with increased screen resolution. White housing with a silver frame. Capacitive touch screen with a diagonal of 7 “and a resolution of 1024×600. Local management with a graphical interface and sensor quick access buttons. Local power supply 12VDC or PoE (802.3 af). SIP: expansion to up to 10 video monitors and support for up to 10 external panels).
Additionally, the video intercom has a built-in relay output, operating in the “call repeater” mode or in the manual control mode, activated when a call comes in. The ability to independently control two relays in the external panel (applies to the panel with the BCS-MODKD2 relay module), view up to 32 IP cameras (support for BCS LINE cameras and cameras from other manufacturers after Onvif).
The monitor is compatible with all TCP / IP external panels (including SIP) as long as the firmware of the same generation (v1.0 / 3.120 or 4.0 / 4.3 SIP) is used in the entire system.
