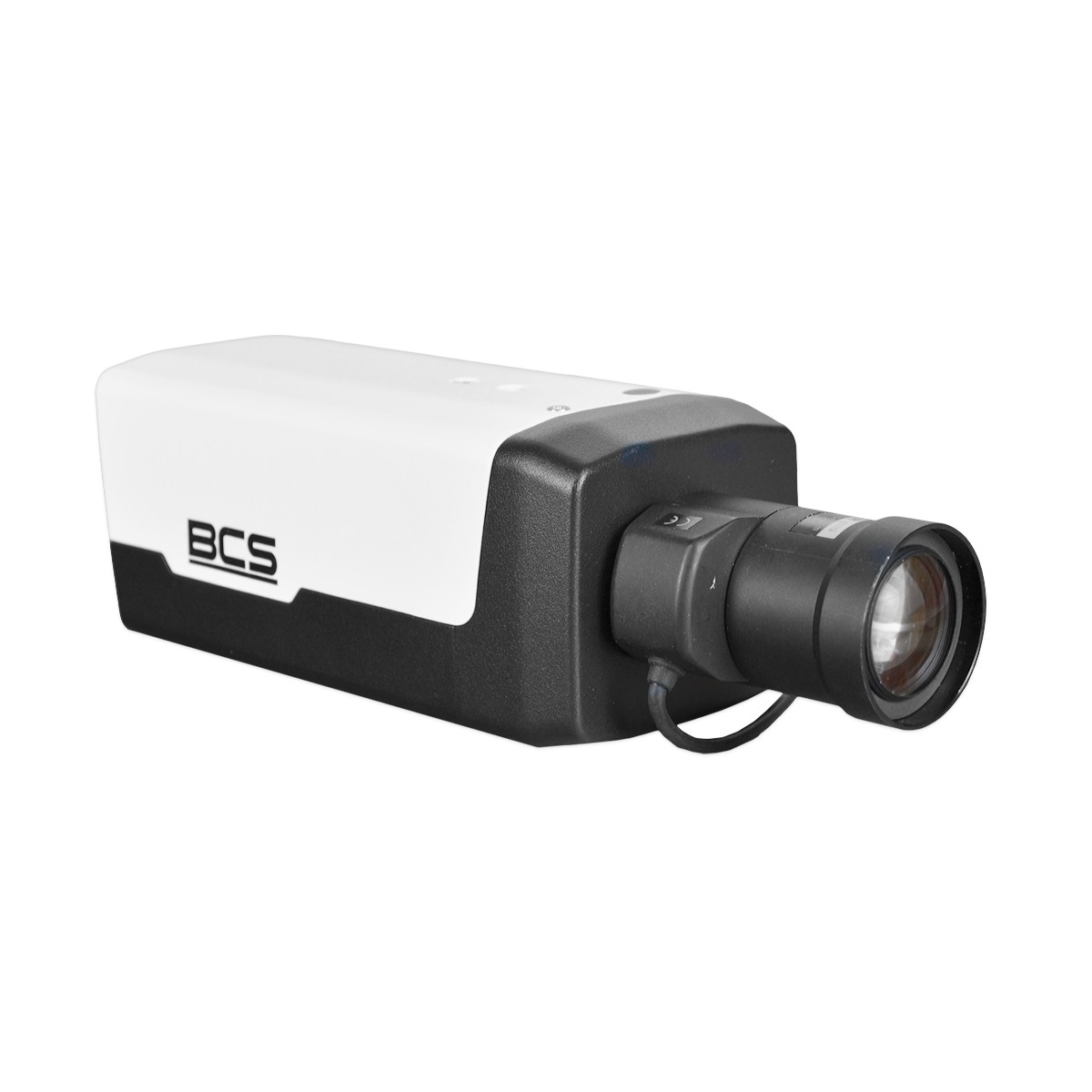

12Mpx compact IP camera, 1/1.7″ PS CMOS sensor with variable lens, support for C / CS lenses, auto Iris, H.265 + / H.264 + / MJPEG, corridor functions, ROI, Defog, DWDR, motion detection, masks privacy, intelligent functions: motion detection, line crossing, intrusion, face detection, audio detection, people counting, 1 audio input and 1 audio output, 2 alarm inputs and 1 alarm output, microSD up to 128GB, SFP, RS485 and BNC video output, white housing, surge protection up to 6KV, power supply: DC12V, AC24V and PoE. Dimensions: Ø151.5 x 71 x 65mm.
Warning: This product belongs to the BCS POINT product line.
Use only components and devices from the same line to ensure compatibility.
BCS POINT
BCS-P-109GSA
0,00 € gross
Out of Stock- Compact 12Mpx IP camera
- 1/1.7" PS CMOS sensor
- SkyLight technology
- NDAA compliance
- C/CS lens
- 2/1 alarm, 1/1 audio
- Built-in smart features
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.
| Ai - Human/vehicle detection | Yes |
|---|---|
| Product | BCS-P-109GSA |
| Camera type | Compact |
| Sensor | 1/1.7'' CMOS |
| Lens | C/CS |
| White balance | (AWB) Auto / manual |
| Gain control | (AGC) Auto / manual |
| Ai - Built-in intelligent functions | Yes |
| Flag | TO ORDER |
| Resolutions | 12M(4000×3000) / 8M(3840×2160) / 2M(1920×1080) / 720P(1280×720) / D1(704×576) / (640×360) / 2CIF(704×288) / CIF(352×288) |
| Resolution | 12 Mpx |
| Scanning system | Progressive Scan |
| Pixels | 4000(H)×3000(V) |
| Digital zoom | 16× |
| Min illumination | 0.005Lux(F1.2,AGC) 0.03Lux(F1.2,AGC) |
| S/N ratio | 55dB |
| WDR | DWDR |
| Backlight compensation | BLC / HLC / DWDR |
| Shutter | Auto / manual 1~1/100000s |
| Noise reduction | 2D/3D DNR |
| Image rotate | Mirror, flip 180° |
| Stream support | 3 |
| Main stream | 4000×3000@20fps 3840×2160@30fps 1920×1080@30fps |
| Second stream | 1920×1080@30fps |
| Third stream | 704×576@30fps 640×360@30fps 704×288@30fps 352×288@30fps |
| Video compression | H.265 / H.265+ / H.264 / H.264+ / MJPEG |
| Day/night | ICR |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711A / G.711U |
| Alarm in | 2 |
| Alarm out | 1 |
| Memory card slot | microSD 128GB |

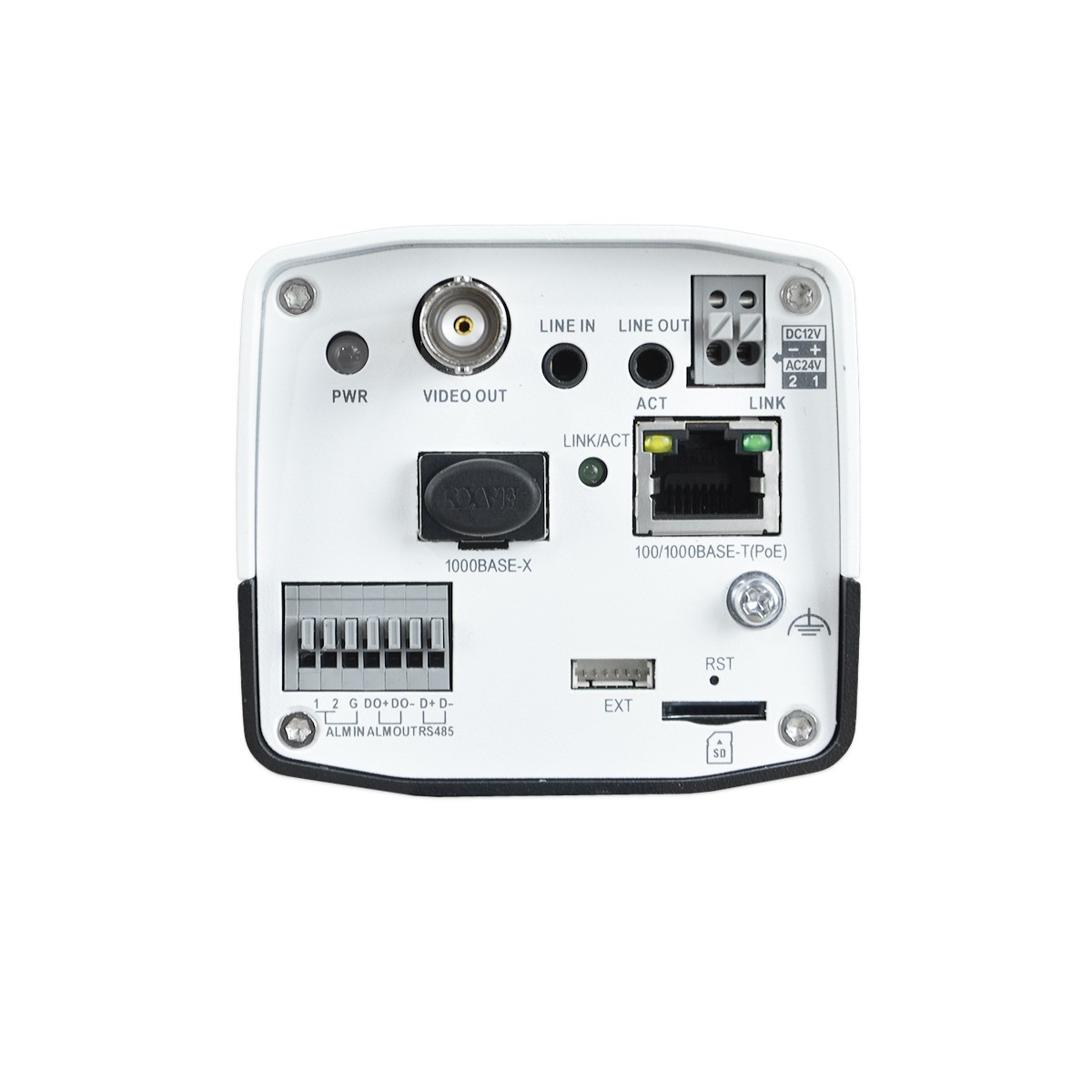

| Other interfaces | RS485, BNC |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | 4 |
| Privacy masking | 4 |
| Network | RJ-45 10/100/1000 Mbps SFP 1Gbps |
| Compatibility | ONVIF |
| Protocols | IPv4, IGMP,ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x |
| Power supply | PoE |
| Power supply type | 12V DC / 24V AC / PoE(802.3af) |
| Power consumption | max 9.5W |
| Housing color | White |
| Working environment | -20°C~+60°C max 95% RH |
| Dimensions | Ø151.5×71×65mm |
| Weight | 0.48kg |
| Ai - Perimeter protection | Yes |
| &Ai - Object classification | Yes |
| Ai - Face detection | Yes |
| Ai - People counting | Yes |
