IP Dome Camera, 2MPX, Transducer 1/2.7″ PS CMOS with lens 2.8mm, H.265 + / H.264 + / MJPEG, infrared iluminator up to 30m, Functions AWB, AGC, AES, BLC, HLC, ROI, D-WDR , Defog, motion detection, privacy masks, outer housing IP67, IK10, power supply: DC 12V, PoE.
Warning: This product belongs to the BCS POINT product line.
Use only components and devices from the same line to ensure compatibility.
BCS POINT

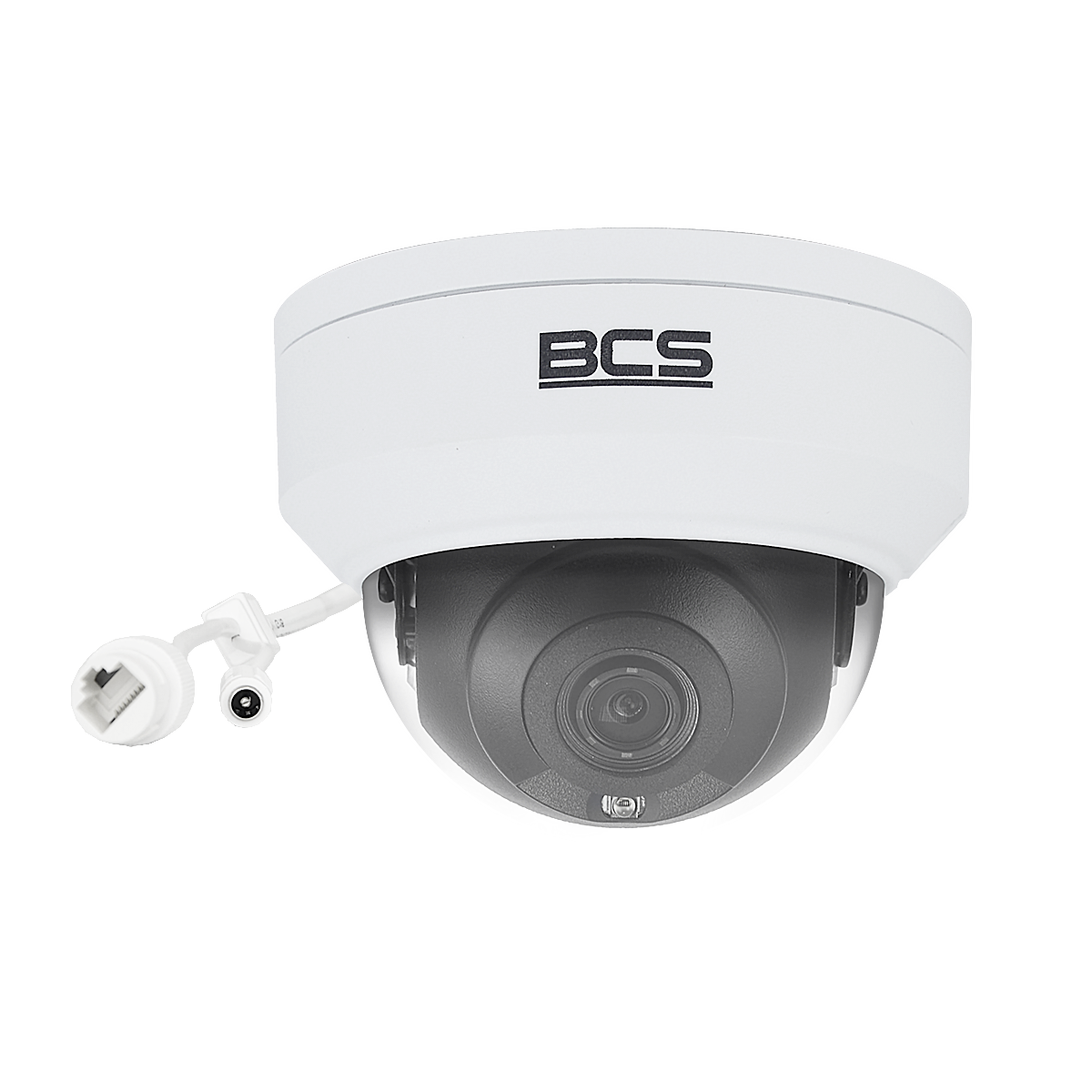

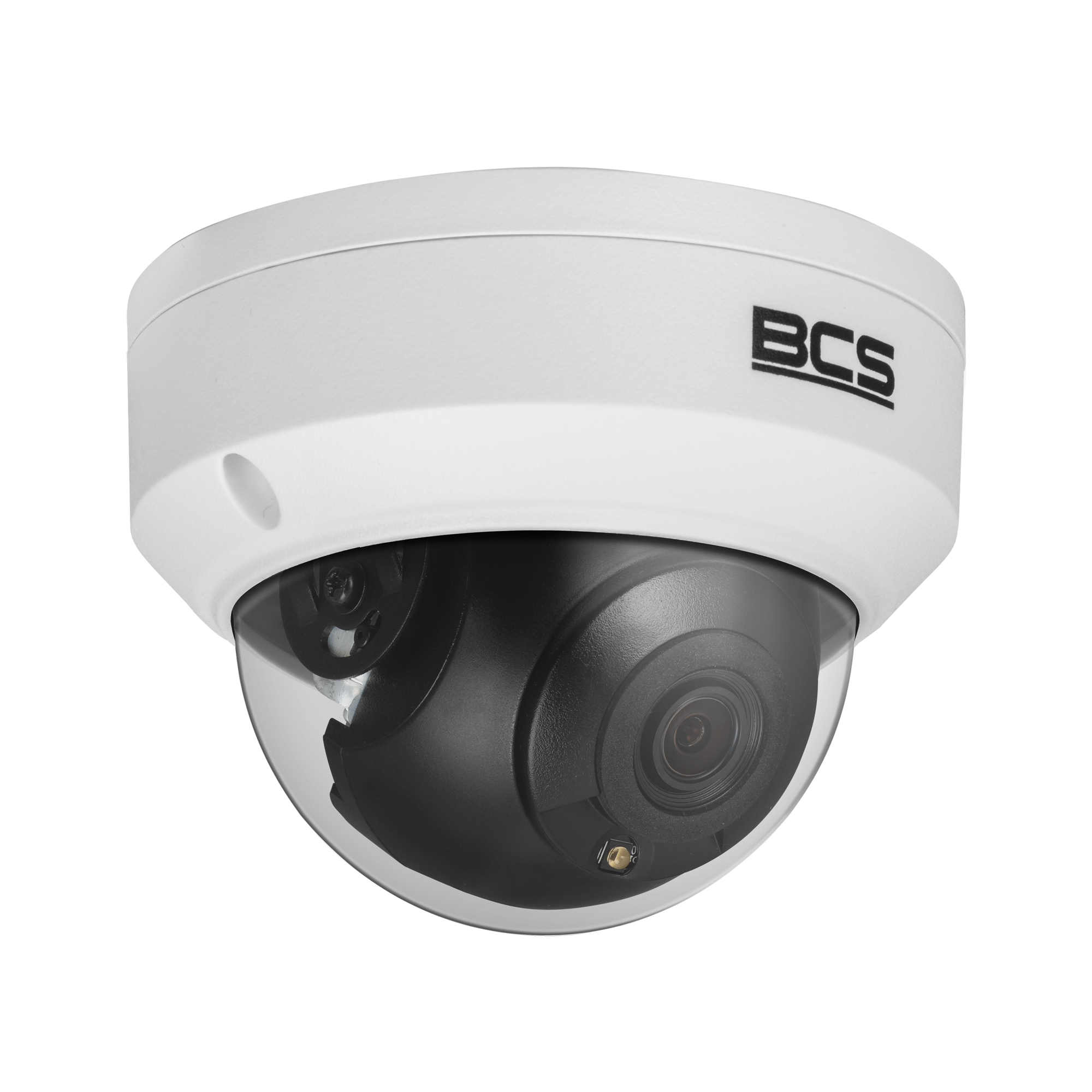

BCS-P-212R-E-II
92,25 € gross
Out of Stock- 2Mpx dome IP camera
- 1/2.7" PS CMOS sensor
- NDAA compliant
- 2.8mm fixed lens
- IR 30m
- IP67, IK10 housing
Out of stock
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.
| Product | BCS-P-212R-E-II |
|---|---|
| Camera type | Dome |
| Resolution | 2 Mpx |
| Sensor | 1/2.7'' CMOS |
| Scanning system | Progressive Scan |
| Pixels | 1920(H)×1080(V) |
| Lens | fixed |
| Focal length | 2.8 mm |
| Aperture | F2.0 |
| Focus | fixed |
| Iris | fixed |
| Digital zoom | 16× |
| Angle of view | H: 112.7° V: 60.1° |
| DORI | Detect 47m / Observe 19m / Recognize 9m / Identify 5m |
| Min illumination | 0.02Lux(F2.0,AGC) 0Lux(B/W,IR) |
| S/N ratio | 52dB |
| White balance | (AWB) Auto / manual |
| WDR | DWDR |
| Backlight compensation | BLC / HLC / DWDR |
| Shutter | Auto / manual 1~1/100000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 2D/3D DNR |
| Image rotate | Mirror, Flip 0°/90°(corridor mode)/180°/270° |
| Stream support | 2 |
| Resolutions | 2M(1920×1080) / 720P(1280×720) / D1(704×576) / (640×360) / 2CIF(704×288) / CIF(352×288) |
| Main stream | 1920×1080@30fps 1280×720@30fps |
| Second stream | 1280×720@30fps 704×576@30fps 640×360@30fps 704×288@30fps 352×288@30fps |
| Bitrate | 128Kbps~6144kbps |
| Video compression | H.265 / H.265+ / H.264 / H.264+ / MJPEG |
| Day/night | ICR |
| Illuminator type | IR LED |
| IR range | 30m |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | 4 |
| Privacy masking | 4 |
| Network | RJ-45 10/100Mbps |
| Compatibility | ONVIF |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
| Power supply | PoE |
| Power supply type | 12V DC / PoE(802.3af) |
| Power consumption | max 4.5W |
| Housing color | White |
| IP class | IP67 |
| IK10 | Yes |
| Working environment | -30°C~+60°C max 95% RH |
| Dimensions | Ø109×81mm |
| Weight | 0.4kg |
