| Product | BCS-P-DMIP28FSR3L3-Ai2-G |
|---|---|
| ^Product line | BCS POINT |
| NDAA | National Defense Authorization Act |
| Camera type | Dome |
| Resolution | 8 Mpx |
| Sensor | 1/2.7'' CMOS |
| Scanning system | Progressive Scan |
| Pixels | 3840(H)×2160(V) |
| Lens | fixed |
| Focal length | 2.8 mm |
| Aperture | F1.6 |
| Focus | fixed |
| Iris | fixed |
| Angle of view | H: 104° V: 57.5° D: 121° |
| DORI | Detect 84m / Observe 33.6m / Recognize 16.8m / Identify 8.4m |
| Min illumination | 0.002Lux(F1.6,AGC) 0Lux(B/W,IR) |
| S/N ratio | 56dB |
| White balance | (AWB) Auto / manual |
| WDR | 130dB |
| Backlight compensation | BLC / HLC / WDR(130dB) |
| Shutter | Auto / manual 1~1/100000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 2D/3D DNR |
| RoI | Region of Interest |
| Defog | Digital |
| Image rotate | Mirror, Flip 0°/90°(corridor mode)/180°/270° |
| Stream support | 3 |
| Resolutions | 8M(3840×2160) / 5M(3072×1728) / 4M(2560×1440) / 2M(1920×1080) / 720P(1280×720) / D1(720×576) / (640×360) / 2CIF(704×288) / CIF(352×288) |
| Main stream | 3840×2160@30fps 3072×1728@30fps 2560×1440@30fps 1920×1080@30fps 1280×720@30fps |
| Second stream | 1920×1080@30fps 1280×720@30fps 720×576@30fps 640×360@30fps 704×288@30fps 352×288@30fps |
| Third stream | 720×576@30fps 640×360@30fps 704×288@30fps 352×288@30fps |
| Bitrate | 128Kbps~16Mbps |
| Video compression | H.265 / H.265+ / H.264 / MJPEG |
| Day/night | ICR |
| Illuminator type | IR LED + WhiteLight |
| IR range | 30m |
| WhiteLight range | 30m |
| Microphone | Yes |
| Loudspeaker | Yes |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711A / G.711U / AAC |
| Alarm in | 1 |
| Alarm out | 1 |
| Storage | NAS(NFS) |
| Memory card slot | microSD 512GB |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detect | Yes |
| Privacy masking | 4 |
| Network | RJ-45 10/100Mbps |
| Compatibility | ONVIF(S/G/T/M) |
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, 802.1x, SNMP, QoS, SSL/TLS, SSH, HTTPS, SMTP |
| &Power supply | PoE |
| Power supply type | 12V DC / PoE(802.3af) |
| Power consumption | max 8.5W |
| Housing color | Graphite |
| IP class | IP67 |
| IK10 | Yes |
| Surge protection | 4kV |
| Working environment | -30°C~+60°C max 95% RH |
| Dimensions | Ø111.2×72.6mm |
| Weight | 0.46 kg |
| Casing | Metal |
| &Ai - Perimeter protection | Yes |
| &Ai - Object classification | Yes |
| &Ai - SMD | Yes |
| &Ai - People counting | Yes |
| ^Ai - Built-in intelligent functions | Built-in intelligent algorithm of image analisis |
| Ai - Perimeter protection | Crossline, intrusion |
| Ai - Human/vehicle detection | Recognition of people entering the area and crossing the line reduces false alarms. |
| Ai - People counting | People counting for intrusion and crossline, counting people in/out |
| ^Ai - SMD - Smart Motion Detection | Intelligent Ultra Motion Detection with human/vehicle recognition |

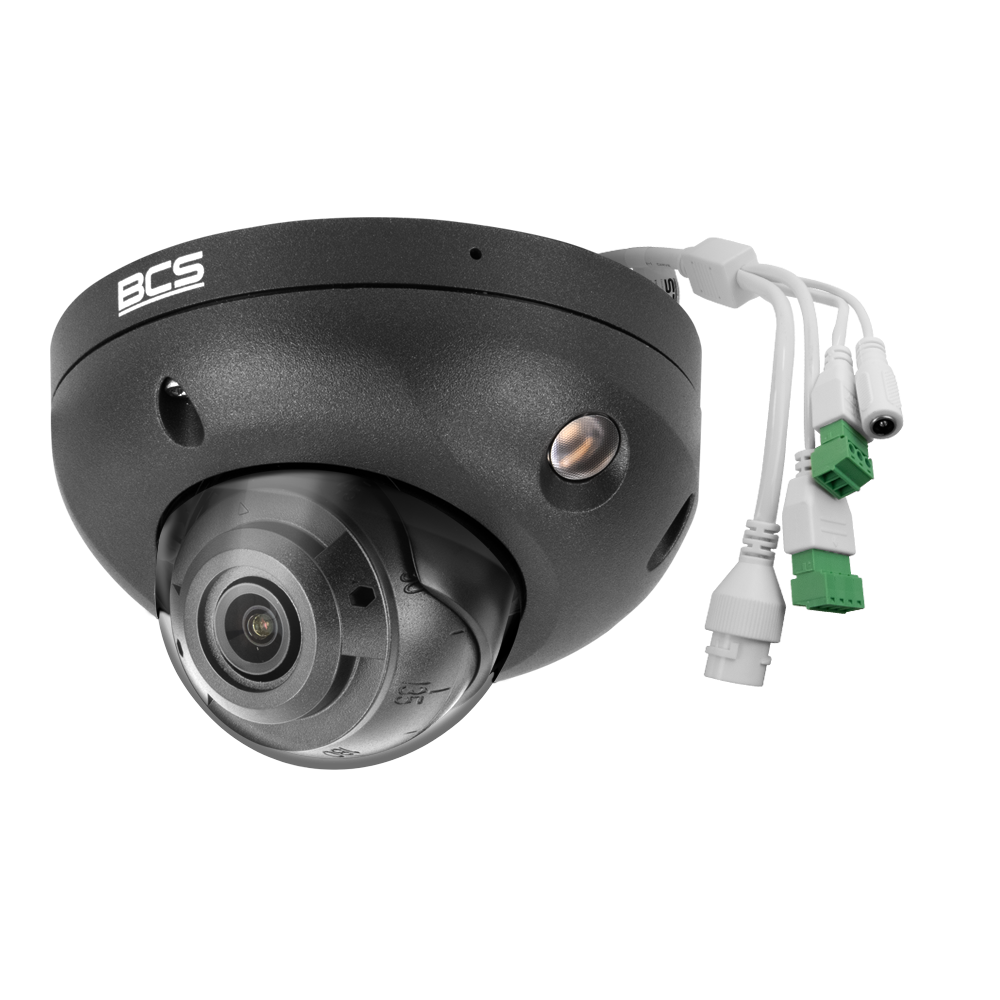

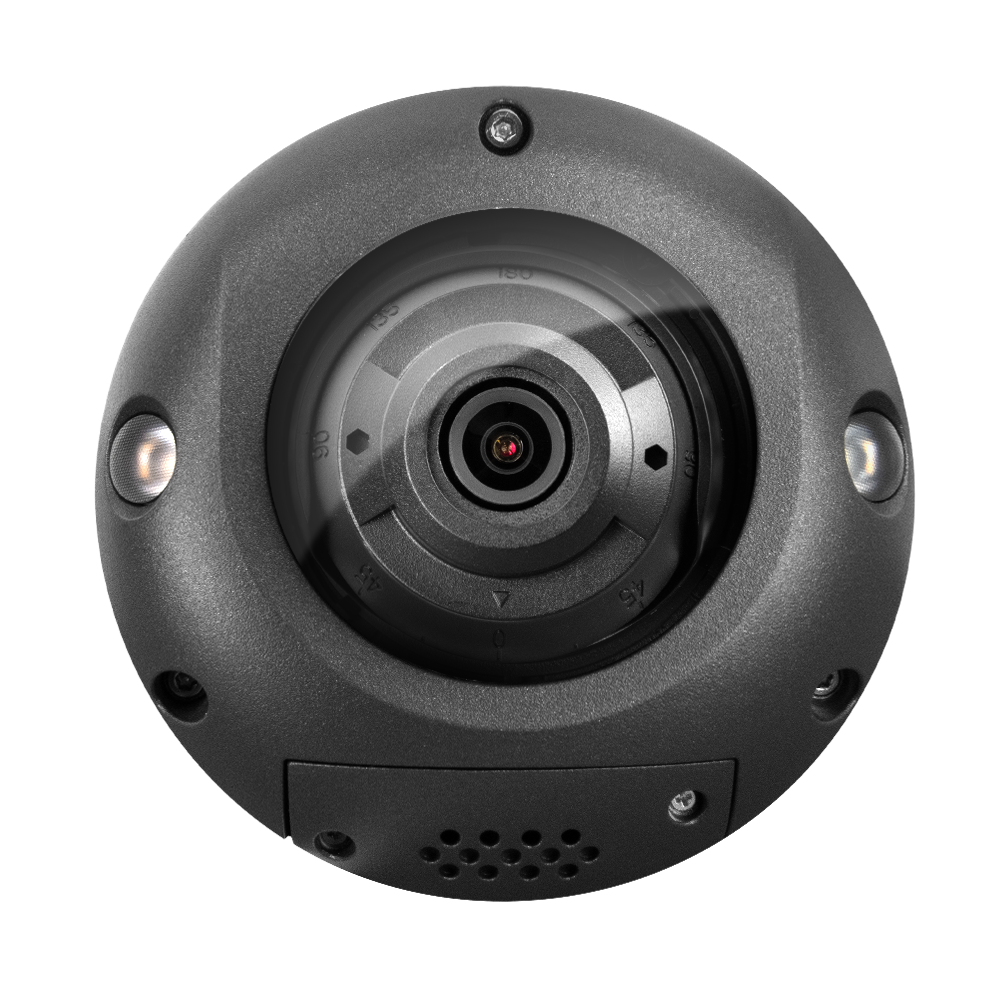

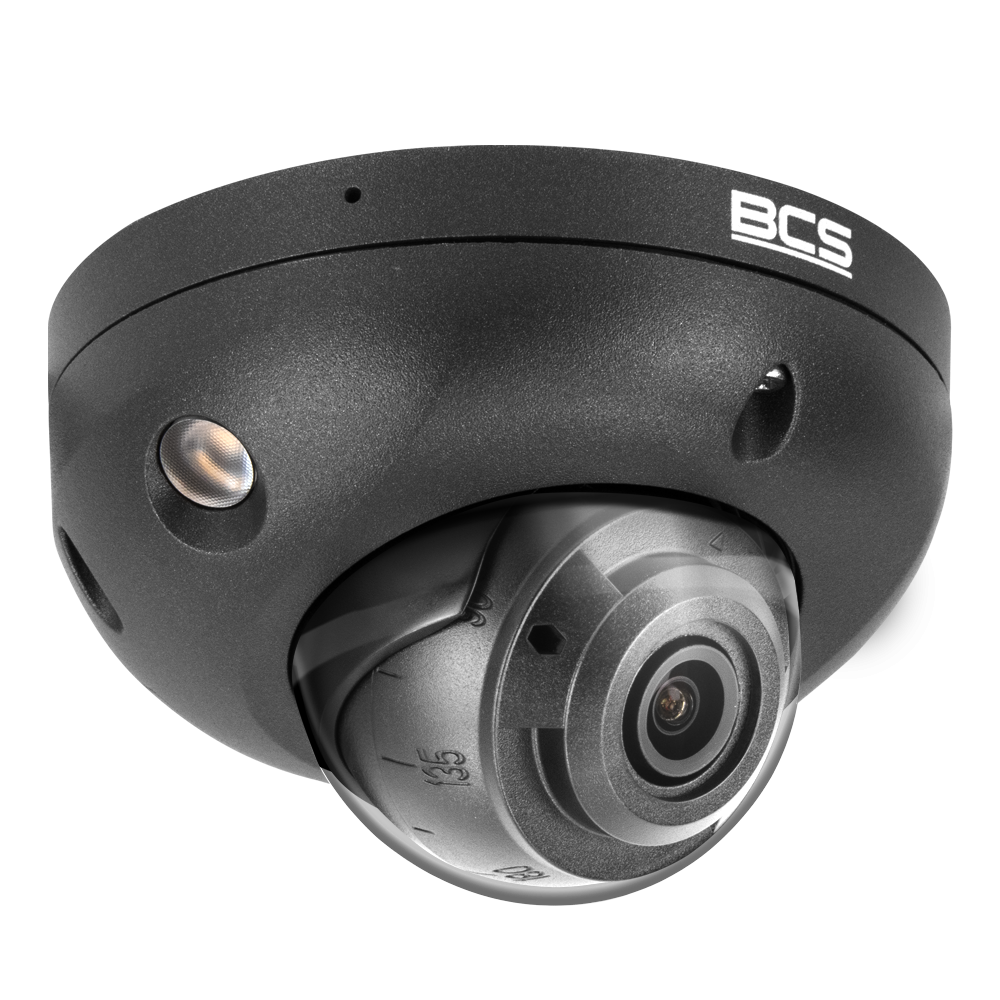

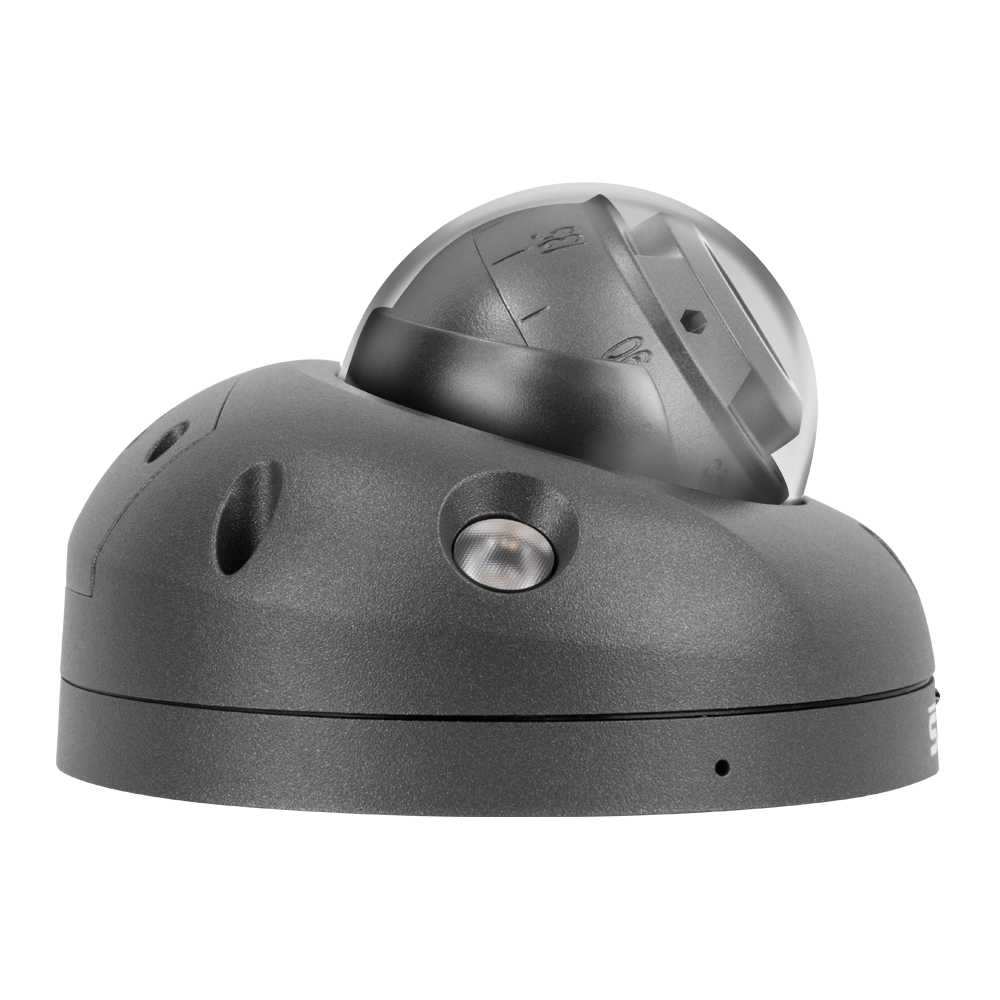

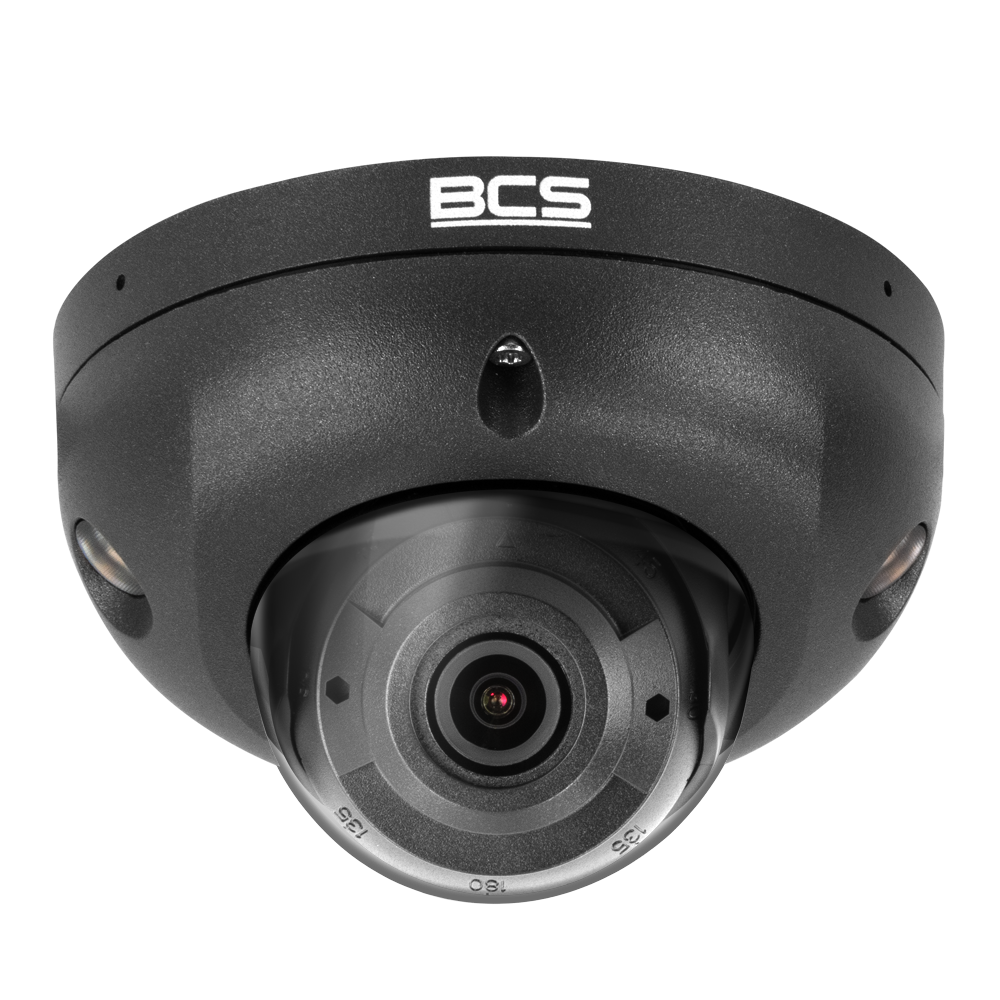

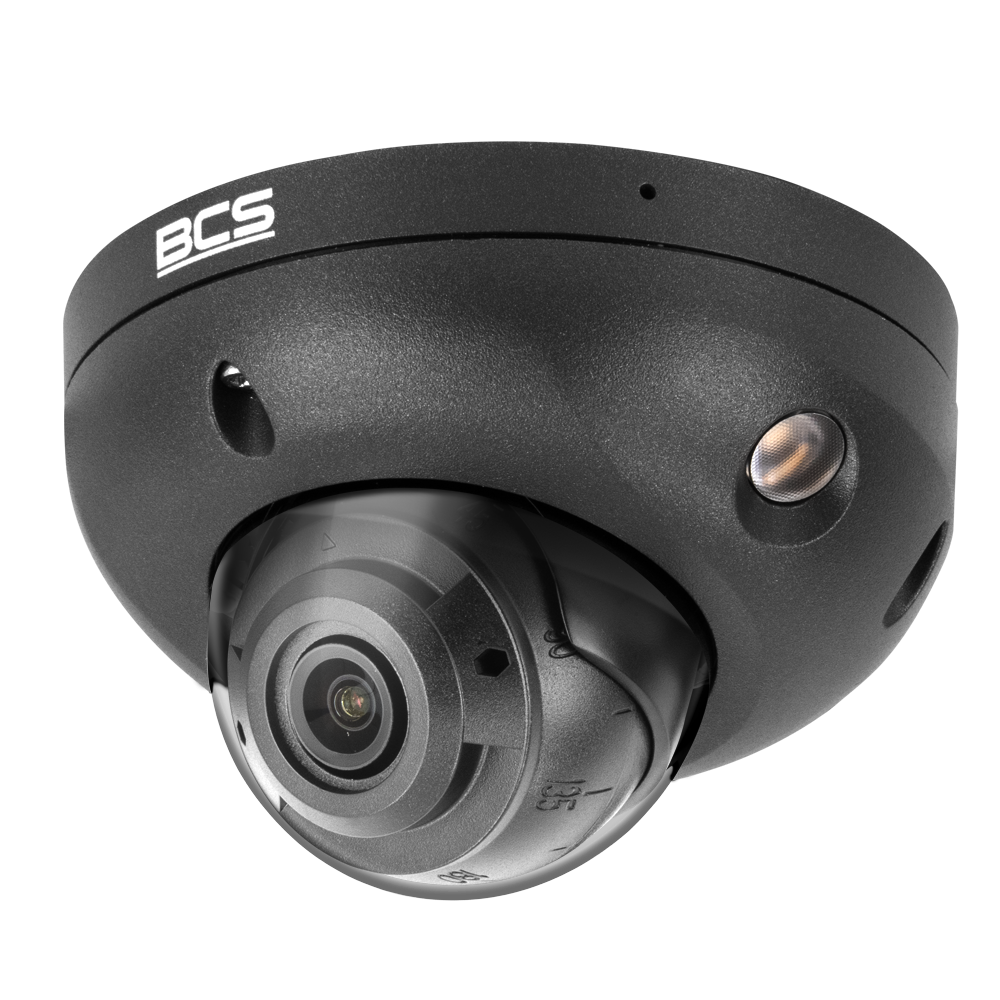

BCS-P-DMIP28FSR3L3-Ai2-G
355,47 € gross
49 In Stock- 8MP Dome IP Camera
- 1/2.7″ PS CMOS Sensor
- SkyLight Technology
- NDAA Compliant
- 2.8mm Fixed Lens
- WDR130dB
- IR 30m WhiteLight 30m
- Alarm 1/1, Audio 1/1, Microphone, Speaker
- IP67, IK10 Housing
- Built-in Smart Features
49 in stock
- DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
- Official BCS e-commerce Business Partner
- Technical support
