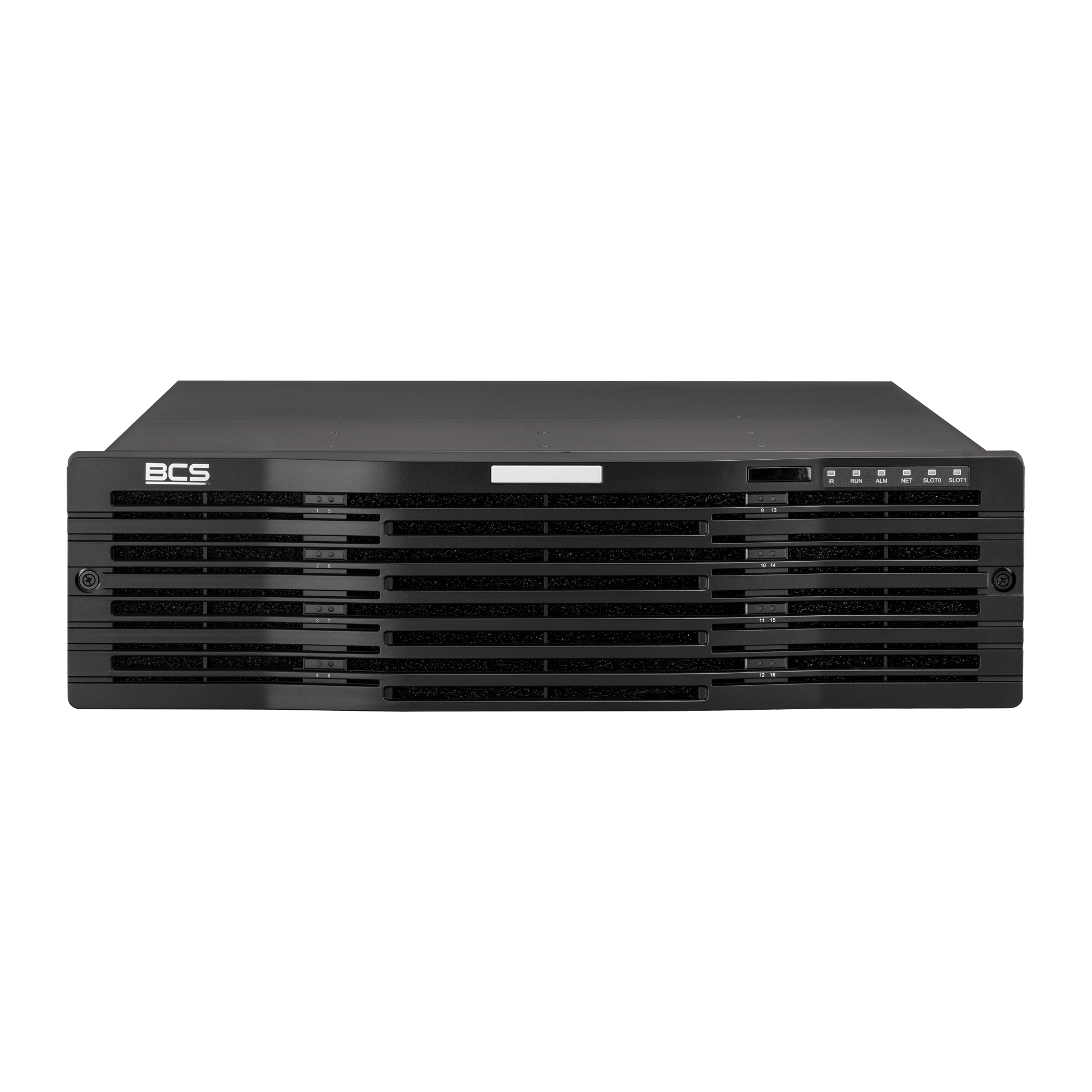

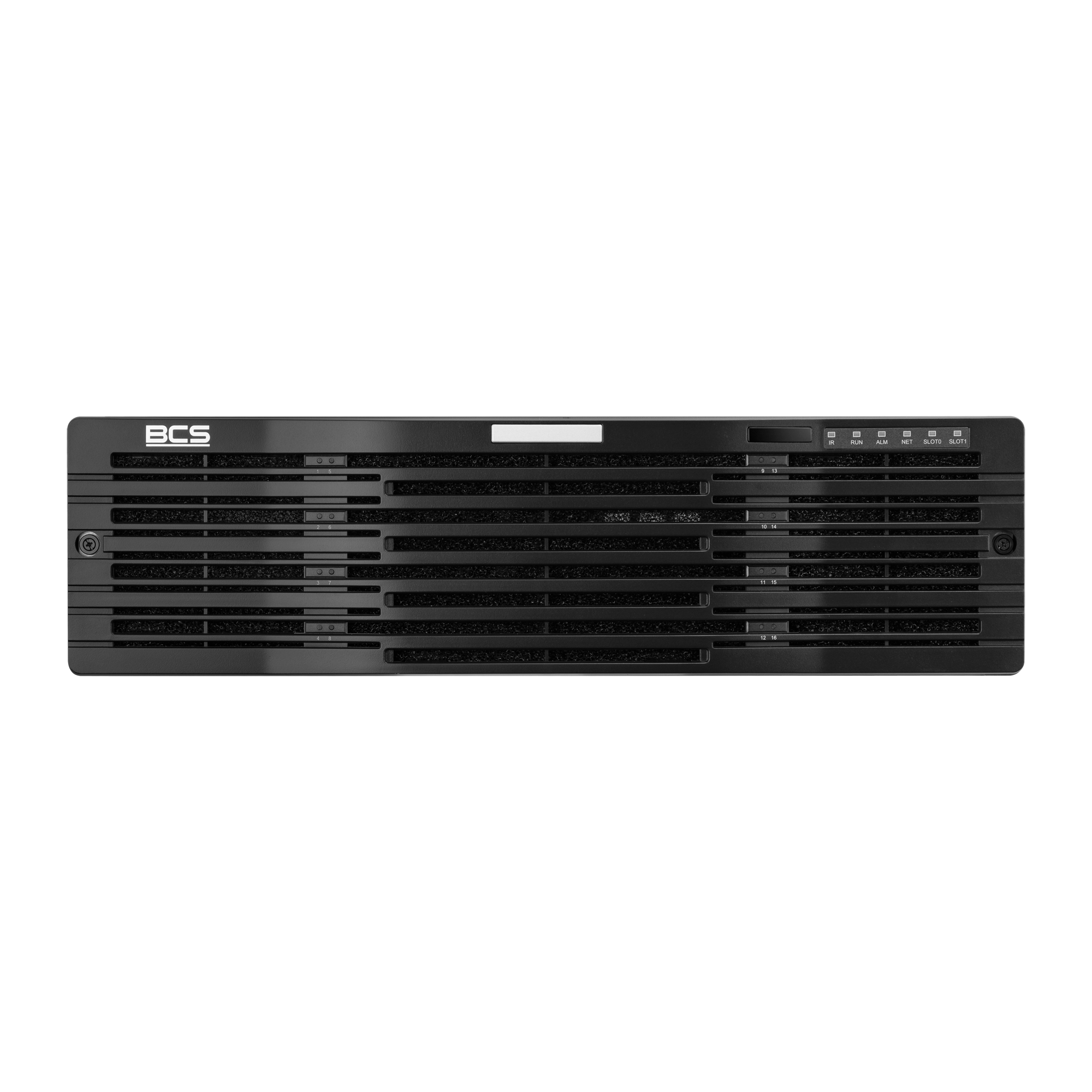

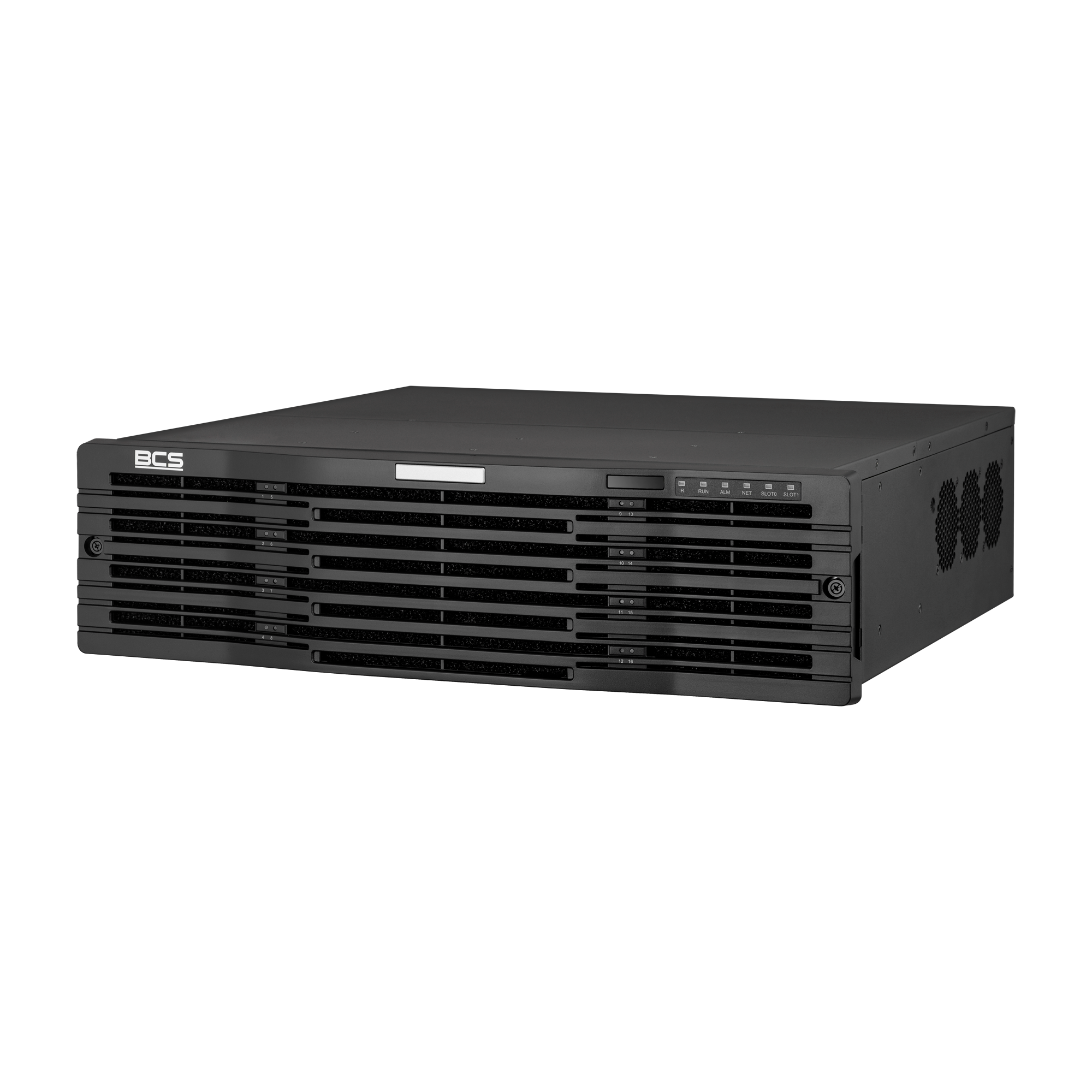

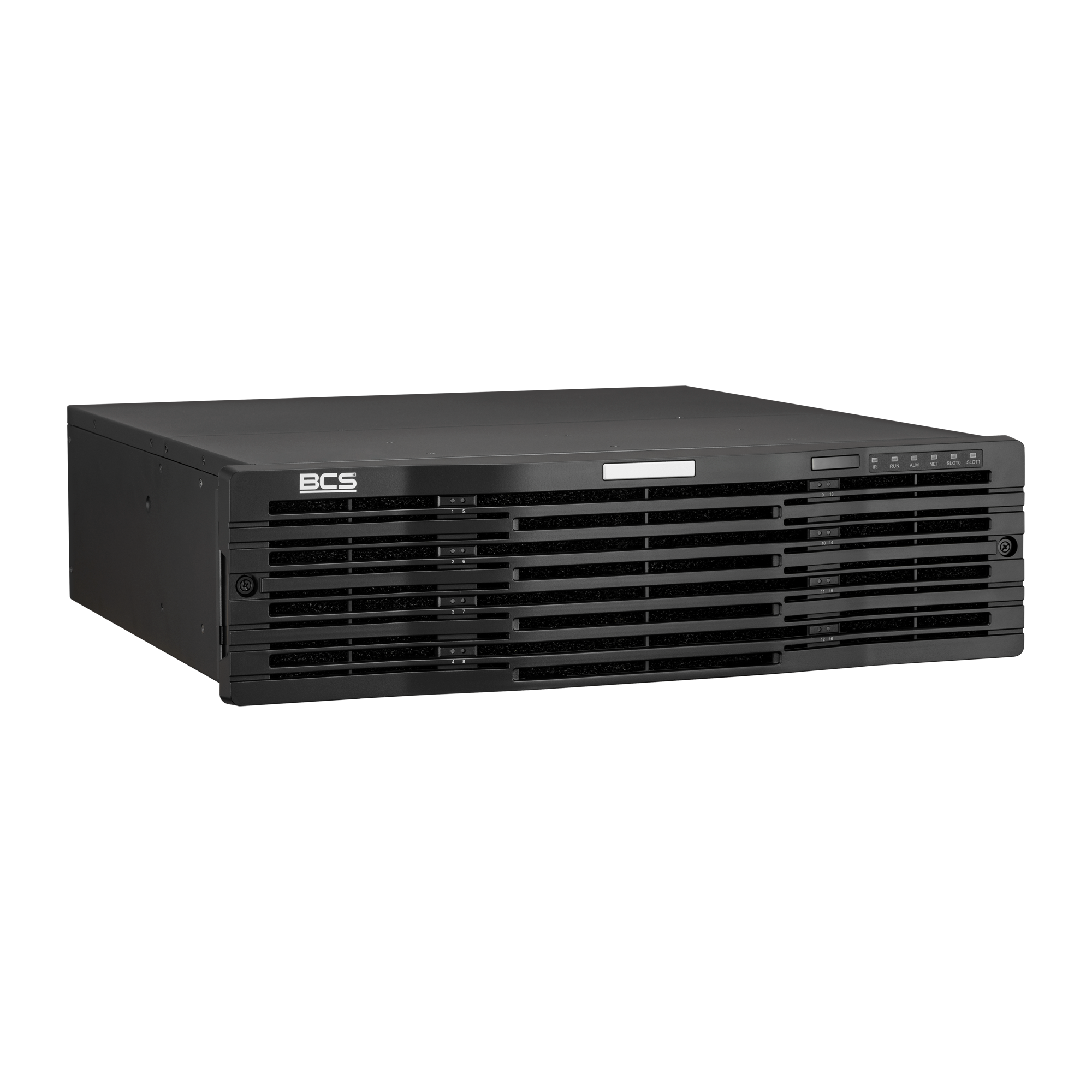

128-channel IP Recorder, BCS POINT series. Adapted to work with cameras with a maximum resolution of 12Mpx.
Warning: This product belongs to the BCS POINT product line.
Use only components and devices from the same line to ensure compatibility.
BCS POINT
BCS-P-NVR12816-4KR
5108,19 € gross
Out of Stock- 128-channel IP recorder
- Compliance with the NDAA
- Supports 16 hard drives
- RAID
- Support for 12Mpx IP cameras
- 24/8 alarm, 1/1 audio
- HDMI 4K/HDMI/VGA output
- Redundant power supply (second power supply optional)
Out of stock
This product is out of stock right now. Leave your e-mail and we will let you know when it is back — or propose an equivalent.
| Power consumption (without HDD) | max 50W |
|---|---|
| Ai - Intelligent functions from camera | Face detection, intrusion, crossline, SMD, object recognize human/vehicle, fire detection, temperature measurement, people counting, crowd density, metadata, LPR |
| Product | BCS-P-NVR12816-4KR |
| NDAA | National Defense Authorization Act |
| System | IP |
| Pentaplex function | Live view / recording / playback / archiving / remote access |
| Channels | 128 |
| HDD support | 16 |
| HDD capacity | 16 TB |
| &RAID | Yes |
| RAID type | 1/5 |
| Max recording resolution | 12 Mpx |
| Incoming bandwidth | 512Mbps |
| Outgoing bandwidth | 384Mbps |
| Display efficiency | 4×8M(30fps) / 16×2M(30fps) / 32×720p(30fps) / 64×D1(30fps) |
| Recording resolutions | 12M / 8M / 6M / 5M / 4M / 3M / 2M / 960p / 720p / D1 / 2CIF / CIF |
| Video compression | H.265+ / H265 / H.264+ / H.264 |
| HDMI out | HDMI4K/HDMI |
| VGA out | VGA |
| HDMI display resolutions | 3840×2160 / 1920×1080 / 1600×1200 / 1280×1024 / 1280×720 / 1024×768 |
| VGA display resolutions | 1920×1080 / 1600×1200 / 1280×1024 / 1280×720 / 1024×768 |
| Display split | 1/4/8/9/16/25/36/64 |
| Synchronous playback | 1/4/9/16 |
| Archiving | Possibility to download material to external media such as USB FLASH, USB HDD |
| User connections | 128 |

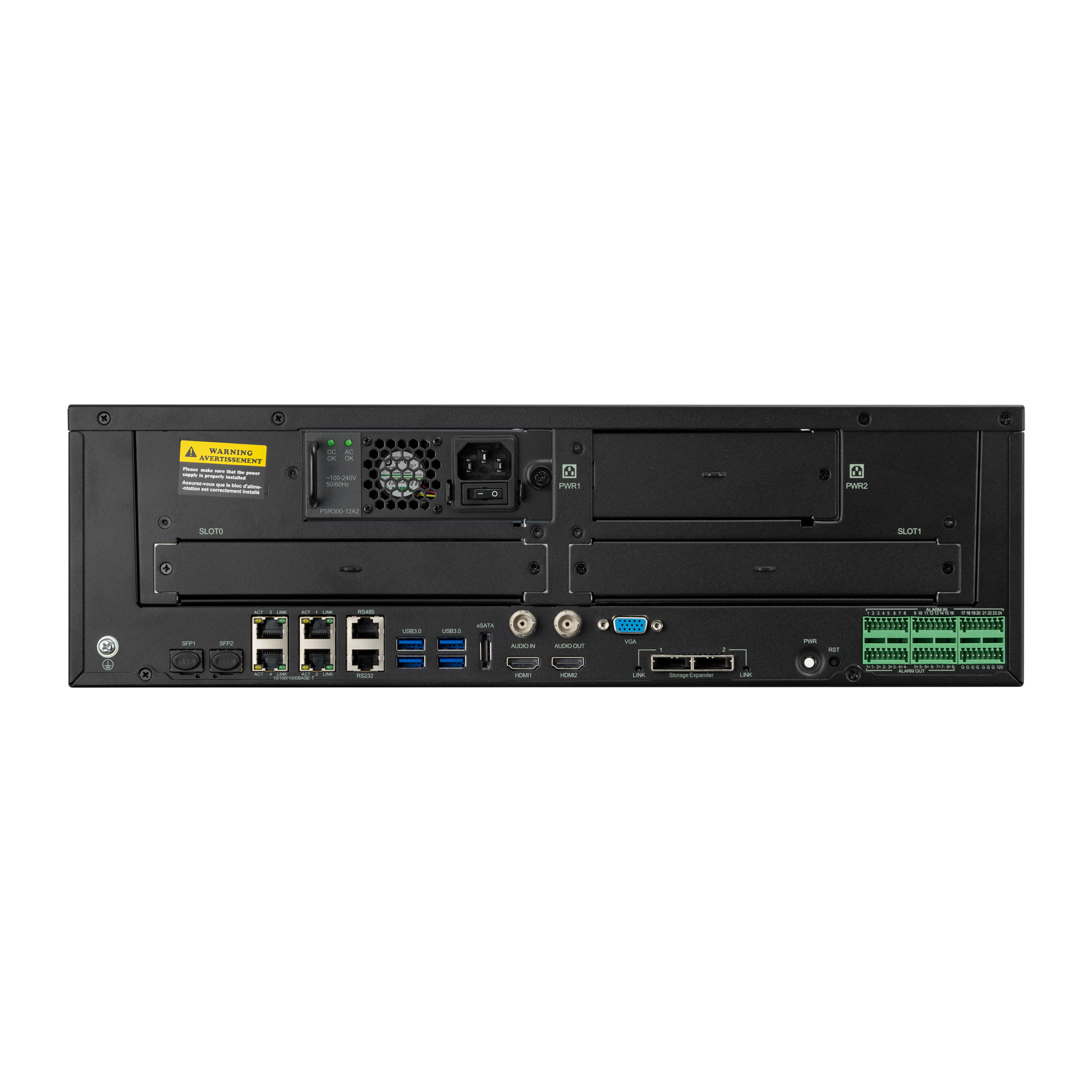

| Interfaces | 4×USB3.0, 2×miniSAS, eSATA, 12VDC out |
| Serial port | RS232, RS485 |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711A / G.711U |
| Alarm in | 24 |
| Alarm out | 8 |
| Support | Local, Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Network | 4×RJ-45 10/100/1000Mbps, 2×SFP 1000Mbps |
| Compatibility | ONVIF, support third party cameras |
| Protocols | HTTP,HTTPS,UPnP, RTSP,RTP, SMTP, NTP, DHCP, DNS,IP Filter, PPPoE, DDNS, FTP, IP Server, P2P |
| Power supply | 2× 100~240V AC |
| Working environment | -10°C~+55°C max 90% RH |
| Casing | 3U |
| Dimensions (W×D×H) | 482×477×131mm |
| Weight (without HDD) | 10 kg |
