| Weight (without HDD) | 0.98 kg |
|---|---|
| System | IP |
| Channels | 16 |
| Max recording resolution | 8 Mpx |
| Power consumption (without HDD) | max 6W |
| Recording resolutions | 8M / 6M / 5M / 4M / 3M / 2M / 960p / 720p / D1 / 2CIF / CIF |
| Product | BCS-P-NVR1601-4K(3) |
| NDAA | National Defense Authorization Act |
| Pentaplex function | Live view / recording / playback / archiving / remote access |
| HDD support | 1 |
| HDD capacity | 8 TB |
| Incoming bandwidth | 80Mbps |
| Outgoing bandwidth | 64Mbps |
| Display efficiency | 4×8M(30fps) / 6×5M(30fps) / 8×4M(30fps) / 9×4M(25fps) / 10×3M(30fps) / 16×2M(30fps) |
| Video compression | H.265+ / H265 / H.264+ / H.264 |
| HDMI out | HDMI4K |
| VGA out | VGA |
| HDMI display resolutions | 3840×2160 / 1920×1080 / 1600×1200 / 1280×1024 / 1280×720 / 1024×768 |
| VGA display resolutions | 1920×1080 / 1600×1200 / 1280×1024 / 1280×720 / 1024×768 |
| Display split | 1/4/6/8/9/16 |
| Synchronous playback | 1/4/9/16 |
| Archiving | Possibility to download material to external media such as USB FLASH, USB HDD |
| User connections | 128 |

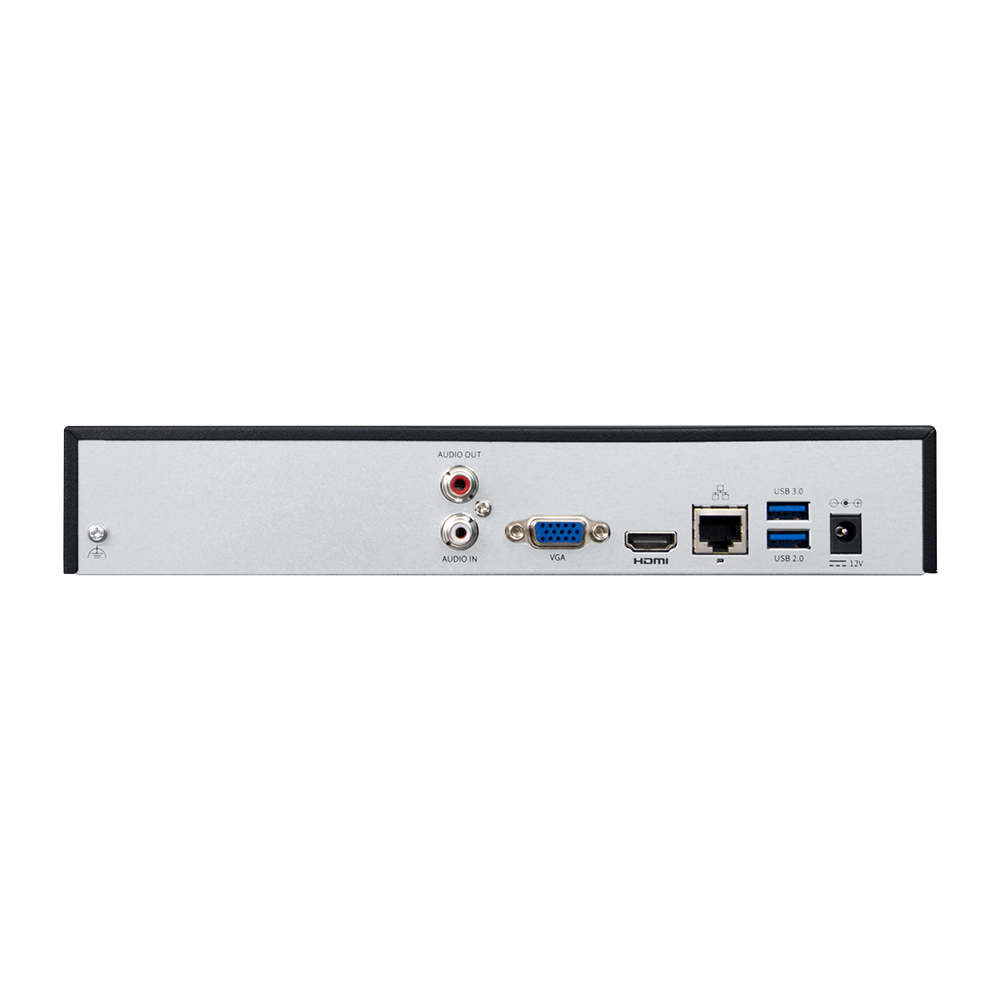

| Interfaces | 1×USB2.0, 1×USB3.0 |
| Audio in | 1 |
| Audio out | 1 |
| Audio compression | G.711A / G.711U |
| Support | Local, Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Network | RJ-45 10/100Mbps |
| Compatibility | ONVIF(S/G/T), support third party cameras |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP |
| Power supply | 12V DC |
| Working environment | -10°C~+55°C max 90% RH |
| Casing | 1U |
| Dimensions (W×D×H) | 260×222×47mm |
Warning: This product belongs to the BCS POINT product line.
Use only components and devices from the same line to ensure compatibility.
BCS POINT
BCS-P-NVR1601-4K(3)
239,85 € gross
29 In Stock- 16-channel IP recorder
- Compliance with the NDAA
- Supports 1 hard disk
- Supports 8Mpx IP cameras
- Audio 1/1
- HDMI 4K/VGA output
29 in stock
- DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
- Official BCS e-commerce Business Partner
- Technical support
