BCS — Est. 2008 Decades of expertise A diverse portfolio developed across Europe

Warning: This product belongs to the BCS POINT product line.
Use only components and devices from the same line to ensure compatibility.

Save 63%

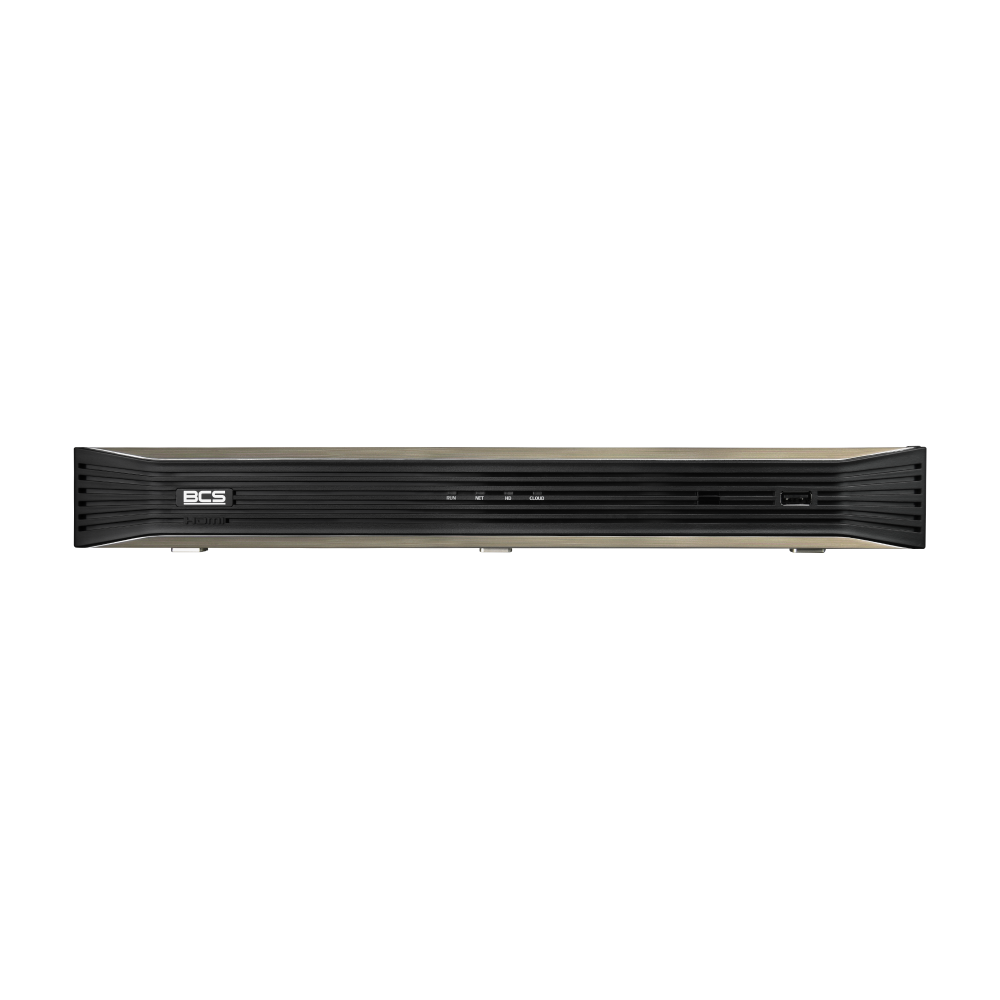

BCS-P-NVR1602-A-4K-16P(5L)

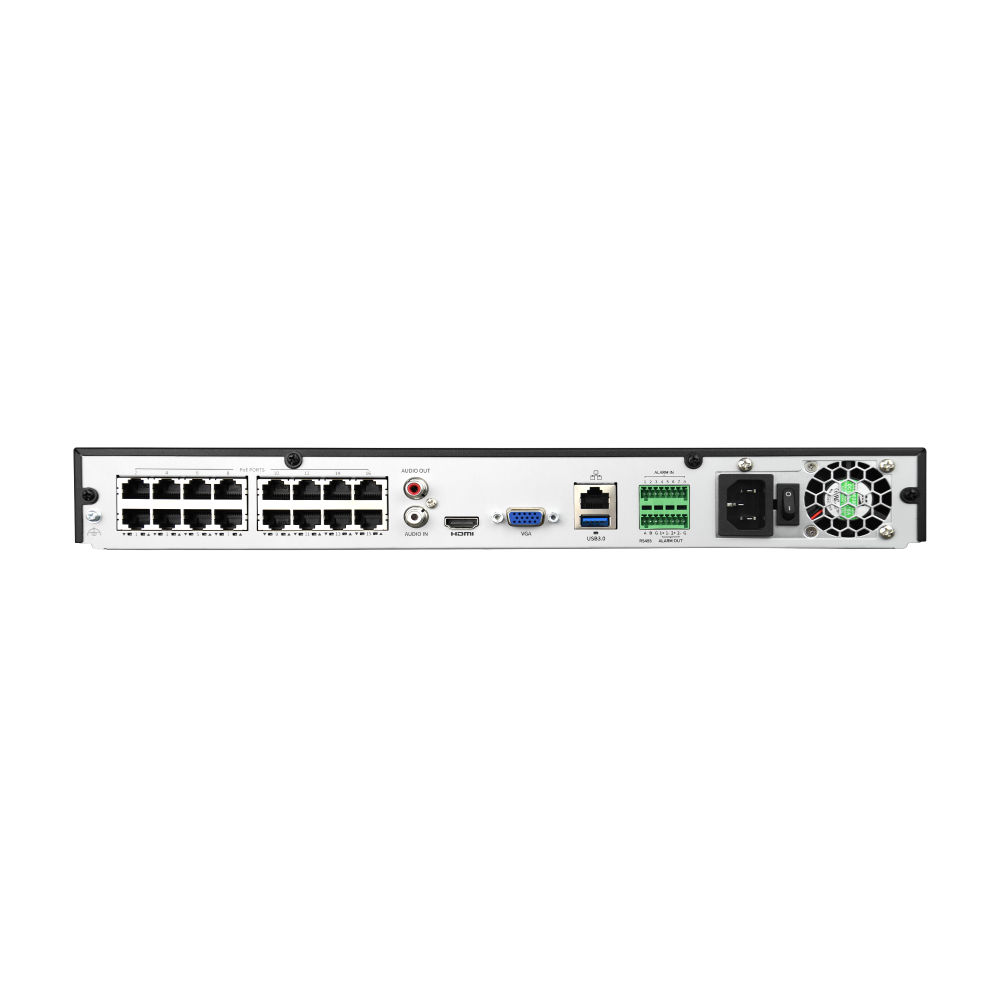

BCS-P-NVR1602-A-4K-16P(5L) - Image 2
BCS POINT

BCS-P-NVR1602-A-4K-16P(5L)

232,90 € gross

14 In Stock
  • 16-channel IP recorder
  • NDAA compliance
  • Built-in 16-port 240W PoE switch
  • Supports 2 hard drives
  • Supports 16Mpx IP cameras
  • 8/2 alarm channels, 1/1 audio channels
  • HDMI 4K/VGA output

14 in stock

  • DPD across Europe & worldwide — free in the EU from 1000,00 € (ex. VAT)
  • Official BCS e-commerce Business Partner
  • Technical support
SKU: 12657 Categories: , , ,
Power consumption (without HDD)

max 20W
Ai - Intelligent functions from camera

Face Detection/Comparison, Vehicle Detection, SIP(Intrusion/Cross Line, Enter/Leave Area), Ultra Motion Detection(UMD), Temperature(Fire/Smoking/Measurement/Smoke/Fire Detection), People Counting(People Flow, Crowd Density), Video Metadata, Traffic
Product

BCS-P-NVR1602-A-4K-16P(5L)
NDAA

National Defense Authorization Act
System

IP
Pentaplex function

Live view / recording / playback / archiving / remote access
Channels

16
HDD support

2
HDD capacity

16 TB
&RAID

Yes
RAID type

1
ANR

Automatic synchronization of recordings from the camera's microSD card after the connection is lost and restored.
Max recording resolution

16 Mpx
Incoming bandwidth

320Mbps
Outgoing bandwidth

160Mbps
Display efficiency
Recording resolutions

16M / 12M / 8M / 6M / 5M / 4M / 3M / 2M / 960p / 720p / D1 / 2CIF / CIF
Video compression

H.265+ / H265 / H.264
HDMI out

HDMI4K
VGA out

VGA
HDMI display resolutions

3840×2160 / 1920×1080 / 1600×1200 / 1280×1024 / 1280×720 / 1024×768
VGA display resolutions

1920×1080 / 1600×1200 / 1280×1024 / 1280×720 / 1024×768
Display split

1/4/6/8/9/16 (3/4/5/7/9/10/12/16 corridor mode)
Synchronous playback

1/4/9/16
Archiving

Possibility to download material to external media such as USB FLASH, USB HDD
User connections

128
Interfaces

1×USB2.0, 1×USB3.0
Serial port

RS485
Audio in

1
Audio out

1
Audio compression

G.711A / G.711U
Alarm in

8
Alarm out

2
Support

Local, Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android)
Network

RJ-45 10/100/1000Mbps
Compatibility

ONVIF(S/G/T), support third party cameras
Protocols

TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPV6
Standard

IEEE 802.3 af/at
Switch PoE power

240W max 30W/port
PoE channels

16
Power supply

100~240V AC
Working environment

-10°C~+55°C max 90% RH
Casing

1U
Dimensions (W×D×H)

380×322×53mm
Weight (without HDD)

2.7 kg
